RS PRO 2050084 Instruction Manual

Multi media cable tester
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
2050084
Multi Media Cable Tester

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2050084 and is the answer not in the manual?

Questions and answers

Related Manuals for RS PRO 2050084

Summary of Contents for RS PRO 2050084

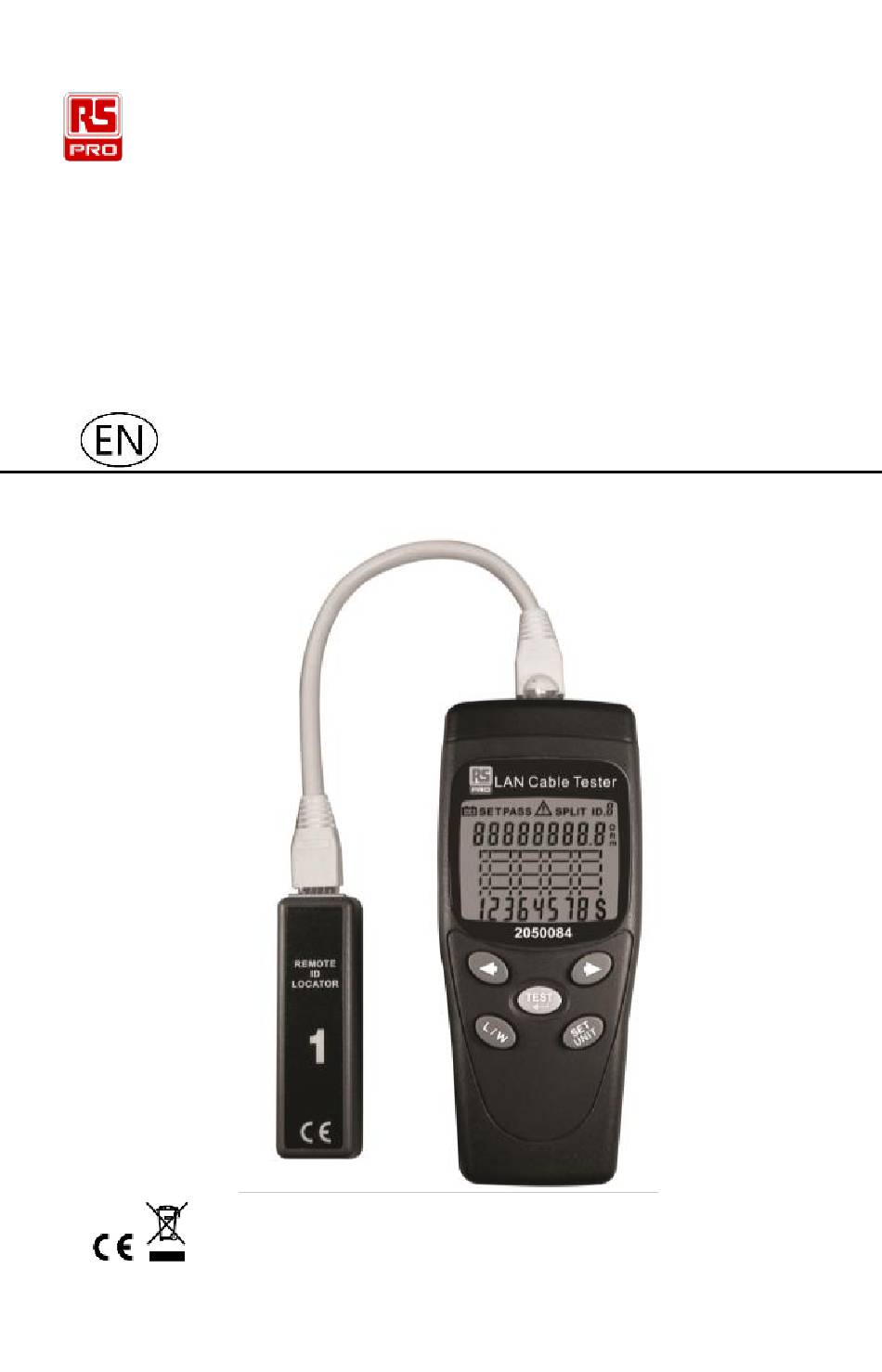

  • Page 1 Instruction Manual 2050084 Multi Media Cable Tester...

  • Page 2: Table Of Contents

    Multi Media Cable Tester / English Contents Introduction EN-2 Features EN-2 General Specification EN-2 Instrument Description EN-3 LCD display EN-4 Safety EN-4 Operation EN-5 Battery Replacement EN-10 Limited Warranty EN-11 Contact information 2020-10-12/ V001 EN-1...

  • Page 3: Introduction

    Multi Media Cable Tester / English Introduction: 2050084 is a hand-held test instrument that lets you verify and troubleshoot the LAN cable. Detects opens, shorts, mis-wires and split pairs on twisted pair cabling. Features: ⚫ LCD display with automatic backlight.

  • Page 4: Instrument Description

    Multi Media Cable Tester / English ⚫ Battery life: About continuous testing 200 times. ⚫ Dimension: (LxWXH): 156m x 37mm x 35mm. ⚫ Weight: Approx. 170g with battery ⚫ Accessories: Manual, 9V battery, carrying bag, CAT5 STP cable and remote ID(1) Instrument description: 1.

  • Page 5: Lcd Display

    Multi Media Cable Tester / English LCD display: 1. Displays graph wiremap , opens, shorts, miswires, split pairs. 2. Displays Length and Unit. 3. Lower battery indication. 4. Enter the SETUP mode symbol. 5. Result displays, Pass, , split. 6. Displays remote ID number. Safety: CAUTION Be extremely careful for the following...

  • Page 6: Operation

    Multi Media Cable Tester / English ⚫ In order to avoid the damage caused by contamination or static electricity, do not touch the circuit board before you take any adequate action. ⚫ Operating Environment is for indoors use only. The meter was designed for being used in an environment of pollution degree 2.
  • Page 7 Multi Media Cable Tester / English 4. LCD displays the test result. The following figures show typical test results for twisted pair cabling. Any error occurs will show symbol on LCD. Opens: Figure shows an open pair wire 4 and 5. Shorts: Figure shows tow short between wires 3, 4 and 5, another 1 and 8.
  • Page 8 Multi Media Cable Tester / English Miswires: Figure shows that wires 3 and 4 are crossed. The pin numbers order to indicate the fault. Split Pair The following figure shows a split pair on 3, 6 and 4, 5. The split pair flashes to indicate the fault. LCD will show “SPLIT”...
  • Page 9 Multi Media Cable Tester / English Length measurement Press to turn the power on. Press to enter the length measurement. Press to select the tested pairs and show the length. Press repeatedly to change the units of ft or m. Press to exit this function.
  • Page 10 Multi Media Cable Tester / English Auto Power on/off again to In this mode, press enter this function. Press to select on/off. Press to set and exit. Backlit on/off to enter In this mode, press this function. Press to select on/off. Press to set and exit.

  • Page 11: Battery Replacement

    Multi Media Cable Tester / English Press to set and exit the setting mode. Using Multiple Remote ID Locators The multiple remote ID locators (1 ~ 8) helps you to identify multiple network cable connections, as shown in Figure. The display in Figure shows that the verifier is connected to the cable terminated with remote ID locator number 3.

  • Page 12: Limited Warranty

    Multi Media Cable Tester / English Limited Warranty: This meter is warranted to the original purchaser against defects in material and workmanship for 3 year from the date of purchase. During this warranty period, RS Components will, at its option, replace or repair the defective unit, subject to verification of the defect or malfunction.

  • Page 13: Contact Information

    Multi Media Cable Tester / English Contact information: Japan Africa RS Components Ltd. RS Components SA West Tower (12th Floor), P.O. Box 12182, Yokohama Business Vorna Valley, 1686 Park, 20 Indianapolis Street, 134 Godocho, Hodogaya, Kyalami Business Park, Yokohama, Kanagawa Kyalami, Midrand 240-0005 South Africa...
