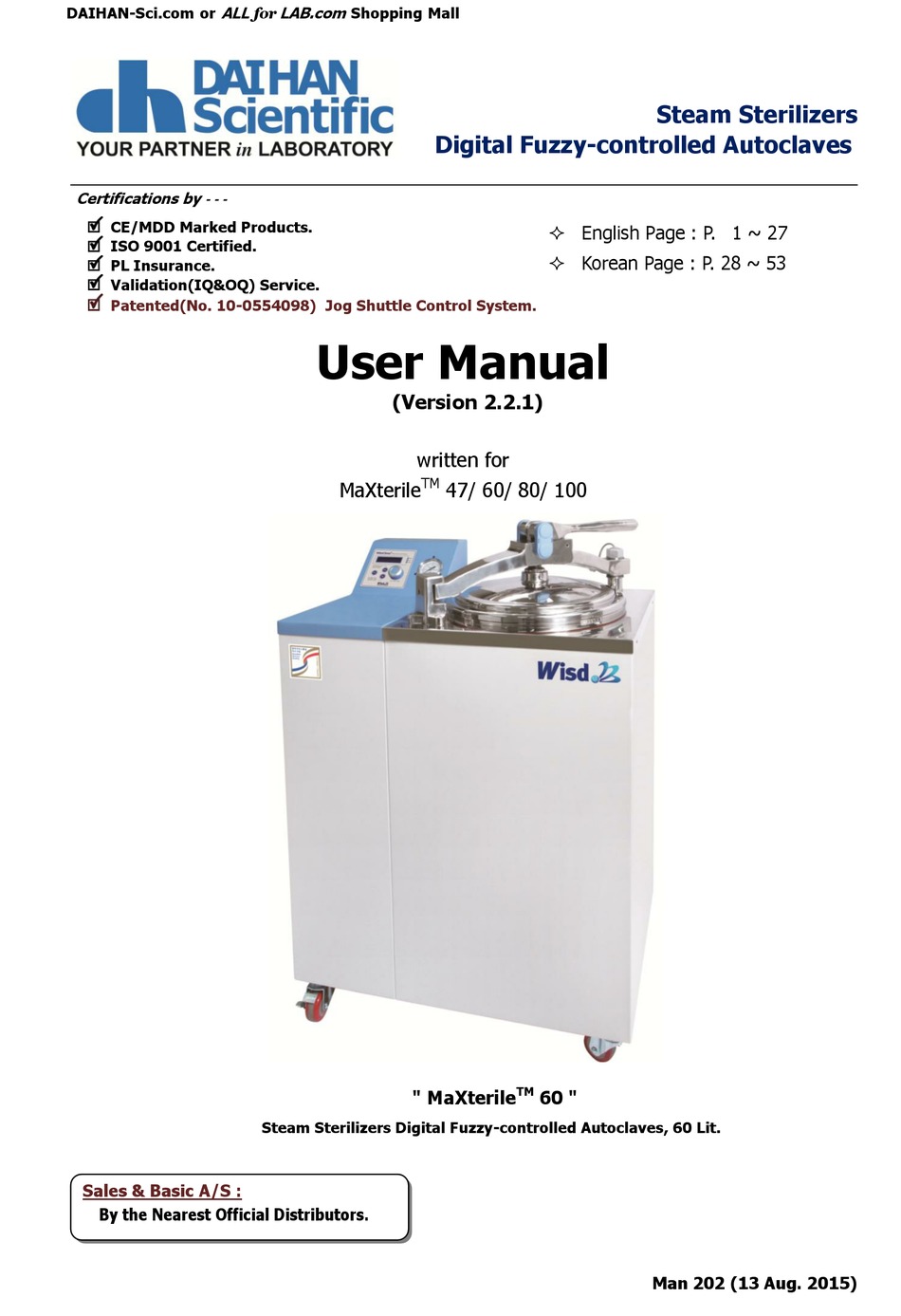

Steam Sterilizers Digital Fuzzy-controlled Autoclaves, 60 Lit.
Digital Fuzzy-controlled Autoclaves
English Page : P. 11 ~ 27
Korean Page : P. 28 ~ 53
47/ 60/ 80/ 100
TM
60 "
Steam Sterilizers
Man 202 (13 Aug. 2015)
Advertisement
Table of Contents
Summary of Contents for DAIHAN MaXterileTM 47
- Page 1 LAB.com DAIHAN-Sci.com or Shopping Mall Steam Sterilizers Digital Fuzzy-controlled Autoclaves Certifications by - - - CE/MDD Marked Products. English Page : P. 11 ~ 27 ISO 9001 Certified. Korean Page : P. 28 ~ 53 PL Insurance. Validation(IQ&OQ) Service.
- Page 2 93/42/EEC, with the exemption of section 4 Signed: ____________________________ (Eun Taek Shu) Date: 27, March 2015 Authority: President / CEO DAIHAN Scientific Co., Ltd., Daihan Bldg., 24-4, Sangwolgok-dong, Seongbuk-gu, Seoul, Korea. Tel: 82-2-967-5235, Fax: 82-2-963-5231 DH-DC08005-R03 DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 2/53...
- Page 3 EMC Directive 2004/108/EC Signed: ____________________________ (Eun Taek Shu) Date: 27, March 2015 Authority: President / CEO DAIHAN Scientific Co., Ltd., Daihan Bldg., 24-4, Sangwolgok-dong, Seongbuk-gu, Seoul, Korea. Tel: 82-2-967-5235, Fax: 82-2-963-5231 DH-DC10037-R03 DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 3/53...
-
Page 4: Table Of Contents
3.3 Usage Instructions .................. 18 4. Products Management Methods 4.1 Accessories .................... 24 4.2 Maintenance and Management ..............25 4.3 Troubleshooting ..................26 5. Product Assurance 5.1 Quality Assurance ................... 27 DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 4/53... -
Page 5: General
This symbol indicates power “OFF” on the power on/off switch. This symbol indicates power “ON” on the power on/off switch. This symbol indicates the connection point of the neutral conductor on the installed unit. This symbol indicates alternating current Voltage. DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 5/53... -
Page 6: Product Introduction
80℃ or more, and the safety for the user is provided. Two Wire Baskets suitable to each Model are supported. The safety is demonstrated by the safety certification of CE-MDD(Medical Device Directive) medical devices. PL(Product Liability) Insurance DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 6/53... -
Page 7: Product Configuration
47 : Steam Sterilizers, Digital Fuzzy-controlled Autoclaves, 47Liter. - MaXterile 60 : Steam Sterilizers, Digital Fuzzy-controlled Autoclaves, 60Liter. - MaXterile 80 : Steam Sterilizers, Digital Fuzzy-controlled Autoclaves, 80Liter. - MaXterile 100 : Steam Sterilizers, Digital Fuzzy-controlled Autoclaves, 100Liter. DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 7/53... -
Page 8: Installation
9. If such a big power supply line is not available in the room where the unit is installed, you have to contact the appropriate person who is in charge of electric facilities in your company or organization. DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 8/53... - Page 9 3.1 Precautions for Use Product Liability (PL) Insurance Admission DAIHAN Scientific (Co., Ltd.) is a member of Product Liability Insurance (PL Insurance), so that its customers can trust our products, (believe and use its products,) by preparing against the accident which can be occurred during using the products by self-production.
-
Page 10: Product Specifications
173 kg 173 kg 1Phase - AC 120V, 60Hz or 1Phase - AC 120V, 60Hz or Power Supply - AC 230V, 50/60Hz - AC 230V, 50/60Hz 3 Phase with Terminal Block DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 10/53... - Page 11 LAB.com DAIHAN-Sci.com or Shopping Mall Functional Block Diagram DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 11/53...
-
Page 12: Product Usage
OPT sensor (SAFETY) knob should be set as operating temperature +20 ~ +30C. Please be noted that the heater doesn’t work if the knob is set to 0 position. Please avoid ultrasonic lamps. The unit could be cracked or faded. DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 12/53... - Page 13 Do not use outdoors avoid overheating or electrical faults. The use in the place where the sun continuously shines and can get rained on it is prohibited. It may cause overheating or electrical fault of the product. DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 13/53...
- Page 14 ※ All of the circuits, electrical or mechanical parts and configurations used in this product are the technical assets of DAIHAN Scientific (Co., Ltd.). Only technicians of the technical support team at DAIHAN Scientific (Co., Ltd.) or technicians approved through the education from DAIHAN Scientific should be allowed to repair this product.
-
Page 15: Names Of Each Part
Door Safety Lock and easy open ③ Lid Clamp Door Locking ④ Control Panel LCD Display ⑤ Pressure Gauge manometer ⑥ Moving Wheel Transport Device ⑧ <Table.3.2.1> Names of each part and description DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 15/53... - Page 16 Prevent overheat ⑨ Manual purge valve pressure pass Control Device ⑩ Water Drain Valve Drain Control Device ⑪ Condenser emission steam condensation mechanism ⑫ <Table.3.2.2> Names of each part and description DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 16/53...
- Page 17 Convert into mode of delay timer, offset function, Setting ④ SUB Button Operating Information. ⑤ OPEN Door open. Control that Reduces or Adds Values, and Does Start/Stop ⑥ Jog Dial knob Operation. <Table 3.2.3> Controller for " MaXterile " DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 17/53...
-
Page 18: Usage Instructions
TIMER LED is lighted during the operation of timer, and indicates that it is operating. The range of setting time is from 00:00 to 99hr and 59min (it is possible to adjust at 1min.) and 00:00 indicates continuous operation.. DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 18/53... - Page 19 You can change or save the setting by using the operation method of the Jog-Dial, and Start/Stop of operation can be performed. If pressing MAIN button, it is switched to the Set Operation Time Mode. DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 19/53...
- Page 20 0.0 ℃ offset Temp < Fig 3.3.4. Set offset value Mode> The scope of the compensative value is -10.0℃ ~ +0.0℃, and it is possible to adjust at 0.1℃ unit. DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 20/53...
- Page 21 The operation mode can be selected among the SOLID cycle mode that operates for the sterilization of solids or dried samples, and the LIQUID cycle mode that performs the sterilization operation of solutions. DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 21/53...
- Page 22 After that, the valve is closed completely. This is the operation principle that a sudden change in pressure can be prevented and the samples of liquid material can be safely protected. DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 22/53...
- Page 23 So, if customer face power failure or something wrong in power supplier of units, customer couldn’t open the lid by push the “Open” button. In this case, for opening the lid, please do below procedure. DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 23/53...
-
Page 24: Products Management Methods
Validation Service (lQ, OQ), "ACV60", for "" MaXterile 60" Validation(lQ, OQ) Service DH.WAC30080 Validation Service (lQ, OQ), "ACV80", for "" MaXterile 80" DH.WAC30100 Validation Service (lQ, OQ), "ACV100", for "" MaXterile 100" DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 24/53... -
Page 25: Maintenance And Management
If the unit is not to be used for an extended period of time, disconnect the power cord from the wall socket. DAIHAN is not responsible for damage to the unit caused by abnormal use or by not heeding warnings and cautions in the manual or unauthorized modifications of the unit. -
Page 26: Troubleshooting
Please contact to the service center. ※ If you have any problem other than the above, please call technical service of manufacturer or an official agent. DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 26/53... -
Page 27: Product Assurance
Digital Fuzzy-Controlled Autoclaves Model No. MaXterile Serial No. Date Customer DAIHAN Scientific Co., Ltd. 326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonj-si, Gangwon-do, Korea TEL: +82-2-967-5235 FAX: +82-2-963 5231 Email: info@daihansci.co.kr -Sci.com www.DAIHAN www.ALL for LAB.com DAIHAN Scientific, Steam Sterilizers Digital Fuzzy-controlled Autoclaves . 27/53...
