Qlima PGW312 Operating Manual page 54

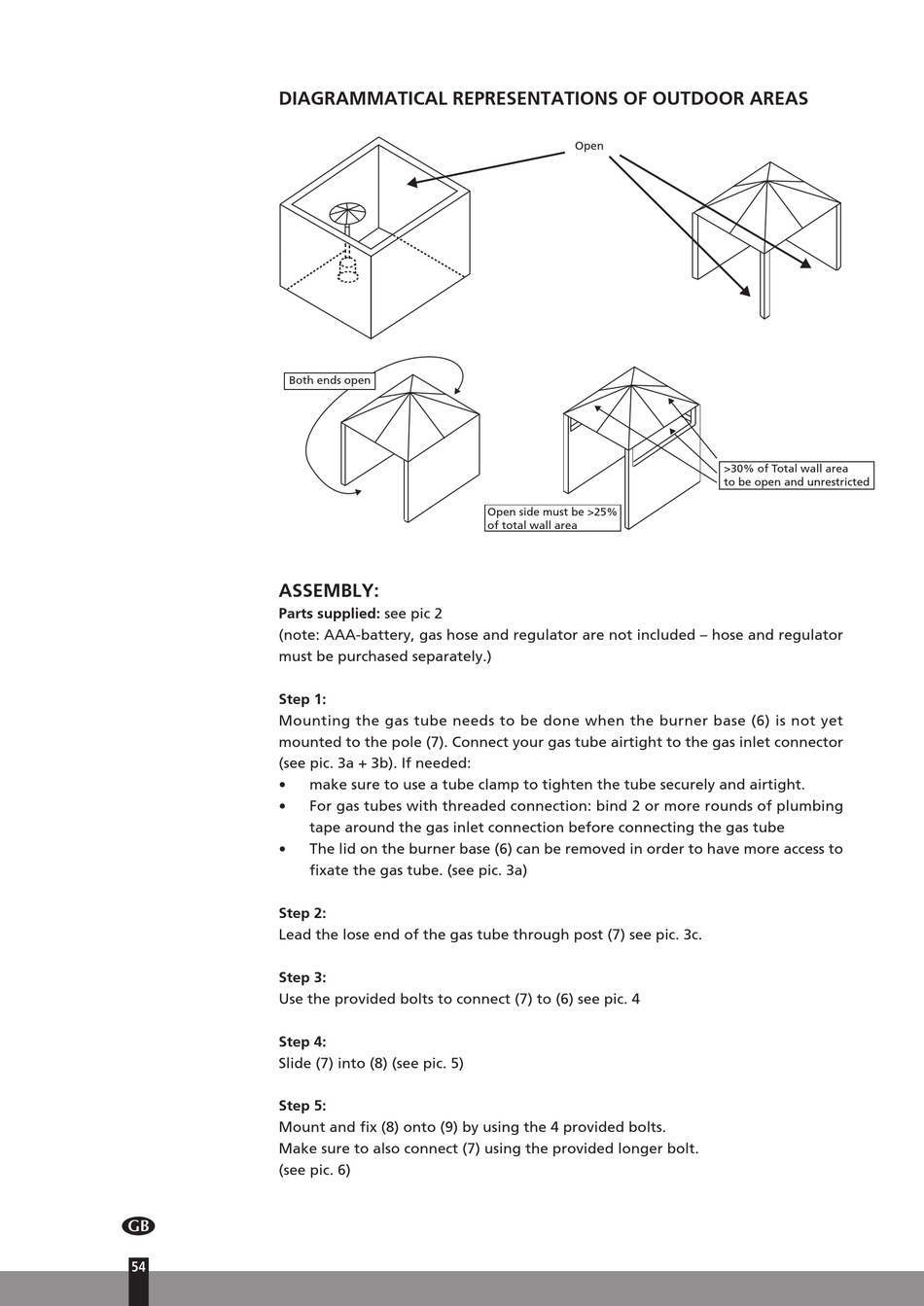

DIAGRAMMATICAL REPRESENTATIONS OF OUTDOOR AREAS
Both ends open
ASSEMBLY:
Parts supplied: see pic 2
(note: AAA-battery, gas hose and regulator are not included – hose and regulator
must be purchased separately.)
Step 1:
Mounting the gas tube needs to be done when the burner base (6) is not yet
mounted to the pole (7). Connect your gas tube airtight to the gas inlet connector
(see pic. 3a + 3b). If needed:
•
•
•
Step 2:
Lead the lose end of the gas tube through post (7) see pic. 3c.
Step 3:
Use the provided bolts to connect (7) to (6) see pic. 4
Step 4:
Slide (7) into (8) (see pic. 5)
Step 5:
Mount and fix (8) onto (9) by using the 4 provided bolts.
Make sure to also connect (7) using the provided longer bolt.
(see pic. 6)
4
54
make sure to use a tube clamp to tighten the tube securely and airtight.
For gas tubes with threaded connection: bind 2 or more rounds of plumbing
tape around the gas inlet connection before connecting the gas tube
The lid on the burner base (6) can be removed in order to have more access to
fixate the gas tube. (see pic. 3a)
Open
Open side must be >25%
of total wall area
>30% of Total wall area
to be open and unrestricted
