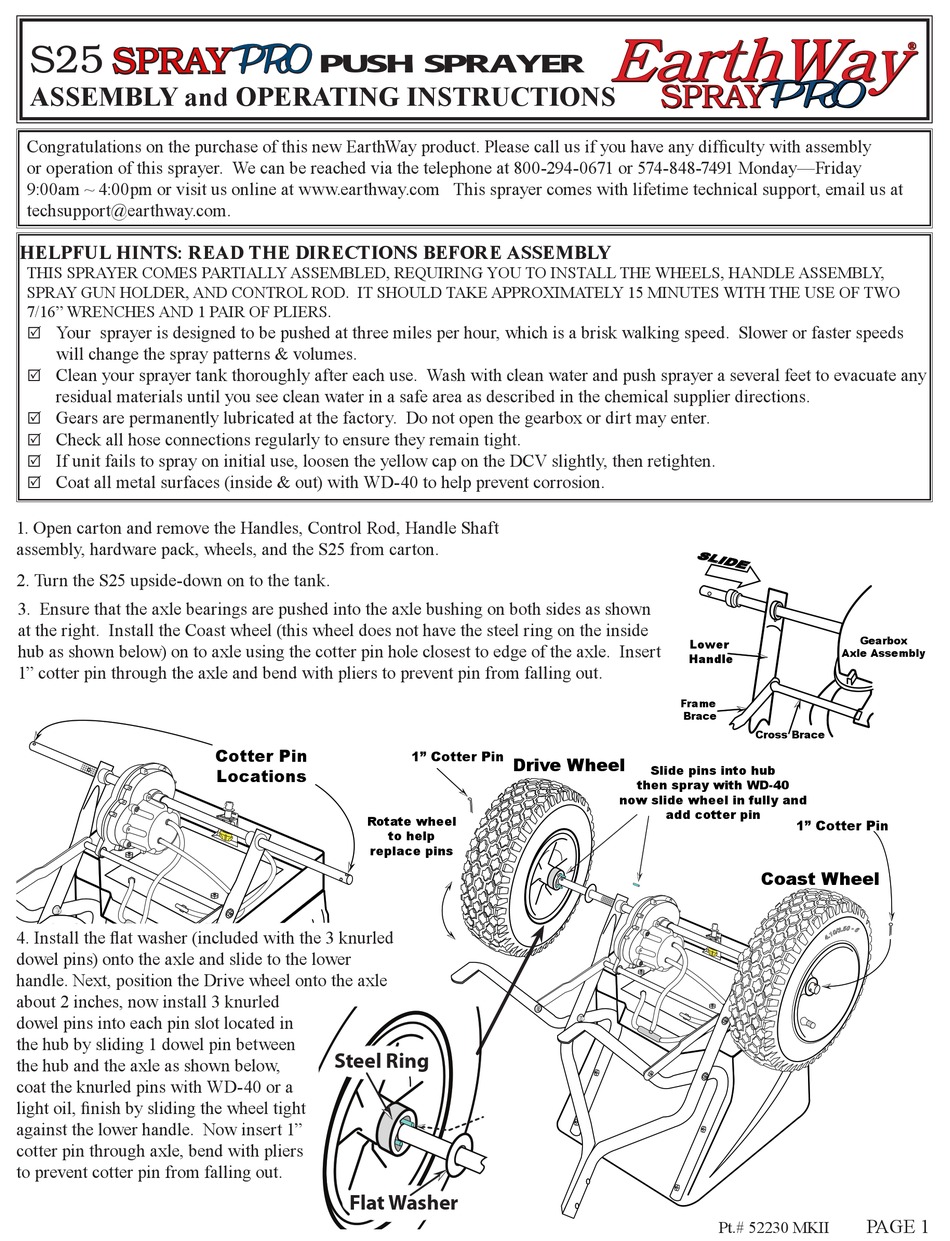

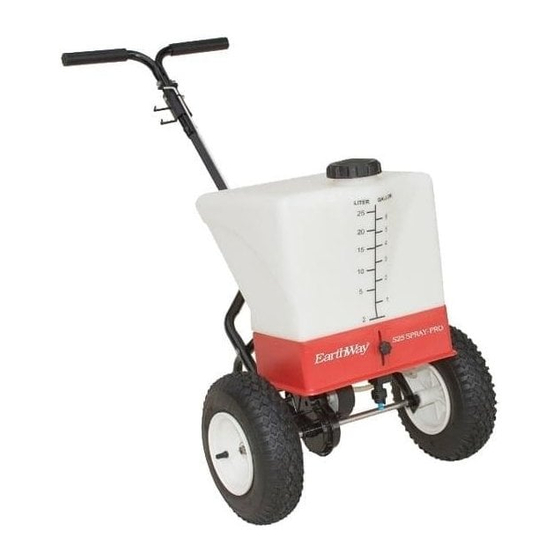

S25
SPRAY
ASSEMBLY and OPERATING INSTRUCTIONS
Congratulations on the purchase of this new EarthWay product. Please call us if you have any difficulty with assembly
or operation of this sprayer. We can be reached via the telephone at 800-294-0671 or 574-848-7491 Monday—Friday
9:00am ~ 4:00pm or visit us online at www.earthway.com This sprayer comes with lifetime technical support, email us at
techsupport@earthway.com.
HELPFUL HINTS: READ THE DIRECTIONS BEFORE ASSEMBLY
THIS SPRAYER COMES PARTIALLY ASSEMBLED, REQUIRING YOU TO INSTALL THE WHEELS, HANDLE ASSEMBLY,
SPRAY GUN HOLDER, AND CONTROL ROD. IT SHOULD TAKE APPROXIMATELY 15 MINUTES WITH THE USE OF TWO
7/16" WRENCHES AND 1 PAIR OF PLIERS.
Your sprayer is designed to be pushed at three miles per hour, which is a brisk walking speed. Slower or faster speeds
5
will change the spray patterns & volumes.
Clean your sprayer tank thoroughly after each use. Wash with clean water and push sprayer a several feet to evacuate any
5
residual materials until you see clean water in a safe area as described in the chemical supplier directions.
Gears are permanently lubricated at the factory. Do not open the gearbox or dirt may enter.
5
Check all hose connections regularly to ensure they remain tight.
5
If unit fails to spray on initial use, loosen the yellow cap on the DCV slightly, then retighten.
5
Coat all metal surfaces (inside & out) with WD-40 to help prevent corrosion.
5
1. Open carton and remove the Handles, Control Rod, Handle Shaft
assembly, hardware pack, wheels, and the S25 from carton.
2. Turn the S25 upside-down on to the tank.
3. Ensure that the axle bearings are pushed into the axle bushing on both sides as shown
at the right. Install the Coast wheel (this wheel does not have the steel ring on the inside
hub as shown below) on to axle using the cotter pin hole closest to edge of the axle. Insert
1" cotter pin through the axle and bend with pliers to prevent pin from falling out.
4. Install the flat washer (included with the 3 knurled
dowel pins) onto the axle and slide to the lower
handle. Next, position the Drive wheel onto the axle
about 2 inches, now install 3 knurled
dowel pins into each pin slot located in
the hub by sliding 1 dowel pin between
the hub and the axle as shown below,
coat the knurled pins with WD-40 or a
light oil, finish by sliding the wheel tight
against the lower handle. Now insert 1"
cotter pin through axle, bend with pliers
to prevent cotter pin from falling out.
PRO
PUSH SPRAYER
Cotter Pin
Locations
Rotate wheel
to help
replace pins
Steel Ring
Flat Washer
1" Cotter Pin
Drive Wheel
EarthWay
EarthWay
SPRAY
SPRAY
Lower
Handle
Frame
Brace
Cross Brace
Slide pins into hub
then spray with WD-40
now slide wheel in fully and
add cotter pin
Coast Wheel
Pt.# 52230 MKII
®
®
Gearbox
Axle Assembly
1" Cotter Pin
PAGE 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Earth Way SPRAY PRO S25
- Page 1 EarthWay EarthWay ® ® SPRAY PUSH SPRAYER ASSEMBLY and OPERATING INSTRUCTIONS SPRAY SPRAY Congratulations on the purchase of this new EarthWay product. Please call us if you have any difficulty with assembly or operation of this sprayer. We can be reached via the telephone at 800-294-0671 or 574-848-7491 Monday—Friday 9:00am ~ 4:00pm or visit us online at www.earthway.com This sprayer comes with lifetime technical support, email us at techsupport@earthway.com.
- Page 2 5. Install handle shaft to lower handles as 32103 shown. Using 2” bolts, washers and locknuts. 32103 1/4-20 Lock Nut 1/4-20 Lock Nut 12344 36404 Handle Spacer Make sure that you install the handle shaft Washers with the long end facing toward the sprayer. TIGHTEN BOLTS AND NUTS NOW.
- Page 3 WARRANTY The EarthWay guarantees this product to be free of defects in original workmanship and materials for a period of 90-days from sale to the original user. If any defect develops during this period the manufacturer will repair or replace this product at no charge provided the defect is not the result of mishandling or tampering and that this product is received at the factory with shipping charges prepaid.
- Page 4 How to use the S25 Sprayer EarthWay’s S25 Spray-PRO sprayer is designed to be simple to use, easy on the operator and provide years of accurate spraying. The S25 is the latest development from EarthWay, world leaders in the manufacture of broadcast spreaders, seeding tools, and sprayers. Calibration The S25 is supplied with 3 different nozzle options.
- Page 5 How to use the S25 Sprayer continued Technical spray information and how to ensure accuracy The spray width is adjustable from approximately 3 feet/.9 meters to 6 feet / 1.8 meters. Depending on the nozzle selected (see nozzle chart) The Teejet TF nozzles are designed to “feather” at the edges to allow the second pass to “feather in,” and so provide uniform coverage.
- Page 6 EarthWay Products, Inc. P.O. Box 547 Bristol, IN 46507 Phone: 800-294-0671 www.earthway.com S25 S Liquid Sprayer ~ Parts List prAy S25-60000 Tank w/Cap 12344 Handle Spacer 60175 Upper Handles w/Grip 32103 S25- 24507 1/4-20 Lock Nut Gun Holder & 36404 Cupped 70142 Washers...
