SkyGuard Interactive Gateway Module. Rev.1.4. May. 2017
1
P/N: SKY-RE927X
Installation & Operation Manual.
Rev: 1.4

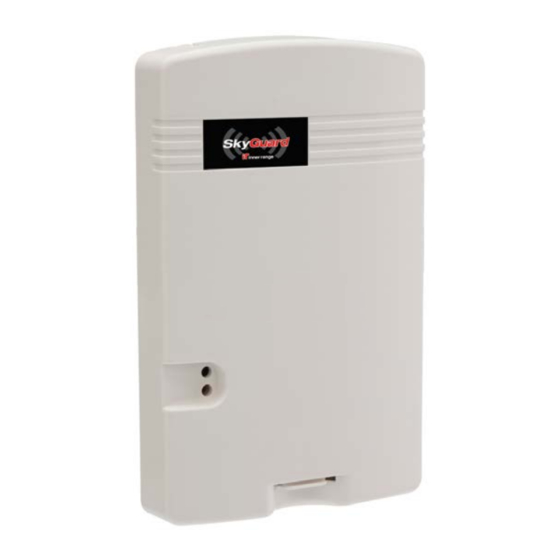

The SkyGuard Interactive Gateway Module (IGM) connects to a Paradox™ MG5050, Honeywell
Vista™, DSC PowerSeries™ or NX® panel and provides full smartphone app control of the panel
plus home automation features using its inbuilt Z-Wave radio module.
The IGM connects to the SkyGuard Cloud via its inbuilt 3G modem and SIM card.
The SkyGuard IGM is wired to the alarm panel's Keypad bus and incorporates a selection switch
allowing the technician to field configure the device based on the type of system it is installed on.
Inner Range Pty. Ltd.
www.innerrange.com
Ph: +61 3 9780 4300

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SkyGuard IGM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Inner Range SkyGuard IGM

  • Page 1 The IGM connects to the SkyGuard Cloud via its inbuilt 3G modem and SIM card. The SkyGuard IGM is wired to the alarm panel’s Keypad bus and incorporates a selection switch allowing the technician to field configure the device based on the type of system it is installed on.

  • Page 2: Introduction

    12V DC Supply Voltage. Parts List SkyGuard IGM Unit Optional Accessories (Purchased separately) Inbuilt Antenna IGM-Paradox Interface Cable. P/N: SKY-PDX-IGM-LEAD (Inner Range P/N: 995528) Pre-installed 3G SIM Installation manual (This document) Specifications Current Draw: 220 mA Nominal. 2A peak Temperature Range: -18°C to 50°C...

  • Page 3: Table Of Contents

    SkyGuard Interactive Gateway Module. Rev.1.4. May. 2017 CONTENTS INTRODUCTION ..........................2 SkyGuard IGM Features ......................2 Compatible Panels ........................2 Parts List ............................. 2 Specifications ..........................2 Revision Functionality Table ......................2 IGM ACCOUNT SETUP INSTRUCTIONS ..................4 INSTALLATION & WIRING INSTRUCTIONS ................. 7 General ............................

  • Page 4: Igm Account Setup Instructions

    Otherwise, select ‘No’ and click ‘Next’. Central Monitoring Station Only allowed Monitoring Stations will be displayed. If none are displayed please contact Inner Range. Monitoring Plan SkyGuard devices can only be monitored on the ‘P30 –SkyGuard 12 Hour’...
  • Page 5 SkyGuard Interactive Gateway Module. Rev.1.4. May. 2017 7. Once the details are correct, click ‘Complete and Activate Device’. Once completed you will be returned to the Dealer Devices list. 8. Connect the IGM to the panel according to the IGM installation and wiring instructions. 9.
  • Page 6 SkyGuard Interactive Gateway Module. Rev.1.4. May. 2017 a. The Zone list can be populated manually by using the ‘Add Sensor button’ or automatically by performing a walk test on the panel. Zones will be automatically added when a change of state is detected. b.

  • Page 7: Installation & Wiring Instructions

    SkyGuard Interactive Gateway Module. Rev.1.4. May. 2017 INSTALLATION & WIRING INSTRUCTIONS General • DO NOT MOUNT INSIDE A METAL ENCLOSURE – There are internal antennas that need to be in free-air to communicate. • The communicator should be mounted in a location that will optimize cellular signal strength. Signal strength is indicated by a row of LEDs on the circuit board.

  • Page 8: Igm Layout

    SkyGuard Interactive Gateway Module. Rev.1.4. May. 2017 IGM Layout GSM Signal Strength LEDs A minimum signal of 2 LEDs is recommended. LEDs GSM Signal Strength – Poor – Marginal 10-12 – Good 13-17 – Better 17 + – Best...

  • Page 9: Paradox Programming And Connections

    4) Power down the Paradox system. 5) Set the RE927X panel selector switch to DSC. 6) Connect the Paradox panel and the RE927X using a SkyGuard IGM-Paradox cable, (P/N: SKY-PDX-IGM-LEAD) as shown in the Wiring Instructions above. (Inner Range P/N: 995528) 7) Apply power to the Paradox system.

  • Page 10: Vista 20P And Vista 15P Programming And Connections

    SkyGuard Interactive Gateway Module. Rev.1.4. May. 2017 Vista 20P and Vista 15P Programming and Connections Compatible Honeywell Panels: Vista 20P (version 4.0 or later) (controls partition 1 only) Vista 15P (version 4.0 or later) Account Setup 1) Refer to IGM account setup instructions on page 2 and set up the account on the Dealer Portal.

  • Page 11: Dsc Power Series Programming And Connections

    SkyGuard Interactive Gateway Module. Rev.1.4. May. 2017 DSC Power Series Programming and Connections Compatible DSC Panels: PC580 (Power 432) PC5010 (Power 832) PC1616 PC1555 (Power 632) PC5015 (Power 832) PC1832 PC1555MX (Power 632) PC5020 (Power 864) PC1864 Account Setup 1) Refer to IGM account setup instructions on page 2 and set up the account on the Dealer Portal.
  • Page 12 SkyGuard Interactive Gateway Module. Rev.1.4. May. 2017 Reporting Codes for DSC panels. The following table shows all events reported when connected to a DSC Panel. Event Report Code AC Fail/Restore Panel Low Battery/Low Battery Restore Opening/Closing Report Cancel Report Zone Alarm See below Keypad fire panic Keypad aux panic...

  • Page 13: Caddx Nx Programming And Connections

    SkyGuard Interactive Gateway Module. Rev.1.4. May. 2017 Caddx NX Programming and Connections Compatible with all NX series panels. Account Setup 10) Refer account setup instructions on page 2 and set up the account on the Dealer Portal. 11) Be sure to add a contact that uses the system MASTER CODE to the account before connecting the module.

  • Page 14: Concord Programming And Connections

    SkyGuard Interactive Gateway Module. Rev.1.4. May. 2017 Concord Programming and Connections Compatible with Concord 4. Account Setup 1) Refer account setup instructions on page 2 and set up the account on the Dealer Portal. 2) Be sure to add a contact that uses the system MASTER CODE to the account before connecting the module.

  • Page 15: Operation

    SkyGuard Interactive Gateway Module. Rev.1.4. May. 2017 Operation Event Reporting Events are reported to both the monitoring receiver and the interactive server. All events use Contact ID reporting codes. The following events are reported by default: Alarms System Low Battery Alarm cancels System Low Battery Restoral Openings...

  • Page 16: Troubleshooting

    Systems Ltd., General Electric Company, Honeywell International Inc. and Tyco Safety Products Canada Ltd, respectively. SkyGuard (Inner Range P/No: SG-RE927X) is manufactured for Inner Range Pty. Ltd. by Resolution Products, Inc. This product will function with one of either Paradox, GE, Honeywell or DSC systems.
