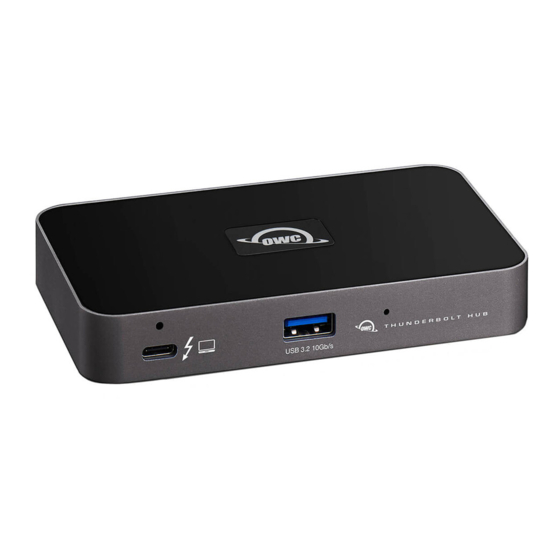

- Page 1 THUNDERBOLT Adds three Thunderbolt 4 ports and one USB port to Thunderbolt 4 PCs Thunderbolt™ 4 Compatible with Thunderbolt 4 PCs Connect and Charge Use all your favorite Thunderbolt and USB devices Thunderbolt Cable Transfer data, run a display and power your notebook –...
- Page 2 INTRODUCTION 1.1 System Requirements ..................3 1.2 Package Contents.................... 3 1.3 About This Manual ................... 3 1.4 OWC Dock Ejector .................... 3 1.5 Front / Top Views ..................... 4 1.6 Rear View ......................4 CONNECTION & USAGE NOTES 2.1 Connection ....................... 5 2.2 Usage Notes .....................
- Page 3 OWC’s Limited Warranty is not transferable and subject to limitations. 1.4 OWC DOCK EJECTOR This application safely ejects all drives connected to the OWC Thunderbolt Hub with a single click, adding peace of mind to fast-paced mobile workflows. To install this app, please follow the steps below.
- Page 4 1. Thunderbolt host port – connect to a Thunderbolt 4 port on a PC. Provides up to 60W of Power Delivery for laptop battery charging. 2. ClingOn mounting point – if you are using an OWC ClingOn to secure the Thunderbolt host cable, affix it here. 3. USB 3.2 10Gb/s port – connect USB peripheral devices here.
- Page 5 - Thunderbolt device chains can support up to six Thunderbolt devices, thus a total of five additional Thunderbolt devices can be chained to the Thunderbolt Hub. It is not possible to chain five devices to each available Thunderbolt 4 port. In addition, a Thunderbolt 4 or Thunderbolt 3 display (or a display connected via a USB-C display adapter) can be added to the end of a device chain.
- Page 6 SUPPORT RESOURCES 3.1 TROUBLESHOOTING Begin troubleshooting by verifying that the power cable is connected to the OWC Thunderbolt Hub and to a power source. If the power cable is connected to a power strip, make sure that the power switch on the strip is turned on.
- Page 7 The material in this document is for information purposes only and subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, OWC, its parent, partners, affiliates, officers, employees, and agents assume no liability resulting from errors or omissions in this document, or from the use of the information contained herein.
- Page 8 OWC. © 2020 Other World Computing, Inc. All rights reserved. OWC and the OWC logo are trademarks of New Concepts Development Corporation, registered in the U.S. and/or other countries. Apple, Mac, mac OS, and SuperDrive are trademarks of Apple Inc., registered in the United States and other countries.
