Summary of Contents for Holz-Blech Spielberg 91809072-1

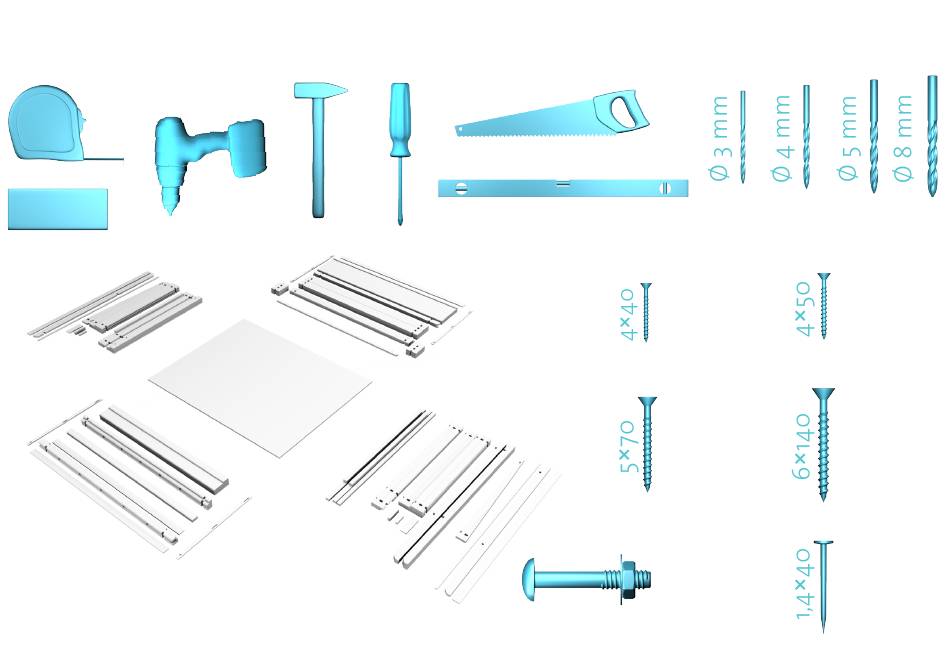

- Page 1 SHELTER 324×254 PREPARE THE GROUND, UNWRAP THE PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. × 450 × 55 × 35 × 50 M8×70 × 12 × 20 1/19...
- Page 2 SHELTER 324×254 LAY OUT THE FOUNDATION BEAMS AB=CD SQUARE IT BY MEASURING FROM CORNER TO CORNER. 0° IFB1 IFB2 MAKE SURE THAT THE FOUNDATION IS INSTALLED ON A LEVEL SURFACE. CHECKING ALL DIRECTIONS, 2/19 INCLUDING CORNER TO CORNER.
- Page 3 SHELTER 324×254 ATTACH FOUNDATION BEAMS WITH SCREWS. × 6 3/19...
- Page 4 SHELTER 324×254 LAY OUT THE BOTTOM LOGS, ATTACH TO THE FOUNDATION. × 6 × 8 ALG-1 3 BL-1 5×70 6×140 A LG-5 B LG-5 BLG-1 THE WALL LOGS WILL HANG OVER 1 BL-1 2 BL-1 THE FOUNDATION BEAMS APPROXIMATELY 5MM. THIS OVERHANG 4/19 IS DESIGNED AS A RAIN DRIP.
- Page 5 SHELTER 324×254 ATTACH THE FIRST ROW OF WALL LOGS INTO THE BOTTOM LOGS WITH SCREWS. × 12 3 LG-1 2 LG-2 1 LG-1 5/19...
- Page 6 SHELTER 324×254 AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH WALL LOG IN PLACE USING A HAMMER AND THE HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. 3 LG-2 A LG-4 HITBLOCK B LG-4 LOGS IN PLACE 1 TL-1 6/19 2 LG-3...
- Page 7 SHELTER 324×254 INSTALL THE FLOOR BEAMS AND ATTACH THEM WITH SCREWS. × 12 FLB1 7/19...
- Page 8 SHELTER 324×254 INSTALL THE FLOOR BEAMS AND ATTACH THEM WITH SCREWS. × 22 FLB2 FLB3 8/19...
- Page 9 SHELTER 324×254 DON`T FORGET TO TIGHTEN THE LOGS AFTER EVERY 3-4 ROWS. A LG-3 B LG-3 2 LG-1 2 LG-1 9/19...
- Page 10 SHELTER 324×254 INSTALL THE GABLES WITH LONG SCREWS TO THE WALL LOGS ON THE FRONT AND REAR WALLS. × 6 B LG-1 3 LG-3 3 TL-1 B LG-2 A LG-1 A LG-2 2 LG-5 2 TL-1 2 LG-4 10/19...
- Page 11 SHELTER 324×254 INSTALL THE ROOF PURLINS AND ATTACH THEM WITH SCREWS. × 14 11/19...
- Page 12 SHELTER 324×254 PLACE THE FIRST ROOFBOARD FLUSH WITH THE END OF THE PURLINS AND ATTACH WITH 14 SCREWS, 7 INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 231 12/19...
- Page 13 SHELTER 324×254 14 SCREWS INTO THE FIRST FLOORBOARD, INTO EACH NEXT. × 175 13/19...
- Page 14 SHELTER 324×254 SAW THE FLOORBOARDS WHERE NEEDED. 14/19...
- Page 15 SHELTER 324×254 ATTACH FLOOR REINFORCEMENTS INTO THE FLOORBOARDS AND FASCIA TRIMS INTO THE ROOF PURLINS. × 2 × 16 5×70 4×50 15/19...
- Page 16 SHELTER 324×254 EAVES EDGES GO ON TOP OF THE ROOFING*. *(NOT INCLUDED) × 45 16/19...
- Page 17 SHELTER 324×254 SAW THE BASEBOARDS AND ATTACH WITH NAILS EVERY 0,5 METERS. × 20 17/19...
- Page 18 SHELTER 324×254 DRILL THROUGH THE WALL, HOLE MUST BE AT THE BOTTOM OF THE OVAL, ATTACH WITH BOLT. × 12 WINDBOARD 18/19...
- Page 19 SHELTER 324×254 WHEN THE SLEEPING SHELTER IS ASSEMBLED, YOU SHOULD COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 19/19 100%...
