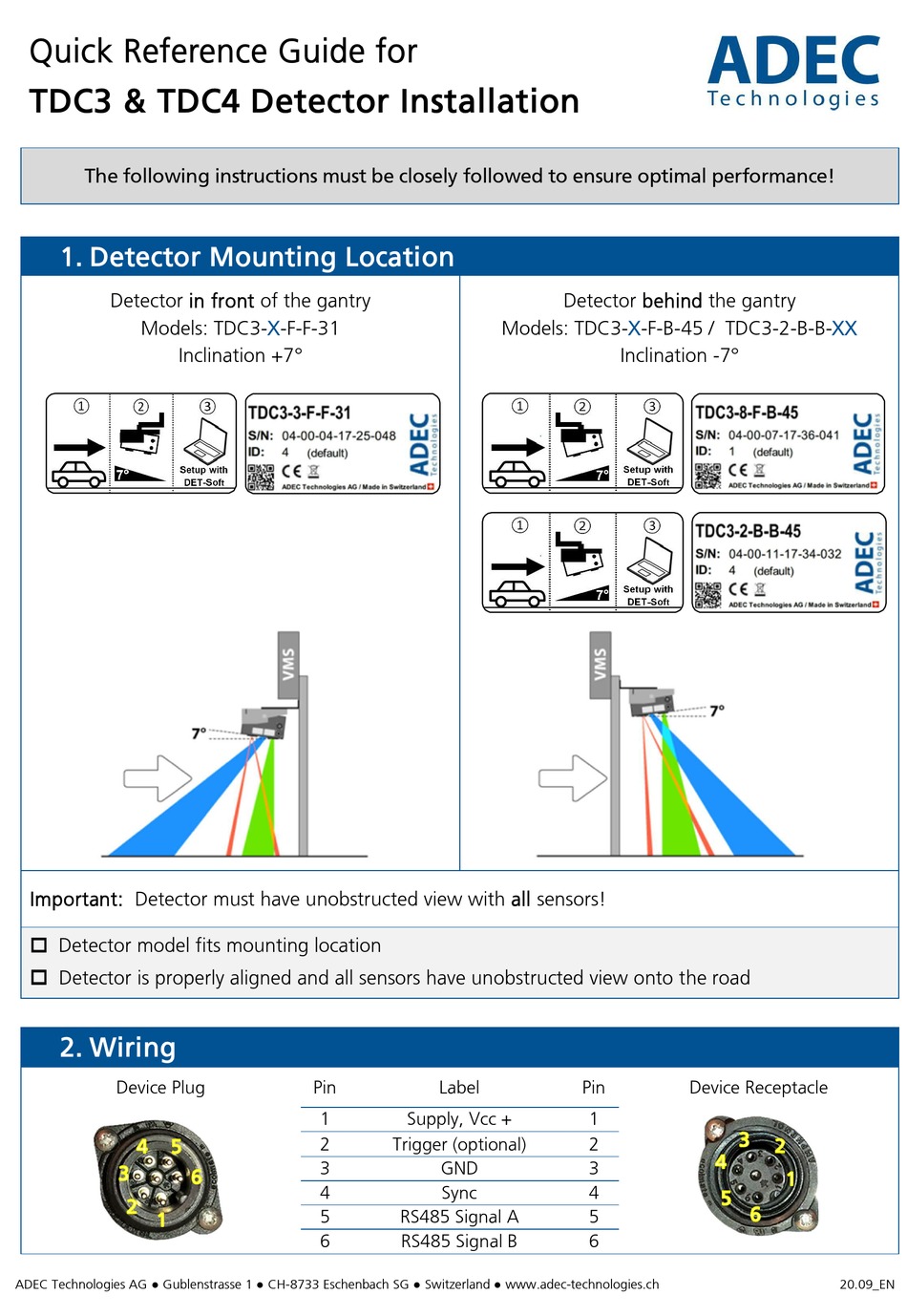

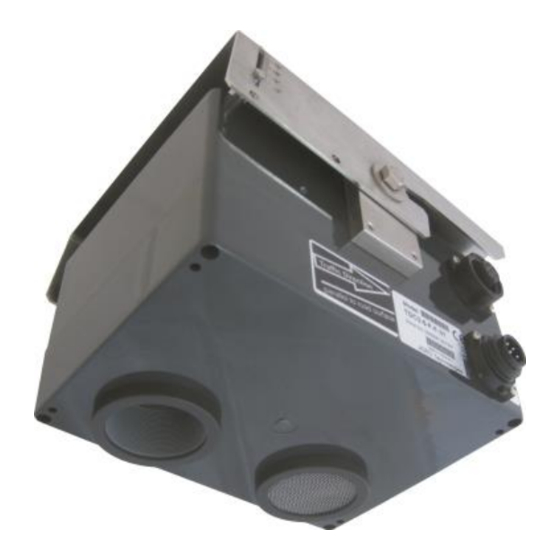

ADEC Technologies TDC3 F-F-31 Series Quick Reference Manual

Quick Reference Guide for
TDC3 & TDC4 Detector Installation
The following instructions must be closely followed to ensure optimal performance!

1. Detector Mounting Location

Detector in front of the gantry
Models: TDC3-X-F-F-31
Inclination +7°
Important: Detector must have unobstructed view with all sensors!
o Detector model fits mounting location
o Detector is properly aligned and all sensors have unobstructed view onto the road

2. Wiring

Device Plug
ADEC Technologies AG ● Gublenstrasse 1 ● CH-8733 Eschenbach SG ● Switzerland ● www.adec-technologies.ch
Pin Label
1 Supply, Vcc +
2 Trigger (optional)
3 GND
4 Sync
5 RS485 Signal A
6 RS485 Signal B
Detector behind the gantry
Models: TDC3-X-F-B-45 /
Inclination -7°
Pin
1
2
3
4
5
6
TDC3-2-B-B-XX
Device Receptacle
