- Page 1 MODEL NO. SPACECRAFT INSTALLATION MANUAL GS-SC2300F SHINHEUNG ENG 1046-3, Najeon-ri, Saengnim-myeon, Gimhae-si Gyeongsangnam-do, 621-821, Republic Of Korea Tel) +82. 55. 326. 9096~7 Fax) +82. 55. 326. 9022 E-mail) gswebinfo@chol.com Web site) www.gsweb21.com...

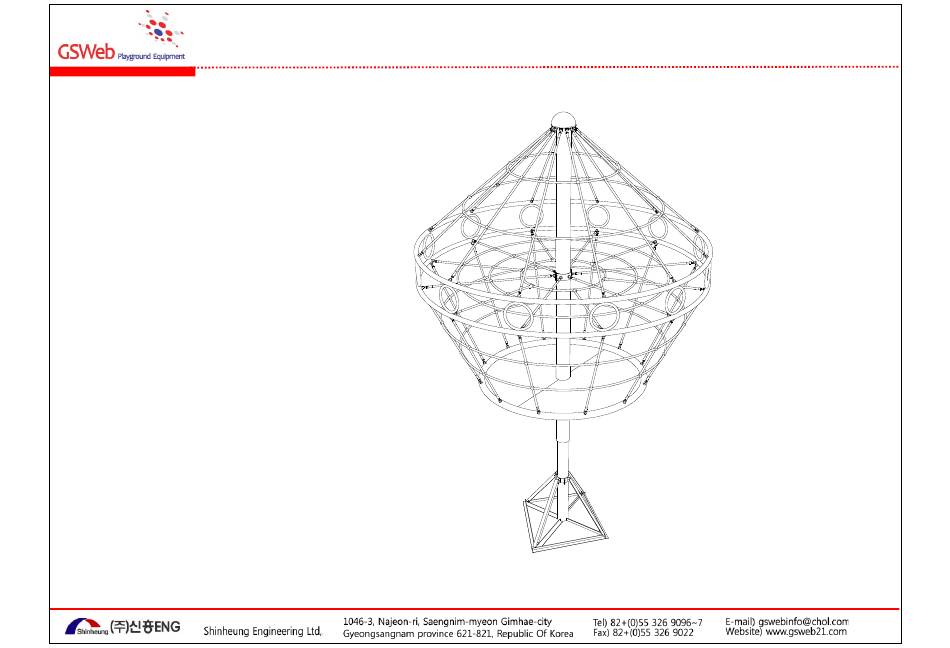

- Page 2 MODEL NO. SPACECRAFT GS-SC2300F Features The Spacecraft launches the merry-go-round into the future with a space-age look. Children love the flying-saucer design that helps their imaginations fly into orbit. Our special bearing system controls the rotation speed so that the children can safely enjoy the same exhilarating experience as a merry-go-round.
-
Page 3: Safety Area
MODEL NO. SPACECRAFT Safety area GS-SC2300F Safety area The requirements for space and safety clearances are taken from BS-EN 1176-1 / ASTM-F1487 / CSA Z614 The use zone for stationary play equipment shall extend no less than 72 in. (1830mm) from all sides of the play structure. -
Page 4: Foundation Layout
MODEL NO. SPACECRAFT Foundation Layout GS-SC2300F Foundation Imperial/Metric conversion: 10620 48" = 1220mm Measure location of game and dig a 6960 54" = 1370mm hole 5' x 5' x 4' 6" deep centered on the 60" = 1525mm center of the game. -
Page 5: Overall Assembly
MODEL NO. SPACECRAFT Overall Assembly GS-SC2300F Overall Assembly Assemble the parts in the following order: UPPER NET 1. Attach the upper net to the post head 2. Attach the ring to the net 3. Attach the spider net to the ring and the collar 4. -
Page 6: Post Installation
MODEL NO. SPACECRAFT Post installation GS-SC2300F 7. Screw the eye bolt to the top of the galvanised post NYLON STRING 8. Lift the assembly and place in the hole, inserting the post into EYE BOLT the pre-assembled base. 9. Level the post and fill hole with excavated ground 10. - Page 7 MODEL NO. SPACECRAFT Aluminium ring assembly GS-SC2300F Assemble the ring at the net with the nylon joint ( 1+1, 2+2, 3+3, 4+4 ) Align the opening in the net with the ring fasteners 12 fasteners on the top Figure-8 M8 X L55 RING FIX BOLT...
- Page 8 MODEL NO. SPACECRAFT Spider Net & Upper net Assembly GS-SC2300F M10 NUT, WASHER COLLAR M10 X L35 HSCS BOLT UPPER NET SPIDER NET Figure-10 BALL JOINT Figure-11 BALL JOINT HALF ALUMINIUM RING Figure-9 Attach the ring to the upper net...
- Page 9 MODEL NO. SPACECRAFT Deck assembly GS-SC2300F Figure-12 LOWER RING PVC COATED FLOOR M10 X L90 HSCS BOLT M12 X L30 BOLT M8 X L55 FIX BOLT HALF COLLAR M12 NYLON LOCK NUT, WASHER M8 X L33 FIX NUT M12 X L35 BOLT...
- Page 10 MODEL NO. SPACECRAFT Lower net assembly GS-SC2300F UPPER RING Figure-13 BALL JOINT LOWER NET Figure-14 LOWER RING Assemble net in the attach with ball joint...
- Page 11 MODEL NO. SPACECRAFT Base assembly GS-SC2300F M12 X L35 BOLT BASE HALF COLLAR M12 NUT, WASHER ANGLE BRACE M12 NUT, WASHER M12 X L35 BOLT BASE Figure-15...
- Page 12 MODEL NO. SPACECRAFT Cap assembly GS-SC2300F POST CAP M10 X L25 HSCS BOLT BALL JOINT Remove the eye bolt Install the cap with HSCS bolt...
-
Page 13: Parts List
MODEL NO. SPACECRAFT Parts list GS-SC2300F 16,18 1: galvanised post 9: PVC coated floor 2: inox post 10: nylon joint (Φ75) 3: post cap 11: nylon joint (Φ50) 4: upper net 12: half collar 5: spider net 13: half collar (deck) - Page 14 MODEL NO. SPACECRAFT Parts list GS-SC2300F 17: M10 X L90 HSCS bolt 24: M8 X L33 fix 18: nylon lock nut (M10),washer nut,washer 19: M12 X L30 bolt 25: base 20: M12 X L35 bolt 26: angle brace 21: nylon lock nut (M12),washer...
-
Page 15: Maintenance
MODEL NO. SPACECRAFT Maintenance GS-SC2300F A. General safety measures On the playground there should be a sign(pictogram) giving the following information: a) general emergency telephone number; b) telephone number to contact maintenance personnel; c) name of the playground; d) address of playground; and e) other relevant local information, if applicable. - Page 16 MODEL NO. SPACECRAFT Maintenance GS-SC2300F C. Routine maintenance To reduce accidents, the owner or operator should ensure that an appropriate routine maintenance schedule is established, implemented and maintained. This should take into account local conditions and the manufacturer's instructions that can affect the necessary inspection frequency.
