AIDA CCU-IP Operation Manual

Professional broadcast ptz joystick controller
Hide thumbs

Advertisement

Table of Contents

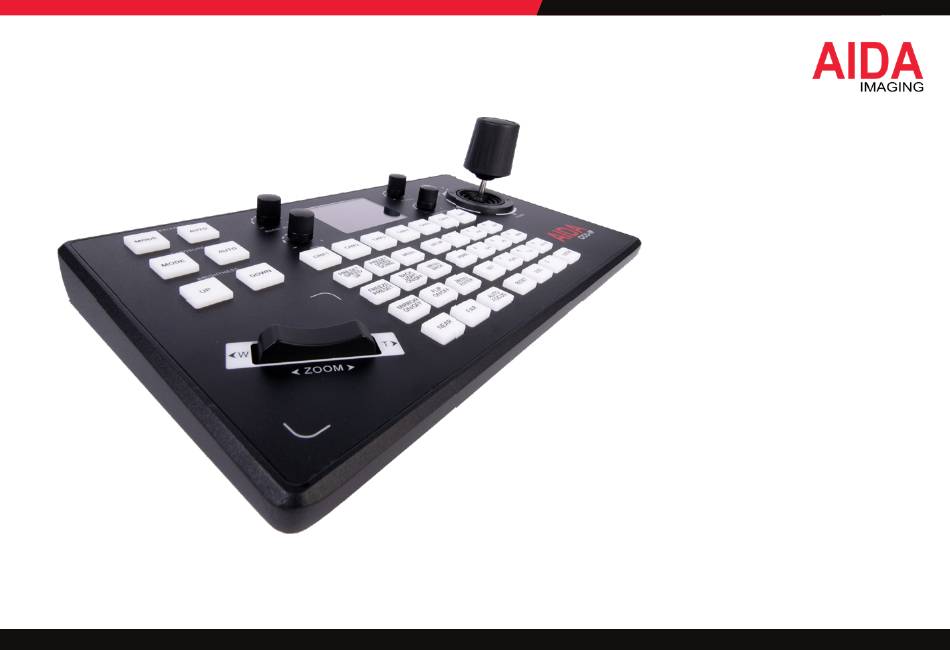

Professional Broadcast
PTZ Joystick Controller
CCU-IP
OPER ATI ON GU I DE
Version 1.0 / April 2021
Reproduction of this manual, in whole or in part, by any means, is prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCU-IP and is the answer not in the manual?

Questions and answers

Summary of Contents for AIDA CCU-IP

  • Page 1 Professional Broadcast PTZ Joystick Controller CCU-IP OPER ATI ON GU I DE Version 1.0 / April 2021 Reproduction of this manual, in whole or in part, by any means, is prohibited.
  • Page 2 CCU-IP Table of Content Section 1: Product Details and Specs Section 2: Quick Start / Wiring Section 3: Buttons and Configurations Section 4: Installation and Setup Section 5: Network Configuration Section 6: Section 7: Questions / Support / Outro...
  • Page 3 CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING PRECAUTION This symbol indicates that dangerous This exclamation point symbol is intended to alert the user to the presence of important operating and voltage consisting a risk of electric shock...
  • Page 4 Warning continues Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock If any unusual smells or smoke come from the unit, stop using the product. Immediately disconnect the power source and contact the service center.
  • Page 5 • Onscreen LCD for accurate setting adjustments • LED Silicone buttons for precision and prolong use • Precise AIDA Function layout for full control of our PTZ Lineup • PoE Compatible for single-wire runs • Ergonomic design for comfort and ease of use •...
  • Page 6 SECTION: 2 RS422 Connection: Using RS422 requires the specific connection labeled above. In order to chain more cameras, please go out of the first camera with the following wiring and into the next with the guide above. Once complete, please select protocol VISCA, and address and baudrate to set the camera.
  • Page 7 SECTION: 2 RS232 Connection: For RS232 connection, please connect a RS232 Visca cable (comes free with any AIDA PTZ Purchase) and connect the controller to the in port of the RS232 on the back of the camera. Any more cameras require additional RS232 mini-din cables, or CBL-RJ45 cables (purchased separately) for longer distance.
  • Page 8 SECTION: 2 RJ45 Connection: To connect, please make sure the cameras are on the same switch as the CCU-IP. The controller comes default with a static IP address of 192.168.1.108. If you want to change this, enter the camera menu by pressing the SETUP button, and look for network attributes.
  • Page 9 SECTION: 3...

  • Page 10: White Balance

    SECTION: 3 WHITE BALANCE White Balance Mode – Toggle through the applicable white balance modes the camera has to offer. White balance Auto – Instantly switch to Auto white balance mode. EXPOSURE Exposure Mode – Toggle through the applicable exposure modes the camera has to offer. Exposure Auto –...

  • Page 11: Auto Focus

    SECTION: 3 PRESET SPEED UP - Increase the speed at which the camera moves between presets by intervals PRESET SPEED DOWN – Decrease the speed at which the camera moves between presets by intervals 3. MENU– Open and close the Camera menu FREEZE PRESET –...
  • Page 12 SECTION: 3 SET UP - Enter the menu of the controller HOME – Instantly recalls the PTZ to its home position – Press to initiate a saving of a preset RESET – Press to initiate a deletion of a preset –...
  • Page 13 • IP ADD : Enter the IP address of the camera you want to control IP Add • PORT : Enter the VISCA port number of the camera (default for AIDA PTZ: 52381) Port power frequency in order to minimize video flicker.

  • Page 14: Device List

    SECTION: 3 DEVICE LIST Device List • 1/7 : This sub menu allows you to see the protocol, address, and other important information of each camera. Camera Protocol IP Add. Port Protocol Address Baudrate NETWORK ATTRIBUTE • DHCP : Sets the camera to DHCP, automatically taking a IP address assigned by a Static router : Once complete, the controller will restart.

  • Page 15: Button Tone

    SECTION: 3 BACKLIGHT Keyboard Setting Toggle on or off the button sounds of the keyboard. 1. Add Network Device 2. Add Serial Device 3. Device List : Inquire BUTTON TONE 4. Network Attribute : Static Toggle on or off the button sounds of the keyboard. 5.
  • Page 16 CAM buttons. Press enter once set. 5. Next, select the correct protocol for the camera. Cycle through the options. If you are using any AIDA PTZ with a network connection, please select SONY VISCA(UDP).
  • Page 17 SECTION: 4 ADDING A SERIAL DEVICE 1. Ensure that all connections to the controller and network are 6. Under Address, enter the cameras set address ID using the fastened. Please power the controller and allow it ample time keypad. Once complete, press enter. for its first boot up.
  • Page 18 The CCU-IP will natively come at the IP address of 192.168.1.108. Please note that if you are not able to access the web browser and are getting errors, recheck your network and make sure that the CCU-IP’s IP address matches. CONNECTING TO THE WEB PORTAL 1.

  • Page 19: Using The Web Portal

    SECTION: 5 USING THE WEB PORTAL The web portal has a variety of tools created to help optimize your setup experience with the CCU-IP fast and efficiently. On the main screen, you are able to modify each camera’s setting slot.

  • Page 20: Settings Tabs

    4. Reboot: Clicking the restart button will power cycle the controller. No settings will be lost. 5. Import: Allows you to import any saved AIDA CCU-IP preset files. This will change all of your settings. 6. Export: Allows you to export your current AIDA CCU-IP settings into a preset file, which can later be imported to the same or other controllers.
  • Page 21 • Please ensure you are connecting to the correct IP address. Also double check to see if your CCU-IP is on the same IP address as your cameras and network. Please refer to video references on our Youtube Channel if you are unsure how to do that.
  • Page 22 SECTION: 7 SYNCHRONIZATION Control Protocol VISCA, VISCA over IP Control Interface RS-232 / RS-422 / RJ-45 Number of Camera Supported Dimensions 12.625 x 7 x 4.25 (W x D x H) Weight 4lbs ( Net Weight ) Power PoE / 12VDC *Specification are subject to change without notice.
  • Page 23 SECTION: 7 Visit us: www.aidaimaging.com/support E-mail us: support@aidaimaging.com Give us a Call: Toll Free: 844.631.8367 Tel: 909.333.7421 Operating Hours: Mon-Fri 8:00am – 5:00pm PST...
  • Page 24 Disposal of Old Appliances 1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately form the municipal waste stream in accordance to laws designated by the government or the local authorities. 3.
