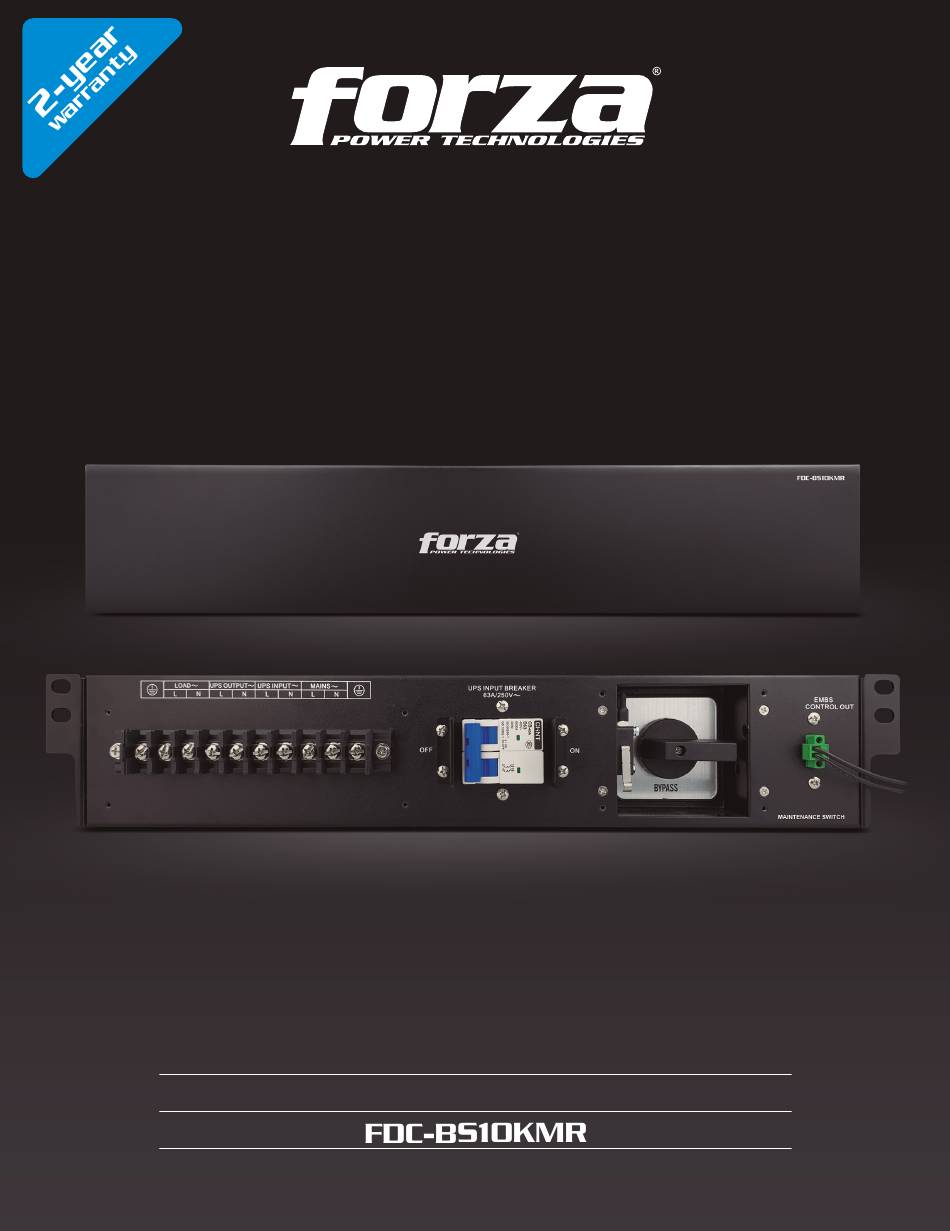

- Page 1 User guide Maintenance bypass switch module...
-
Page 2: Important Safety Instructions
1. Introduction Thank you for purchasing the Maintenance bypass switch from Forza. This module is used as an external maintenance bypass switch to provide continuous power without shutting down the connected loads during UPS scheduled maintenance or battery replacement. It is perfect to use in conjunction with 6K/10KVA UPS systems. -
Page 3: Installation And Configuration
4.2. Installation and configuration Important safety instructions Installation and wiring must be performed by qualified personnel, and in accordance with the local electrical regulations and codes. Also, you must observe the following guidelines: 1. Make sure the mains wire and breakers in the building are enough for the rated capacity of the UPS to avoid the hazards of electric shock or fire. - Page 4 5. Operation Transfer from UPS to maintenance bypass mode To manually change from UPS to maintenance bypass function, follow the steps included below: MAINTENANCE Step 1: Press the OFF button of the UPS unit to transfer to bypass mode. BYPASS Step 2: Open the maintenance switch cover.
