  • Page 1 RIGOL English User’s Guide 中文 USB-GPIB-L Adapter Jul. 2017 RIGOL TECHNOLOGIES, INC.
  • Page 3: Guaranty And Declaration

    RIGOL products are covered by P.R.C. and foreign patents, issued and  pending. RIGOL reserves the right to modify or change parts of or all the  specifications and pricing policies at the company’s sole decision. Information in this publication replaces all previously released materials.
  • Page 4: General Safety Summary

    Do Not Operate With Suspected Failures. If you suspect that any damage may occur to the adapter, have it inspected by RIGOL authorized personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by RIGOL authorized personnel.
  • Page 5: Safety Notices And Symbols

    It calls attention to an operation, if not correctly performed, could result in damage to the product or other devices connected to the product. Safety Symbols on the Product: Hazardous Safety Protective Earth Chassis Ground Test Ground Voltage Warning Terminal USB-GPIB-L Adapter User's Guide...
  • Page 6: Care And Cleaning

    Clean the adapter regularly according to its operating conditions using the method below. Disconnect the adapter from the RIGOL's instrument. Remove the loose dust on the exterior of the adapter with a lint- free cloth (with mild detergent or water).

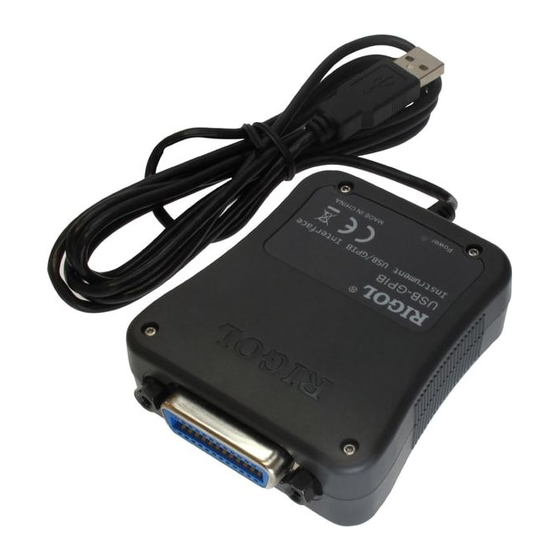

  • Page 7 USB-GPIB-L Adapter Overview English RIGOL USB-GPIB-L Adapter, as shown in Figure 1, is used to connect RIGOL's instrument (e.g. DL3000 series electronic load) that is equipped with USB Host interface but without GPIB interface to a GPIB controller. It is also a module that...
  • Page 8: Basic Operations

    You can view the power status of the adapter through the LED indicator. If you connect it to the RIGOL's instrument properly, but the LED indicator does not shine, please contact RIGOL to locate the problem. Do not disassemble it by yourself.
  • Page 9: Working Environment

    0℃ to 40℃ Temperature Storage -40℃ to 70℃ Temperature Humidity 5% to 80% RH (without condensation) Altitude Below 2,000 m General Specifications Dimensions 74.9 mm (W) x 27.8 mm (H) x 88.6 mm (D) Weight 0.05 kg USB-GPIB-L Adapter User's Guide...
  • Page 10: Warranty

    If a product proves defective within the warranty period, RIGOL guarantees free replacement or repair for the defective product. To get repair service, please contact with your nearest RIGOL sales or service office. There is no other warranty, expressed or implied, except such as is expressly set forth herein or other applicable warranty card.
  • Page 11 RIGOL 用户手册 中文 USB-GPIB-L 适配器 2017 年 7 月 RIGOL TECHNOLOGIES, INC.
  • Page 13 中文 RIGOL 是北京普源精电科技有限公司的注册商标。 文档编号 UGK01000-1110 声明  本公司产品受中国及其它国家和地区的专利(包括已取得的和正在申请的 专利)保护。  本公司保留改变规格及价格的权利。  本手册提供的信息取代以往出版的所有资料。  本手册提供的信息如有变更,恕不另行通知。  对于本手册可能包含的错误,或因手册所提供的信息及演绎的功能以及因 使用本手册而导致的任何偶然或继发的损失,RIGOL 概不负责。 未经 RIGOL 事先书面许可,不得影印、复制或改编本手册的任何部分。  产品认证 RIGOL 认证本产品符合中国国家产品标准和行业产品标准及 ISO9001:2008 标 准和 ISO14001:2004 标准,并进一步认证本产品符合其它国际标准组织成员的 相关标准。 联系我们 如您在使用此产品或本手册的过程中有任何问题或需求,可与 RIGOL 联系: 电子邮箱:service@rigol.com 网址:www.rigol.com USB-GPIB-L 适配器用户手册...
  • Page 14 RIGOL 一般安全概要 了解下列安全性预防措施,以避免受伤,并防止损坏本产品或与本产品连接的任 何产品。为避免可能的危险,请务必按照规定使用本产品。 请勿开盖操作。 中文 请勿在外盖打开时运行本产品。 避免电路外露。 电源接通后,请勿接触外露的接头和元件。 怀疑产品出故障时,请勿进行操作。 如果您怀疑本产品出现故障,请联络RIGOL授权的维修人员进行检测。任何维 护、调整或零件更换必须由RIGOL授权的维修人员执行。 保持适当的通风。 通风不良会引起产品温度升高,进而引起产品损坏。使用时应保持良好的通风, 定期检查通风口和风扇。 请勿在潮湿环境下操作。 为避免产品内部电路短路或发生电击的危险,请勿在潮湿环境下操作本产品。 请勿在易燃易爆的环境下操作。 为避免产品损坏或人身伤害,请勿在易燃易爆的环境下操作本产品。 请保持产品表面的清洁和干燥。 为避免灰尘或空气中的水分影响产品性能,请保持产品表面的清洁和干燥。 防静电保护。 静电会造成产品损坏,应尽可能在防静电区进行测试。在连接电缆到产品前,应 将其内外导体短暂接地以释放静电。 请正确插拔。 本产品正在工作时请勿进行插拔。 USB-GPIB-L 适配器用户手册...
  • Page 15 RIGOL 安全术语和符号 本手册中的安全术语: 警告 警告性声明指出可能会造成人身伤害或危及生命安全的情况或操 中文 作。 注意 注意性声明指出可能导致本产品损坏或数据丢失的情况或操作。 产品上的安全术语: DANGER 表示您如果不进行此操作,可能会立即对您造成危害。 WARNING 表示您如果不进行此操作,可能会对您造成潜在的危害。 CAUTION 表示您如果不进行此操作,可能会对本产品或连接到本产品 的其他设备造成损坏。 产品上的安全符号: 高电压 安全警告 保护性接地端 壳体接地端 测量接地端 USB-GPIB-L 适配器用户手册...
  • Page 16 RIGOL 保养与清洁 保养 请勿将本产品放置在长时间受到日照的地方。 清洁 中文 请根据使用情况对本产品进行清洁。方法如下: 断开本产品与 RIGOL 仪器的连接。 用潮湿但不滴水的软布(可使用柔和的清洁剂或清水)擦试本产品外部的 浮尘。 注意 请勿使任何腐蚀性的液体沾到本产品上。 警告 重新使用前,请确认本产品已经干透,避免因水分造成电气短路甚 至人身伤害。 USB-GPIB-L 适配器用户手册...
  • Page 17 RIGOL USB-GPIB-L适配器简介 USB-GPIB-L适配器(见图1)是用于使集成USB Host接口但未集成GPIB接口的 RIGOL仪器(例如DL3000系列电子负载)连接到GPIB总线控制器上的设备,即 为未集成GPIB接口的RIGOL仪器扩展出GPIB接口, 从而通过GPIB指令进行远程 控制。 中文 USB-GPIB-L适配器性能特点: 通过RIGOL仪器的USB Host接口进行GPIB控制。   通过GPIB主机对RIGOL仪器的GPIB地址进行分配。 由USB Host接口供电,无需外接电源。  通过一个 LED 指示灯显示电源状态。   即插即用。 USB 接口 LED 指示灯 GPIB 接口 图 1 USB-GPIB-L 适配器 USB-GPIB-L 适配器用户手册...
  • Page 18 RIGOL 基本操作 适配器连接方式(见图 2) 将本适配器的USB接口连接至RIGOL仪器的USB Host接口。 将本适配器的GPIB接口连接至GPIB总线控制器上。 中文 RIGOL 仪器 控制端 适配器 图 2 USB-GPIB-L 适配器连接示意图 注意 为保证适配器能正常使用,请务必按照上述操作步骤进行连接。 提示 可通过适配器上的LED指示灯获取适配器供电状况的信息。 若在正确连接并启 动RIGOL仪器后,适配器的LED指示灯不亮,请联系RIGOL工作人员以确认 故障,请勿自行拆卸。 设置 GPIB 地址 RIGOL 仪器的 GPIB 地址既可通过操作 RIGOL 仪器进行设置,也可通过控制 端远程进行设置。本适配器默认的 GPIB 地址为 16。 USB-GPIB-L 适配器用户手册...
  • Page 19 RIGOL 系统要求 每个适配器只能对应一台仪器使用,不支持通过USB集线器同时对多台仪器进行 控制。 中文 规格 操作环境 0℃至 40℃ 工作温度 -40℃至 70℃ 存储温度 5%至 80%相对湿度(无冷凝) 湿度 2 000 m 以下 海拔高度 一般技术规格 74.9 mm (W) x 27.8 mm (H) x 88.6 mm (D) 尺寸 0.05 kg 重量 USB-GPIB-L 适配器用户手册...
  • Page 20 RIGOL 保修概要 北京普源精电科技有限公司及其授权生产的苏州普源精电科技有限公司 (RIGOL TECHNOLOGIES, INC.,以下简称 RIGOL)承诺其生产仪器的主机和 附件,在产品保修期内无任何材料和工艺缺陷。 中文 在保修期内,若产品被证明有缺陷,RIGOL 将为用户免费维修或更换。详细保 修条例请参见 RIGOL 官方网站或产品保修卡的说明。 欲获得维修服务或保修说 明全文,请与 RIGOL 维修中心或各地办事处联系。 除本概要或其他适用的保修卡所提供的保证以外,RIGOL 公司不提供其他任何 明示或暗示的保证, 包括但不局限于对产品可交易性和特殊用途适用性之任何暗 示保证。在任何情况下,RIGOL 公司对间接的,特殊的或继起的损失不承担任 何责任。 USB-GPIB-L 适配器用户手册...
