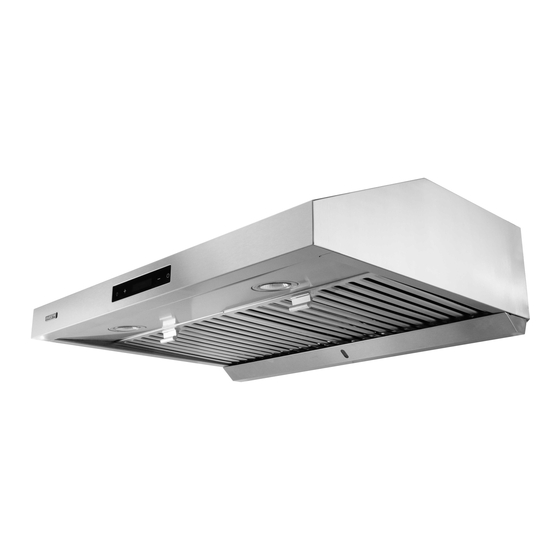

Atlanta VRH-UI01-30SS User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Atlanta

User Manual

VRH-UI01-30SS

Table of Contents

Need help?

Do you have a question about the VRH-UI01-30SS and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlanta VRH-UI01-30SS

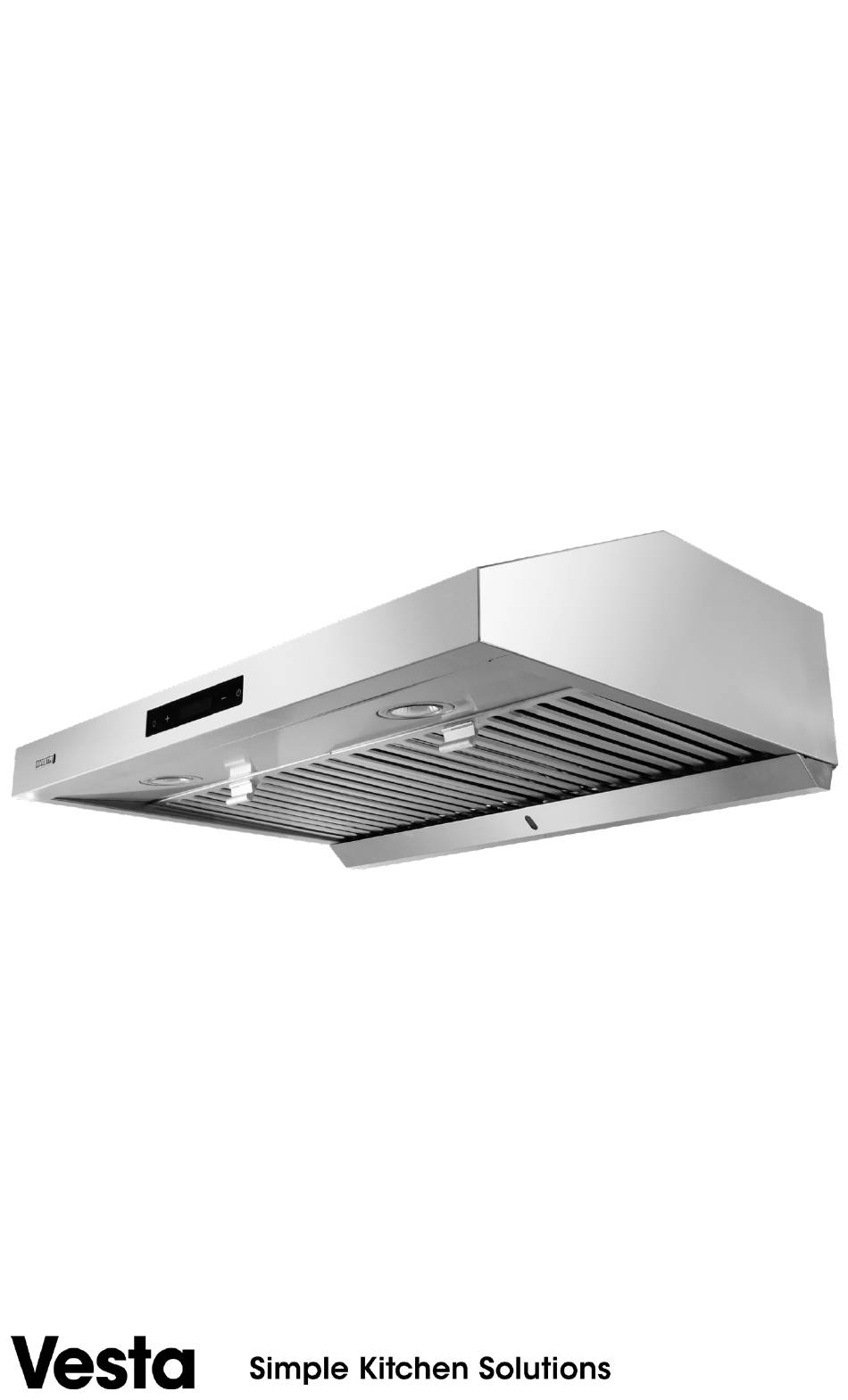

Page 1 Atlanta User Manual VRH-UI01-30SS...
Page 3: Table Of Contents
Table of Contents Warning Tools Needed Parts & Accessories Product Dimension Installation Operations Maintenance Warranty Disclaimer Contact Us...
Page 4: Warning
Warning 1. Installation work and electric wiring (including switch location) must be done by the qualified person(s) in accordance with local applicable codes and standards, including fire-rated construction. 2. This hood may have sharp edges. Be careful to avoid cuts and abrasions during installation and cleaning.
Page 5 WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP FIRE, OBSERVE THE FOLLOWING 1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner, BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
Page 6 4. Use proper pan size. Always use cookware appropriate for the size of the element. WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSON, KEEP IN MIND THE FOLLOWING: 1. Use this unit only in the manner intended by the manufacturer.
Page 7: Tools Needed
Tools Needed 1/4”...
Page 8: Parts & Accessories
Parts & Accessories Range Hood ×1 Oil Tray ×1 Wire Connector Screws Rubber Ring ×3 ×6 ×1 Top Vent Adapter Top Vent Adapter Back Vent Adapter (10” × 3 1/4”) (6” Round) (10” × 3 1/4”) ×1 ×1 ×1...
Page 9: Product Dimension
Product Dimension 7” 2 2/5” 22” 29 4/5”...
Page 10: Installation
Installation...
Page 11 Use the appropriate vent for your kitchen venting requirements. Top Rectangular Vent Next Page Top Round Vent Skip to Page 17 Back Rectangular Vent Skip to Page 28...
Page 12 There are 2 perforated circles at the back and top corner. Based on the location of your wires, punch through the circle that is the closest to your wire location.
Page 13 Snap on the rubber ring...
Page 14 Feed the wires through the hole...
Page 15 1. Slide the range hood under the cabinet and slide the vent adapter into the vent 2. Secure with screws.
Page 16 Skip to Page 35...
Page 17 Switching to Top Round Vent Adapter...
Page 19 There are 2 perforated circles at the back and top corner. Based on the location of your wires, punch through the circle that is the closest to your wire location.
Page 20 Snap on the rubber ring...
Page 26 Connect round vent to vent adapter. Seal with aluminum foil tape.
Page 27 Skip to Page 35...
Page 28 Switching to Back Vent Adapter...
Page 30 There are 2 perforated circles at the back and top corner. Based on the location of your wires, punch through the circle that is the closest to your wire location.
Page 31 Snap on the rubber ring...
Page 32 Feed the wires through the hole...
Page 33 Slide the vent adapter into the vent...
Page 35 Connect the wires: • Black to Hot line • White to Neutral line • Green to Ground line • Secure with “Twist-on Caps”...
Page 38: Operations
Operations Introduction Of Control Panel The hood is operated using 6 speeds touch control switch on the front panel. Turn On / Off The Machine: Press the button once to activate the fan. When you want to turn off the fan, press the button again to shut down.
Page 39 light button again will switch the brightness to high. Press the light button the third time will turn off the lights. Set The Clock: When the unit is turned off, press for 5 seconds to enter the hour setting mode. When the time indicator is flashing, press buttons to change the hour.
Page 40: Maintenance
Maintenance Exterior Body: Clean grease with cloth. Apply a small amount of stainless steel solution and wipe with dry cloth. Filters: The grease filters should be cleaned frequently (every two months of operation, or more frequently for heavy use). You can either clean the filters by hand with warm detergent solution and then rinse.
Page 41: Warranty
Warranty TO OBTAIN SERVICE UNDER WARRANTY: You must present proof of original purchase date. Please provide an original dated proof of purchase (sales receipt / invoice) in order to obtain service under warranty. Lifetime Motor Warranty The motor, which is covered by lifetime warranty, should be provided free of charge by your local reseller given it failed due to manufacturing defects.
Page 42 Who is Covered This warranty is extended to the original purchaser for products purchased for ordinary home use. This Warranty Will Be Voided When: Product damaged through negligence, improper installation, accident, abuse, misuse, natural disaster, insufficient or excessive electrical supply, abnormal mechanical or environmental conditions, or any unauthorized disassembly, repair, modification, or failure to follow installation instructions.
Page 43 purchaser and does not extend to subsequent owners of this product. Any applicable implied warranties, including the warranty of merchantability, are limited in duration to a period of express warranty as provided herein beginning with the date of original purchase at retail and, no warranties, whether express or implied, shall apply to this product thereafter.
Page 44: Disclaimer
Disclaimer Carefully inspect all items for damages before accepting delivery. Note any damages on the freight bill or express receipt. Request name and signature of the carrier’s agent and keep copy to support your claim. Upon acceptance of items, owner assumes responsibility for its safe arrival.
Page 45: Contact Us
Contact Us If you need any assistance, please contact us at +1 905-480- 0556 or info@vesta.kitchen . Please have your order number and model of the range hood ready. This information will help us better respond to your request. If you need replacement parts, we recommend that you only use genuine parts.
Page 48 www.vesta.kitchen...
