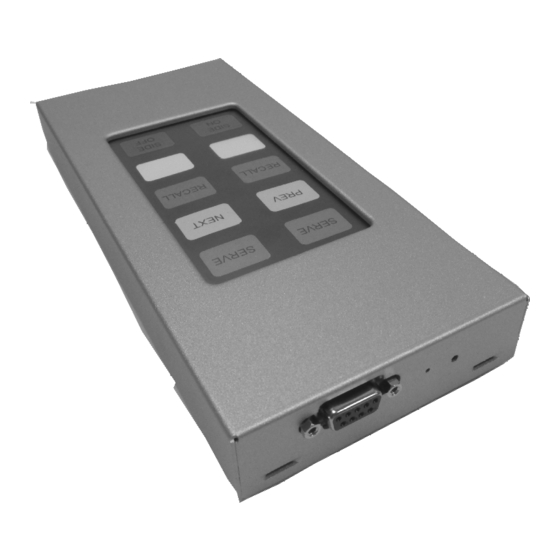

BB-3000
Bump Bar
User Manual

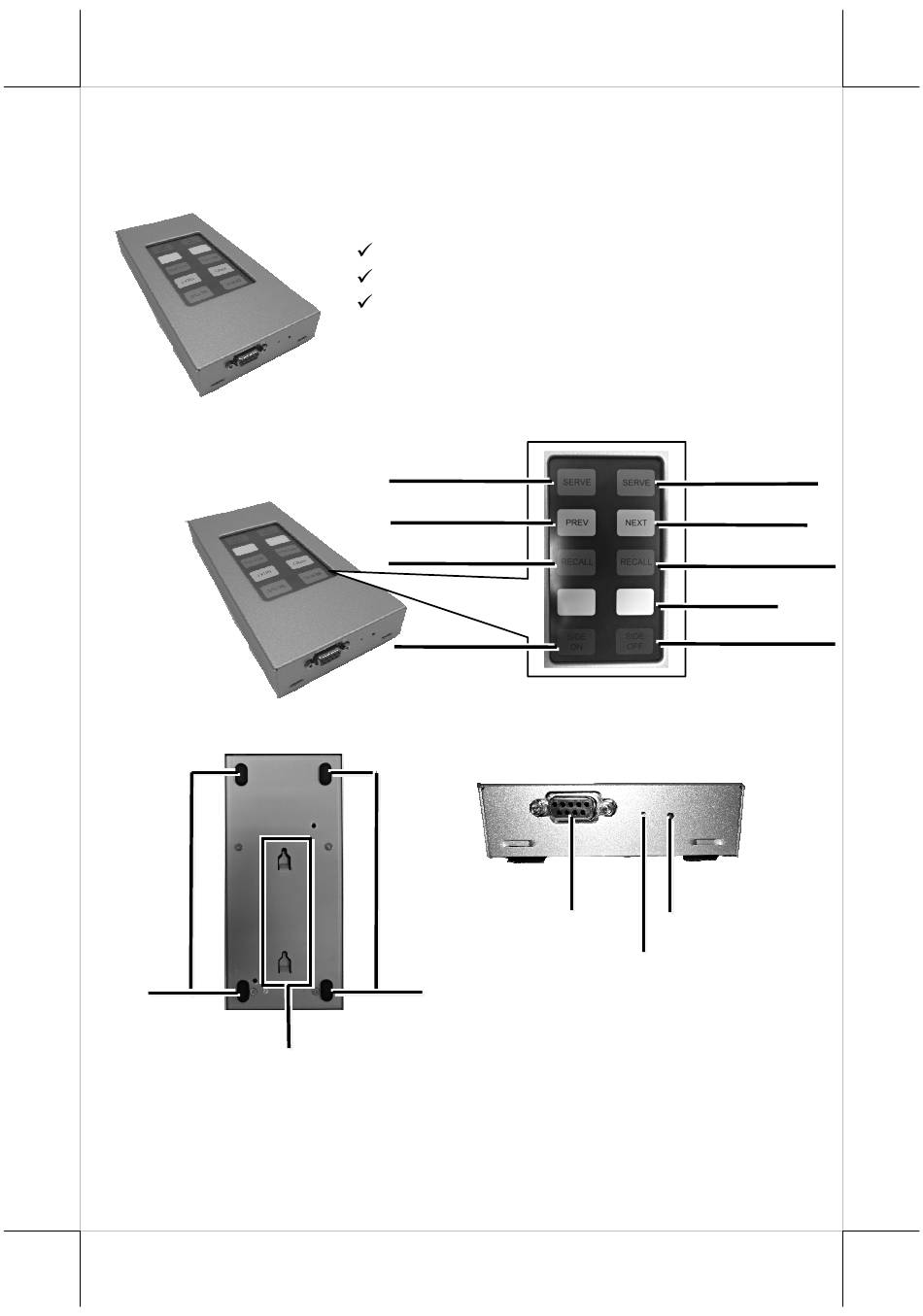

Views of the Bump Bar
Top View
Bottom View
Rubber Pad
Fixed Portion
19100900010 Ver. Original
Package Contents
BB-3000 Bump Bar (x 1)
2m-Long Dedicated RS-232 Cable (x 1)
User Manual (x 1)
SERVE Button
PREV Button
RECALL Button
SIDE ON Button
Front View
RS-232 Port
Rubber Pad
1
SERVE Button
NEXT Button
RECALL Button
(Reserved)
SIDE OFF Button
Status LED Indicator
Reset Button
Advertisement
Table of Contents
Summary of Contents for POSIFLEX BB-3000
- Page 1 BB-3000 Bump Bar User Manual Package Contents BB-3000 Bump Bar (x 1) 2m-Long Dedicated RS-232 Cable (x 1) User Manual (x 1) Views of the Bump Bar Top View SERVE Button SERVE Button PREV Button NEXT Button RECALL Button RECALL Button...
- Page 2 RS-232 cable instead of a power adaptor. Thus, simply follow two steps made below to power on the BB-3000. 1. Connect the RS-232 COM port of the BB-3000 to a specified COM port of your host terminal through a dedicated RS-232 cable.
- Page 3 Functions of DIP Switch SW10 DIP SWITCH Functions (Pin No.) Baud rate settings Pin 1 Pin 1/Pin 2 : OFF/OFF => 1200 bps Pin 1/Pin 2 : OFF/ON => 2400 bps Pin 1/Pin 2 : ON/OFF => 4800 bps Pin 2 Pin 1/Pin 2 : ON/ON =>...
- Page 4 DIP SWITCH Functions (Pin No.) Enabling or disabling DIP switch Pin 7 : OFF / Pin 8 : OFF Pin 7 Enabling SW1 ~ SW10 Pin 7 : OFF / Pin 8 : ON Enabling SW1, SW2, SW5~SW7, and SW10 Pin 8 Pin 7 : ON / Pin 8 : OFF Enabling SW3~SW5 and SW8~SW10...
