Summary of Contents for RYCO CLEAN KIT

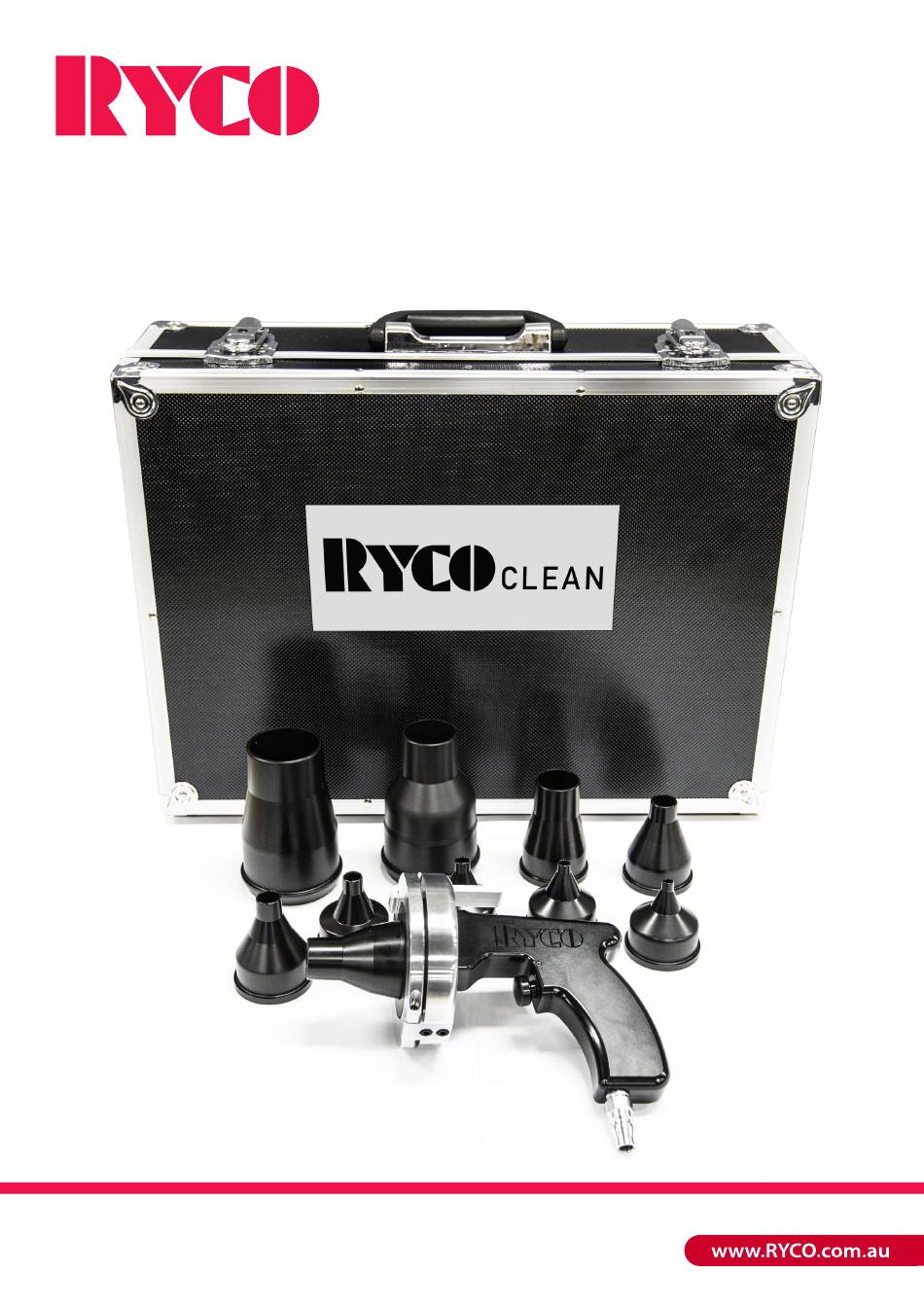

- Page 1 CLEAN KIT OPERATION MANUAL CONNECTING PARTNERSHIPS...
-
Page 3: Table Of Contents
CONTENTS Introduction ..........................1 Safety Instructions ........................1 RYCO CLEAN Kit ......................... 2 RYCO CLEAN Hand Launcher Kit ..................2 a) Pneumatic Hand Launcher Gun ..................2 b) Adaptor Ring ........................2 c) Nozzles ........................... 2 Projectile Starter Kit ......................3 Operating Instructions ....................... -
Page 4: Introduction

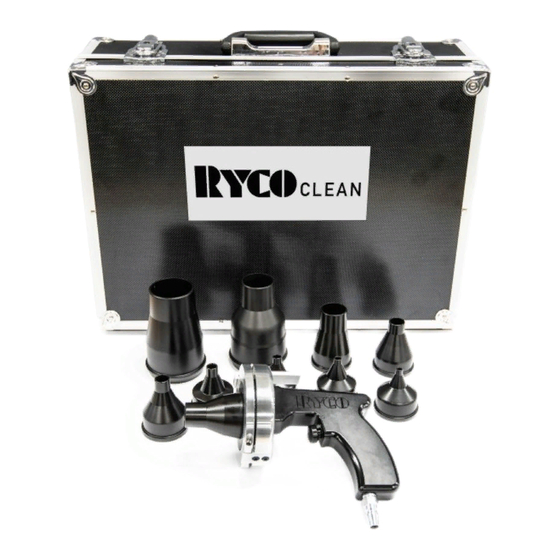

The RYCO CLEAN Kit is an easy to use, low-cost solution to eliminate hydraulic contamination from the inside of hose, tube, and pipe. It is designed to clean the internal surfaces of hose, tube, and pipe effectively and efficiently. -
Page 5: Ryco Clean Kit
There are ten multi-purpose nozzle sizes ranging from 6mm (1/4”) – 50mm (2”). Refer to Projectile and Nozzle Selection Chart (page 6) to select the appropriate size. For spare parts / individual components of the launcher kit, contact your nearest RYCO representative. RYCO CLEAN KIT OPERATION MANUAL... -
Page 6: Projectile Starter Kit
Re-sealable bag to prevent contamination from getting in. Projectiles range in size from 7mm – 60mm, refer to Projectile & Nozzle Selection Chart (page 6) to select the appropriate size. For other types of projectiles (e.g. abrasive), contact your nearest RYCO representative. RYCO CLEAN KIT OPERATION MANUAL... -
Page 7: Operating Instructions
Connect a suitable compressed air supply to the quick release nipple on the RYCO hand launcher. Notes: The optimum air input pressure range for the RYCO CLEAN Kit Hand Launcher to operate effectively is between 87 psi (6 bar) and 110 psi (7,5 bar). -
Page 8: Maintenance
1. Operate launcher and shoot air from the other end without using a Projectile. 2. Check if the air pressure is adequate. The optimum air input pressure range for the RYCO CLEAN Kit Hand Launcher to operate effectively is between 87 psi (6 bar) and 110 psi (7,5 bar). A larger diameter air supply hose can be used if pressure is insufficient (3/8”... -
Page 9: Nozzle Guide & Projectile Selection Chart
C12-300 RCN-13 C16-300 RCN-16 C20-300 RCN-19 C22-300 RCN-25 C33-50 1.1/4 RCN-32 C40-50 1.1/2 RCN-38 C50-40 RCN-50 C60-30 Other projectile sizes, types and grades available upon request. For additional information please contact your local RYCO representative. RYCO CLEAN KIT OPERATION MANUAL... - Page 10 RYCO LOCATIONS RYCO 24•7 SERVICE CENTRES AUSTRALIA RYCO 24•7 133•24•7 Sales RYCO247.com +61 1300 111 247 SA & NT VIC & TAS Sales RYCO.com.au Bellingen Archerfield Cowell Bendigo Kalgoorlie GLOBAL HEAD OFFICE Boggabri Banana Darwin Mildura Mandurah MELBOURNE Ingleburn Blackwater...
