Tridonic DALI RM CDM 30 10A 1CH Manual

Dali-2 single channel relay

Table of Contents

Download this manual

Product description

• DALI-2 Relay

• Compatible with DALI and DALI-2 versions

• Compliant to EN 62386-208

• 1 channel actuator (switch) with DALI-2 input

• Protected against DALI over voltage

• Suitable for switchboard mount on standard DIN rail

• Mains rated dry-contact (volt-free) potential free relay output

• Compliant DALI device type 7

• Small dimensions

• 5 years guarantee (conditions at www.tridonic.com)

• DALI

• Optimized for electronic loads with high in-rush currents like

LED Drivers, which have short but very high peaks of in-rush

currents

• Switching of loads with inrush currents up to 490 A / 1.5 ms

• Compliant with common DALI-2 controllers and gateways

• DALI backwards compatible

Standards, page 3

Wiring diagrams and installation examples, page 4

Data sheet 04/21-CO137-1

Subject to change without notice. Information provided without guarantee.

Lighting Controls and Connectivity

DALI-2 components

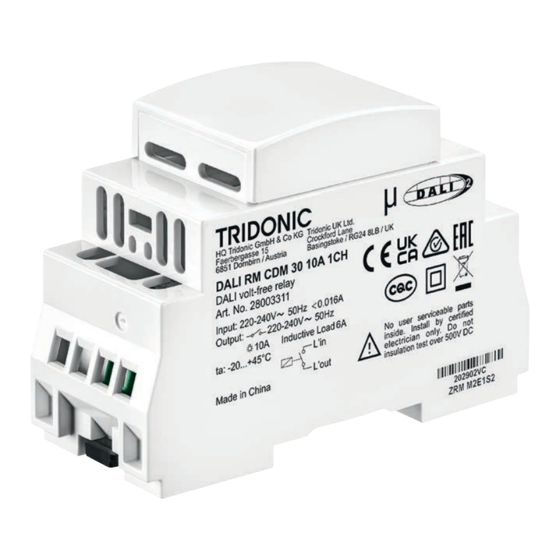

DALI RM CDM 30 10A 1CH

DALI-2 single channel relay

www.tridonic.com

Table of Contents

Do you have a question about the DALI RM CDM 30 10A 1CH and is the answer not in the manual?

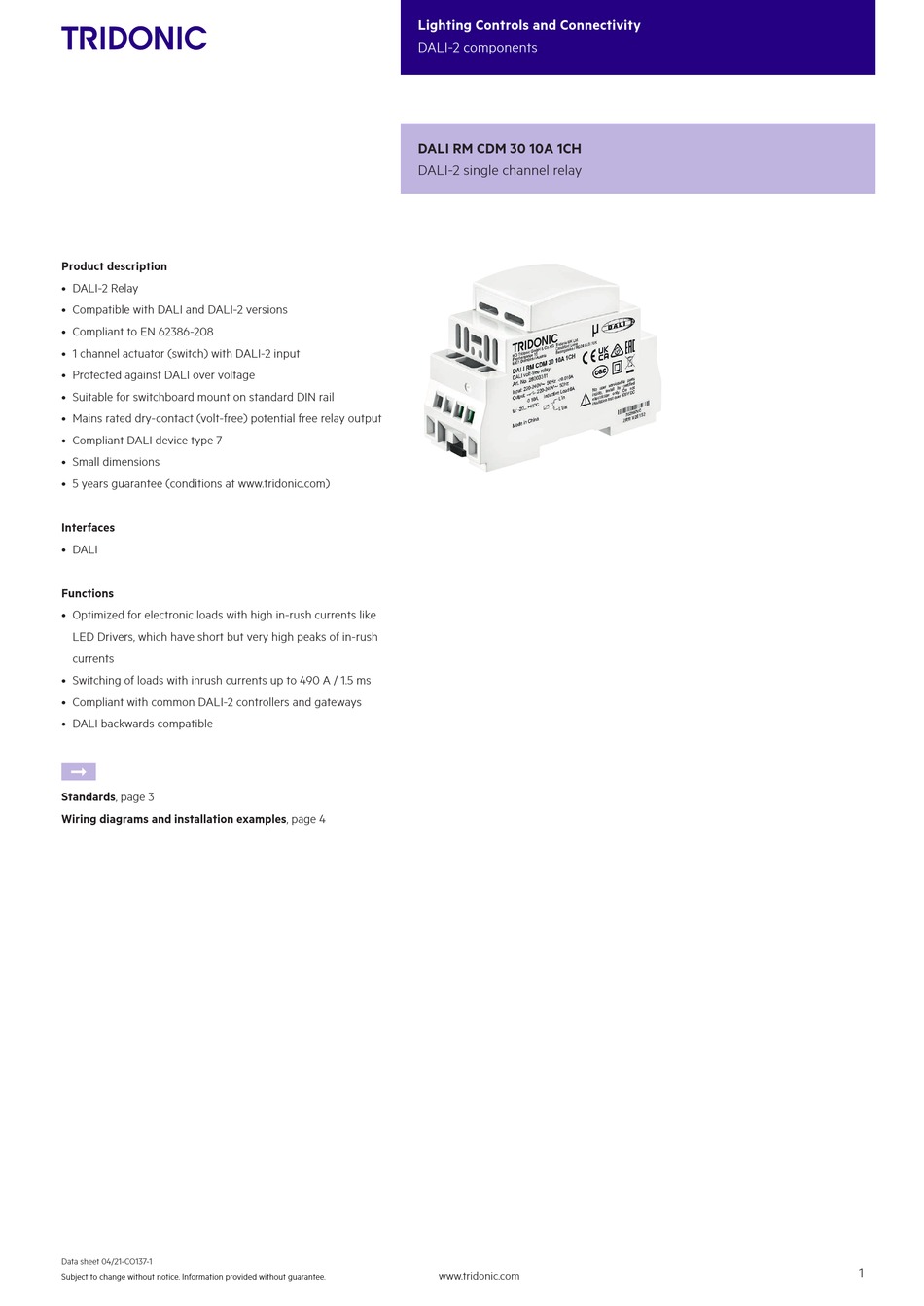

Page 1 Lighting Controls and Connectivity DALI-2 components DALI RM CDM 30 10A 1CH DALI-2 single channel relay Product description • DALI-2 Relay • Compatible with DALI and DALI-2 versions • Compliant to EN 62386-208 • 1 channel actuator (switch) with DALI-2 input •...
Page 2 Lighting Controls and Connectivity DALI-2 components DALI RM CDM 30 10A 1CH DALI-2 single channel relay Technical data Rated supply voltage 220 – 240 V Mains frequency 50 / 60 Hz Current consumption of DALI 2 mA Input DALI Output...
Page 3 • be used for the applications specified, • for safe installation in dry, clean environment and • be installed in such a way that access is only possible using a tool. Data sheet 04/21-CO137-1 www.tridonic.com Subject to change without notice. Information provided without guarantee.
Page 4 Return old devices in accordance with the WEEE directive to suitable recycling facilities. 4.2 Additional information Additional technical information at www.tridonic.com → Technical Data Lifetime declarations are informative and represent no warranty claim. No warranty if device was opened. 3.5 Wiring type and cross section The wiring can be solid wire or stranded wire with end sleeve with a cross-section of 1 to 4 mm².
