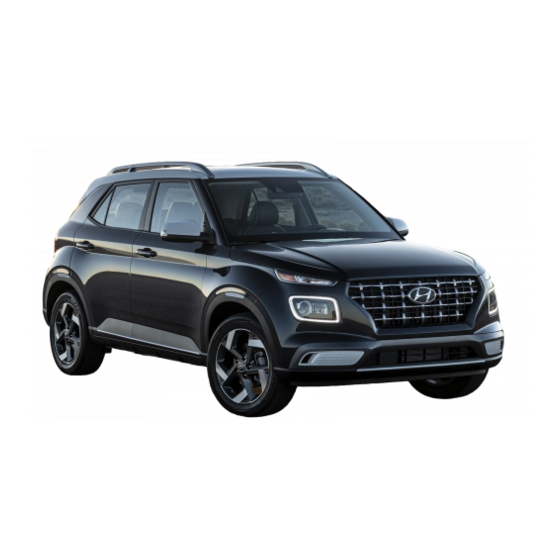

Huyndai Venue 2020 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER'S MANUAL
Operation
Maintenance
Specifications
All information in this Owner's Manual is current at the time
of publication. However, HYUNDAI reserves the right to make
changes at any time so that our policy of continual product
improvement may be carried out.
This manual applies to all HYUNDAI models and includes
descriptions and explanations of optional as well as standard
equipment. As a result, you may find material in this manual
that does not apply to your specific vehicle.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Venue 2020 and is the answer not in the manual?

Questions and answers

Arch Brown
March 15, 2025

Where is the hood release button located

0

Summary of Contents for Huyndai Venue 2020

  • Page 1 OWNER’S MANUAL Operation Maintenance Specifications All information in this Owner’s Manual is current at the time of publication. However, HYUNDAI reserves the right to make changes at any time so that our policy of continual product improvement may be carried out. This manual applies to all HYUNDAI models and includes descriptions and explanations of optional as well as standard equipment.
  • Page 2 Introduction CAUTION: MODIFICATIONS TO YOUR HYUNDAI Your HYUNDAI should not be modified in any way. Such modifications may adversely affect the performance, safety or durability of your HYUNDAI and may, in addition, violate conditions of the limited warranties covering the vehicle. Certain modifications may also be in violation of regulations established by the U.S.
  • Page 3 HYUNDAI VEHICLE OWNER PRIVACY POLICY Your Hyundai vehicle may be equipped with technologies and services that use information collected, generated, recorded or stored by the vehicle. Hyundai has created a Vehicle Owner Privacy Policy to explain how these technologies and services collect use and share this information. You may read our Vehicle Owner Privacy Policy on the Hyundaiusa.com website at: https://www.hyundaiusa.com/owner-privacy-policy.aspx If you would like to receive a hard copy of our Vehicle Owner Privacy Policy,...

  • Page 5: Table Of Contents

    Table of Contents Foreword Vehicle Information Safety System Instrument Cluster Convenient Features While Driving Emergency Situations Maintenance Index...

  • Page 6: Foreword

    1. Foreword Introduction......................1-2 Hyundai Motor America ..................1-2 Guide to Hyundai Genuine Parts ..............1-3 How to Use This Manual ..................1-4 Safety Messages ....................1-4 Fuel Requirements ..................... 1-5 Vehicle Modifications ..................1-7 Vehicle Break-In Process ................... 1-7 Vehicle Data Collection and Event Data Recorders ........1-8...

  • Page 7: Introduction

    Foreword INTRODUCTION Congratulations, and thank you for choosing HYUNDAI. We are pleased to welcome you to the growing number of discerning people who drive HYUNDAIs. We are very proud of the advanced engineering and high-quality construction of each HYUNDAI we build. Your Owner’s Manual will introduce you to the features and operation of your new HYUNDAI.

  • Page 8: Guide To Hyundai Genuine Parts

    GUIDE TO HYUNDAI GENUINE PARTS 1. What are HYUNDAI Genuine Parts? 2. What are HYUNDAI Genuine Parts? HYUNDAI Genuine Parts are the HYUNDAI Genuine Parts are same parts used by HYUNDAI Motor engineered and built to meet rigid Company to manufacture vehicles. manufacturing requirements.

  • Page 9: How To Use This Manual

    Foreword HOW TO USE THIS MANUAL SAFETY MESSAGES We want to help you get the greatest Your safety, and the safety of others, possible driving pleasure from your is very important. This Owner’s vehicle. Your Owner’s Manual can assist Manual provides you with many safety you in many ways.

  • Page 10: Fuel Requirements

    FUEL REQUIREMENTS Throughout this manual DANGER, Your new vehicle is designed to obtain WARNING, CAUTION, NOTICE and the maximum performance with UNLEADED SAFETY ALERT SYMBOL will be used. FUEL, as well as minimize exhaust emissions and spark plug fouling. This is the safety alert symbol. It is used to alert you to potential Your new vehicle is designed to use only physical injury hazards.
  • Page 11 Foreword Gasoline containing alcohol or Using Fuel Additives (except methanol Detergent Fuel Additives) Gasohol, a mixture of gasoline and Using fuel additives such as: ethanol (also known as grain alcohol) are - Silicone fuel additive being marketed along with or instead - Ferrocene (iron-based) fuel additive of leaded or unleaded gasoline.

  • Page 12: Vehicle Modifications

    VEHICLE MODIFICATIONS Detergent Fuel Additives • This vehicle should not be modified. Modification of your vehicle could HYUNDAI recommends that you use affect its performance, safety or good quality gasolines treated with durability and may even violate detergent additives such as TOP TIER governmental safety and emissions Detergent Gasoline, which help prevent regulations.

  • Page 13: Vehicle Data Collection And Event Data Recorders

    Foreword VEHICLE DATA COLLECTION AND EVENT DATA WARNING RECORDERS CALIFORNIA PROPOSITION 65 WARNING This vehicle is equipped with an event data recorder (EDR). The main purpose Items contained in motor vehicles or of an EDR is to record, in certain crash emitted from them are known to the or near crash-like situations, such as State of California to cause cancer and...

  • Page 14: Vehicle Information

    2. Vehicle Information Exterior Overview ....................2-2 Interior Overview ....................2-4 Instrument Panel Overview ................2-5 Engine Compartment ..................2-6 Dimensions ......................2-7 Engine .........................2-7 Bulb Wattage ..................... 2-8 Tires and Wheels ....................2-9 Volume and Weight ..................2-10 Air Conditioning System ..................2-10 Recommended Lubricants and Capacities .............2-11 Recommended SAE viscosity number ..............2-12 Vehicle Identification Number (vin) ..............

  • Page 15: Exterior Overview

    Vehicle Information EXTERIOR OVERVIEW „ Front view „ The actual shape may differ from the illustration. OQX019001L 1. Hood ............5-30 5. Outside rearview mirror ....... 5-20 2. Headlamp/Daytime running lamp ..8-50 6. Front windshield wiper blades .... 5-44 3. Turn signal lamp ........8-51 7.
  • Page 16 „ Rear view „ The actual shape may differ from the illustration. OQX019002N 1. Antenna ..........5-75 6. Rear window wiper blade ....5-45 2. Doors ............5-12 7. Liftgate ........... 5-31 3. Fuel filler door ........5-33 8. Rear lamps ..........8-55 4.

  • Page 17: Interior Overview

    Vehicle Information INTERIOR OVERVIEW The actual shape may differ from the illustration. OQX019003N 1. Door lock/unlock button ....... 5-12 7. Lane Keeping Assist system On/Off Button ........6-69 2. Outside rearview mirror control switch ............. 5-21 8. ESC OFF button ........6-24 3.

  • Page 18: Instrument Panel Overview

    INSTRUMENT PANEL OVERVIEW The actual shape may differ from the illustration. OQX019011N 1. Instrument cluster ........4-4 9. Manual transmission shift lever/ Intelligent variable transmission 2. Horn ............5-19 shift lever..........6-12 3. Key ignition switch/ 10. Seat warmer ........... 3-12 Engine Start/Stop button .......

  • Page 19: Engine Compartment

    Vehicle Information ENGINE COMPARTMENT The actual engine room in the vehicle may differ from the illustration. OQX089001L 1. Engine coolant reservoir .......8-16 6. Windshield washer fluid reservoir ..8-20 2. Brake/clutch fluid reservoir ....8-19 7. Engine room junction block ....8-41 3.

  • Page 20: Dimensions

    DIMENSIONS Item in (mm) Overall length 159.0 (4,040) Overall width 69.7 (1,770) With roof rack 62.7 (1,592) Overall height Without roof rack 61.6 (1,565) 185/65R15 (6.0J) 61.2 (1,555) Front tread 205/55R17 (6.5J) 60.4 (1,535) 185/65R15 (6.0J) 61.6 (1,565) Rear tread 205/55R17 (6.5J) 60.9 (1,546) Wheelbase...

  • Page 21: Bulb Wattage

    Vehicle Information BULB WATTAGE Light bulb Bulb type Wattage Headlamp (High/Low) Type A Parking lamp Headlamp Daytime running lamp Type B (DRL)/parking lamp Cornering lamp Headlamp (High/low) Front Daytime running lamp Type C (DRL)/parking lamp Cornering lamp Turn signal lamp 28/8W 28/8 Side marker...

  • Page 22: Tires And Wheels

    TIRES AND WHEELS Inflation pressure kPa (psi) Wheel lug Normal load Maximum load nut torque Wheel Item Tire Size kgf·m Size (lbf·ft, Front Rear Front Rear N·m) 185/65 R15 6.0Jx15 250 (36) 250 (36) 250 (36) 250 (36) Full size tire 205/55 R17 6.5Jx17 230 (33) 230 (33) 230 (33)

  • Page 23: Volume And Weight

    Vehicle Information VOLUME AND WEIGHT Smartstream G1.6 Items Gross vehicle weight 3,770 (1,710) 3,638 (1,650) lbs. (kg) Luggage volume (SAE) Behind 1st row : 18.66 (528) cu ft (ℓ) Behind 2st row : 31.86 (902) M/T: Manual transmission IVT: Intelligent variable transmission AIR CONDITIONING SYSTEM Item Weight of Volume...

  • Page 24: Recommended Lubricants And Capacities

    RECOMMENDED LUBRICANTS AND CAPACITIES To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct lubricants also help promote engine efficiency that results in improved fuel economy. These lubricants and fluids are recommended for use in your vehicle. Lubricant Volume Classification...

  • Page 25: Recommended Sae Viscosity Number

    Vehicle Information Recommended SAE viscosity Engine oil viscosity (thickness) has an effect on fuel economy and cold weather number operating (engine start and engine oil flowability). Lower viscosity engine oils CAUTION can provide better fuel economy and cold weather performance, however, Always be sure to clean the area around higher viscosity engine oils are required any filler plug, drain plug, or dipstick...

  • Page 26: Vehicle Identification Number (Vin)

    VEHICLE IDENTIFICATION VEHICLE CERTIFICATION NUMBER (VIN) LABEL „ Frame number „ OIB074059 OIB084003 The vehicle certification label attached The vehicle identification number (VIN) is on the driver’s side center pillar gives the the number used in registering your car Vehicle Identification Number (VIN). and in all legal matters pertaining to its ownership, etc.

  • Page 27: Tire Specification And Pressure Label

    Vehicle Information TIRE SPECIFICATION AND ENGINE NUMBER PRESSURE LABEL OQX089040L The engine number is stamped on the OQX089049N engine block as shown in the drawing. The tires supplied on your new vehicle are chosen to provide the best REFRIGERANT LABEL performance for normal driving.

  • Page 28: Safety System

    3. Safety System This chapter provides you with important information about how to protect yourself and your passengers. It explains how to properly use your seats and seat belts, and how your air bags work. Additionally, this chapter explains how to properly restrain infants and children in your vehicle. Important Safety Precautions ................3-2 Always Wear Your Seat Belt ..................

  • Page 29: Important Safety Precautions

    Safety System IMPORTANT SAFETY PRECAUTIONS You will find many safety precautions Drivers can become distracted when and recommendations throughout this they take their eyes and attention off section, and throughout this manual. the road or their hands off the wheel to The safety precautions in this section are focus on activities other than driving.

  • Page 30: Seats

    SEATS OQX039001 Front seats Rear seats (1) Forward and backward (6) Head restraint (2) Seatback angle (7) Seatback folding (3) Seat cushion height (4) Head restraint (5) Seat warmer...

  • Page 31: Safety Precautions

    Safety System Safety Precautions • NEVER place anything or anyone between the steering wheel and the Adjusting the seats so that you are sitting air bag. in a safe, comfortable position plays an • Do not allow the front passenger to important role in driver and passenger place feet or legs on the dashboard safety together with the seat belts and...

  • Page 32: Front Seats

    Front Seats Manual adjustment The front seat can be adjusted by using the levers located on the outside of WARNING the seat cushion. Before driving, adjust Take the following precautions when the seat to the proper position so that adjusting your seat: you can easily control the steering wheel, foot pedals and controls on the • NEVER attempt to adjust the seat...
  • Page 33 Safety System Seat belts must be snug against your hips and chest to work properly. When the seatback is reclined, the shoulder belt cannot do its job because it will not be snug against your chest. Instead, it will be in front of you. During an accident, you could be thrown into the seat belt, causing neck or other injuries.

  • Page 34: Rear Seats

    Rear Seats Seatback pocket (if equipped) Folding the rear seat The rear seatbacks can be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle. WARNING • Never allow passengers to sit on top of the folded down seatback while the vehicle is moving.
  • Page 35 Safety System OQX039013N OQX039006N 3. Locate the seatbelt toward the 5. To use the rear seat, lift and unfold outboard position before folding the seatback to the upright position. down the seatback. If not, the seatbelt Push the seatback firmly until it clicks system may be interfered by the into place.

  • Page 36: Head Restraints

    WARNING Make sure the vehicle is off, the shift lever is in P (Park), and the parking brake is securely applied whenever loading or unloading cargo. Failure to take these steps may allow the vehicle to move if the shift lever is inadvertently moved to another position.
  • Page 37 Safety System Front seat head restraints OLF034015 OQX039008L NOTICE Both the driver’s and passenger’s front seat are equipped with adjustable head If you recline the seatback towards the restraints for the safety and comfort. front with the head restraint and seat cushion raised, the head restraint may come in contact with the sunvisor or other parts of the vehicle.
  • Page 38 CAUTION • For each rear passenger, adjust the head restraint so that the middle of the head restraint is at the same height as the height of the top of the eyes. OQX039011L To reinstall the head restraint: 1. Put the head restraint poles (2) into • When seating on the rear seat, do the holes while pressing the release not adjust the height of the head...

  • Page 39: Seat Warmers

    Safety System Seat Warmers (if equipped) Seat warmers are provided to warm the seats during cold weather. WARNING The seat warmers can cause a SERIOUS BURN, even at low temperatures and especially if used for long periods of time. Passengers must be able to feel if the OQX039015N seat is becoming too warm so they can Removal/Reinstallation...
  • Page 40 NOTICE • Each time you push the switch, the temperature setting of the seat is To prevent damage to the seat warmers changed as follows: and seats: • Never use a solvent such as paint HIGH ( thinner, benzene, alcohol or gasoline to clean the seats.

  • Page 41: Seat Belts

    Safety System SEAT BELTS This section describes how to use the • Do not latch the seat belt into the seat belts properly. It also describes buckles of other seats. some of the things to avoid when using • NEVER unfasten the seat belt seat belts.

  • Page 42: Seat Belt Warning Light

    Seat Belt Warning Light Seat belt warning light (for front passenger’s seat) Seat belt warning light (for driver’s seat) As a reminder to the front passenger, the front passenger’s seat belt warning lights will illuminate for approximately 6 seconds each time you place the ignition switch to the ON position regardless of belt fastening.

  • Page 43: Seat Belt Restraint System

    Safety System Seat Belt Restraint System Seat Belt-Driver’s 3-point system with emergency locking retractor WARNING Improperly positioned seat belts may increase the risk of serious injury in an accident. Take the following precautions when adjusting the seat belt: • Position the lap portion of the seat belt as low as possible across your hips, not on your waist, so that it fits snugly.
  • Page 44 NOTICE To fasten your seat belt: Pull the seat belt out of the retractor If you are not able to smoothly pull and insert the metal tab into the buckle. enough of the seat belt out from the There will be an audible “click” when retractor, firmly pull the seat belt out the tab locks into the buckle.
  • Page 45 Safety System Pre-tensioner seat belt (Driver and front passenger) OHI038142 To release your seat belt: Press the release button (1) in the locking OHI036105L buckle. Your vehicle is equipped with driver’s and front passenger’s Pre-tensioner When it is released, the belt should Seat Belts (Retractor Pre-tensioner).
  • Page 46 WARNING • Always wear your seat belt and sit properly in your seat. • Do not use the seat belt if it is loose or twisted. A loose or twisted seat belt will not protect you properly in an accident. • Do not place anything near the buckle.

  • Page 47: Additional Seat Belt Safety Precautions

    Safety System NOTICE Additional Seat Belt Safety Precautions • Both the driver’s and front passenger’s pre-tensioner seat belts Seat belt use during pregnancy may be activated in certain frontal or The seat belt should always be used side collisions or rollovers. during pregnancy.
  • Page 48 WARNING Larger children Children under age 13 and who are too ALWAYS properly restrain infants large for a booster seat must always and small children in a child restraint occupy the rear seat and use the appropriate for the child’s height and available lap/shoulder belts.

  • Page 49: Care Of Seat Belts

    Safety System Care of Seat Belts Transporting an injured person A seat belt should be used when an Seat belt systems should never be injured person is being transported. disassembled or modified. In addition, Consult a physician for specific care should be taken to assure that seat recommendations.

  • Page 50: Child Restraint System (Crs)

    CHILD RESTRAINT SYSTEM (CRS) Children Always in the Rear Child restraint system (CRS) Infants and younger children must be restrained in an appropriate rear-facing WARNING or forward-facing CRS that has first Always properly restrain children in the been properly secured to the rear seat rear seats of the vehicle.

  • Page 51: Selecting A Child Restraint System (Crs)

    Safety System Selecting a Child Restraint System (CRS) When selecting a CRS for your child, always: • Make sure the CRS has a label certifying that it meets applicable Federal Motor Vehicle Safety Standards (FMVSS 213). • Select a child restraint based on your child’s height and weight.

  • Page 52: Installing A Child Restraint System (Crs)

    Installing a Child Restraint System (CRS) WARNING Before installing your child restraint system always: • Read and follow the instructions provided by the manufacturer of the child restraint. • Read and follow the instructions OQX039022N regarding child restraint systems in Forward-facing child restraints this manual.
  • Page 53 Safety System After selecting a proper child seat Lower Anchors and Tether for for your child, check to make sure it Children (LATCH System) fits properly in your vehicle. Follow The LATCH system holds a child restraint the instructions provided by the during driving and in an accident.
  • Page 54 Securing a child restraint with the WARNING LATCH anchors system Do not attempt to install a child To install a LATCH-compatible child restraint system using LATCH anchors in restraint in either of the rear outboard the rear center seating position. There seating positions: are no LATCH anchors provided for this 1.
  • Page 55 Safety System NOTICE WARNING The recommended weight for the Take the following precautions when LATCH system is under 65 lb (30 kg). installing the tether strap: How to determine an appropriate child • Read and follow all installation restraint weight: instructions provided with your child Child weight + Child restraint weight <...
  • Page 56 3. Check that the child restraint is To install a child restraint system on the securely attached to the seat by rear seats, do the following: pushing and pulling the seat forward- 1. Place the child restraint system and-back and side-to-side. on a rear seat and route the lap/ shoulder belt around or through the Securing a child restraint with lap/...
  • Page 57 Safety System 6. Remove as much slack from the belt Information as possible by pushing down on the child restraint system while feeding Position the release button so that it is easy the shoulder belt back into the to access in case of an emergency. retractor.

  • Page 58: Air Bag - Advanced Supplemental Restraint System

    AIR BAG - ADVANCED SUPPLEMENTAL RESTRAINT SYSTEM The actual air bags in the vehicle may differ from the illustration. OQX039023N 1. Driver’s front air bag 2. Passenger’s front air bag 3. Side air bag 4. Curtain air bag 3-31...
  • Page 59 Safety System This vehicle is equipped with an Advanced Supplemental Air Bag System for the driver’s seat and front passenger’s seats. The front air bags are designed to supplement the three-point seat belts. For these air bags to provide protection, the seat belts must be worn at all times when driving. You can be severely injured or killed in an accident if you are not wearing a seat belt.

  • Page 60: Where Are The Air Bags

    Where Are the Air Bags? The purpose of the SRS is to provide the vehicle’s driver and front passengers Driver’s and passenger’s front air with additional protection than that bags offered by the seat belt system alone. Your vehicle is equipped with an The advanced SRS offers the ability to Advanced Supplemental Restraint control the air bag inflation within two...
  • Page 61 Safety System Side air bags WARNING To reduce the risk of serious injury or death from an inflating side air bag, take the following precautions: • Seat belts must be worn at all times to help keep occupants positioned properly. • Do not allow passengers to lean their heads or bodies onto doors, put their arms on the doors, stretch their arms...
  • Page 62 Curtain air bags WARNING To reduce the risk of serious injury or death from an inflating curtain air bag, take the following precautions: • All seat occupants must wear seat belts at all times to help keep occupants positioned properly. • Properly secure child restraints as far away from the door as possible.

  • Page 63: How Does The Air Bag System Operate

    Safety System How Does the Air Bag System SRS warning light Operate? The SRS (Supplement Restraint System) air bag warning light on the instrument panel displays the air bag symbol depicted in the illustration. The system checks the air bag electrical system for malfunctions.
  • Page 64 During a frontal collision, sensors will • In addition to inflating in certain side detect the vehicle’s deceleration. If the collisions, vehicles equipped with a rate of deceleration is high enough, the rollover sensor, side and curtain air control unit will inflate the front air bags. bags will inflate if the sensing system detects a rollover.
  • Page 65 Safety System „ Driver’s front air bag (1) WARNING „ To reduce the risk of serious injury or death from an inflating air bag, take the following precautions: • NEVER place a child restraint in the front passenger seat. Always properly restrain children under age 13 in the rear seats of the vehicle.

  • Page 66: What To Expect After An Air Bag Inflates

    What to Expect After an Air Bag „ Driver’s front air bag (3) „ Inflates After a frontal or side air bag inflates, it will deflate very quickly. Air bag inflation will not prevent the driver from seeing out of the windshield or being able to steer.

  • Page 67: Occupant Classification System (Ocs)

    Safety System Occupant Classification System Noise and smoke from inflating air (OCS) When the air bags inflate, they make a loud noise and may produce smoke and powder in the air inside of the vehicle. This is normal and is a result of the ignition of the air bag inflator.
  • Page 68 For example, if a child restraint of the Always be sure that you and all vehicle type specified in the regulations is on the occupants are seated properly and seat, the occupant classification sensor wearing the seat belt properly for the can detect it and cause the air bag to most effective protection by the air bag turn OFF.
  • Page 69 Safety System Condition and operation in the front passenger Occupant Classification System Indicator/Warning light Devices Condition detected by the “PASSENGER SRS warning Front passenger occupant classification system AIR BAG OFF” light air bag indicator light 1. Adult Activated 2. Infant or child restraint system with 12 months old Deactivated...
  • Page 70 WARNING Riding in an improper position or placing weight on the front passenger’s seat when it is unoccupied by a passenger adversely affects the OCS. To reduce the risk of serious injury or death: • NEVER put a heavy load in the front seat or seatback pocket, or hang any items on the front passenger seat.
  • Page 71 Safety System • NEVER lean on the door or center console or sit on one side of the front passenger seat. OLMB033104 • Do not sit on the passenger seat wearing heavily padded clothes such as ski wear and hip protector. ODH035900K • Do not use car seat accessories such as thick blankets and cushions which cover up the car seat surface.
  • Page 72 WARNING Never allow an adult passenger to ride in the front passenger seat when the “PASSENGER AIR BAG OFF” indicator is illuminated. During a collision, the air bag will not inflate if the indicator is illuminated. Have your passenger reposition themselves in the seat. If the “PASSENGER AIR BAG OFF”...

  • Page 73: Why Didn't My Air Bag Go Off In A Collision

    Safety System Why Didn’t My Air Bag Go Off in Do Not Install a Child Restraint in the Front Passenger’s Seat a Collision? Air bags are not designed to inflate in every collision. There are certain types of accidents in which the air bag would not be expected to provide additional protection.
  • Page 74 OQX039029L/OQX039030L/OQX039028L/OQX039036L/OQXI039029 1. SRS control module/Rollover sensor 2. Front impact sensor 3. Side pressure sensor 4. Side impact sensor 3-47...
  • Page 75 Safety System Air bag inflation conditions Side and curtain air bags Side and curtain air bags are designed to inflate when an impact is detected by side collision sensors depending on the severity of impact resulting from a side impact collision. Although the driver’s and front passenger’s air bags are designed to inflate only in frontal collisions, they also...
  • Page 76 OQXI039032 OQX039040L Front air bags are not designed to inflate In an angled collision, the force of impact in rear collisions, because occupants may direct the occupants in a direction are moved backward by the force of the where the air bags would not be able to impact.

  • Page 77: Srs Care

    Safety System SRS Care The SRS is virtually maintenance-free and there are no parts you can safely service by yourself. If the SRS air bag warning light does not illuminate when the ignition switch is in the ON position, or continuously remains on, have your vehicle immediately inspected by an authorized HYUNDAI dealer.

  • Page 78: Additional Safety Precautions

    Additional Safety Precautions Air Bag Warning Labels Passengers should not move out of or change seats while the vehicle is moving. A passenger who is not wearing a seat belt during a crash or emergency stop can be thrown against the inside of the vehicle, against other occupants, or be ejected from the vehicle.

  • Page 79: Instrument Cluster

    4. Instrument Cluster Instrument Cluster .................... 4-4 Instrument Cluster Control ..................4-5 Adjusting instrument cluster illumination ..............4-5 Gauges and Meters ......................4-5 Speedometer ......................4-5 Tachometer ....................... 4-6 Engine coolant temperature gauge ................. 4-6 Fuel gauge ......................... 4-6 Outside temperature gauge ..................4-7 Odometer ........................
  • Page 80 LCD Display Messages ....................4-17 Shift to P or N to start engine (for smart key system and Intelligent Variable transmission (IVT)) .......4-17 Shift to P (for smart key system) ................4-17 Low key battery (for smart key system)..............4-17 Press brake pedal to start engine (for smart key system) ........4-17 Key not in vehicle (for smart key system) ..............4-17 Key not detected (for smart key system)..............4-17 Press START button again (for smart key system) ..........4-17...
  • Page 81 4. Instrument Cluster LCD Display ..................... 4-22 LCD Display Control ....................4-22 LCD Display Modes ....................4-23 Shift to P to edit settings ..................4-24 Quick guide help ......................4-24 Trip computer mode ....................4-24 Drive assist mode.....................4-24 Master warning mode .....................4-25 User settings mode ....................4-25 Trip Computer ....................4-31 Trip modes ........................

  • Page 82: Instrument Cluster

    Instrument Cluster INSTRUMENT CLUSTER OQX049024N 1. Tachometer 4. Engine coolant temperature gauge 2. Speedometer 5. Warning and indicator lights 3. Fuel gauge 6. LCD display (including trip computer) The actual cluster in the vehicle may differ from the illustration. For more information, refer to the "Gauges and Meters" in this chapter.

  • Page 83: Instrument Cluster Control

    Instrument Cluster Control Adjusting instrument cluster illumination OHCR046110 • The brightness of the instrument panel illumination is displayed. • If the brightness reaches the OQX049010N maximum or minimum level, a chime When the vehicle's parking lamps or will sound. headlamps are on, press the illumination For information regarding the control button to adjust the brightness of illumination setting on your audio...

  • Page 84: Tachometer

    Instrument Cluster NOTICE Tachometer If the gauge pointer moves beyond the normal range area toward the "H" position, it indicates overheating that may damage the engine. Do not continue driving with an overheated engine. If your engine overheats, refer to "If the Engine Overheats"...

  • Page 85: Outside Temperature Gauge

    For vehicles equipped with Automatic WARNING Climate Control, you can also: Running out of fuel can expose vehicle - Press and hold the AUTO and OFF occupants to danger. buttons on the climate control unit for You must stop and obtain additional 3 seconds fuel as soon as possible after the warning light comes on or when the...

  • Page 86: Range

    Instrument Cluster Transmission Shift Indicator Range Manual transmission shift indicator (if equipped) OAD048563L • The range is the estimated distance the vehicle can be driven with the OQX059123L remaining fuel. This indicator informs which gear is • If the estimated distance is below desired while driving to save fuel.

  • Page 87: Intelligent Variable Transmission (Ivt)

    Warning and Indicator Lights Intelligent Variable Transmission (IVT) (if equipped) Information Make sure that all warning lights are OFF after starting the engine. If any light is still ON, this indicates a situation that needs attention. Air Bag Warning Light This warning light illuminates: OTL045132 • When you place the ignition switch to...

  • Page 88: Parking Brake & Brake Fluid Warning Light

    Instrument Cluster Parking Brake & Brake Fluid Dual-diagonal braking system Warning Light Your vehicle is equipped with dualdiagonal braking systems. This means you still have braking on two This warning light illuminates: wheels even if one of the dual systems • When you place the ignition switch to should fail.

  • Page 89: Anti-Lock Brake System (Abs) Warning Light

    Anti-lock Brake System (ABS) Information - Electronic Brake Warning Light Force Distribution (EBD) System Warning Light This warning light illuminates: • When you place the ignition switch to When the ABS Warning Light is on the ON position. or both ABS and Parking Brake & Brake Fluid Warning Lights are on, the - The ABS warning light illuminates speedometer, odometer, or tripmeter may...

  • Page 90: Malfunction Indicator Lamp (Mil)

    Instrument Cluster Malfunction Indicator Lamp Charging System Warning (MIL) Light When this warning light illuminates while This warning light illuminates: the engine is running, the battery is not • When you place the ignition switch to being charged. Immediately turn OFF the ON position.

  • Page 91: Low Fuel Level Warning Light

    NOTICE Master Warning Light • If the engine is not turned OFF immediately after the Engine Oil Pressure Warning Light is This indicator light illuminates: illuminated, severe damage could When there is a malfunction in operation occur. in any of the following systems: • If the warning light stays on while the - Exterior lamp (if equipped) engine is running, it indicates that...

  • Page 92: Electronic Stability Control (Esc) Indicator Light

    Instrument Cluster Electronic Stability Control This warning light remains ON after (ESC) OFF Indicator Light blinking for approximately 60 seconds, or repeatedly blinks ON and OFF in 3 second intervals: This indicator light illuminates: When there is a malfunction with the • When you place the ignition switch to TPMS.

  • Page 93: Immobilizer Indicator Light (With Smart Key)

    Immobilizer Indicator Light Turn Signal Indicator Light (with smart key) (if equipped) This indicator light blinks: This indicator light illuminates for up to When you operate the turn signal 30 seconds: indicator stalk. When the vehicle detects the smart key in the vehicle with the Engine Start/Stop button in the ACC or ON position.

  • Page 94: High Beam Indicator Light

    Instrument Cluster High Beam Indicator Light Forward Collision-Avoidance Assist Warning Light (if equipped) This indicator light illuminates: This warning light illuminates: • When the headlights are on and in the • When you set the ignition switch or high beam position. Engine Start/Stop button to the ON position.

  • Page 95: Lcd Display Messages

    LCD Display Messages Key not in vehicle (for smart key system) Shift to P or N to start engine (for smart key system and Intelligent This warning message is displayed if the Variable transmission (IVT)) smart key is not in the vehicle when you press the Engine Start/Stop button.

  • Page 96: Press Clutch Pedal To Start Engine (For Smart Key System And Manual Transmission)

    Instrument Cluster Press clutch pedal to start engine Door, Hood, Liftgate Open Indicator (for smart key system and manual transmission) This warning message is displayed if the Engine Start/Stop button is in the ACC position twice by pressing the button repeatedly without depressing the clutch pedal.

  • Page 97: Icy Road Warning Light

    Icy road warning light (if equipped) Low Pressure OQX059122L OQX049018L This warning light is to warn the driver This warning message is displayed if the that the road may be icy. tire pressure is low. The corresponding tire on the vehicle will be illuminated. When the temperature on the outside temperature gauge is approximately For more information, refer to "Tire...

  • Page 98: Lights Mode

    Instrument Cluster Lights Mode Low fuel This warning message is displayed if the fuel tank is almost out of fuel. When this message is displayed, the low fuel level warning light in the cluster will come on. It is recommended to look for the nearest fueling station and refuel as soon as possible.

  • Page 99: Check High Beam Assist (Hba) System

    Check High Beam Assist (HBA) Check Driver Attention Warning system (if equipped) system (if equipped) This warning message is displayed if This warning message is displayed if there is a problem with High Beam there is a problem with Driver Attention Assist (HBA) system.

  • Page 100: Instrument Cluster

    Instrument Cluster LCD DISPLAY LCD Display Control OQX069070 The LCD display modes can be changed by using the control buttons. : MODE button for changing modes : MOVE switch for changing items 3. OK : SELECT/RESET button for setting or resetting the selected item 4-22...

  • Page 101: Lcd Display Modes

    LCD Display Modes Modes Symbol Explanation This mode displays driving information such as the tripmeter, fuel economy, etc. Trip Computer For more information, refer to "Trip Computer" in this chapter. This mode displays the state of: - Lane Keeping Assist system - Driver Attention Warning system Drive Assist - Tire pressure...

  • Page 102: Shift To P To Edit Settings

    Instrument Cluster Shift to P to edit settings Drive assist mode This warning message appears if you try to adjust the User Settings while driving. For your safety, change the User Settings after parking the vehicle, applying the parking brake and moving the shift lever to P (Park).

  • Page 103: Master Warning Mode

    Master warning mode User settings mode OQX059124L OQX059096L This warning light informs the driver the In this mode, you can change the following situations. settings of the instrument cluster, doors, lamps, etc. - Forward Collision-Avoidance Assist system malfunction (if equipped) 1.
  • Page 104 Instrument Cluster Edit settings after shifting to P OQX049040N This warning message appears if you try to adjust the User Settings while driving. Quick guide help This mode provides quick guides for the systems in the User Settings mode. Select an item, press and hold the OK button.
  • Page 105 1. Driver Assistance Items Explanation To adjust the warning timing of the driver assistance system. Warning Timing • Normal / Later To activate or deactivate Leading Vehicle Departure Alert. Driver Attention To activate or deactivate Inattentive Driving Warning. Warning For more information, refer to the “Driver Attention Warning (DAW)”...
  • Page 106 Instrument Cluster 2. Door Items Explanation • Disable: The auto door lock operation will be deactivated. • Enable on Speed: All doors will be automatically locked when the vehicle speed exceeds 9.3 mph (15km/h). Auto Lock • Enable on Shift: All doors will be automatically locked if the intelligent variable transmission shift lever is changed from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.
  • Page 107 4. Convenience Items Explanation To activate or deactivate Leading Vehicle Departure Alert. To activate or deactivate Inattentive Driving Warning. Wiper/Lights Display When activated, the LCD display shows the selected Wiper/Light mode whenever you changed the mode. Auto Rear Wiper To activate or deactivate the rear wiper while the vehicle is in (reverse) reverse with the front wiper ON.
  • Page 108 Instrument Cluster 6. Other Items Explanation • Off: The average fuel economy will not reset automatically whenever refueling. • After ignition: When the engine has been OFF for 4 hours or longer the average fuel economy will reset automatically. Fuel Economy Reset • After refueling: The average fuel economy will reset automatically after adding 1.6 gallons (6 liters) of fuel or more and after driving speed exceeds 1 mph (1 km/h).

  • Page 109: Trip Computer

    TRIP COMPUTER The trip computer is a microcomputer- Average fuel economy/ controlled driver information system that Instant fuel economy displays information related to driving. Information Some driving information stored in the trip computer (for example Average Vehicle Speed) resets if the battery is disconnected.

  • Page 110: Accumulated Info Display

    Instrument Cluster Information Information The vehicle must be driven for a minimum The vehicle must be driven for a minimum of 0.19 miles (300 meters) since the last of 300 meters (0.19 miles) since the last ignition key cycle before the average fuel ignition key cycle before the average fuel economy will be recalculated.

  • Page 111: Digital Speedometer

    Digital speedometer OPDE046145R The digital speedometer display shows the speed of the vehicle. 4-33...

  • Page 112: Convenient Features

    5. Convenient Features Accessing Your Vehicle ..................5-4 Remote Key ........................5-4 Smart Key ........................5-7 Immobilizer System ....................5-11 Door Locks ......................5-12 Operating Door Locks from Outside the Vehicle ............5-12 Operating Door Locks from Inside the Vehicle ............5-13 Automatic Door Lock and Unlock Features ...............5-15 Child-Protector Rear Door Locks ................5-15 Theft-Alarm System ..................5-16 Steering Wheel ....................
  • Page 113 Exterior Features ..................... 5-30 Hood ..........................5-30 Liftgate .........................5-31 Fuel Filler Door ......................5-33 Lighting ......................5-35 Exterior Lights ......................5-35 Interior Lights ......................5-41 Wipers and Washers ..................5-44 Windshield Wipers ....................5-44 Windshield Washers ....................5-45 Rear Window Wiper and Washer ................5-45 Rear View Monitor system ................5-46 Manual Climate Control System ..............
  • Page 114 5. Convenient Features Interior Features ....................5-68 Cup Holder ......................... 5-68 Sunvisor ........................5-69 Power Outlet ......................5-69 USB charger ........................5-70 Clock ..........................5-71 Clothes Hanger ......................5-71 Floor Mat Anchor(s) ....................5-72 Luggage Net Holder ....................5-73 Cargo Area Cover ....................... 5-73 Exterior Features ....................5-74 Roof Side Rails ......................

  • Page 115: Accessing Your Vehicle

    Convenient Features ACCESSING YOUR VEHICLE Remote Key (if equipped) WARNING Do not leave the keys in your vehicle with unsupervised children. Unattended children could place the key in the ignition switch and may operate power windows or other controls, or even make the vehicle move, which could result in serious injury or death.
  • Page 116 Panic button (3) To unfold the mechanical key, press the release button on the remote. Press and hold the Panic button (3) for To return the key to its stored position, more than one second. The horn sounds press the release button and fold the key and hazard warning lights flash for about back into the remote.
  • Page 117 Convenient Features Battery replacement Information This device complies with Part 15 of the FCC rules. Operation is subject to the following three conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.

  • Page 118: Smart Key

    Smart Key (if equipped) Information The door handle button will only operate when the smart key is within 28~40 inches (0.7~1 m) from the outside door handle. Note that you cannot lock your vehicle using the door handle button if any of the following occur: • The Smart Key is in the vehicle.
  • Page 119 Convenient Features 3. Two Press Unlock Feature Remote start (if equipped) The priority for unlocking the driver You can start the engine and turn on the door only, or unlocking all the doors climate system by pressing the remote with one press may be adjusted in the start button (3) outside the vehicle.
  • Page 120 Mechanical key CAUTION If the Smart Key does not operate • The remote start will not work if you normally, you can lock or unlock the exceed the operating distance limit driver’s door by using the mechanical (about 10 m). key.
  • Page 121 Convenient Features Smart key precautions Information The smart key may not work if any of the This device complies with Part 15 of the following occur: FCC rules. • The smart key is close to a radio Operation is subject to the following three transmitter such as a radio station or conditions: an airport which can interfere with...

  • Page 122: Immobilizer System

    WARNING Information In order to prevent theft of your An inappropriately disposed vehicle, do not leave spare keys battery can be harmful to the anywhere in your vehicle. Your environment and human health. immobilizer password is a customer Dispose of the battery according unique password and should be kept to your local law(s) or regulation.

  • Page 123: Door Locks

    Convenient Features DOOR LOCKS Operating Door Locks from Once the doors are unlocked, they may be opened by pulling the door handle. Outside the Vehicle When closing the door, push the door by Mechanical key hand. Make sure that doors are closed securely.

  • Page 124: Operating Door Locks From Inside The Vehicle

    • If the inner door handle of either Information the driver door or passenger door • In cold and wet climates, door lock is pulled when the door lock button is in the lock position, the button is and door mechanisms may not work unlocked and the door will open.
  • Page 125 Convenient Features With the central door lock switch WARNING Do not leave children or animals unattended in your vehicle. An enclosed vehicle can become extremely hot, causing death or serious injury to unattended children or animals who cannot escape the vehicle. Children might operate features of the vehicle that could injure them, or they could encounter other harm, possibly from...

  • Page 126: Automatic Door Lock And Unlock Features

    Automatic Door Lock and Unlock Child-Protector Rear Door Locks Features Your vehicle is equipped with features that will automatically lock or unlock your vehicle based on settings you select in the LCD cluster display. Auto LOCK - Enable on Speed When this feature is set in the LCD cluster display, all the doors will be locked automatically when the vehicle...

  • Page 127: Theft-Alarm System

    Convenient Features THEFT-ALARM SYSTEM This system helps to protect your vehicle Information and valuables. The horn will sound and • Do not lock the doors until all the hazard warning lights will blink continuously if any of the following passengers have left the vehicle. If the occur: remaining passenger leaves the vehicle when the system is armed, the alarm...

  • Page 128: Steering Wheel

    STEERING WHEEL Electric Power Steering (EPS) Information The system assists you with steering the The following symptoms may occur during vehicle. If the vehicle is turned off or normal vehicle operation: if the power steering system becomes • The steering effort may be high inoperative, you may still steer the immediately after placing the ignition vehicle, but it will require increased...

  • Page 129: Tilt Steering / Telescope Steering

    Convenient Features Tilt Steering / Telescope Steering Information When adjusting the steering wheel to a Sometimes the lock release lever may not comfortable position, adjust the steering engage completely. This may occur when wheel so that it points toward your chest, the gears of the locking mechanism do not toward your face.

  • Page 130: Horn

    MIRRORS Horn Inside Rearview Mirror Before driving your vehicle, check to see that your inside rearview mirror is properly positioned. Adjust the rearview mirror so that the view through the rear window is properly centered. WARNING Make sure your line of sight is not obstructed.

  • Page 131: Side View Mirrors

    Convenient Features Day/night rearview mirror The right side view mirror is convex. Objects seen in the mirror are closer than they appear. Use the inside rear view mirror or look back directly to determine the actual distance of other vehicles prior to changing lanes.
  • Page 132 Side View Mirror Adjustment Folding the side view mirrors OQX059016N OQXI049026 Adjusting the side view mirrors: To fold the side view mirrors, grasp the housing of the mirror and then fold it 1. Press either the L (driver’s side) or R inwards.

  • Page 133: Windows

    Convenient Features WINDOWS OQX059013N (1) Driver’s door power window switch (5) Window opening and closing (2) Front passenger’s door power (6) Automatic power window window switch (7) Power window lock switch (3) Rear door (left) power window switch (4) Rear door (right) power window switch 5-22...

  • Page 134: Power Windows

    Power Windows Window opening and closing The ignition switch must be in the ON position to be able to raise or lower the windows. Each door has a Power Window switch to control that door’s window. The driver has a Power Window Lock switch which can block the operation of passenger windows.
  • Page 135 Convenient Features To reset the power windows Automatic reverse (if equipped) If the power windows do not operate normally, the automatic power window system must be reset as follows: 1. Place the ignition switch to the ON position. 2. Close the window and continue pulling up on the power window switch for at least one second.
  • Page 136 NOTICE WARNING Do not install any accessories on the Do not allow children to play with the windows. The automatic reverse power windows. Keep the driver’s feature may not operate. door power window lock switch in the LOCK position. Serious injury or death Power window lock switch can result from unintentional window operation by a child.

  • Page 137: Sunroof

    Convenient Features SUNROOF (IF EQUIPPED) If your vehicle is equipped with a WARNING sunroof, you can slide or tilt your sunroof • Never adjust the sunroof or sunshade with the sunroof control switch located while driving. This could result in on the overhead console.

  • Page 138: Sunroof Opening And Closing

    Sunroof opening and closing Sliding the sunroof Pressing the sunroof control lever backward or forward momentarily to the second detent position, the sunroof will slide to the recommended open position before the maximum slide open position. To stop the sunroof sliding at any point, push the sunroof control lever momentarily.

  • Page 139: Tilting The Sunroof

    Convenient Features Tilting the sunroof Sunshade OQXI049019 OAD045037 Tilt the sunroof open: The sunshade can be opened and closed manually. However, the sunshade will Push the sunroof control lever upward open automatically with the sunroof until the sunroof moves to the desired when the glass panel moves.

  • Page 140: Resetting The Sunroof

    Resetting the sunroof Sunroof Open Warning (if equipped) The sunroof may need to be reset if the following conditions occur: - The battery is discharged or disconnected or the sunroof fuse has been replaced or disconnected - The sunroof control lever is not operating correctly To reset the sunroof, perform the following steps:...

  • Page 141: Exterior Features

    Convenient Features EXTERIOR FEATURES Hood Opening the hood OQXI059023N 4. Pull out the support rod and hold the hood open with the support rod. OQX059020L 1. Park the vehicle and set the parking WARNING brake. 2. Pull the release lever to unlatch the The support rod must be inserted hood.

  • Page 142: Liftgate

    Closing the liftgate WARNING • Before closing the hood, ensure all obstructions are removed from around the hood opening. • Always double check to be sure that the hood is firmly latched before driving away. Check there is no hood open warning light or message displayed on the instrument cluster.
  • Page 143 Convenient Features To unlock and open the liftgate manually WARNING from inside the luggage compartment, perform the following steps: 1. Insert the mechanical key from the key fob or a small screwdriver into the slot at the bottom of the liftgate inside the luggage compartment.

  • Page 144: Fuel Filler Door

    Fuel Filler Door Information Opening the fuel filler door If the fuel filler door does not open because ice has formed around it, tap lightly or push on the door to break the ice and release the door. Do not pry on the door.
  • Page 145 Convenient Features • Do not get back into a vehicle • Do not over-fill or top-off your once you have begun refueling. vehicle tank, which can cause You can generate a buildup of gasoline spillage. static electricity by touching, • If a fire breaks out during refueling, rubbing or sliding against any item leave the vicinity of the vehicle, and or fabric capable of producing...

  • Page 146: Lighting

    LIGHTING Exterior Lights Cornering lamp (if equipped) Lighting control While driving a corner, for greater visibility and safety, either the left or To operate the lights, turn the knob at right side cornering lamp will turn on the end of the control lever to one of the automatically.
  • Page 147 Convenient Features NOTICE Information • Do not cover or spill anything on The ignition switch must be in the ON the sensor (1) located in front of the position to turn on the headlamp. instrument panel. • Do not clean the sensor using High beam operation a window cleaner, the cleanser may leave a light film which could...
  • Page 148 Operating condition 1. Place the headlamp switch in the AUTO position. 2. Turn on the high beam by pushing the lever away from you. The High Beam Assist ( ) indicator will illuminate. 3. High Beam Assist system will turn on when vehicle speed is above 25 mph (40 km/h).
  • Page 149 Convenient Features When High Beam Assist system is operating, the high beam switches to low beamif any of the following conditions occur: - When the headlamp of an on-coming vehicle is detected. - When the tail lamp of a vehicle in front is detected.
  • Page 150 2. When the High Beam Assist camera WARNING is adversely affected by an external • Do not attempt to disassemble condition. Such examples may the front view camera without the include: assistance of an authorized HYUNDAI • When the vehicle’s headlamps dealer technician.
  • Page 151 Convenient Features Turn signals and lane change signals Battery saver function The purpose of this feature is to prevent the battery from being discharged. The system automatically turns off the parking lamp when the driver turns the vehicle off and opens the driver-side door.

  • Page 152: Interior Lights

    NOTICE Front lamps If the driver exits the vehicle through „ Type A „ another door besides the driver door, the battery saver function does not operate and the headlamp delay function does not turn OFF automatically. This may cause the battery to discharge.
  • Page 153 Convenient Features Rear lamp Front Door Lamp (2) ( The front or rear room lamps come on „ Type A „ when the front or rear doors are opened if the engine is running or not. When doors are unlocked by the remote key or smart key, the front and rear lamps come on for approximately 30 seconds as long as any door is not opened.
  • Page 154 (1): The room lamp for the rear seats Luggage compartment lamp is automatically turned ON for approximately 30 seconds, when a door is opened. The room lamp for the rear seats is automatically turned ON for approximately 15 seconds, when the remote key (smart key) unlocks the doors.

  • Page 155: Wipers And Washers

    Convenient Features WIPERS AND WASHERS Windshield Wipers „ Front windshield wiper/washer „ Operates as follows when the ignition switch is in the ON position. MIST: For a single wiping cycle, push the lever upward and release. The wipers will operate continuously if the lever is held in this position.

  • Page 156: Windshield Washers

    Windshield Washers Rear Window Wiper and Washer OTLE045164 OTLE045165 In the OFF position, pull the lever gently The rear window wiper and washer toward you to spray washer fluid on the switch is located at the end of the wiper windshield and to run the wipers 1-3 and washer switch lever.

  • Page 157: Rear View Monitor System

    Convenient Features REAR VIEW MONITOR SYSTEM WARNING • Never rely solely on the Rear View Monitor when backing up. • ALWAYS look around your vehicle to make sure there are no objects or obstacles before moving the vehicle in any direction to prevent a collision. • Always pay close attention when the vehicle is driven close to objects, particularly pedestrians, and...

  • Page 158: Manual Climate Control System

    MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED) OQX059100L 1. Mode selection knob 5. Rear window defroster button (if equipped) 2. Fan speed control knob 6. A/C (Air conditioning) button 3. Temperature control knob 4. Air intake control button (recirculated air position or outside (fresh) air position) 5-47...

  • Page 159: Heating And Air Conditioning

    Convenient Features Heating and Air Conditioning 3. Set the temperature control to the desired position. 1. Start the engine. 4. Set the air intake control to fresh 2. Set the mode to the desired position. mode or recirculation mode position. To improve the effectiveness of 5.
  • Page 160 Face-Level (B, D) Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet. Bi-Level (B, C, D) Air flow is directed towards the face and OQX059102L the floor.
  • Page 161 Convenient Features Instrument panel vents Air intake control (4) OQX059103L OQXI049309 The instrument panel vent air flow can be The air intake control button is used to directed up/down or left/right using the select either Fresh mode (outside air) or vent adjustment lever.

  • Page 162: System Operation

    NOTICE WARNING Operating the fan speed when the • Continued use of the climate control ignition switch is in the ON position system operation in Recirculation could cause the battery to discharge. mode for a prolonged period of Operate the fan speed when the engine time may cause drowsiness to the is running.
  • Page 163 Convenient Features Heating Air conditioning 1. Select the Floor Level mode. Your HYUNDAI vehicle air conditioning system is filled with R-134a refrigerant. 2. Set the air intake control to fresh mode. 1. Start the engine. 3. Set the temperature control to the 2.

  • Page 164: System Maintenance

    System Maintenance Air conditioning system operation tips • If the vehicle has been parked in Cabin air filter direct sunlight during hot weather, open the windows for a short time to let the hot air inside the vehicle escape. • After sufficient cooling has been achieved, switch back from the recirculated air to the fresh outside air position.
  • Page 165 Convenient Features NOTICE Air conditioning refrigerant label It is important that the correct type and „ Example „ amount of oil and refrigerant is used. Otherwise, damage to the compressor and abnormal system operation may occur. WARNING Because the refrigerant is mildly inflammable at very high pressure, the air conditioning system should...

  • Page 166: Automatic Climate Control System

    AUTOMATIC CLIMATE CONTROL SYSTEM OQX059105L 1. Fan speed control knob 6. Recirculation mode/Fresh mode 2. Temperature control knob 7. Rear window defroster button (if equipped) 3. AUTO (automatic control) button 8. Front windshield defroster button 4. OFF button 9. A/C (Air conditioning) button 5.

  • Page 167: Automatic Temperature Control Mode

    Convenient Features Automatic Temperature Control The selected function will be controlled manually while other functions operate Mode automatically. The Automatic Climate Control System For your convenience and to improve the is controlled by setting the desired efficiency of the climate control, use the temperature.

  • Page 168: Manual Temperature Control Mode

    Manual Temperature Control To improve the effectiveness of heating and cooling, select the mode Mode according to the following: The heating and cooling system can be - Heating: controlled manually by pushing buttons - Cooling: other than the AUTO button. In this case, the system works sequentially according 3.
  • Page 169 Convenient Features The mode selection button controls Instrument panel vents the direction of the air flow through the ventilation system. The air flow outlet direction is cycled as follows: Face-Level (B, D) OQX059103L The instrument panel vent air flow can be Air flow is directed toward the upper directed up/down or left/right using the body and face.
  • Page 170 Temperature control (2) Information Using the system primarily in Fresh mode and Recirculation mode only when needed is recommended for best results. Prolonged operation of the heater in Recirculation mode and without the A/C ON can cause fogging of the windshield. In addition, prolonged use of the A/C ON in Recirculation mode may result in excessively dry, dehumidified air in the...
  • Page 171 Convenient Features Fan speed control (1) Air conditioning (9) OQX059117L OQX059111L The fan speed can be set as desired by Push the A/C button to manually turn the pushing the fan speed control button. system on (indicator light will illuminate) and off.

  • Page 172: System Operation

    System Operation Air conditioning Cooling / Ventilation Your HYUNDAI vehicle air conditioning system is filled with R-134a refrigerant. 1. Select the Face Level mode. 1. Start the engine. 2. Set the air intake control to fresh mode. 2. Press the air conditioning button. 3.

  • Page 173: System Maintenance

    Convenient Features System Maintenance Air conditioning system operation tips • If the vehicle has been parked in Cabin air filter direct sunlight during hot weather, open the windows for a short time to let the hot air inside the vehicle escape.
  • Page 174 Checking the amount of air Air conditioning refrigerant label conditioner refrigerant and „ Example „ compressor lubricant When the amount of refrigerant is low, the performance of the air conditioning is reduced. Overfilling also reduces the performance of the air conditioning system.

  • Page 175: Windshield Defrosting And Defogging

    Convenient Features WINDSHIELD DEFROSTING AND DEFOGGING Manual Climate Control System WARNING Windshield heating Do not use the position during cooling operation in extremely humid weather. The difference between the temperature of the outside air and that of the windshield could cause the outer surface of the windshield to fog up, causing loss of visibility could cause an accident resulting in serious injury...
  • Page 176 Check to make sure the air intake control Check to make sure the air intake is in Fresh mode. If the air intake control control is in Fresh mode. If the air intake LED is illuminated, press the button once control LED for Recirculation mode is to enable Fresh mode (LED OFF).

  • Page 177: Rear Window Defroster

    Convenient Features Rear Window Defroster • To activate the rear window defroster, press the rear window defroster button located in the center control NOTICE panel. The indicator on the rear window defroster button illuminates To prevent damage to the rear window when the defroster is ON.

  • Page 178: Storage Compartment

    STORAGE COMPARTMENT Sliding Armrest (if equipped) WARNING Never store cigarette lighters, propane cylinders, or other flammable/explosive materials in the vehicle. These items may catch fire and/or explode if the vehicle is exposed to hot temperatures for extended periods. WARNING ALWAYS keep the storage compartment covers closed securely while driving.

  • Page 179: Glove Box

    Convenient Features INTERIOR FEATURES Glove Box Cup Holder OQX089009L OQX059009L To open: Cups or small beverages cups may be placed in the cup holders. Pull the lever (1). WARNING WARNING • Avoid abrupt starting and braking ALWAYS close the glove box door after when the cup holder is in use to use.

  • Page 180: Power Outlet

    NOTICE Power Outlet • Keep your drinks sealed while driving to prevent spilling your drink. If liquid spills, it may get into the vehicle’s electrical/electronic system and damage electrical/electronic parts. • When cleaning spilled liquids do not use hot air to blow out or dry the cup holder.

  • Page 181: Usb Charger

    Convenient Features NOTICE USB charger (if equipped) To prevent damage to the Power Outlets: • Use the power outlet only when the engine is running and remove the accessory plug after use. Using the accessory plug for prolonged periods of time with the engine off could cause the battery to discharge.

  • Page 182: Clock

    Clock Clothes Hanger WARNING Do not attempt to adjust the clock while driving. Doing so may result in distracted driving which may lead to an accident involving personal injury or death. Vehicles with Audio system Select the [SETUP] button on the audio system → Select [Date/Time].

  • Page 183: Floor Mat Anchor(S)

    Convenient Features Floor Mat Anchor(s) WARNING The following must be observed when installing ANY floor mat to the vehicle. • Ensure to remove a protective film attached on the carpet before attaching a floor mat on the front floor carpet. Otherwise, the floor mat may move freely on the protective film and it could result in unintentional braking or...

  • Page 184: Luggage Net Holder

    Luggage Net Holder Cargo Area Cover OQX059045L OQX059084L To keep items from shifting in the Use the cover to hide items stored in luggage compartment, you can use the 4 the cargo area. The cargo area cover holders located in the luggage board to will lift when the liftgate is opened.

  • Page 185: Exterior Features

    Convenient Features EXTERIOR FEATURES Roof Side Rails (if equipped) WARNING • The following specification is the maximum weight that can be loaded onto the roof side rails. Distribute the load as evenly as possible onto the roof side rails and secure the load firmly.

  • Page 186: Infotainment System

    INFOTAINMENT SYSTEM NOTICE Antenna Shark fin antenna • If you install an aftermarket HID head lamp, your vehicle’s audio and electronic devices may not function properly. • Prevent chemicals such as perfume, cosmetic oil, sun cream, hand cleaner, and air freshener from contacting the interior parts because they may cause damage or discoloration.

  • Page 187: Steering Wheel Audio Control

    Convenient Features Steering Wheel Audio Control VOLUME (VOL + / -) (1) • Press the VOLUME switch up to „ Type A „ increase volume. • Press the VOLUME switch down to decrease volume. SEEK/PRESET ( ) (2) If the SEEK/PRESET switch is pressed up or down and held for 0.8 second or more, it will function in the following modes: •...

  • Page 188: Bluetooth® Wireless Technology Hands-Free

    Bluetooth® Wireless Technology Audio (Display Audio) / Video / Hands-Free Navigation System (AVN) (if equipped) Detailed information for the AVN system is described in the Vehicle Infotainment User’s Manual. OQXI049071 With the Bluetooth® Wireless Technology in the vehicle, you can use the phone wireless.

  • Page 189: While Driving

    6. While Driving Before Driving ....................6-5 Before Entering the Vehicle ..................6-5 Before Starting ......................6-5 Ignition Switch ....................6-6 Key Ignition Switch ...................... 6-6 Engine Start/Stop Button ................... 6-9 Manual Transmission ..................6-12 Manual Transmission Operation ................6-12 Good Driving Practices ....................6-14 Intelligent Variable Transmission (IVT) ............6-15 Intelligent Variable Transmission (IVT) Operation ............
  • Page 190 Rear Cross-Traffic Collision Warning (RCCW) ..........6-38 System Description ....................6-38 System Setting and Operation ................. 6-38 Warning and system control ..................6-40 Detecting Sensor ......................6-41 Limitations of the system ..................6-42 Forward Collision-Avoidance Assist (FCA) System ........6-46 System Setting and Activation ................. 6-46 FCA Warning Message and System Control ............
  • Page 191 6. While Driving Cruise Control ....................6-80 Cruise Control Operation ..................6-80 Special Driving Conditions ................6-83 Hazardous Driving Conditions ................. 6-83 Rocking the Vehicle ....................6-83 Smooth Cornering ..................... 6-84 Driving at Night ......................6-84 Driving in the Rain ..................... 6-84 Driving in Flooded Areas ...................
  • Page 192 While Driving WARNING Carbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and death. Engine exhaust contains carbon monoxide which cannot be seen or smelled. Do not inhale engine exhaust. If at any time you smell engine exhaust inside the vehicle, open the windows immediately.

  • Page 193: Before Driving

    BEFORE DRIVING Before Entering the Vehicle WARNING • Be sure all windows, outside mirror(s), To reduce the risk of SERIOUS INJURY or and outside lights are clean and DEATH, take the following precautions: unobstructed. • ALWAYS wear your seat belt. All • Remove frost, snow, or ice.

  • Page 194: Ignition Switch

    While Driving IGNITION SWITCH Key Ignition Switch (if equipped) WARNING NEVER turn the ignition switch to the WARNING LOCK or ACC position while the vehicle is in motion except in an emergency. To reduce the risk of SERIOUS INJURY or This will result in the engine turning DEATH, take the following precautions: off and loss of power assist for the...
  • Page 195 Key ignition switch positions Switch Action Notice Position To turn the ignition switch to the LOCK position, put the key in at the ACC position and turn the key towards the LOCK position. LOCK The ignition key can be removed in the LOCK position.
  • Page 196 While Driving Starting the engine Information • It is best to maintain a moderate engine WARNING speed until the vehicle engine comes Always wear appropriate shoes when up to normal operating temperature. operating your vehicle. Avoid harsh or abrupt acceleration or Unsuitable shoes, such as high heels, deceleration while the engine is still ski boots, sandals, flip-flops, etc., may...

  • Page 197: Engine Start/Stop Button

    Engine Start/Stop Button WARNING (if equipped) • NEVER press the Engine Start/Stop button while the vehicle is in motion except in an emergency. This will result in the engine turning off and loss of power assist for the steering and brake systems. This may lead to loss of directional control and braking function, which could cause an accident.
  • Page 198 While Driving Engine Stop/Start button positions Button Action Notice Position To turn off the engine, press the Engine Start/Stop button with shift lever in P (Park). When you press the Engine Start/ Stop button without the shift lever in P (Park), the Engine Start/Stop button does not turn to the OFF position, but turns to the ACC position.
  • Page 199 Starting the engine Information Depress the brake pedal and clutch pedal WARNING until the engine starts. • Always wear appropriate shoes when Vehicle with intelligent variable operating your vehicle. transmission: Unsuitable shoes, such as high heels, 1. Always carry the smart key with you. ski boots, sandals, flip-flops, etc., may interfere with your ability to use 2.

  • Page 200: Manual Transmission

    While Driving MANUAL TRANSMISSION NOTICE To prevent damage to the vehicle: When the stop lamp switch fuse is blown, you can't start the engine normally. Replace the fuse with a new one. If you are not able to replace the fuse, you can start the engine by pressing and holding the Engine Start/ Stop button for 10 seconds with the Engine Start/Stop button in the ACC...
  • Page 201 NOTICE Downshifting Down shift to a lower gear when slowing During cold weather, shifting may be down in heavy traffic or driving up a difficult until the transmission lubricant steep hill to prevent high engine loads. has warmed up. Also, downshifting reduces the chance Using the clutch of stalling and helps reaccelerate the vehicle when you need to increase your...

  • Page 202: Good Driving Practices

    While Driving Good Driving Practices WARNING • Never take the vehicle out of gear and To reduce the risk of SERIOUS INJURY coast down a hill. This is extremely or DEATH: dangerous. • ALWAYS wear your seat belt. In a • Don't "ride"...

  • Page 203: Intelligent Variable Transmission (Ivt) Operation

    INTELLIGENT VARIABLE TRANSMISSION (IVT) (IF EQUIPPED) Shift lever Shift lever Manual Manual shift mode shift mode OQX069001L Press the shift button, then move shift lever. Depress the brake pedal, press the shift button, and then move shift lever. Move shift lever. Intelligent Variable Transmission (IVT) Operation The Intelligent Variable Transmission (IVT) automatically shifts depending on speed, accelerate pedal position.
  • Page 204 While Driving WARNING WARNING To reduce the risk of serious injury or • Shifting into P (Park) while the death: vehicle is in motion may cause you to lose control of the vehicle. • ALWAYS check the surrounding areas near your vehicle for people, • Do not use the P (Park) position in especially children, before shifting a place of the parking brake.
  • Page 205 D (Drive) Information This is the normal driving position. The • Only the eight forward gears can be transmission will automatically shift, selected. To reverse or park the vehicle, providing the best fuel economy and move the shift lever to the R (Reverse) power.
  • Page 206 While Driving Shift-lock system 6. Remove the tool from the shift-lock override access hole then install the For your safety, the Intelligent Variable cap. Transmission (IVT) has a shift-lock If you need to use the shift-lock release, system which prevents shifting the have your vehicle inspected by an transmission from P (Park) into R authorized HYUNDAI dealer immediately.

  • Page 207: Good Driving Practices

    Good Driving Practices WARNING • Never move the shift lever from P To reduce the risk of SERIOUS INJURY (Park) or N (Neutral) to any other or DEATH: position with the accelerator pedal • ALWAYS wear your seat belt. In a depressed.

  • Page 208: Braking System

    While Driving BRAKING SYSTEM Power Brakes • Wet brakes may impair the vehicle's ability to safely slow down; the Your vehicle has power-assisted brakes vehicle may also pull to one side that adjust automatically through normal when the brakes are applied. usage.

  • Page 209: Parking Brake

    Parking Brake OQX069006L To release: OQX069005L Firmly depress the brake pedal. Always set the parking brake before While pressing the release button (1), leaving the vehicle. To apply the parking brake: slightly pull up on the parking brake lever then lower the parking brake lever (2). Firmly depress the brake pedal.

  • Page 210: Anti-Lock Brake System (Abs)

    While Driving NOTICE Anti-lock Brake System (ABS) • Do not apply the accelerator pedal WARNING while the parking brake is engaged. If you depress the accelerator pedal An Anti-Lock Braking System (ABS) or with the parking brake engaged, a an Electronic Stability Control (ESC) warning will sound.
  • Page 211 Using ABS WARNING To obtain the maximum benefit from If the ABS warning light ( ) is on and your ABS in an emergency situation, stays on, you may have a problem with do not attempt to modulate your brake the ABS.

  • Page 212: Electronic Stability Control (Esc)

    While Driving Electronic Stability Control (ESC) ESC operation ESC ON condition When the ignition switch is in the ON position, the ESC and the ESC OFF indicator lights illuminate for approximately three seconds. After both lights go off, the ESC is enabled. When operating When the ESC is in operation, the ESC indicator light blinks:...
  • Page 213 Indicator lights ESC OFF condition To cancel ESC operation: ■ ESC indicator light (blinks) • State 1 Press the ESC OFF button briefly. The ESC OFF indicator light and message "Traction Control disabled" will illuminate. In this state, the traction ■...

  • Page 214: Vehicle Stability Management (Vsm)

    While Driving ESC OFF usage WARNING When Driving Take the following precautions when The ESC OFF mode should only be used using the Vehicle Stability Management briefly to help free the vehicle if stuck in (VSM): snow by temporarily stopping operation • ALWAYS check the speed and the of the ESC to maintain wheel torque.

  • Page 215: Hill-Start Assist Control (Hac)

    Good Braking Practices WARNING If ESC indicator light ( ) or EPS WARNING warning light ( ) stays on or blinks, Whenever leaving the vehicle or your vehicle may have a malfunction parking, always come to a complete with the VSM system. When the stop and continue to depress the brake warning light illuminates, have your pedal.

  • Page 216: Drive Mode Integrated Control System

    While Driving DRIVE MODE INTEGRATED CONTROL SYSTEM (IF EQUIPPED) OQX069079N OQX049037N OQX049038N The drive mode may be selected according to the driver's preference or road condition. The system resets to be in the NORMAL mode, when the engine is restarted. Information If there is a problem with the instrument cluster, the drive mode will be in...
  • Page 217 SPORT mode SNOW mode SPORT mode manages SNOW mode offers special the driving dynamics by traction tuning for snow automatically adjusting optimizing available traction the steering effort, and the in adverse conditions. engine and transmission Traction mode adjusts control logic for enhanced left and right wheel slip driving performance.

  • Page 218: Blind-Spot Collision Warning (Bcw)

    While Driving BLIND-SPOT COLLISION WARNING (BCW) (IF EQUIPPED) System Description WARNING Blind-Spot Collision Warning • Always be aware of road conditions Blind-Spot Collision Warning (BCW) while driving and be alert for system uses radar sensors in the rear unexpected situations even though bumper to monitor and warn the driver Blind-Spot Collision Warning system of an approaching vehicle in the driver's...

  • Page 219: System Setting

    System Setting OQX069078N • Selecting Warning Timing OTMA058088MX The driver can select the initial • Setting Blind-Spot Safety function warning activation time in the The driver can activate the system User Settings in the LCD display by by placing the ignition switch to the selecting 'User Settings → Driver ON position and by selecting 'User Assistance → Warning Timing'.

  • Page 220: Warning And System Control

    While Driving Warning and System Control „ Left side „ Blind-Spot Collision Warning system „ Left side „ OQX069035L „ Right side „ OQX069036L „ Right side „ OQX069009L [A] : Warning sound Second stage alert OQX069008L A warning chime to alert the driver will First stage alert activate when: If a vehicle is detected within the...

  • Page 221: Detecting Sensor

    Detecting Sensor WARNING • The warning light on the outer side view mirror will illuminate whenever a vehicle is detected at the rear side by the system. To avoid accidents, do not focus only on the warning light and neglect to see the surroundings of the vehicle.
  • Page 222 While Driving Warning message OAD058169L Check Blind-Spot Collision Warning OIK057092L system Blind-Spot Collision Warning system If there is a problem with BCW system, disabled. Radar blocked a warning message will appear and the This warning message may appear when: light on the switch will turn off. The - One or both of the sensors on the rear system will turn off automatically.

  • Page 223: Limitations Of The System

    Limitations of the System • Driving on a narrow road where trees or grass or overgrown. The driver must be cautious in the below • Driving in rural areas where the sensor situations because the system may not does not detect another vehicle or detect other vehicles or objects in certain structure for an extended period of circumstances:...
  • Page 224 While Driving OQX069012L OQX069037L • Driving on a curve • Driving where the road is merging/ dividing The system may not operate properly when driving on a curved road. In The system may not operate properly certain instances, the system may not when driving where the road is detect the vehicle in the next lane.
  • Page 225 OQX069014L OQX069015L [A] : noise barrier, [B] : guardrail • Driving where the heights of the lanes are different • Driving where there is a structure beside the road The system may not operate properly when driving where the heights of the The system may not operate properly lanes are different.

  • Page 226: Rear Cross-Traffic Collision Warning (Rccw)

    While Driving REAR CROSS-TRAFFIC COLLISION WARNING (RCCW) (IF EQUIPPED) System Description System Setting and Operation Rear Cross-Traffic Collision Warning System setting system • The driver can activate the system by placing the ignition switch to the ON position and by selecting “User Settings → Driver Assistance → Parking Safety → Rear Cross-Traffic Safety”.
  • Page 227 Information If you change the warning timing, the warning time of other systems may change. Always be aware before changing the warning timing. The driver can select the warning volume of Rear Cross-Traffic Collision Warning by selecting ‘User Settings → Driver Assistance → Warning Volume → High/ Medium/Low’. OQX069078N • Setting Warning Timing Information The driver can select the initial warning activation time in the User Settings in the...

  • Page 228: Warning And System Control

    While Driving Warning and system control CAUTION Rear Cross-Traffic Collision Warning • When the operation condition of system Rear Cross-Traffic Collision Warning system is satisfied, the warning „ Left „ will occur every time a vehicle approaches the side or rear of your stopped (0 MPH vehicle speed) vehicle.

  • Page 229: Detecting Sensor

    Detecting Sensor WARNING • Drive safely even though the vehicle is equipped with Rear Cross-Traffic Collision Warning system. Do not solely rely on the system but check your surrounding when backing the vehicle up. • The driver is responsible for accurate brake control.

  • Page 230: Limitations Of The System

    While Driving Warning message OAD058169L Check Blind-Spot Collision Warning OIK057092L system Blind-Spot Collision Warning system If there is a problem with BCW system, disabled. Radar blocked a warning message will appear and the This warning message may appear when: light on the switch will turn off. The - One or both of the sensors on the rear system will turn off automatically.
  • Page 231 • The vehicle is driven on a curved road. • The road pavement (or the peripheral ground) abnormally contains metallic components (i.e. possibly due to subway construction). • There is a fixed object near the vehicle, such as a guardrail. • While going down or up a steep road where the height of the lane is different.
  • Page 232 While Driving OQX069019L OQX069020L [A] : Vehicle • When the vehicle is in a complex parking environment • When the vehicle is parked diagonally The system may not operate properly The system may not operate properly when the vehicle is in a complex when the vehicle is parked diagonally.
  • Page 233 OQX069023L OQX069022L [A] : Structure, [B] : Wall • When the vehicle is parked rearward • Pulling into the parking space where If the vehicle is parked rearward and there is a structure the sensor detects the another vehicle in the rear area of the parking space, The system may not operate properly the system warning may not work when pulling in the vehicle to the...

  • Page 234: Forward Collision-Avoidance Assist (Fca) System

    While Driving FORWARD COLLISION-AVOIDANCE ASSIST (FCA) SYSTEM (IF EQUIPPED) System Setting and Activation Forward Collision-Avoidance Assist (FCA) system is designed to help detect and System setting monitor the vehicle ahead in the roadway through camera recognition to warn the driver that a collision is imminent, and if necessary, apply emergency braking.
  • Page 235 The options for the initial Forward The warning light illuminates Collision Warning includes the following: on the LCD display, when you cancel FCA system. - Normal: The driver can monitor FCA ON/OFF When this option is selected, the status on the LCD display. Also, the initial Forward Collision Warning is for warning light illuminates when the ESC normal driving conditions.

  • Page 236: Fca Warning Message And System Control

    While Driving FCA Warning Message and Prerequisite for activation System Control Prerequisite for activation FCA gets ready to be activated, when ‘Active Assist’ or FCA produces warning messages and ‘Warning Only’ under Forward Safety is warning alarms in accordance with selected in on the LCD display, and when the collision risk levels, such as abrupt the following prerequisites are satisfied.
  • Page 237 Emergency Braking CAUTION (Second warning) The driver should always use extreme caution while operating the vehicle, whether or not there is a warning message or alarm from FCA system. • After the brake control is activated, the driver must immediately depress the brake pedal and check the surroundings.

  • Page 238: Fca Sensor

    While Driving NOTICE FCA Sensor • NEVER install any accessories or „ Front camera „ stickers on the front windshield, nor tint the front windshield. • NEVER locate any reflective objects (i.e. white paper, mirror) over the dashboard. Any light reflection may cause a malfunction of the system.

  • Page 239: System Malfunction

    System Malfunction Warning message and warning light OQX069054L OQX069053L Forward Collision-Avoidance Assist (FCA) Check Forward Collision-Avoidance Assist system disabled. Camera obscured system When the sensor is contaminated due • When FCA is not working properly, to external environment such as snow, FCA warning light ( ) will illuminate rain or foreign substances, FCA system...

  • Page 240: Limitations Of The System

    While Driving Also, in certain instances the front WARNING view camera recognition system • FCA system operates only to detect may not detect the vehicle ahead. vehicles in front of the vehicle. FCA system may not activate and the warning message will not be • FCA system does not operate when displayed.
  • Page 241 Detecting vehicles • The vehicle in front does not have their rear lights properly turned ON or The sensor may be limited when: their rear lights are unusually located. • The camera is blocked with a foreign • The outside brightness changes object or debris suddenly, for example when entering • The camera lens is contaminated due...
  • Page 242 While Driving OQX069051 OQX069052 • Driving on a curve FCA system may recognize a vehicle in the next lane when driving on a The performance of FCA system may curved road. be limited when driving on a curved road. In this case, the system may unnecessarily alarm the driver and On curved roads, the other vehicle apply the brake.
  • Page 243 OQX059032L OQX059033L • Driving on a slope • Changing lanes The performance of Forward Collision- When a vehicle changes lanes in Avoidance Assist system may be front of you, FCA system may not decreased while driving upward or immediately detect the vehicle, downward on a slope.
  • Page 244 While Driving WARNING • Use extreme caution when the vehicle in front of you has cargo that extends rearward from the cab, or when the vehicle in front of you has higher ground clearance. • FCA system is designed to help detect and monitor the vehicle ahead in the roadway through camera recognition.

  • Page 245: System Setting And Activation

    FORWARD COLLISION-AVOIDANCE ASSIST (FCA) SYSTEM- SENSOR FUSION (IF EQUIPPED) System Setting and Activation Forward Collision-Avoidance Assist system is designed to help detect and System setting monitor the vehicle ahead or detect a pedestrian (if equipped) in the roadway through front view camera recognition and front radar signals to warn the driver that a collision is imminent, and if necessary, apply emergency braking.
  • Page 246 While Driving The options for the initial Forward The warning light illuminates Collision Warning includes the following: on the LCD display, when you cancel FCA system. - Normal: The driver can monitor FCA ON/OFF When this option is selected, the status on the LCD display.

  • Page 247: Fca Warning Message And System Control

    FCA Warning Message and Prerequisite for activation System Control Prerequisite for activation FCA gets ready to be activated, when ‘Active Assist’ or FCA produces warning messages ‘Warning Only’ under Forward Safety is and warning alarms in accordance selected in on the LCD display, and when with the collision risk levels, such the following prerequisites are satisfied.
  • Page 248 While Driving Emergency Braking CAUTION (Second warning) The driver should always use extreme caution while operating the vehicle, whether or not there is a warning message or alarm from FCA system. • After the brake control is activated, the driver must immediately depress the brake pedal and check the surroundings.

  • Page 249: Fca Sensor

    NOTICE FCA Sensor • Do not apply license plate frame or „ Front view camera „ foreign objects such as a bumper sticker or a bumper guard near the radar sensor. Doing so may adversely affect the sensing performance of the radar.
  • Page 250 While Driving NOTICE Warning message and warning light • NEVER install any accessories or stickers on the front windshield, nor tint the front windshield. • NEVER locate any reflective objects (i.e. white paper, mirror) over the dashboard. Any light reflection may cause a malfunction of the system.

  • Page 251: System Malfunction

    System Malfunction WARNING • FCA is only a supplemental system for the driver’s convenience. The driver should hold the responsibility to control the vehicle operation. Do not solely depend on the FCA system. Rather, maintain a safe braking distance, and, if necessary, depress the brake pedal to reduce the driving speed.

  • Page 252: Limitations Of The System

    While Driving Limitations of the System • FCA system may not activate if the driver applies the brake pedal to Forward Collision-Avoidance Assist avoid a collision. system is designed to help monitor • The brake control may be the vehicle ahead or a pedestrian on insufficient, possibly causing a the roadway through radar signals and collision, if a vehicle in front abruptly...
  • Page 253 • The driver's field of view is not well illuminated (either too dark or too much reflection or too much backlight that obscures the field of view) • The vehicle in front does not have their rear lights properly turned ON • The outside brightness changes suddenly, for example when entering or exiting a tunnel...
  • Page 254 While Driving OQX069052 OQX059032L FCA system may recognize a vehicle • Driving on a slope in the next lane when driving on a The performance of Forward Collision- curved road. Avoidance Assist system may be In this case, the system may decreased while driving upward or unnecessarily alarm the driver and downward on a slope.
  • Page 255 OQX059033L OQX069007L • Changing lanes • Detecting the vehicle in front of you When a vehicle changes lanes in If the vehicle in front of you has cargo front of you, FCA system may not that extends rearward from the cab, immediately detect the vehicle, or when the vehicle in front of you has especially if the vehicle changes...
  • Page 256 While Driving Detecting pedestrians (if equipped) Information The sensor may be limited when: In some instances, FCA system • The pedestrian is not fully detected may be canceled when subjected to by the camera recognition system, for electromagnetic interference. example, if the pedestrian is leaning over or is not fully walking upright Information • The pedestrian is moving very quickly...
  • Page 257 LANE KEEPING ASSIST (LKA) (IF EQUIPPED) WARNING Take the following precautions when using Lane Keeping Assist system: • Do not steer the steering wheel suddenly when the steering wheel is being assisted by the system. • LKA system helps to prevent the driver from moving out of the lane unintentionally by assisting the driver's steering.

  • Page 258: Lka System Operation

    While Driving LKA System Operation • Do not remove or damage the related parts of LKA system. • You may not hear a warning sound of LKA system because of excessive audio sound. • Do not place objects on the dashboard that reflects light such as mirrors, white paper, etc.
  • Page 259 LKA system operation „ Lane marker undetected „ OQX069025L „ Lane marker detected „ OQX069025L • To see LKA system screen on the LCD display in the cluster, select Drive Assist mode ( ). For more details, refer to "LCD Display Modes" in chapter 4.
  • Page 260 While Driving • If your vehicle speed exceeds 40 MPH (64 km/h) and LKA system button is ON, the system is enabled. If your vehicle departs from the projected lane in front of you, LKA system operates as follows: „ Left lane departure warning „...

  • Page 261: Warning Light And Message

    Warning Light and Message OOS057083L Driver's grasp not detected. OQX069028L LKA system will be disabled temporarily Check LKA system If the driver still does not have their If there is a problem with the system a hands on the steering wheel after the message will appear for a few seconds.

  • Page 262: Limitations Of The System

    While Driving Limitations of the System LKA system will not be in the ENABLED state and the steering wheel will not be LKA system may operate prematurely assisted when: even if the vehicle does not depart • The turn signal is turned on before from the intended lane, OR, LKA system changing a lane.

  • Page 263: Lka System Function Change

    LKA system Function Change When external condition is intervened • The brightness outside changes The driver can change LKA to Lane suddenly such as when entering or Departure Warning system or change exiting a tunnel or passing under a LKA system mode between Standard LKA bridge.

  • Page 264: System Setting And Activation

    While Driving DRIVER ATTENTION WARNING (DAW) (IF EQUIPPED) Driver Attention Warning System is Driver's attention level designed as a safety feature to help „ System off „ reduce drowsy or inattentive driving. DAW displays a bar graph that is intended to represent the driver's attention and fatigue while driving.

  • Page 265: Resetting The System

    • The number decreases when the • Driver Attention Warning system driver does not take a break for a operates again, when the driver certain period of time. restarts driving. • The number increases when the driver System Standby attentively drives for a certain period of time.
  • Page 266 While Driving WARNING CAUTION • Driver Attention Warning system Driver Attention Warning system may is not a substitute for safe driving not properly operate with limited practices, but a convenience alerting in the following situations: function only. It is the responsibility • The lane detection performance is of the driver to always drive limited.

  • Page 267: Leading Vehicle Departure Alert

    Leading vehicle departure alert WARNING Leading Vehicle Departure Alert function • Leading Vehicle Departure Alert provides the alert whether the leading function is only a convenient vehicle drives away or not, while a stop. auxiliary for the driver. The system can’t announce the alarm when a System setting and operating leading vehicle departs in real time.

  • Page 268: While Driving

    While Driving CRUISE CONTROL Cruise Control Operation • Do not use when: - Driving in heavy traffic or when traffic conditions make it difficult to drive at a constant speed - Driving on rainy, icy, or snow- covered roads - Driving on hilly or windy roads - Driving in windy areas - Driving with limited view (possibly due to bad weather such as fog,...
  • Page 269 To set Cruise Control speed To increase Cruise Control speed OQX069029N OQX069072L 1. Press the CRUISE button on the • Push the toggle switch up (RES+) steering wheel to turn the system on. and hold it, while monitoring the SET The cruise indicator will illuminate.
  • Page 270 While Driving • Push the toggle switch down (SET-) Information and release it immediately. The cruising speed will decrease 1.0 MPH Each of the above actions will cancel (1.6 km/h) each time the toggle switch Cruise Control operation (the "SET" is operated in this manner.

  • Page 271: Special Driving Conditions

    SPECIAL DRIVING CONDITIONS Hazardous Driving Conditions WARNING When hazardous driving elements If the vehicle is stuck and excessive are encountered such as water, snow, wheel spin occurs, the temperature ice, mud and sand, take the below of the tires can increase very quickly. suggestions: If the tires become damaged, a tire • Drive cautiously and keep a longer...

  • Page 272: Smooth Cornering

    While Driving Smooth Cornering • Tires should be properly maintained with at least 2/32nds of an inch of Avoid braking or gear changing in tread depth. If your tires do not have corners, especially when roads are wet. enough tread, making a quick stop on Ideally, corners should always be taken wet pavement can cause a skid and under gentle acceleration.

  • Page 273: Highway Driving

    Highway Driving Reducing the risk of a rollover Tires Your multi-purpose passenger vehicle is defined as a Sports Utility Vehicle (SUV). Adjust the tire inflation, as specified. SUV's have higher ground clearance Under-inflation may overheat or damage and a narrower track to make them the tires.

  • Page 274: Winter Driving

    While Driving WINTER DRIVING The severe weather conditions of winter Information quickly wear out tires and cause other problems. To minimize winter driving Do not install studded tires without problems, you should take the following first checking local, state and municipal suggestions: regulations for possible restrictions against their use.

  • Page 275: Winter Precautions

    NOTICE WARNING When using tire chains: The use of tire chains may adversely • Wrong size chains or improperly affect vehicle handling: installed chains can damage your • Drive less than 20 MPH (30 km/h) vehicle's brake lines, suspension, or the chain manufacturer's body and wheels.
  • Page 276 While Driving Change to "winter weight" oil if Do not let your parking brake freeze necessary Under some conditions your parking brake can freeze in the engaged position. In some climates it is recommended that This is most likely to happen when a lower viscosity "winter weight"...

  • Page 277: Vehicle Load Limit

    VEHICLE LOAD LIMIT Two labels on your driver's door sill show GVWR (Gross Vehicle Weight Rating) how much weight your vehicle was This is the maximum allowable weight designed to carry: the Tire and Loading of the fully loaded vehicle (including Information Label and the Certification all options, equipment, passengers Label.
  • Page 278 While Driving Seating capacity 4. The resulting figure equals the available amount of cargo and Total: 5 persons luggage load capacity. For example, (Front seat : 2 persons, if the "XXX" amount equals 1400 Rear seat : 3 persons) lbs. and there will be five 150 lb. Seating capacity is the maximum passengers in your vehicle, the amount of available cargo and...
  • Page 279 ≥ Example 1 Maximum Load Passenger Weight Cargo Weight (1400 lbs.) (150 lbs. × 2 = 300 lbs.) (1100 lbs.) (635 kg) (68 kg × 2 = 136 kg) (499 kg) ≥ Example 2 Maximum Load Passenger Weight Cargo Weight (1400 lbs.) (150 lbs.
  • Page 280 While Driving Certification label WARNING Overloading • Never exceed the GVWR for your vehicle, the GAWR for either the front or rear axle and vehicle capacity weight. Exceeding these ratings can affect your vehicle’s handling and braking ability, and cause an accident.

  • Page 281: Trailer Towing

    TRAILER TOWING We do not recommend using this vehicle for trailer towing. 6-93...

  • Page 282: Emergency Situations

    7. Emergency Situations Hazard Warning Flasher ..................7-2 In Case of an Emergency While Driving ............7-2 If the Engine Stalls While Driving ................7-2 If the Engine Stalls at a Crossroad or Crossing ............7-2 If you Have a Flat Tire While Driving ................7-3 If the Engine Will not Start ................7-3 If the Engine Doesn’t Turn Over or Turns Over Slowly ..........

  • Page 283: Hazard Warning Flasher

    Emergency Situations HAZARD WARNING FLASHER IN CASE OF AN EMERGENCY WHILE DRIVING If the Engine Stalls While Driving • Reduce your speed gradually, keeping a straight line. Move cautiously off the road to a safe place. • Turn on your hazard warning flasher. • Try to start the engine again.

  • Page 284: If You Have A Flat Tire While Driving

    IF THE ENGINE WILL NOT START If you Have a Flat Tire While Driving If the Engine Doesn’t Turn Over or Turns Over Slowly If a tire goes flat while you are driving: • Take your foot off the accelerator • Be sure the shift lever is in N (Neutral) pedal and let the vehicle slow down or P (Park).

  • Page 285: Jump Starting

    Emergency Situations JUMP STARTING Jump starting can be dangerous if done If acid gets into your eyes, flush your incorrectly. Follow the jump starting eyes with clean water for at least 15 procedure in this section to avoid serious minutes and get immediate medical injury or damage to your vehicle.
  • Page 286 Jump starting procedure 8. Start the engine of the assisting vehicle and let it run at approximately 1. Position the vehicles close enough 2,000 rpm for a few minutes. Then that the jumper cables will reach, but start your vehicle. do not allow the vehicles to touch.

  • Page 287: If The Engine Overheats

    Emergency Situations IF THE ENGINE OVERHEATS If your temperature gauge indicates WARNING overheating, you experience a loss of Your vehicle is equipped power, or hear loud pinging or knocking, with a pressurized coolant the engine may be overheating. If this reserve tank.
  • Page 288 TIRE PRESSURE MONITORING SYSTEM (TPMS) (IF EQUIPPED) (TYPE A) As an added safety feature, your vehicle has been equipped with a tire pressure monitoring system (TPMS) that illuminates a low tire pressure telltale when one or more of your tires is significantly under-inflated.

  • Page 289: Tpms Malfunction Indicator

    Emergency Situations When the malfunction indicator is WARNING illuminated, the system may not be able Low pressure damage to detect or signal low tire pressure as intended. TPMS malfunctions may occur Significantly low tire pressure makes for a variety of reasons, including the the vehicle unstable and can contribute installation of replacement or alternate to loss of vehicle control and increased...
  • Page 290 CAUTION WARNING It is recommended that you do not use a • The TPMS cannot alert you to severe puncture-repairing agent not approved and sudden tire damage caused by by HYUNDAI dealer to repair and/or external factors such as nails or road inflate a low pressure tire.

  • Page 291: Check Tire Pressure

    Emergency Situations TIRE PRESSURE MONITORING SYSTEM (TPMS) (IF EQUIPPED) (TYPE B) Check Tire Pressure OQX069034L OQX049029L • You can check the tire pressure in the Assist mode on the cluster. Refer to the “LCD Display Mode” section in chapter 4. • A “Drive to display”...

  • Page 292: Tire Pressure Monitoring System

    Tire Pressure Monitoring System Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver’s responsibility to WARNING maintain correct tire pressure, even if Over-inflation or under-inflation can under-inflation has not reached the level reduce tire life, adversely affect vehicle to trigger illumination of the TPMS low handling, and lead to sudden tire failure...

  • Page 293: Low Tire Pressure Telltale

    Emergency Situations Low Tire Pressure Telltale CAUTION In winter or cold weather, the Low Tire Pressure Telltale may be illuminated if Low Tire Pressure LCD the tire pressure was adjusted to the Display with Position recommended tire inflation pressure Indicator in warm weather.

  • Page 294: Tpms Malfunction Indicator

    TPMS Malfunction Changing a Tire with TPMS Indicator If you have a flat tire, the Low Tire Pressure and LCD position indicator will The TPMS Malfunction Indicator come on. Have the flat tire repaired by an will illuminate after it blinks for authorized HYUNDAI dealer as soon as approximately one minute when there possible or replace the flat tire with the...
  • Page 295 Emergency Situations Each wheel is equipped with a tire WARNING pressure sensor mounted inside the tire Tampering with, modifying, or disabling behind the valve stem (except for the the Tire Pressure Monitoring System spare tire). You must use TPMS specific (TPMS) components may interfere wheels.

  • Page 296: Jack And Tools

    IF YOU HAVE A FLAT TIRE (WITH SPARE TIRE, IF EQUIPPED) WARNING Changing a tire can be dangerous. Follow the instructions in this section when changing a tire to reduce the risk of serious injury or death. CAUTION Be careful as you use the jack handle to stay clear of the flat end.

  • Page 297: Changing Tires

    Emergency Situations Changing Tires Follow these steps to change your vehicle’s tire: WARNING 1. Park on a level, firm surface. 2. Move the shift lever into P (Park) or A vehicle can slip or roll off of a jack into R (Reverse) if equipped with causing serious injury or death to you or a manual transmission, apply the those nearby.
  • Page 298 OQXI069007 OQXI069009 6. Loosen the wheel lug nuts 8. Insert the jack handle into the jack counterclockwise one turn each in and turn it clockwise, raising the the order shown above, but do not vehicle until the tire clears the ground. remove any lug nuts until the tire has Make sure the vehicle is stable on the been raised off of the ground.
  • Page 299 Emergency Situations CAUTION Your vehicle has metric threads on the studs and lug nuts. Make certain during tire changing that the same nuts that were removed are reinstalled. If you have to replace your lug nuts make sure they have metric threads to avoid damaging the studs and ensure the wheel is properly secured to the hub.
  • Page 300 When driving with the compact spare tire CAUTION mounted to your vehicle: To prevent damaging the compact • Check the tire pressure after installing spare tire and your vehicle: the compact spare tire. The compact • Drive slowly enough for the road spare tire should be inflated to 60 psi conditions to avoid all hazards, such (420 kPa).
  • Page 301 Emergency Situations Jack label „ Example „ OHYK065011 The actual Jack label in the vehicle may differ from the illustration. For more detailed specifications, refer to the label attached to the jack. 1. Model Name 8. Shift into Reverse gear on vehicles with manual transmission or move 2.

  • Page 302: Towing

    TOWING Towing Service CAUTION An AWD vehicle should never be towed with the wheels on the ground. This can cause serious damage to the transmission. CAUTION • Do not tow the vehicle with the front wheels on the ground as this may cause damage to the vehicle.

  • Page 303: Removable Towing Hook

    Emergency Situations Removable Towing Hook WARNING If your vehicle is equipped with a rollover sensor, place the ignition switch in the LOCK/OFF or ACC position when the vehicle is being towed. The side impact and curtain air bag may deploy if the sensor detects the situation as a rollover.

  • Page 304: Emergency Towing

    Emergency Towing CAUTION „ Front „ The driver must be in the vehicle for steering and braking operations when the vehicle is being towed. Passengers other than the driver must not be in the vehicle. Always follow these emergency towing precautions: • Place the ignition switch in the ACC position so the steering wheel is not...

  • Page 305: Tie-Down Hook

    Emergency Situations NOTICE To avoid damage to your vehicle and vehicle components when towing: • Always pull straight ahead when using the towing hooks. Do not pull from the side or at a vertical angle. • Do not use the towing hooks to pull a vehicle out of mud, sand or other conditions from which the vehicle cannot be driven out under its own...

  • Page 306: Maintenance

    8. Maintenance Engine Compartment ..................8-3 Maintenance Services ..................8-4 Owner’s Responsibility ....................8-4 Owner Maintenance Precautions ................8-4 Owner Maintenance ..................8-5 Owner Maintenance Schedule ..................8-5 Scheduled Maintenance Services ..............8-7 Normal Maintenance Schedule .................. 8-8 Maintenance Under Severe Usage Conditions (Nu 2.0 MPI) ........8-11 Severe Driving Conditions ..................
  • Page 307 Tires and Wheels ....................8-27 Tire Care ........................8-27 Recommended Cold Tire Inflation Pressures ............8-27 Check Tire Inflation Pressure ..................8-28 Tire Rotation .......................8-29 Wheel Alignment and Tire Balance ................8-29 Tire Replacement ...................... 8-30 Wheel Replacement ....................8-31 Tire Traction ........................ 8-31 Tire Maintenance......................

  • Page 308: Engine Compartment

    ENGINE COMPARTMENT The actual engine compartment in the vehicle may differ from the illustration. OQX089001L 1. Engine coolant reservoir 6. Windshield washer fluid reservoir 2. Brake/clutch fluid reservoir 7. Fuse box 3. Air cleaner 8. Battery 4. Engine oil dipstick 9.

  • Page 309: Maintenance Services

    Maintenance MAINTENANCE SERVICES Owner Maintenance Precautions You should exercise the utmost care to prevent damage to your vehicle and Inadequate, incomplete or insufficient injury to yourself whenever performing servicing may result in operational any maintenance or inspection problems with your vehicle that could procedures.

  • Page 310: Owner Maintenance

    OWNER MAINTENANCE The following lists are vehicle checks and WARNING inspections that should be performed Performing maintenance work on a by the owner or an authorized HYUNDAI vehicle can be dangerous. If you lack dealer at the frequencies indicated to sufficient knowledge and experience or help ensure safe, dependable operation the proper tools and equipment to do...
  • Page 311 Maintenance While operating your vehicle: At least twice a year: (i.e., every Spring and Autumn) • Note any changes in the sound of the exhaust or any smell of exhaust fumes • Check radiator, heater and air in the vehicle. conditioning hoses for leaks or damage.

  • Page 312: Scheduled Maintenance Services

    SCHEDULED MAINTENANCE SERVICES Follow Normal Maintenance Schedule if the vehicle is usually operated where none of the following conditions apply. If any of the following conditions apply, you must follow the Maintenance Under Severe Usage Conditions. • Repeated short distance driving. • Driving in dusty conditions or sandy areas.
  • Page 313 Maintenance...
  • Page 315 Maintenance 8-10...

  • Page 316: Maintenance Under Severe Usage Conditions (Nu 2.0 Mpi)

    Maintenance Under Severe Usage Conditions (Nu 2.0 MPI) The following items must be serviced more frequently on cars normally used under severe driving conditions. Refer to the chart below for the appropriate maintenance intervals. I: Inspect and if necessary, adjust, correct, clean or replace. R : Replace or change.

  • Page 317: Explanation Of Scheduled Maintenance Items

    Maintenance EXPLANATION OF SCHEDULED MAINTENANCE ITEMS Engine Oil and Filter Fuel Lines, Fuel Hoses and Connections The engine oil and filter should be changed at the intervals specified in the Check the fuel lines, fuel hoses and maintenance schedule. If the vehicle connections for leakage and damage.
  • Page 318 NOTICE Air Cleaner Filter Intelligent Variable Transmission (IVT) A genuine HYUNDAI air cleaner filter fluid color is basically light amber. is recommended when the filter is replaced. As the vehicle is driven, the Intelligent Variable Transmission (IVT) fluid will Spark Plugs begin to look darker.
  • Page 319 Maintenance Brake/Clutch Fluid Suspension Mounting Bolts Check the brake fluid level in the brake Check the suspension connections for fluid reservoir. The level should be looseness or damage. Retighten to the between the MIN and the MAX marks specified torque. on the side of the reservoir.

  • Page 320: Engine Oil

    ENGINE OIL Checking the Engine Oil Level Use only the specified engine oil. (refer to “Recommended Lubricants and 1. Follow all of the oil manufacturer’s Capacities” in chapter 2). precautions. 2. Be sure the vehicle is on the level NOTICE ground in P (Park) with the parking brake set.

  • Page 321: Engine Coolant

    Maintenance ENGINE COOLANT The high-pressure cooling system has a If the coolant level is low, add enough reservoir filled with year-round antifreeze distilled (deionized) water to bring the coolant. The reservoir is filled at the level to the F mark, but do not overfill. If factory.
  • Page 322 For mixing percentage, refer to the following table: Mixture Percentage Ambient (volume) Temperature Antifreeze Water 5°F (-15°C) -13°F (-25°C) -31°F (-35°C) -49°F (-45°C) OQX089005N WARNING Information Never remove the engine If in doubt about the mix ratio, a 50% coolant reservoir tank/radiator water and 50% antifreeze mix is the cap or the drain plug while the easiest to mix together as it will be the...

  • Page 323: Changing Engine Coolant

    Maintenance Changing Engine Coolant WARNING Have coolant changed by an authorized The electric motor for the HYUNDAI dealer according to the cooling fan may continue to Maintenance Schedule at the beginning operate or start up when the of this chapter. engine is not running and can cause serious injury.

  • Page 324: Brake/Clutch Fluid

    BRAKE/CLUTCH FLUID Checking the Brake/Clutch Fluid WARNING Level Do not allow brake fluid to come in contact with your eyes. If brake/clutch fluid comes in contact with your eyes, flush your eyes with clean water for at least 15 minutes and get immediate medical attention.

  • Page 325: Washer Fluid

    Maintenance WASHER FLUID PARKING BRAKE Checking the Washer Fluid Level Checking the Parking Brake OQX089008L OQX069005L Check the fluid level in the washer fluid Check the stroke of the parking brake reservoir and add fluid if necessary. Plain by counting the number of “clicks” water may be used if washer fluid is not heard while fully applying it from the available.

  • Page 326: Air Cleaner

    AIR CLEANER Filter Replacement The air cleaner filter can be cleaned for inspection using compressed air. Do not attempt to wash or to rinse it, as water will damage the filter. If soiled, the air cleaner filter must be replaced. OQX089041 4.

  • Page 327: Climate Control Air Filter

    Maintenance CLIMATE CONTROL AIR FILTER Filter Inspection The climate control air filter should be replaced according to the Maintenance Schedule. If the vehicle is operated in severely air-polluted cities or on dusty rough roads for a long period, it should be inspected more frequently and replaced earlier.

  • Page 328: Wiper Blades

    WIPER BLADES Blade Inspection Blade Replacement Contamination of either the windshield When the wipers no longer clean or the wiper blades with foreign matter adequately, the blades may be worn or can reduce the effectiveness of the cracked, and require replacement. windshield wiper functionality.
  • Page 329 Maintenance NOTICE Rear window wiper blade replacement Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield. OTL075050 1. Raise the wiper arm and pull out the wiper blade assembly. OGSR076066 OGSR076068 OTL075051 3.

  • Page 330: Battery

    BATTERY If acid gets into your eyes, flush your WARNING eyes with clean water for at least 15 To prevent SERIOUS INJURY or DEATH minutes and get immediate medical to you or bystanders, always follow attention. If acid gets on your skin, these precautions when working near thoroughly wash the area.

  • Page 331: For Best Battery Service

    Maintenance For Best Battery Service • The negative battery cable must be removed first and installed last when the battery is disconnected. Disconnect the battery charger in the following order: 1. Turn off the battery charger main switch. 2. Unhook the negative clamp from the negative battery terminal.

  • Page 332: Tire Care

    TIRES AND WHEELS Tire Care WARNING For proper maintenance, safety, and Tire failure may cause loss of vehicle maximum fuel economy, you must control resulting in an accident. To always maintain recommended tire reduce risk of SERIOUS INJURY or inflation pressures and stay within the DEATH, take the following precautions: load limits and weight distribution • Inspect your tires monthly for proper...

  • Page 333: Check Tire Inflation Pressure

    Maintenance Check Tire Inflation Pressure WARNING Check your tires, including the spare tire, Recommended pressures must be once a month or more. maintained for the best ride, vehicle handling, and minimum tire wear. How to check Over-inflation or under-inflation can Use a good quality tire pressure gauge reduce tire life, adversely affect vehicle to check tire pressure.

  • Page 334: Tire Rotation

    Tire Rotation Information To equalize tread wear, HYUNDAI Tires that are asymmetrical or directional recommends that the tires be rotated can only be installed on the wheel in according to the maintenance schedule one direction. The outside and inside or sooner if irregular wear develops. of an asymmetrical tire is not easily During rotation, check the tires for distinguishable.

  • Page 335: Tire Replacement

    Maintenance Tire Replacement WARNING To reduce the risk of DEATH or SERIOUS Tread wear indicator Tread wear indicator INJURY: • Replace tires that are worn, show uneven wear, or are damaged. Worn tires can cause loss of braking effectiveness, steering control, and traction.

  • Page 336: Wheel Replacement

    Wheel Replacement Compact spare tire replacement A compact spare tire has a shorter When replacing the metal wheels for any tread life than a regular size tire. reason, make sure the new wheels are Replace it when you can see the tread equivalent to the original factory units in wear indicator bars on the tire.
  • Page 337 Maintenance Wheel size designation Wheels are also marked with important information that you need if you ever have to replace one. The following explains what the letters and numbers in the wheel size designation mean. Example wheel size designation: 6.0J X 15 6.0 - Rim width in inches.
  • Page 338 3. Checking tire life (TIN : Tire 5. Maximum permissible inflation Identification Number) pressure Any tires that are over six years old, This number is the greatest amount based on the manufacturing date, of air pressure that should be put in (including the spare tire) should be the tire.
  • Page 339 Maintenance Tread wear WARNING The tread wear grade is a comparative The traction grade assigned to this tire rating based on the wear rate of the tire is based on straight-ahead braking when tested under controlled conditions traction tests, and does not include on a specified government test course.

  • Page 340: Tire Terminology And Definitions

    Tire Terminology and Definitions DOT Markings A code molded into the sidewall Air Pressure of a tire signifying that the tire is in compliance with the U.S. Department The amount of air inside the tire pressing of Transportation motor vehicle safety outward on the tire.
  • Page 341 Maintenance Maximum Inflation Pressure Pneumatic tire The maximum air pressure to which a A mechanical device made of rubber, cold tire may be inflated. The maximum chemicals, fabric and steel or other air pressure is molded onto the sidewall. materials, that, when mounted on an automotive wheel provides the traction Maximum Load Rating and contains the gas or fluid that...

  • Page 342: All Season Tires

    All Season Tires Tread The portion of a tire that comes into HYUNDAI specifies all season tires contact with the road. on some models to provide good performance for use all year round, Treadwear Indicators including snowy and icy road conditions. All season tires are identified by ALL Narrow bands, sometimes called “wear SEASON and/or M+S (Mud and Snow) on...

  • Page 343: Radial-Ply Tires

    Maintenance Radial-Ply Tires Low Aspect Ratio Tires Radial-ply tires provide improved tread The aspect ratio is lower than 50 on low life, road hazard resistance and smoother aspect ratio tires. high speed ride. The radial-ply tires used Because low aspect ratio tires are on this vehicle are of belted construction, optimized for handling and braking, their and are selected to complement the...

  • Page 344: Fuses

    FUSES If the electrical system does not work, ■ Blade type first check the driver’s side fuse panel. Before replacing a blown fuse, turn the engine and all switches off, and then disconnect the negative battery cable. Always replace a blown fuse with one of the same rating.

  • Page 345: Instrument Panel Fuse Replacement

    Maintenance Instrument Panel Fuse 7. Push in a new fuse of the same rating, and make sure it fits tightly in Replacement the clips. If it fits loosely, consult an authorized HYUNDAI dealer. In an emergency, if you do not have a spare fuse, use a fuse of the same rating from a circuit you may not need for operating the vehicle.

  • Page 346: Engine Compartment Panel Fuse Replacement

    Engine Compartment Panel Fuse Information Replacement „ Blade type fuse „ OOS047142L OQX089038L If the fuse switch is OFF, the above „ Cartridge type fuse „ message will appear. NOTICE • Always place the fuse switch in the ON position while driving the vehicle. • Do not move the fuse switch repeatedly.
  • Page 347 Maintenance Multi fuse CAUTION After checking the fuse box in the engine compartment securely close the fuse box cover inside the engine compartment, until it clicks. If the fuse box is not closed properly, water may leak in side, possibly causing a malfunction with the electrical system.

  • Page 348: Fuse/Relay Panel Description

    Fuse/Relay Panel Description Information Instrument panel fuse panel Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label. OQX089024L Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/...
  • Page 349 Maintenance Instrument panel fuse panel Fuse Name Circuit Protected POWER OUTLET 3 USB Charger INTERIOR LAMP Front Vanity Lamp LH/RH, Room Lamp, Map Lamp HEATED MIRROR Driver/Passenger Power Outside Mirror, A/C Control Module P/WINDOW LH Power Window Main Switch Forward Collision Avoidance Assist Unit POWER OUTLET 2 Front Power Outlet IBU 1...
  • Page 350 Driver’s side fuse panel Fuse Name Circuit Protected S/HEATER Front Seat Warmer Control Module MODULE 1 7.5A Stop Lamp Switch, ATM Shift Lever MEMORY 2 7.5A SRS Control Module AIR BAG Passenger Occupant Detection Sensor, SRS Control Module DOOR LOCK Tail Gate Relay, T/Turn Unlock Realy, Door Lock/Unlock Realy ECU 6 ECM, PCM...
  • Page 351 Maintenance Driver’s side fuse panel Fuse Name Circuit Protected WIPER RR E/R Junction Block (Wiper RR Relay), Rear Wiper Motor WASHER Multifunction Switch A/BAG IND 7.5A Center Facia Switch, Instrument Cluster IBU 2 7.5A E/R Junction Block (Multipurpose Check Connector), ESC ABS3 7.5A Module...
  • Page 352 Engine compartment fuse panel Information Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
  • Page 353 Maintenance Engine compartment fuse panel Fuse Name Circuit Protected Alternator, Multi Fuse - MDPS 1, Fuse - Rear Heated, 125A Blower, ABS 1, ABS 2 MULTI FUSE MDPS 1 MDPS Unit REAR ICU Junction Block (Rear Heated Relay) HEATED ABS 1 Multipurpose Check Connector, ESC Module ABS 2 ESC Module...
  • Page 354 Engine compartment fuse panel Fuse Name Circuit Protected COOLING Cooling Fan 1/2 Relay ICU Junction Block (Fuse - MODULE 6, BRAKE SWITCH, T/SIGNAL LAMP, DRL, IBU 1, Leak Current Autocut Device) ECU1 Main Relay, Fuse - ECU 4, ECU 5 A/C 1 A/C Relay FUEL PUMP...

  • Page 355: Light Bulbs

    Maintenance LIGHT BULBS Headlamp, Parking lamp, Consult an authorized HYUNDAI dealer to replace most vehicle light bulbs. It is Daytime Running Light, Turn difficult to replace vehicle light bulbs signal lamp, Cornering lamp and because other parts of the vehicle must Side marker be removed before you can get to the Type A...
  • Page 356 • Always handle them carefully, and 5. Remove the bulb from the headlamp avoid scratches and abrasions. If assembly. the bulbs are lit, avoid contact with 6. Install a new headlamp bulb and snap liquids. the headlamp bulb retaining wire into • Never touch the glass with bare position by aligning the wire with the hands.
  • Page 357 Maintenance 5. Install a new bulb by inserting it into Headlamp (bulb type) the socket and rotating it until it locks WARNING into place. 6. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. 7.
  • Page 358 „ Headlamp (high/low beam) „ OQX089015L OQX089016L [1] : High beam, [2] : Low beam Cornering lamp 1. Open the hood. 1. Open the hood. 2. Disconnect the negative battery 2. Disconnect the negative battery cable. cable. 3. Remove the headlamp bulb cover by 3.

  • Page 359: Side Repeater Lamp Replacement

    Maintenance Side Repeater Lamp Replacement (if equipped) „ Type A „ OQX089017L Turn signal lamp/side marker 1. Open the hood. OHCR076032 2. Disconnect the negative battery „ Type B „ cable. 3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

  • Page 360: Rear Combination Light Bulb Replacement

    Rear Combination Light Bulb Replacement „ Type A (Standard) „ OQXI079037 Stop/tail lamp and turn signal lamp replacement OQX089019N 1. Open the liftgate. „ Type B (LED) „ 2. Open the lamp assembly retaining screw covers. 3. Loosen the lamp assembly retaining screws with a cross-tip screwdriver.
  • Page 361 Maintenance Tail / Stop lamp (Type B) „ Type A (Standard) „ Your vehicle is equipped with LED lamps. Stop/tail lamp Stop/tail lamp LED lamps do not have replaceable bulbs. If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAi dealer.

  • Page 362: High Mounted Stop Lamp Replacement

    High Mounted Stop Lamp License Plate Light Bulb Replacement Replacement OQX059132 OQX089034L 1. Open the liftgate. 1. Remove the cover by pressing it as direction of the arrows. 2. Remove the lamp cover from the lamp assembly with a cross-tip screwdriver. 2.

  • Page 363: Interior Light Bulb Replacement

    Maintenance Interior Light Bulb Replacement „ Vanity mirror lamp „ Map lamp, Room lamp, Vanity mirror lamp, Luggage compartment lamp and Glove box lamp „ Map lamp (Type A) „ OOS077046 „ Luggage compartment lamp „ OQXI079045 „ Map lamp (Type B) „...

  • Page 364: Appearance Care

    APPEARANCE CARE Exterior Care Insects, tar, tree sap, bird droppings, industrial pollution and similar deposits Exterior general caution can damage your vehicle’s finish if not It is very important to follow the label removed immediately. directions when using any chemical Even prompt washing with plain water cleaner or polish.
  • Page 365 Maintenance Waxing A good coat of wax provides a barrier between your paint and environmental contamination. Keeping a good coat of wax on your vehicle will help protect it. Wax the vehicle when water will no longer bead on the paint. Always wash and dry the vehicle before waxing.
  • Page 366 Repairing your vehicle’s finish Underbody maintenance Deep scratches or stone chips in the Corrosive materials used for ice and painted surface must be repaired snow removal and dust control may promptly. Exposed metal will quickly collect on the underbody. If these rust and may develop into a major repair materials are not removed, accelerated expense.
  • Page 367 Maintenance NOTICE Moisture breeds corrosion Moisture creates the conditions in • Do not use abrasive cleaner, which corrosion is most likely to occur. polishing compound, solvent, or wire For example, corrosion is accelerated brushes on aluminum wheels. by high humidity, particularly when • Clean the wheel when it has cooled.

  • Page 368: Interior Care

    Interior Care • When cleaning underneath the vehicle, pay particular attention to the Interior general precautions components under the fenders and Prevent caustic solutions such as other areas that are hidden from view. perfume and cosmetic oil, from Do a thorough job; just dampening contacting the interior parts because the accumulated mud rather than they may cause damage or discoloration.
  • Page 369 Maintenance NOTICE • Caring for the leather seats - Vacuum the seat periodically to Using anything but recommended remove dust and sand on the seat. It cleaners and procedures may affect the will prevent abrasion or damage of fabric’s appearance and fire-resistant the leather and maintain its quality.

  • Page 370: Emission Control System

    EMISSION CONTROL SYSTEM Cleaning the seat belt webbing Clean the belt webbing with any The emission control system of your mild soap solution recommended for vehicle is covered by a written limited cleaning upholstery or carpet. Follow warranty. Please see the warranty the instructions provided with the soap.

  • Page 371: Crankcase Emission Control System

    Maintenance 1. Crankcase Emission Control 3. Exhaust Emission Control System System The positive crankcase ventilation system The Exhaust Emission Control System is is employed to prevent air pollution a highly effective system which controls caused by blow-by gases being emitted exhaust emissions while maintaining from the crankcase.
  • Page 372 • Do not operate the engine in confined Your vehicle is equipped with a catalytic or closed areas (such as garages) any converter emission control device. more than what is necessary to move To prevent damage to the catalytic the vehicle in or out of the area. converter and to your vehicle, take the • When the vehicle is stopped in an following precautions:...

  • Page 373: California Perchlorate Notice

    Maintenance CALIFORNIA PERCHLORATE NOTICE Perchlorate Material-special handling may apply, See: www.dtsc.ca.gov/hazardouswaste/perchlorate. Notice to California Vehicle Dismantlers: Perchlorate containing materials, such as air bag inflators, seatbelt pretensioners and keyless remote entry batteries, must be disposed of according to Title 22 California Code of Regulations Section 67384.10 (a).

  • Page 374: Consumer Information

    CONSUMER INFORMATION This consumer information has been prepared in accordance with regulations issued by the National Highway Traffic Safety Administration of the U.S. Department of Transportation.Your HYUNDAI dealer will help answer any questions you may have as you read this information. HYUNDAI motor vehicles are designed and manufactured to meet or exceed all applicable safety standards.

  • Page 375: Reporting Safety Defects

    Maintenance REPORTING SAFETY DEFECTS If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying HYUNDAI MOTOR AMERICA. To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888- 327-4236 (TTY: 1-800-424-9153);...

Table of Contents

Save PDF
