Summary of Contents for EMUGE FRANKEN HE 2-IKZZ

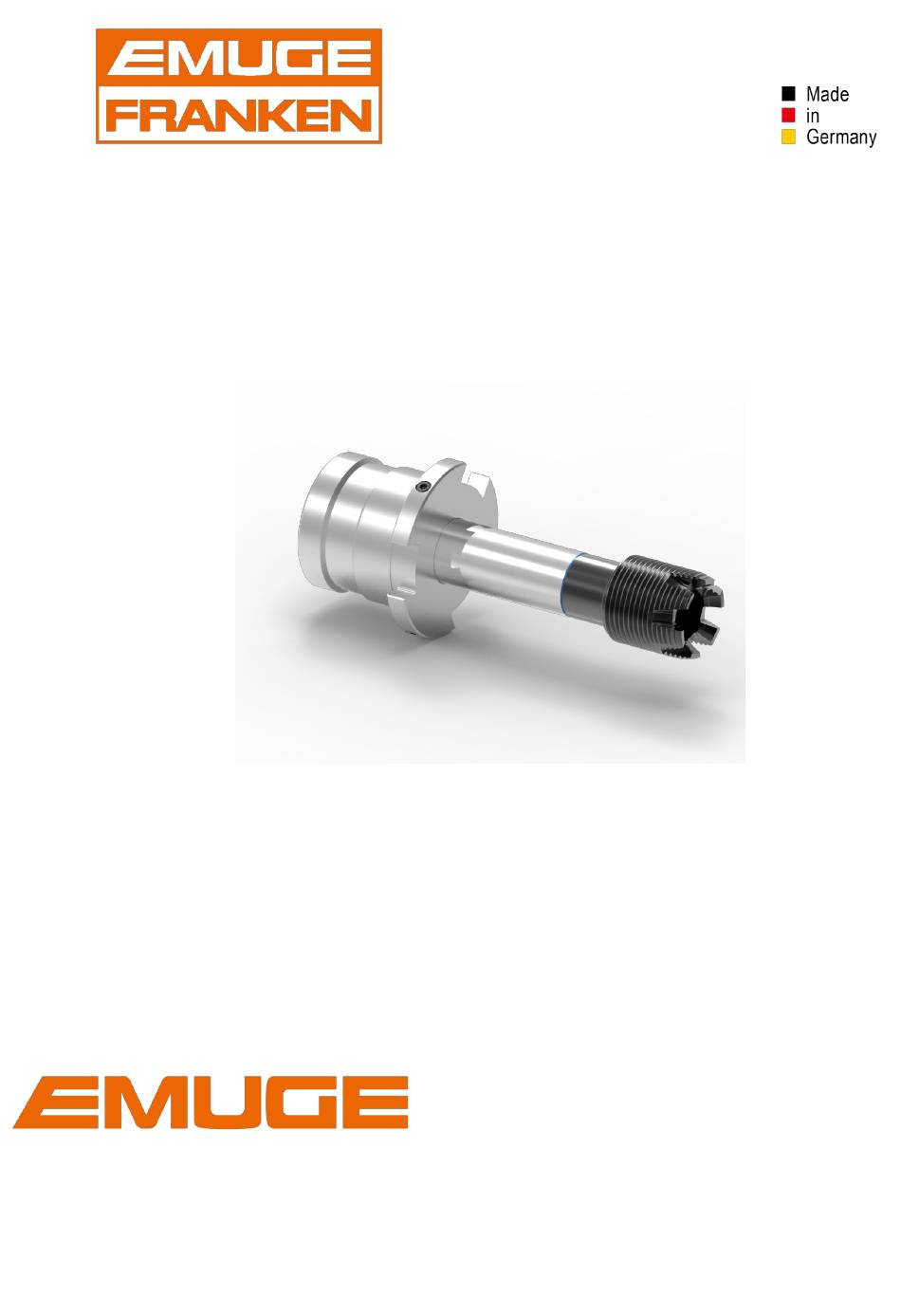

- Page 1 HE 2 - IKZZ HE 2 - IKZ HE 2 - MK HE 3 HE 3 - MK Quick-change adapters HE Operating instruction...
-
Page 2: Table Of Contents
Contents: 1 Application range, safety instructions and technical data ... 4 Application range, determined use ..............4 Safety instructions and hints ................5 Proprietary rights ....................5 Dimensions and technical data ................6 1.4.1 Type HE, HE-IKZZ, HE-IKZ, for taps/cold-forming taps ......6 1.4.2 Type HE-MK, for drill and countersink ............ - Page 3 Warning signs, symbols This operating instruction uses the following symbols: Attention Marks special instructions, rules and prohibitions which are important in order to avoid any damage. Please observe these instructions! Instruction Marks application instructions and other useful information. Sectional view: Quick-change adapter HE Operating instruction edition: 01.02.2017...
-
Page 4: Application Range, Safety Instructions And Technical Data
1.1 Application range, determined use Application of the adapters: Adaptation of taps/cold-forming taps acc. to: DIN or ISO or ASME dimensions These adapters are designed to be used in all quick-change tap holders, EMUGE types: ® HF 20 HF20/HD/Spezial Softsynchro HF 30 ... -
Page 5: Safety Instructions And Hints
Any form of multiplication, processing, broadcasting, passing on to third parties - also in the form of extracts - and any kind of use outside the boundaries of proprietary rights requires the written consent of EMUGE GmbH&Co.KG. Operating instruction edition: 01.02.2017... -
Page 6: Dimensions And Technical Data
1.4 Dimensions and technical data 1.4.1 Type HE, HE-IKZZ, HE-IKZ, for taps/cold-forming taps Type HE: Without internal coolant-lubricant supply Type HE-IKZZ: With internal coolant-lubricant supply through the tap/cold-forming tap axis Type HE-IKZ: With internal coolant-lubricant supply along the tap/cold-forming tap shank Picture 1: Dimensions of the quick-change adapters HE, HE-IKZZ, HE-IKZ Table 1: Technical data of the quick-change adapters HE, HE-IKZZ, HE-IKZ D... -
Page 7: Type He-Mk, For Drill And Countersink
[mm] [mm] [mm] DIN 228 B MK 3 HE 2–MK HF 20 MK 4 MK 5 MK 4 MK 5 HE 3-MK HF 30 MK 6 For further dimensions please refer to the EMUGE main catalogue. Operating instruction edition: 01.02.2017... -
Page 8: Putting The Quick-Change Adapters Into Operation
2 Putting the quick-change adapters into operation 2.1 Unpacking Take the quick-change adapter from the plastic case. Clean the quick-change adapter with a duster to remove any conservation oil. Note Do not use any aggressive solvents. Do not use fibrous materials i.e. steel wool. √... -
Page 9: Insert Drill Or Countersink
2. Tighten all three screws equally. tap/cold-forming tap is locked at the shank Insert the quick-change adapter into the quick-change tap holder as described in the operating instruction of the used quick-change tap holder. 2.2.2 Insert drill or countersink Attention Choose appropriate quick-change adapter for required drill or countersink! Quick-change adapter... -
Page 10: Detach Tool
2.3 Detach tool 2.3.1 Detach tap / cold-forming tap Note Required tool: Type HE 2: Hexagon socket wrench: width across flats 4 Type HE 3: Hexagon socket wrench: width across flats 5 Screws for tightening the tap/cold-forming tap 1. Loosen all three screws Tap/cold-forming tap Quick-change adapter... -
Page 11: Maintenance
3 Maintenance 3.1 Maintenance schedule What? When? Who? External cleaning Periodically, depending on the degree of Operator dirt. 3.2 External cleaning Clean the quick-change adapter at periodic intervals depending on how dirty the adapter is. Note Do not use any aggressive solvents. Do not use fibrous materials i.e. - Page 12 Operating instruction Article number: ZB10011.GB 10575177 Original in German, Edition: 4, last change: 01.02.2017, change stage: 3 Please keep this for future use! EMUGE-Werk Richard Glimpel GmbH & Co. KG Fabrik für Präzisionswerkzeuge Nürnberger Straße 96-100 91207 Lauf GERMANY +49 9123 186-0 +49 9123 186-230 info@emuge-franken.com...
