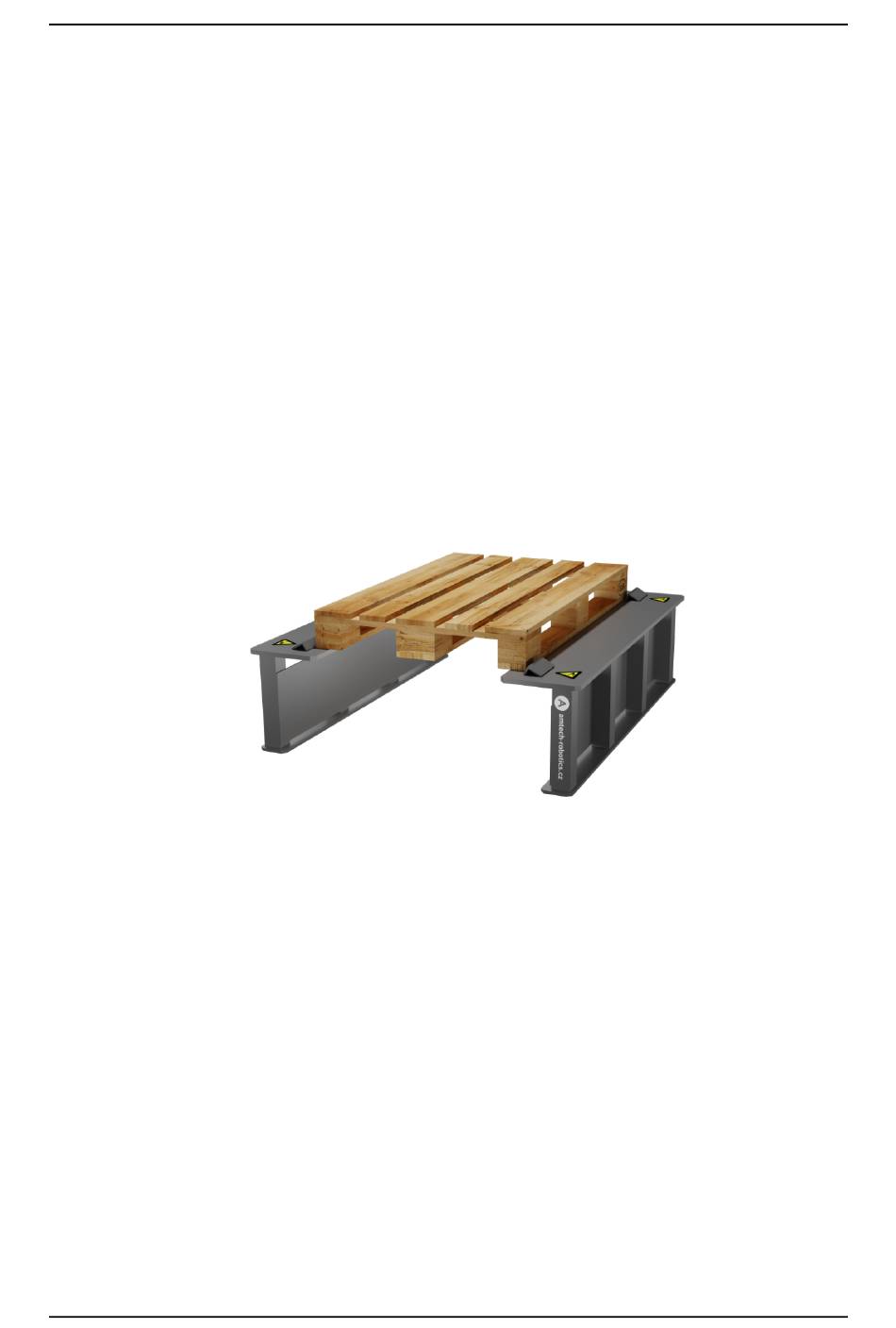

- Page 1 AMTECH Pallet Rack Installation manual Document: AmPallRack_EN_installation guide.docx Creation date: 4 December 2020 Date of update: 19 January 2020 Version: Device: AMTECH Pallet Rack EU AMTECH Pallet Rack US...
- Page 2 AMTECH Pallet Rack EN Installation Guide Content HOW TO INSTALL AMTECH PALLET RACK ..................3 What will you need for the installation? ..................3 Installation ............................. 3 Safety ................................5 Stand location ............................6 Declaration of liability ......................... 6 Accessories for AMTECH Pallet Rack ....................7 Technical specifications .........................
- Page 3 These items are not included in the delivery. Installation AMTECH Pallet Rack is installed on a flat concrete floor of C20 / 25 th. min. 160 mm and is anchored using 12 pieces of expansion anchors HST M 12/20. Location of anchor bolts and visualization of the correct placement of the pallet on the stand Drill 12 holes where you want to install the stand so that the distance between the right and •...
- Page 4 AMTECH Pallet Rack EN Installation Guide Two stand variants • For MiR Pallet Lift, X = 421 mm (± 3 mm). • For MiR EU Pallet Lift, X = 331 mm (± 3 mm). • The distance between the parts from the inside must be 1010 mm (+ 10 mm, - 0 mm).
- Page 5 AMTECH Pallet Rack EN Installation Guide SAFETY WARNING The stand is dimensioned for a maximum pallet weight of 1000 kg • The stand must be anchored to the concrete floor C20 / 25 th. min. 160 mm • The stand is anchored using 12 pcs of expansion anchors HST M 12/20 •...
- Page 6 AMTECH Pallet Rack EN Installation Guide The product has been designed to be used exclusively for the purpose of storing pallets of normal dimensions and weight. The product is not intended for use or handling by children and persons with reduced mental, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.
- Page 7 AMTECH Pallet Rack EN Installation Guide ACCESSORIES FOR AMTECH PALLET RACK AMTECH Pallet Rack can be supplemented with accessories that increase the automation of use. AMTECH Communication Box + sensor Mission launch automation. This extension will allow automatic detection of the pallet in the rack and sending the defined mission to the robot or MiRFleet.
- Page 8 AMTECH Pallet Rack EN Installation Guide TECHNICAL SPECIFICATIONS AMTECH Pallet Rack Pallet size 1200 x 1000 mm 1200 x 800 mm Maximum pallet weight 1000 kg Length 1300 mm Width 1104 mm Height from the floor 436 mm 346 mm...
