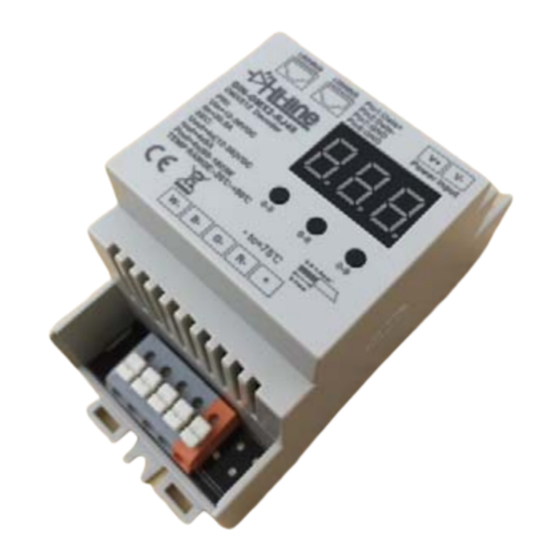

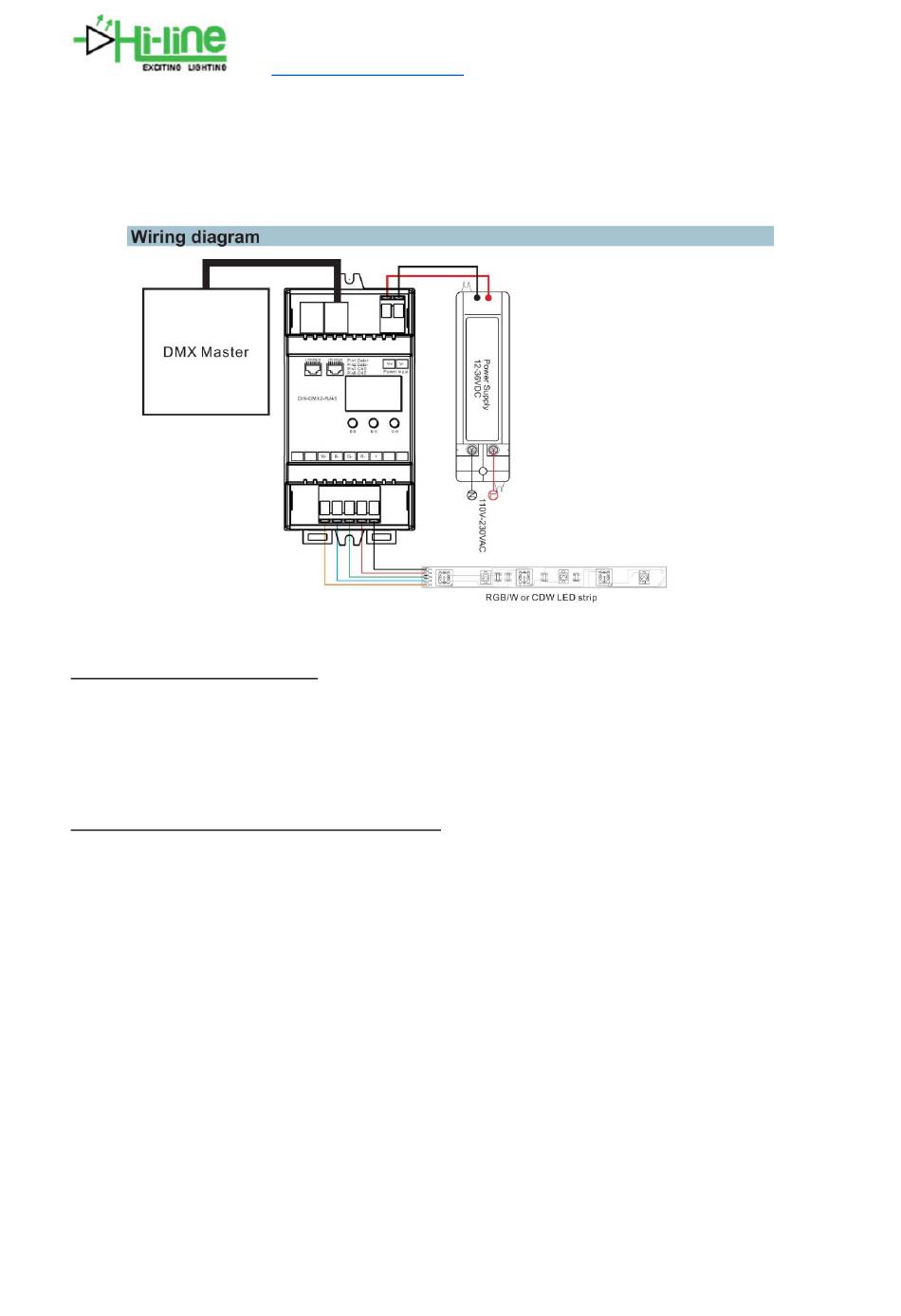

DIN Rail 4Channels DMX512 LED Controller settings (DIN‐DMX2‐RJ45)
Using the digital display and respective buttons you may change "default settings" as shown below
1. Set the DMX512 start address
Pressing 1st & 2nd button for 2 seconds will activate "DMX set" process
Use the respective 3 buttons to set the DMX start address accordingly.
Press any button for 2 seconds to save the settings.
2. Select 3 or 4 channels operation (RGB/RGBW)
Pressing 2nd & and 3rd button for 2 seconds "cH" will appear at the display flashing (cH=channel
selection mode)
Using the 1st button you may choose 1/2/3/4 "cH" which will set the controller active channels.
As an example "3" will set 3 active channels out of 4 available.
Press any button for 2 seconds to save the settings.
(Default setting is "4" channels)
Notes:
Setting active channel to "1": All 4 channels to respond at the DMX address 001
Setting active channel to "2": Channels 1 & 3 will respond at the DMX address 001, Channels 2 & 4
will respond at the DMX address 002
Advertisement
Table of Contents
Summary of Contents for Hi-Line DIN-DMX2-RJ45
- Page 1 www.hiline‐lighting.co.uk T.020 3807 0525 DIN Rail 4Channels DMX512 LED Controller settings (DIN‐DMX2‐RJ45) Using the digital display and respective buttons you may change “default settings” as shown below 1. Set the DMX512 start address Pressing 1st & 2nd button for 2 seconds will activate "DMX set" process Use the respective 3 buttons to set the DMX start address accordingly. Press any button for 2 seconds to save the settings. 2. Select 3 or 4 channels operation (RGB/RGBW) Pressing 2nd & and 3rd button for 2 seconds "cH" will appear at the display flashing (cH=channel selection mode) Using the 1st button you may choose 1/2/3/4 "cH" which will set the controller active channels. As an example "3" will set 3 active channels out of 4 available. Press any button for 2 seconds to save the settings. (Default setting is "4" channels) Notes: Setting active channel to "1": All 4 channels to respond at the DMX address 001 Setting active channel to "2": Channels 1 & 3 will respond at the DMX address 001, Channels 2 & 4 will respond at the DMX address 002 ...
- Page 2 www.hiline‐lighting.co.uk T.020 3807 0525 Setting active channel to "3": Channels 1/2/3 will respond at the DMX address 001/002/003, Channel 4 will respond at the DMX address 001 Setting active channel to "4": Channels 1/2/3/4 will respond at the DMX address 001/002/003/004 3. Change the PWM frequency (200 or 1500Hz) or dimming curve (Default setting is "200Hz", linear dimming) Our LED controller operates on 2 different frequencies, the default is 200Hz and the alternative is 1500Hz Pressing 1st & and 3rd button for 2 seconds "P‐c" will appear on the display (P=PWM frequency, c=dimming mode) P=2 (PWM frequency=200Hz), P=1 (PWM frequency=1500Hz) c=2 (Linear dimming), c=1 (logarithmic dimming) Specification Input Voltage: 12 to 36 Volts DC Output voltage: As per input voltage (12‐36V) Maximum output current: 5 Amps per channel Output Channels: 4 Channels Output power: 4CH x 60‐180W each (12‐36V) Mode: Constant Voltage Signal input: DMX512 DMX Start Address settings: 1 to 512 Mounting: DIN Rail (3 Mod) Number of modules: 3 Warranty: 5 Years ...
