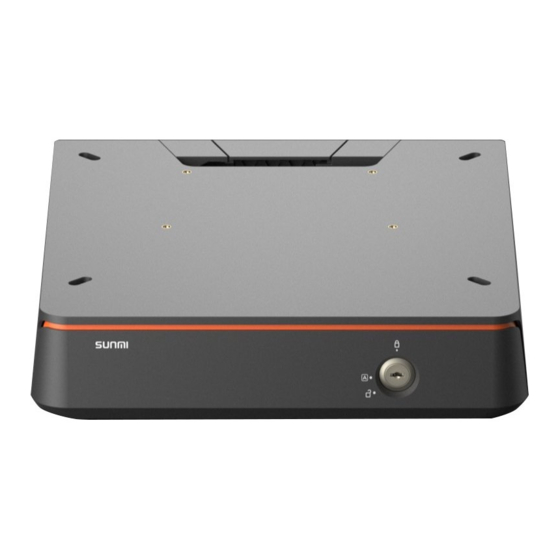

Sunmi NC010 Manual

QUICK START GUIDE
Brief Introduction to Cash Drawer
Line Slot
Run the connecting wires on the box through signal wires in the slot orderly.
Signal Line
Get drive signal from receipt printer or POS machine to open the cash drawer.
Paper Money Clip
It is used to press down paper money to prevent it from warping.
Coin Slot Separation Sheet
A separation sheet used for separating coins, and upon being removed, two
slots will become a large slot for coins.
Paper Money Storage Slot
The place to store paper money.
Coin Storage Slot
The place to store coins. You can adjust the number of coin slots according
to your needs.
Three-Stage Lock Head
It supports manual opening, electric driving opening and locking functions.
Key
The cash drawer can only be opened with key with the same number as that
of the lock head.
Large Bill Storage Slot
The lower part of the coin storage slot is large bill storage slot. After taking
out the coin storage slot, you can see the large bill storage slot.
Instructions on Unlocking the Cash Drawer
Completely Locked
You can insert matching keys into keyhole and rotate to the completely l
ocked position, then the cash drawer will be locked and cannot be opened.
Electric Driving Opening
You can insert the matching key into keyhole and rotate to electric driving
opening position and then install the signal line by opening the back panel
baffle and plug the signal RJ12 connector into the driving device
(e.g. receipt printer and POS machine).
Opening with Key
You can insert the matching key into keyhole and rotate to manual opening
position to open the cash drawer.If you cannot rotate the key to the manual
opening position, please check whether the number on the key is the same
as that on the lock head.
Manufacturer: Shanghai Sunmi Technology Co., Ltd.
Address: Room 605, Building 7, Chuangzhi Tiandi, No. 388, Songhu Road,
Yangpu District, Shanghai
Table for Names and Content Identification of Toxic and Hazardous Substances
in this Product
Toxic or Hazardous Substances and Elements
Part Name
Pb Hg Cd Cr(VII)
Circuit Board Component
Structural Component
Packaging Component
○：indicates that the content of the toxic and hazardous substance in all
homogeneous materials of the component is below the limit specified in
SJ/T 11363-2006.
X：indicates that the content of the toxic and hazardous substance in at least
one homogeneous material of the component exceeds the limit stipulated in
SJ/T 11363-2006. However, as for the reason, because there is no mature
and replaceable technology in the industry at present.
The products that have reached or exceeded environmental protection service
life should be recycled and reused according to the Regulations on Control and
Management of Electronic Information Products, and should not be discarded
randomly.
Basic Parameters
Nos. of Paper Money
4 slots for paper money and 1 slot for large bill
Storage Slots
Nos. of Coin Storage
Max 3 coin storage slots
Slots
Service Life ≥ 1 million times
Equipped with number, three-stage switch
lock supports manual opening, electric driving
Lock Head
opening and locking. cash drawer can only be
opened with key by the same number.
Interface RJ12
Cash Drawer Size 317mmx332mmx72mm
Cash Drawer Weight ～2.8 Kg
Driving Voltage DC 9V~24V
Working
0℃～45℃ / 30%～85%
Temperature/Humidity
Storage
‐20℃～60℃ / 10%～90%
Temperature/Humidity
Disclaimer
Due to product updating, some details of this document may not conform to the
product. Please refer to the real product. The right of interpretation of this
document belongs to our company. We reserve the right to amend this manual
without prior notice.
