DMX Demultiplexer 30/60 Box
MA DEMULTIPLEXER decode USITT DMX 512 (1990) signals.
Two versions with either 30 or 60 analog outputs are available with 230 V or 110 V circuity.

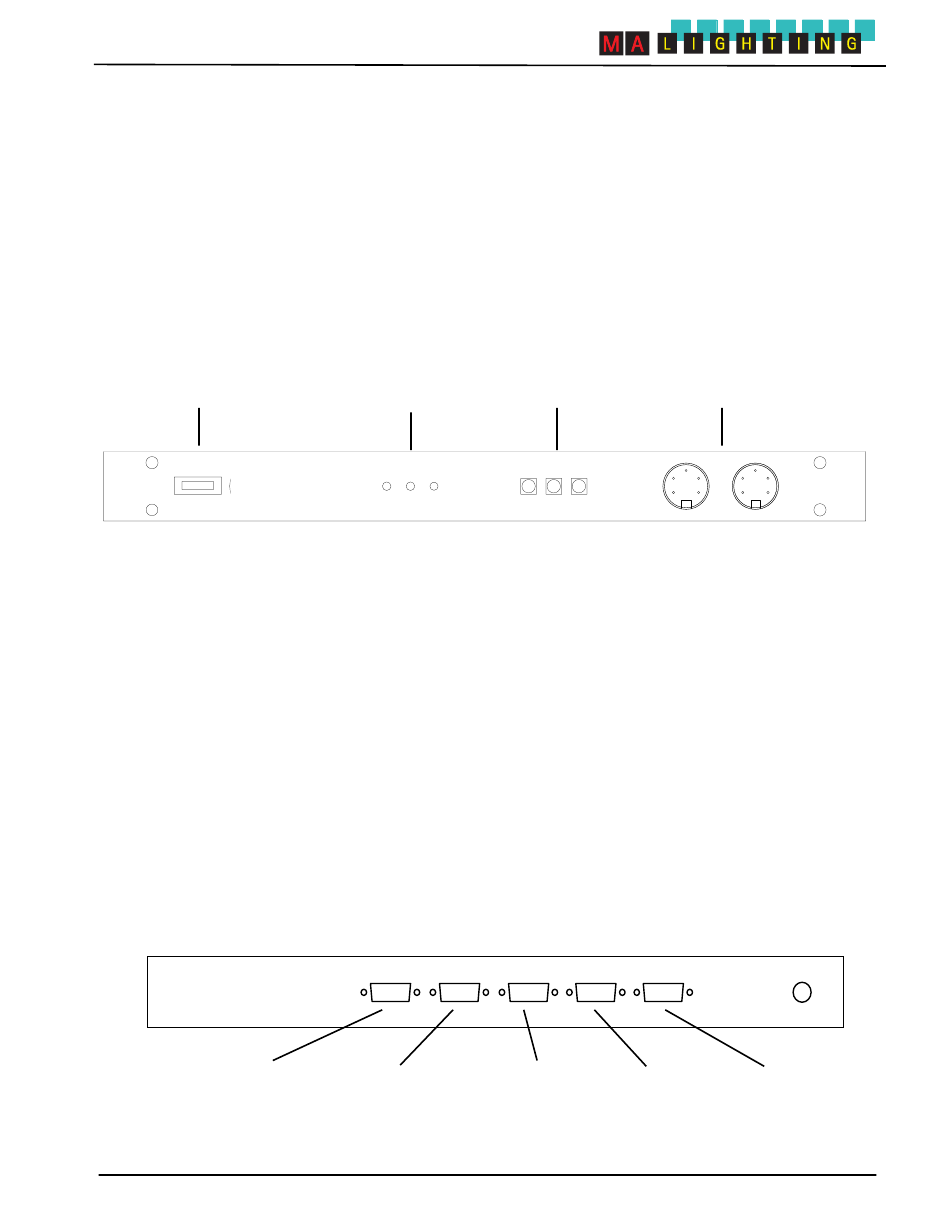

FRONT PANEL
mains switch
POWER
Features:
DMX IN:
DMX OUT:
FIRST CHANNEL:
SIGNAL IN:
SIGNAL OK:
SIGNAL DISABLED:
OUTPUTS:
BACKPANEL:
socket A
channel 1-12
pin
1-12
pin 15 shield
MA Lighting Technology GmbH
MA DMX Demultiplexer 30/60 Box
signal LED
SIGNAL
Optically isolated DMX input; overvoltage protected
Link to other DMX equipment; unit independent, direct through
First channel to be decoded, setting via rotary switches
LED indicates an incoming signal
LED indicates valid data receipt
Rotary switch setting 800-999, LED indicates disabled analog outputs
Analog outputs at 15pol SUB-D sockets
Diode protected outputs enable parallel operation
Short circuit and overload proof
OUTPUT
A
B
socket B
channel 13-24
pin
1-12
pin 15 shield
Höhenweg 6
D-97249 Eisingen
rotary switches
FIRST CHANNEL
DMX IN
pinlayout:
C
D
E
socket C
socket D
channel 25-36
channel 37-48
pin 1-12
pin 1-12
pin 15 shield
pin 15 shield
09306/2459
DMX in/out
DMX OUT
pin 1 = shield
pin 2 = data -
pin 3 = data +
socket E
channel 49-60
pin 1-12
pin 15 shield
1
