Woods EASY UP 076-3242-6 Quick Start Manual

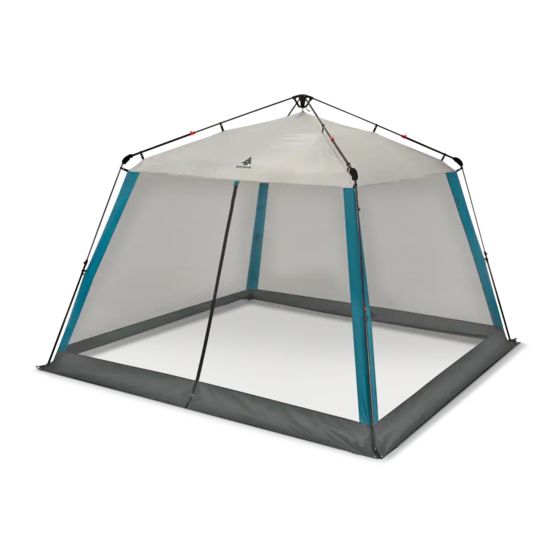

EASY UP SCREEN HOUSE R
Before you begin
Read all instructions thoroughly before beginning set up.
• Select a level site clear of rocks, branches, and other hard or sharp objects, to set up your shelter.
WARNING: Keep clear of overhead power lines.
• Do not set up your shelter under trees because of potential lightning strikes or falling tree limbs
in inclement weather.
• For best results in windy conditions, position narrow end of shelter into the wind.
• Secure with all stakes and guylines provided to prevent property damage or personal injury.
• T wo people can easily set up this shelter in 60 seconds or less.
Parts List:
A (1) Integrated Frame with Shelter Body
Setup Instructions:
1
Extend Screen House Frame
CAUTION: A void pinch points when opening
or closing the shelter frame.
• Unfold and spread out screen house.
2
Lift Steel Roof Poles & Hub Assembly
• Lift up on the STEEL ROOF POLE above the ARM JOINT while pushing downward on the
STEEL LEG POLE. (Detail 1)
NOTE: This will allow the HUB ASSEMBLY and
centre of the screen house to begin to lift properl
• Repeat for remaining 3 STEEL ROOF POLE
locations.
ROOF
ARM
1 POLE
JOINT
LEG
POLE
11 x 11 ' ' ' ( 3.4X X X X X X X X X x 3.4 m)
'
" " ? "
C (18) Stakes
B (1) Stake Bag
D (1) Carry Bag
HUB ASSEMBLY
y.
STITCH LINE
3
Lift and Telescope Steel Leg Poles
• Grasp and extend TELESCOPING STEEL LEG POLE until the
silver LOCKING BUTTON "clicks" into locked position.
• Repeat above steps for remaining LEG POLES.
T o Secure Screen House:
Stake Screen House
• Locate WEBBING LOOPS sewn into the corners at the base of the screen house. (Detail 2)
• Slide STAKE through WEBBING LOOP at each location; then gently extend out before securing. (Detail 2)
NOTE: Shelter should be taut when staked properly.
Secure Guylines
• Locate GUYLINES attached to the
shelter and unroll.
• Slide STAKE through loop at each
location, extend out and drive in
to secure. (Detail 3)
NOTE: Four corner GUYLINES
should extend out at a 45º
angle from shelter.
• Tighten GUYLINES as
needed by adjusting the
SLIDER up the cord.
3
SLIDER
(See other side for proper Take Down Instructions)
076-324 2-6
"Click" "Click"
2
WEB
LOOP
