Summary of Contents for TMB ProPlex IQ Two 1616
- Page 1 ProPlex IQ Two 1616 USER MANUAL TMB 24/7 Technical Support US/Canada: +1 818.794.1286 Toll Free: 1 877.862.3833 (877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 e-mail: techsupport@tmb.com - 1 -...
-

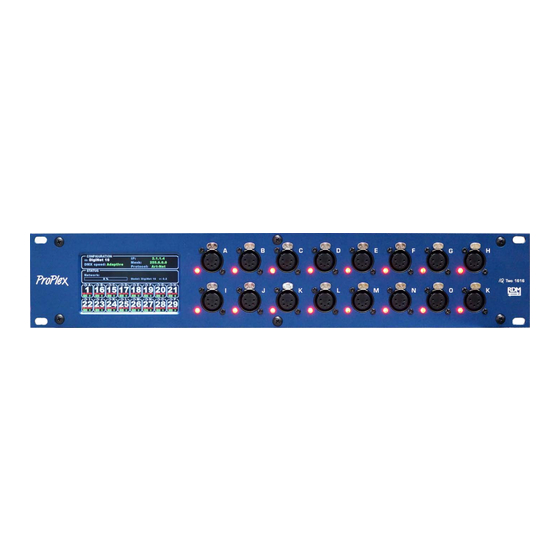

Page 2: Front And Rear Panels
Overview The ProPlex IQ Two 1616 is a bidirectional Ethernet-DMX node with the following features: • Assign 16 DMX Connectors to up to 16 Art-Net/sACN universes • Input or output on any connector • Full RDM functionality • Merge Art-Net or Streaming ACN from multiple sources •... - Page 3 Menu Map Level 2 Level 3 Level 1 Level 4 Notes Node setup Node name Node name Label Enter node name label. Universe In this menu you can set the universe format format for your needs. Base 16 (0-15) Hex (0-F) Decimal (0-32767) Screen lock Time after which the screen will...
- Page 4 40Hz Fixed 40Hz refresh rate IP address IP setup Set the IP address of IQ VALUE Subnet mask Set the subnet mask of IQ VALUE This setting will ensure that software will Easy IP search for all masks, not only for a specified subnet mask Configuration User cfg.
- Page 5 -Current software version Top of Touchscreen Configuration Device ID: (ProPlex IQ Two 1616); DMX refresh: (40Hz) – see DMX OUT REFRESH RATE for further information and options IP: (2.145.232.108. in this case); Mask: (255.0.0.0 in this case); Protocol: (Art-Net in this case).
-
Page 6: Led Indicators
1G FD (1 gigabit, full duplex) for example and it shows the network usage in percent); Device and version description: (ProPlex IQ Two 1616 v:0.28 in this case) Bottom of Touchscreen Port information: Information of all 16 DMX ports, labeled as A; B; C... -
Page 7: Configuration Menu
Configuration Menu By pressing the "Configuration" button, a new configuration sub menu will pop up. There are six pages: 1) Node setup 2) Protocol setup 3) Protocol setup 4) IP setup 5) Configuration profiles 6) Defaults - 7 -... -
Page 8: Node Setup
Node Setup Node name Here you can exchange the node name, replace the default name (ProPlex IQ Two 1616 is the default) with your desired name. By pressing this button, a new window will pop up: Using this keyboard you can exchange the name to your desired name. - Page 9 Universe format By pressing the "Universe format" section, a new window will pop up. In this window you can choose the universe format. By default, the universe format is set at Hex (hexadecimal) but you can change it to Base 16 or decimal counting system. Screen lock time By pressing the "Screen lock time"...
-
Page 10: Protocol Setup
Protocol Setup Protocol By pressing the "Protocol" button, a new window will pop up. You can select Art-Net or sACN (e1.31). What are Art-Net and sACN? Art-Net: An Ethernet protocol based on the TCP/IP protocol suite. Its purpose is to allow transfer of large amounts of DMX512 data over a wide area using standard networking technology Streaming ACN (sACN): A protocol to efficiently transport DMX universes over the network, it is comparable to Art-Net in many aspects. - Page 11 Easy Priority By pressing the "Easy priority" section, a new window will pop up. You can turn the Easy Priority ON or OFF. What is Easy Priority? When easy priority is ON, when two or more of the same Art-Net/ sACN universes are coming into the ProPlex IQ node, the console with the higher channel 512 on a universe value will have control over that universe.
- Page 12 Source loss timeout By pressing the "Source loss timeout" button section, a new window will pop up. This setting determines how long the IQ Two will wait before using the Source Loss setting. This time is set in seconds. (5-120). Once the source loss timeout time has been reached, the IQ Two will revert to the Source Loss timeout setting.
- Page 13 DMX coming from the source. IP Setup IP address: By pressing the "IP setup" button, a new window will pop up. Here the user can set the IP address for the ProPlex IQ Two 1616 - 13 -...
- Page 14 By pressing the "Subnet mask" button, a new window will pop up. Here you can set the Subnet mask of the ProPlex IQ Two 1616. To change the assigned subnet mask, replace the current network subnet mask with the desired network subnet mask.
-
Page 15: Configuration Profiles
Configuration Profiles The current configuration can be saved in a User Config slot in the IQ Node. Two save slots are available. Choose which configuration you want to save (User cfg. 1 or User cfg. 2). For example, name the User config. 1 as "Show 1": And User config 2 as "Amazing show": Now press "Record"... - Page 16 In the main Configuration Profiles screen, you can either load or delete the configuration you saved. If you will press the "Load", "Record" or "Delete" button, a confirmation window will appear where you will need to press "OK" to confirm your choice or "X" to return to the menu. - 16 -...
- Page 17 Defaults In this menu you can load the system defaults and calibrate the touchscreen: Port defaults will reset all DMX port related settings. Protocol defaults will reset all protocol related settings (sACN/ Art-Net settings). Touch screen calibration will open touch screen calibration menu. Factory defaults will reset all settings and restart the system.
-
Page 18: Status Menu
Status Menu You can see the DMX status for all 16 DMX ports. By pressing arrow up, you will switch to the next port settings (for example, if currently you are editing port "1" settings, by pressing this button you will be switched to port "2"). By pressing arrow down, you will switch to the previous port settings (for example, if currently you are editing port "2"... -
Page 19: Output Configuration Menu
Output Configuration Menu Here you can change settings for each port. For each port you can assign: Universe; Port direction; RDM (ON or OFF); Port priority You can change the setting for all 16 DMX ports (change the universe, port direction, RDM status and port priority setting). By pressing the up arrow, you will switch to the next port setting screen (for example, if currently you are editing port "1", by pressing the up button you will be switched to port "2"). - Page 20 Port direction Here you can assign the port direction for each DMX port. RDM OFF/ON Here you can turn on/off RDM for the selected DMX port. What is RDM? Remote Device Management or RDM is a protocol enhancement to DMX512 that allows bi- directional communication between a lighting or system controller and attached RDM compliant devices over a standard DMX line.
- Page 21 In cases where you wish to have multiple DMX sources talking to the same Art-Net or sACN universe, port priority allows for prioritization of input ports. If two or more ports have the same priority, they will be merged when their priority is currently highest. Touchscreen calibration There are two ways to open the touch screen calibration menu: 1) When the node is turning on, press anywhere on the "ProPlex 1616"...
- Page 22 ProPlex IQ Ethernet to DMX nodes can be configured and monitored via two methods: ProPlex Software and via a web browser. The ProPlex Software is available as a free PC download from www.tmb.com This software includes a full suite of configuration and monitoring features, and makes managing multiple nodes on a network extremely easy.
- Page 23 (2) years from the date of original sale by TMB. TMB’s warranty shall be restricted to the repair or replacement of any part that proves to be defective and for which a claim is submitted to TMB before the expiration of the applicable warranty periods.
- Page 24 EUTRIK THER ..............A ACN (E1.31) ETWORK ROTOCOLS WARRANTY INFORMATION ................... 2- ARRANTY YEAR LIMITED WARRANTY TMB 24/7 Technical Support US/Canada: +1 818.794.1286 Toll Free: 1 877.862.3833 (877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 e-mail: techsupport@tmb.com - 24 -...
