Summary of Contents for MasterPower Data Logger WiFi Stick

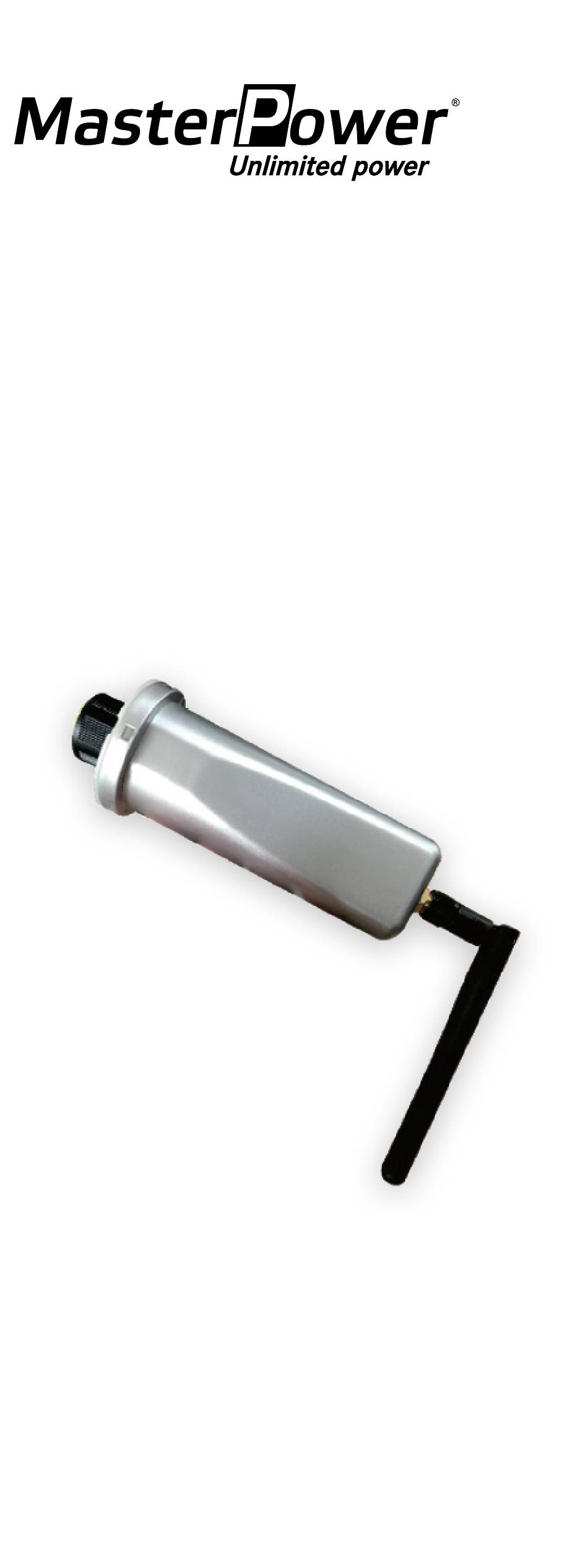

- Page 1 Data Logger WiFi Stick Quick User Guide DLS Version: 2.0 Delivery Content • 1 pc WiFi • 1 pc WiFi external antenna • 1 pc Data Logger Wifi Stick Quick User Guide...
- Page 2 Data Logger WiFi Stick Introduction Data Logger WiFi Stick is mainly used in inverters to realize simple and quick access to Internet. Users can easily check device information by logging in the monitoring center. The communication topology is as shown below:...
-
Page 3: Electrical Connection
Please perform relevant operations as indicated below: Corresponding groove Data Logger WiFi Stick Interface Data Logger WiFi Stick Installation 1. Insert WiFi Stick to COM port. 2. Fasten the WiFi Stick. NOTES The datalogger must be kept away from large metal objects and electrical devices with strong magnetic fields, such as microwave oven, refrigerator, cordless... - Page 4 Data Logger WiFi Stick Create Beta monitoring account Step 1: Mobile phone scan the QR code to download the APP, or in the APP Store or Google Play search Ginlong Home or Ginlong Pro. Step 2: Click on the “Register”.
- Page 5 Data Logger WiFi Stick Create plant Step 1: In the APP homepage and click “Build Your Plant Within 1 Minute!” in the middle of the screen. Or click the “+” in the upper right corner. Step 2: Enter the SN of the datalogger.
- Page 6 Data Logger WiFi Stick Note: Please scan the SN number on the datalogger, not the SN number on the inverter. www.masterbattery.es...
- Page 7 Data Logger WiFi Stick Step 3: Enter the plant information. Then click the “Next”. Step 4: Enter the plant name and contact information of the plant owner. Then click the “Done”. www.masterbattery.es...
-
Page 8: Configure Wifi
Data Logger WiFi Stick Configure WiFi Step 1: Click the “Connect” on the Device interface. Step 2: Make sure phone connected to yourself router WiFi network. Then click the “Next”. www.masterbattery.es... - Page 9 Data Logger WiFi Stick Step 3: Enter WiFi Password and click the “Ensure”. Tip: if you cannot connect to WiFi, try the following. • If the signal strength of the selected network is <15%, the connection is unstable, please adjust the router’s antenna position or increase the...
- Page 10 Data Logger WiFi Stick Step 4: Switch to the WLAN interface,connect your phone “AP_ XXXXXXXXX”, and switch to the APP interface. Step 5: Wait 1-3 minutes, until the configuration is successful. www.masterbattery.es...
- Page 11 Data Logger WiFi Stick Step 6: Plant registration finished. Tip: if configuration failure, there may be the following reasons: • If the signal strength of the selected network is less than 15%, the connection is unstable. Please adjust the position of the router’s antenna or increase the relay.
- Page 12 Data Logger WiFi Stick Link distributor/installer Step 1: In order to easy manage to your plant. Select the plant and enter Intro. Click the “installer” or “distributor”. www.masterbattery.es...
- Page 13 Data Logger WiFi Stick Step 2: Enter the company name of the installer or distributor. Then click the “Search”. Step 3: Click the [Bind Distributor/Installer] and the plant will appear in your installer/distributor monitoring interface. (Note: your installer/distributor must have a Ginlong Pro account to appear in the search list) www.masterbattery.es...
- Page 14 Contact If you have any technical questions about our products, please contact us. Before contacting us, please confirm the following items: • Equipment model • Serial number of the datalogger • Problem description • Screenshot of the Status page in the configuration interface Master Battery, S.L.
