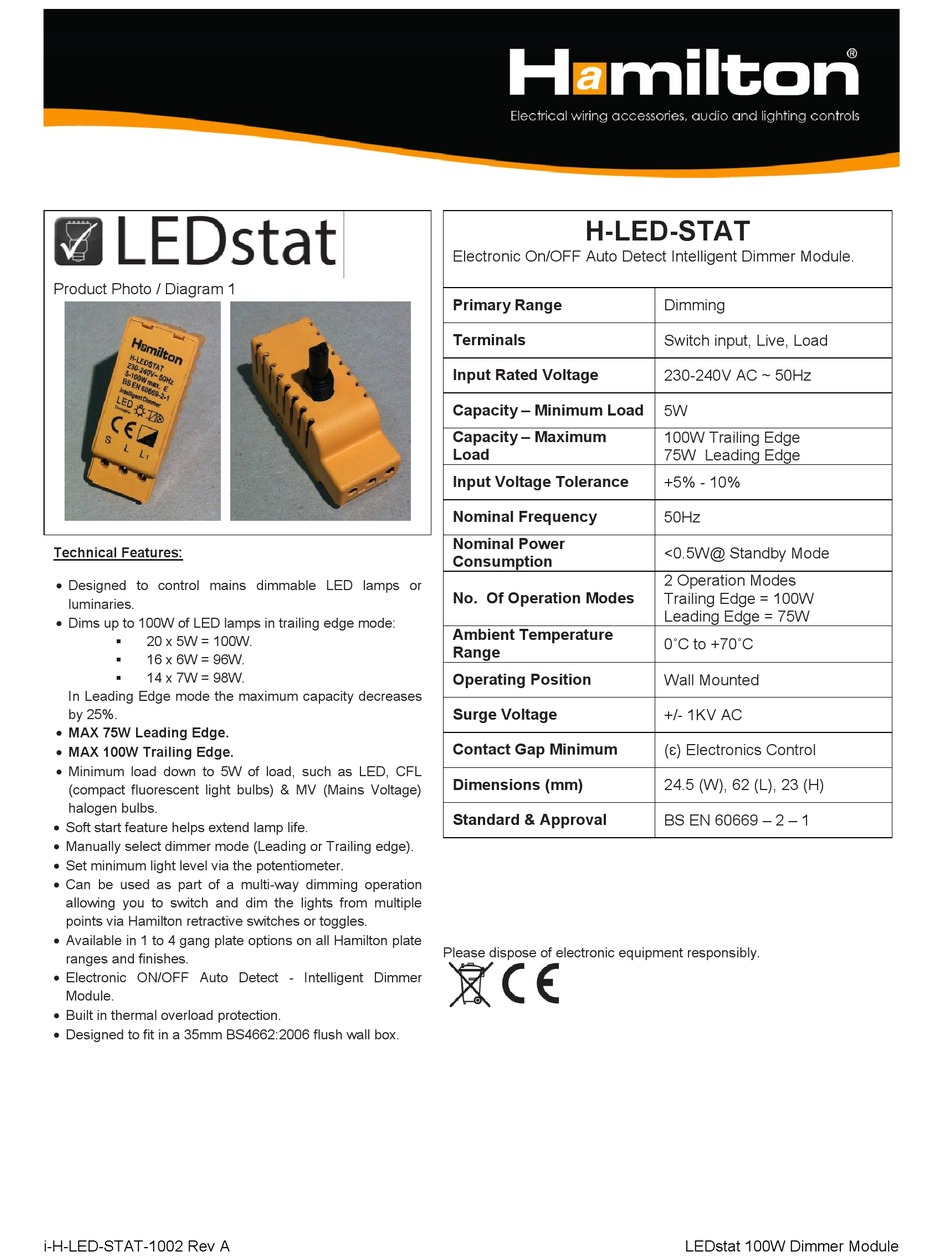

Product Photo / Diagram 1

Technical Features:

 Designed to control mains dimmable LED lamps or
luminaries.
 Dims up to 100W of LED lamps in trailing edge mode:
20 x 5W = 100W.
16 x 6W = 96W.
14 x 7W = 98W.
In Leading Edge mode the maximum capacity decreases
by 25%.
 MAX 75W Leading Edge.
 MAX 100W Trailing Edge.
 Minimum load down to 5W of load, such as LED, CFL
(compact fluorescent light bulbs) & MV (Mains Voltage)
halogen bulbs.
 Soft start feature helps extend lamp life.
 Manually select dimmer mode (Leading or Trailing edge).
 Set minimum light level via the potentiometer.
 Can be used as part of a multi-way dimming operation
allowing you to switch and dim the lights from multiple
points via Hamilton retractive switches or toggles.
 Available in 1 to 4 gang plate options on all Hamilton plate
ranges and finishes.
 Electronic ON/OFF Auto Detect - Intelligent Dimmer
Module.
 Built in thermal overload protection.
 Designed to fit in a 35mm BS4662:2006 flush wall box.
i-H-LED-STAT-1002 Rev A
H-LED-STAT
Electronic On/OFF Auto Detect Intelligent Dimmer Module.
Primary Range
Terminals
Input Rated Voltage
Capacity – Minimum Load
Capacity – Maximum
Load
Input Voltage Tolerance
Nominal Frequency
Nominal Power
Consumption
No. Of Operation Modes
Ambient Temperature
Range
Operating Position
Surge Voltage
Contact Gap Minimum
Dimensions (mm)
Standard & Approval
Please dispose of electronic equipment responsibly.
Dimming
Switch input, Live, Load
230-240V AC ~ 50Hz
5W
100W Trailing Edge
75W Leading Edge
+5% - 10%
50Hz
<0.5W@ Standby Mode
2 Operation Modes
Trailing Edge = 100W
Leading Edge = 75W
0˚C to +70˚C
Wall Mounted
+/- 1KV AC
(ɛ) Electronics Control
24.5 (W), 62 (L), 23 (H)
BS EN 60669 – 2 – 1

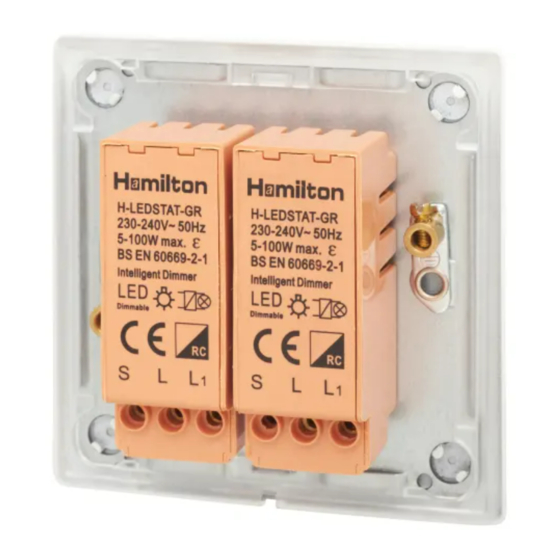

LEDstat 100W Dimmer Module

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-LED-STAT and is the answer not in the manual?

Questions and answers

Summary of Contents for Hamilton H-LED-STAT

  • Page 1  Can be used as part of a multi-way dimming operation allowing you to switch and dim the lights from multiple points via Hamilton retractive switches or toggles.  Available in 1 to 4 gang plate options on all Hamilton plate Please dispose of electronic equipment responsibly. ranges and finishes.
  • Page 3 DO NOT disassemble device as it may cause an electric shock and will invalidate the guarantee. Before installation, ensure the mains power is isolated and connection cables are not live. For technical support contact us via: Post: Hamilton Litestat Customer Services, Quarry Industrial Estate Mere, Wiltshire, BA12 6LA. Web: www.hamilton-litestat.com, Email: technical@hamilton-litestat.com IMPORTANT –...
  • Page 4 Once your desired minimum brightness level is achieved. Push the dimmer knob once to store the setting. Lamps will turn off: This action EXITS the manual programming mode. See an installation video on YouTube Video by searching for Hamilton LEDSTAT. i-H-LED-STAT-1002 Rev A LEDstat 100W Dimmer Module...
  • Page 5 If this is not successful the dimming mode may need to be set manually. Please refer to “Manually setting minimum light level” on page 3 in the user guide. The lamps may not be fully compatible with the dimmer module. Please consult your Hamilton supplier or contractor.
  • Page 6 File Reference: HLEDSTAT2014 Rev A Please note removal of LEDstat module from supplied plate will void warranty. i-H-LED-STAT-1002 Rev A LEDstat 100W Dimmer Module...
