Summary of Contents for Proteco PTP45

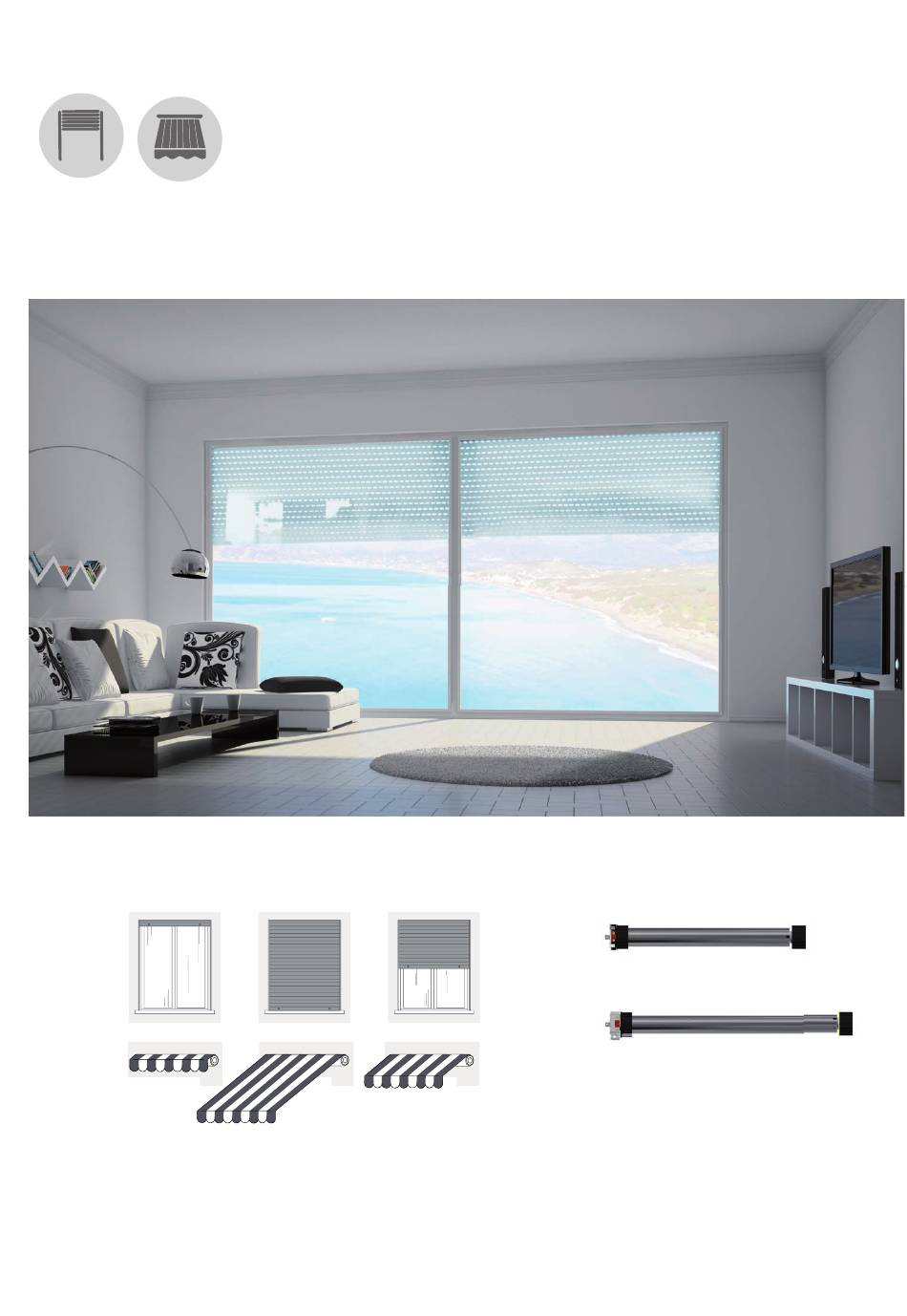

- Page 1 PTP45 Automation for blinds and awnings Instructions PTP45 20 - PTP45 30 - PTP45 50 PTP45 50M...
- Page 2 Index SAFETY INSTRUCTIONS ............................pag COMPLIANCE DECLARATION ........................pag DESCRIPTION AND INTENDED USE ................... pag Technical data ........................pag Selection guide ......................pag Kit content ......................pag Dimensions .............................. pag INSTALLATION ............................Preliminary checks ..........................Motor/Tubular assembly ................Wiring ..........................pag Limit switch setting ........................
-
Page 3: Safety Instructions
Keep the gate and the gate opener regularly maintained. Use only Proteco’s original spares. Users are strictly forbidden to carry out any changes on the gate operator. Proteco Cancelli Automa�ci Srl is not liable for any damage resul�ng from improper, wrongful or unreasonable use. -
Page 4: Description And Intended Use
2. DESCRIPTION AND INTENDED USE The PTP45 range is designed to automate blinds and awnings. 2.1 TECHNICAL FEATURES PTP4520 PTP4530 PTP4550 PTP4550M Thrust Motor Speed Motor Power Current 0,68 0,95 1,06 1,06 Weight 2,30 2,35 2,40 3,30 Length 2.2 SELECTION GUIDE MAX m²... - Page 5 Wall fixing support PTP 45 M (with emergency release) n°1 Tubular motor n°1 Limit switch adjuster wrench n°1 Wall fixing support n°1 Split pin n°1 Release key 2.4 DIMENSIONS PTP45 20 – PTP45 30 – PTP45 50 PTP45 50M...
-
Page 6: Installation
3. INSTALLATION Before installing make sure the power supply is OFF. If you need to replace an exis�ng system, remove all devices for manual opera�on. Make sure the command keys are posi�oned where the system can be visible during opera�on and at least at an height of 1,5 m from ground. - Page 7 3.2 MOTOR/TUBULAR ASSEMBLY Measure the distance between the two supports. Fit the 60 mm adapter in for the whole length �ll covering the locking ring of the limit switch. The length of the adapter must be such to get the total length (L) as shown in the below picture, keeping a clearance of 2-3 mm.
- Page 8 A�en�on! During manual opera�on we recommend to keep the limit switch screws in downward posi�on. 3.3 WIRING Wire the system according to the below diagram: To be up to safety standards we recommend to fit a power cut device, keeping a minimum distance of 3 mm between the contacts.
-
Page 9: Warranty
PROTECO Srl is liable for any manufacture fault on tubular motors, electrical components and accessories during 3 years from manufacture date. PROTECO Srl responds for repairing within the warranty terms, a�er inspec�on by its technical staff. The returned faulty system will remain a Proteco’s property. -
Page 10: Maintenance
5. MAINTENANCE Func�onal checks must be performed once every 6 months, including: checking the state of lubrica�on and �ghtness of the anchoring screws on the operator as well as the good opera�on of all safety devices. 6. DISPOSAL DO NOT DISPOSE OF IN NATURE! Some components may contain hazardous waste.
