Operating instructions
No.: ES2-Bediener (Volvo)
Page 20, Issue: 04.2016
Pos: 66 /Aufbau und Beschreibung/ES 2 - Steuerung/Überschrift Fehlermeldungen @ 1\mod98_2.docx @ 1808 @ 2 @ 1

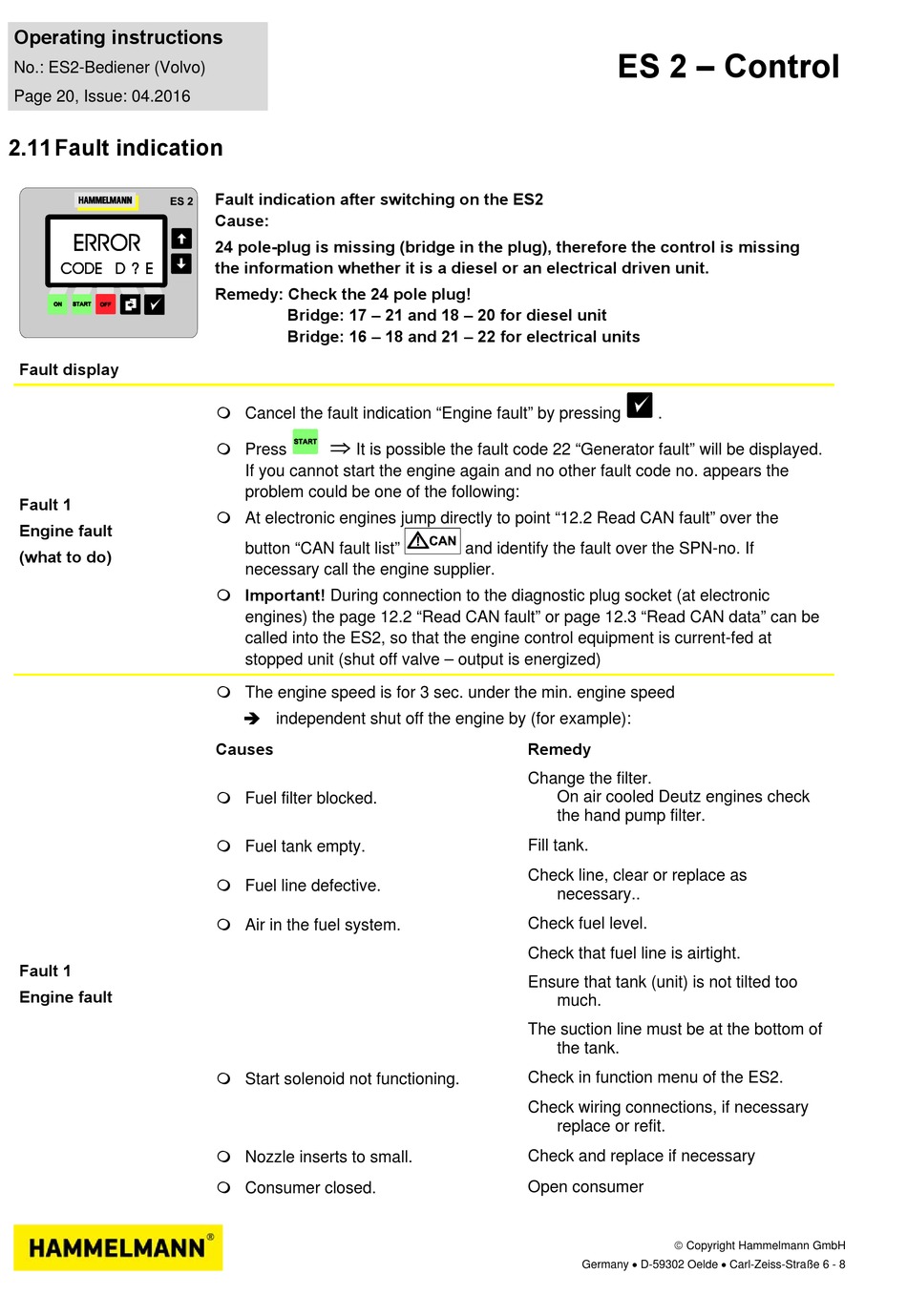

2.11 Fault indication

Pos: 67 /Aufbau und Beschreibung/ES 2 - Steuerung/Fehlermeldungen/Fehler 1 Motorstörung @ 1\mod99_2.docx @ 4044 @ @ 1
Fault display
Fault 1
Engine fault
(what to do)
Fault 1
Engine fault
Fault indication after switching on the ES2
Cause:
24 pole-plug is missing (bridge in the plug), therefore the control is missing
the information whether it is a diesel or an electrical driven unit.
Remedy: Check the 24 pole plug!
Bridge: 17 – 21 and 18 – 20 for diesel unit
Bridge: 16 – 18 and 21 – 22 for electrical units
 Cancel the fault indication "Engine fault" by pressing
 Press
It is possible the fault code 22 "Generator fault" will be displayed.
If you cannot start the engine again and no other fault code no. appears the
problem could be one of the following:
 At electronic engines jump directly to point "12.2 Read CAN fault" over the
button "CAN fault list"
necessary call the engine supplier.
 Important! During connection to the diagnostic plug socket (at electronic
engines) the page 12.2 "Read CAN fault" or page 12.3 "Read CAN data" can be
called into the ES2, so that the engine control equipment is current-fed at
stopped unit (shut off valve – output is energized)
 The engine speed is for 3 sec. under the min. engine speed
 independent shut off the engine by (for example):
Causes
 Fuel filter blocked.
 Fuel tank empty.
 Fuel line defective.
 Air in the fuel system.
 Start solenoid not functioning.
 Nozzle inserts to small.
 Consumer closed.
ES 2 – Control
and identify the fault over the SPN-no. If
Remedy
Change the filter.
On air cooled Deutz engines check
the hand pump filter.
Fill tank.
Check line, clear or replace as
necessary..
Check fuel level.
Check that fuel line is airtight.
Ensure that tank (unit) is not tilted too
much.
The suction line must be at the bottom of
the tank.
Check in function menu of the ES2.
Check wiring connections, if necessary
replace or refit.
Check and replace if necessary
Open consumer
