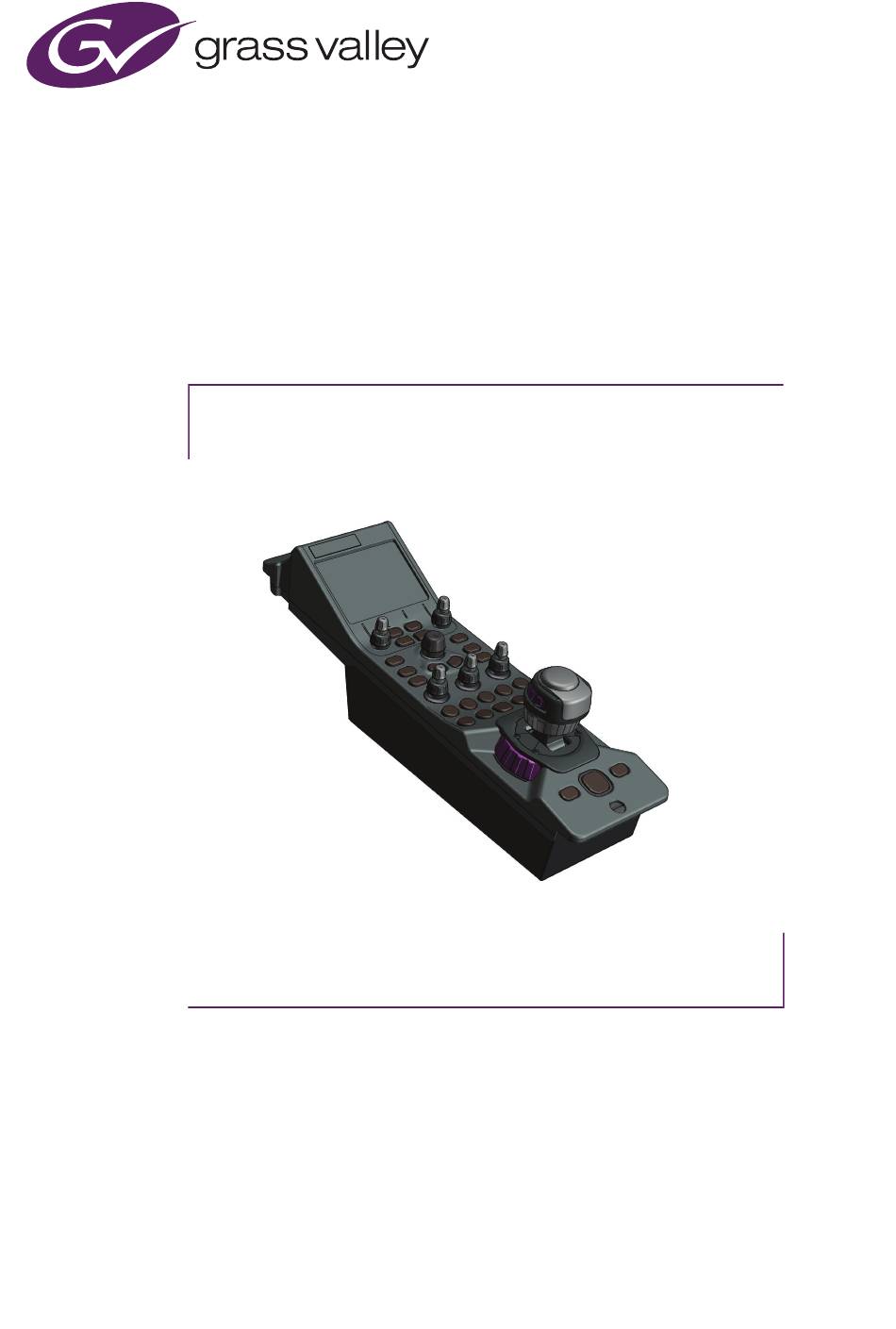

User's Guide
13-00088-000 August 2020 v1.4
Creative Grading
Camera Control System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Creative Grading and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GRASS VALLEY Creative Grading

  • Page 1 User’s Guide 13-00088-000 August 2020 v1.4 Creative Grading Camera Control System...
  • Page 2 Copyright and Trademark Notice Grass Valley®, GV® and the Grass Valley logo and/or any of the Grass Valley products listed in this document are trademarks or registered trademarks of GVBB Holdings SARL, Grass Valley USA, LLC, or one of its affiliates or subsidiaries. All other intellectual property rights are owned by GVBB Holdings SARL, Grass Valley USA, LLC, or one of its affiliates or subsidiaries.
  • Page 3: Table Of Contents

    CGA - Creative Grading Application ........10...
  • Page 4 Connectors........... . . 56 Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 5 CGP 500 Creative Grading Panel ........
  • Page 6 REACH, etc.), please contact us at environment@grassvalley.com Packing for return If a unit is being returned to Grass Valley for servicing, try to use the containers and materials of the original packaging. Attach a tag indicating the type of service required, return address, model number, full serial number and the return number which will be supplied by your Grass Valley service centre.
  • Page 7 • Do not subject the unit to severe shocks or vibration; • Do not expose the unit to extremes of temperature; • To prevent risk of overheating, ventilate the product correctly. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 8 Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 9: Welcome

    Comprised of a control panel (CGP 500) and a companion touchscreen application (CGA), Grass Valley’s Creative Grading bundles multiple camera operations into an intuitive and versatile user interface. Camera shaders can now easily and quickly manage adjustments, such as transitions from indoor to outdoor lighting.
  • Page 10: Overview

    An MCP 450 PC Box cannot run the Creative Grading Engine (CGE). 1.2.3 CGA - Creative Grading Application The Creative Grading Application is the rich user interface of the Creative Grading system. The app is available free of charge from the respective app stores. The CGA runs on a standard, commercially available tablet computer (not sold by Grass Valley).
  • Page 11: Overview

    2.1.1 Control network configuration The following diagram shows a basic configuration with 8 camera systems, 8 CGP 500 Creative Grading Panels, 1 CCS-ONE Cameras Control Server and 1 CGA Creative Grading Application running on a tablet computer for a single shader position:...
  • Page 12: Installing The Ccs-One Cameras Control Server

    As external storage space, a USB Flash Drive can be inserted into a free USB port. The USB Flash Drive can be used in the CGA to store camera files and/or CGP configurations. Refer to the chapter “CGA Operation” on page 21 for more information about using external storage. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 13: Installing The Cga Creative Grading Application

    Creative Grading app Tap this icon to start the app. If it is the first time you open the Creative Grading App, you need to connect to a CCS-ONE server. The following message appears: Crea veGrading Please first enter the IP address of a...
  • Page 14: Installing The Cgp Creative Grading Panel

    Grading logo is shown on the display during the start-up procedure. • The CGP’s IP configuration mode is set to AutoIP mode by default and it automatically connects to the CCS-ONE server. • Check if the panel is connected to the network. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 15: Managing User Profiles

    Setup 3.1 Managing user profiles Tap the Creative Grading App on your tablet computer. The User Profile window is shown. This profile contains assigned cameras and CGPs under the shader’s control. If this is the first time you use the CGA you need to create a new user profile: tap Create new and enter your name in the text box.
  • Page 16: Assigning Cameras And Cgps

    To assign a camera system to a tile on the camera selection bar, tap the button right above the tile. The Select camera windows shows all available camera systems. Tap a camera number to select it. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 17 The camera system is now assigned to the camera tile. Continue assigning a CGP to this camera system (refer to the next section) or assign more camera systems to your workspace. It is always possible to change, delete or add more cameras or panels later on. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 18: Assigning Cgps

    It is not required to assign a CGP to a camera system. You can control and operate a camera system without a CGP, using only the CGA. However, for live camera operation it is strongly recommended to assign a CGP. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 19: Managing Your Assignments

    The cameras switch places, including their assigned CGPs (if any). • To delete an assigned camera system tap the button above the camera tile. • To delete an assigned CGP tap the button below the camera tile. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 20 Chapter 3 - Setup Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 21: Cga Screen Layout

    Chapter 4 - CGA Operation Chapter 4 CGA Operation 4.1 CGA screen layout The default screen layout of the Creative Grading Application (CGA) contains many buttons, menus and other areas that have special functions. Functions area  Shows functions and values of...
  • Page 22: Single Camera View

    The functions area is shown for the selected camera and the selected (group of) functions. 4.2.1 Selecting a camera To operate a camera, tap its tile on the camera selection bar at the bottom of the screen: Tile 1 Tile 8 Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 23: Navigating Functions

    A value range, for example 1 to 100 or 0.0 to 12.0 dB • A value list, for example {Clear, ND1/4, ND1/16, ND1/64} • A toggle value: two settings or values, for example On > Off Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 24 • In multi camera modem when cameras are grouped, the CGP rotaries the grouped camera become active (the rings light green) while each rotary controls the function of all grouped cameras simultaneously. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 25: Multi Camera View

    (in the camera selection area) are selected. 4.3.1 Grouping cameras To operate one or more cameras simultaneously, tap the camera number(s) on the vertical camera selection bar at the left side of the function area. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 26: Operational Video Functions

    Automatics) and 2 menus for Setup and Diagnostics. 4.4.1 Home menu This menu contains a summary of important functions in a compact overview. Tap a function tile to change a function’s value. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 27: Light Menu

    4.4.3 Contrast menu Contrast is the difference in brightness between light and dark areas of an image. There are several functions in the menu to change the contrast of the camera’s video signal: Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 28: Color Menu

    4.4.5 Enhance menu This menu contains camera functions that enhance the video signal such as Detail, Detail Equalizer, Texture, Skin detail, FX filter, LedWall filter, AnyLight, Freeze, Reverse Scan, CLASS and Lens shading. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 29: Automatics Menu

    This menu contains automated video controls or adjustments such as Auto Iris, Auto White, Auto White Continuous and FullBlack. 4.4.7 Setup menu The setup menu contains items to set up the entire camera system including advanced controls, audio routing, signal tweaking and special functions: Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 30 Accessing the XCU/base station menu The CGA can be used to remotely access the XCU/base station menu. In the Setup menu, scroll down to navigate to the BaseStation submenu and tap the BS Menu Control item. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 31: Diagnostics Menu

    Tap an icon on the bar at the right to slide it out. The following menus are available: Error/warnings menu (future use) File Management menu Share menu CGP Configuration menu Cam-CGP assign menu Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 32: File Management Menu

    Select a file in the matrix by tapping it and then one of the action buttons at the bottom of the screen: Recall — copies the selected file to the camera’s active settings. It is not possible to recall a file while the camera is On Air. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 33 “Safe removal of USB Flash Drive" procedure. After selecting the storage and file the file name appears at the right side of the window along with the camera type, creation date and comment (if present): Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 34 ☞ ☞ Note Note Files created by the Creative Grading system are not compatible with (legacy) MCP 450 files. Snapshots Snapshots are temporary files, intended to quickly store and compare different camera (scene) settings to come to the best result: •...
  • Page 35: Share Menu

    Select one of more cameras at the middle section by ticking the checkboxes. Tap the Select All or Select none button to help selecting. • Tap Share settings at the right side to share. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 36: Cgp Configuration Menu

    CGP to change its assignments. ✎ Create a group of CGPs by ticking one ore more checkboxes above the corresponding CGPs to change assignments for the group. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 37: Cam-Cgp Assign Menu

    Cancel 4.5.4 Cam-CGP assign menu In this menu the Camera (systems) and CGP (panels) can be set up. Refer to Section 3.2.1 on page 16 for detailed information about this menu. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 38 Chapter 4 - CGA Operation Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 39: Chapter 5 - Cgp Operation

    This ring normally lights blue or, Preview button when tally is active, it lights red Push to view the camera signal for On Air or yellow for ISO. on the preview monitor. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 40: Cgp Local Display

    CGA. Large rotary with push button Changes a value (analog or list) Forward button Moves forward one function in the function area. Back button Moves back one function in the function area. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 41: Snapshot Button

    If the stick’s movement is too loose or too tight it is possible adjust its friction. Use a Torx-10 type screwdriver to adjust the tension screw of the stick. The screw is located right above the Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 42: Preview Button

    5.1.9 Free button Push the Free button to move the stick up or down without changing the Iris value. The Free/ Info popup window appears as an overlay in the CGP display: Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 43: Cga Menu Shortcut Buttons

    Push the Test Signal button to switch on the colour bar signal of the connected camera. Push again to select a sawtooth test signal. The button is highlighted when a test signal is on. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 44: Assignable Controls

    These two push buttons operate the associated function in the display above the button. Assignable rotary controls The two rotary controls have of a lower and upper ring and a push button on top. Their assigned functions are shown in the display above the rotary. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 45 Next and Previous buttons Use the Prev and Next buttons to scroll through the different pages of assignable buttons/ functions. There are up to three pages of assignments that can be configured. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 46: Cgp Local Display

    5.2.2 Camera identification area Shows the camera number and the camera (system) alias and some connection information (to the CGS and the CGA): Server connected CGA connected icon indication Camera number Camera alias Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 47: Rgb Grading Rotaries Area

    5.2.5 Assignable controls area Stick rings Assignable assignments and controls page values name and indication Right rotary Left rotary assignment and assignment and values values Function buttons assignments and values Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 48: Cgp Settings

    Turn the central rotary to scroll through the settings of the selected section: Push the central rotary to activate the selected setting. Turn the rotary to change its value and push again the confirm the new value. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 49: Network

    Fact Reset Exec Carry out a CGP panel factory reset. All settings are cleared except the Camera Selection and Network IP settings. A confirmation popup window is shown to Confirm or Cancel. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 50: Diagnostics

    LCD Backl 0..99 (50) Sets the backlight level of the LCD display. Camera Sel 1..99 Selects the camera number (when the CGP is used stand-alone) to directly connect to a camera system. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 51: Chapter 6 - Reference Tables

    Range Extender, Iris + Auto Iris, ND Filter, Exposure + Variable Exposure, Master Gain + Sensitivity Mode Parameters Range Extender, Iris, Auto Iris, Peak/Average, Extended Iris, ND Filter, Exposure, Variable Exposure, Lighting, Lighting Select, Sensitivity Mode, Gain Select, Master Gain Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 52 Skin Detail, Auto Skin, Skin1 Level, Skin1 Color Red, Skin1 Color Blue, Skin2 Level, Skin2 Color Red, Skin2 Color Blue, Skin3 Level, Skin3 Color Red, Skin3 Color Blue, Skin View, Skin View Insert Knee Detail Knee Detail Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 53 Camera Disable, VF Menu Control, Camera Power, Alias, Camera Device ID BaseStation BS Menu Control, BS Device ID Menu Submenu Function Main Locking (Reference & Gen Lock), System Info, Camera Licenses, Temperature, Software packages Diagnostics Transmission Fiber Transmission, Cable Power Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 54 Chapter 6 - Reference tables Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 55: Chapter 7 - Specifications

    4 x USB 3.0 ports + 2 x USB 2.0 ports Serial ports 1 x RS-232 + 1 x RS-232/422/485 ☞ ☞ Note Note Hardware specifications of the CCS-ONE are subject to change without notice. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 56: Mounting

    Serial HDMI USB 3.0 LAN1 LAN2 indicator ports (2x) connectors (2x) ports (4x) C2IP Public C2IP Public IOIOI HDMI DC In Power USB 2.0 Power Indicator ports (2x) Power switch indicator CCS-ONE Creative Grading Camera Control System User’s Guide (v1.4)

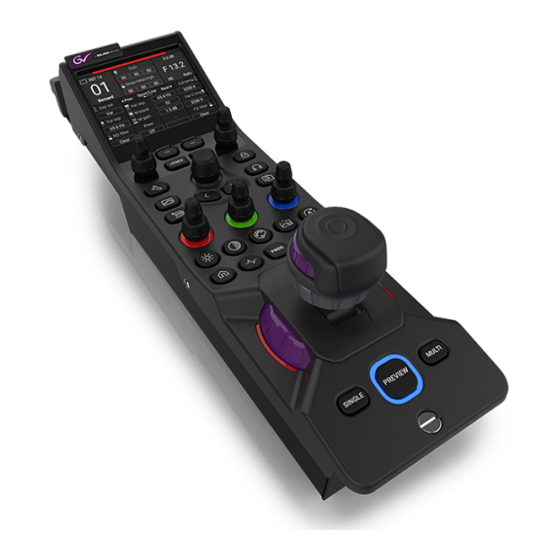

  • Page 57: Cgp 500 Creative Grading Panel

    ☞ ☞ Note Note Be aware that the CGP 500 is slightly wider (84 mm compared to 82.5 mm) than its predecessor (OCP 400) so this may affect your desk mounting considerations. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 58: Dimensions

    Chapter 7 - Specifications 7.2.3 Dimensions 63.3 mm 42.5 mm 12.1 mm 16.4 mm 84.0 mm 62.9 mm 16.4 mm 8.2 mm Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 59: Connectors

    Description 10.5 - 17 VDC with P < 10 W. +12 VDC input (nominal) XLR 4-pin male +12 VDC input (nominal) (panel view) Caution The input voltage must not exceed +20 VDC. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 60 Ethernet (PoE) connector Ethernet 10Base-T, 100Base-TX Pin Description compliant with IEEE-802.3af (802.3at type 1 “PoE”) Tx+ (RJ45) (DC+) 8-pin standard Tx- (RJ45) (DC+) RJ-45 ethernet Rx+ (RJ45) (DC-) connector Rx- (RJ45) (DC-) Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 61: Studio Signalling

    Ethernet based signalling (as opposed to using its own studio signalling GPIO inputs). To do this, enter the menu in the XCU and go to the INSTALL > SIGNALLING INPUT submenu and set the ONAIR SOURCE item to Ethernet. Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 62 OCp 400 #n External signalling (common contact) If a contact is closed, the corresponding function is Active or Inactive, depending on the selections in the Install section of the the CGP Setup menu:: Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 63: Powering The Cgp

    Nominal input voltage is between 10 and 17 V. Power in is max. 10 W. The 12 VDC inputs are protected against reversed polarity and Low/High input voltage (until max. 20 V). Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 64 Chapter 7 - Specifications Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 65 Creative Grading Camera Control System User’s Guide (v1.4)
  • Page 66 Copyright Grass Valley Canada.
