Summary of Contents for Beta Beta85X

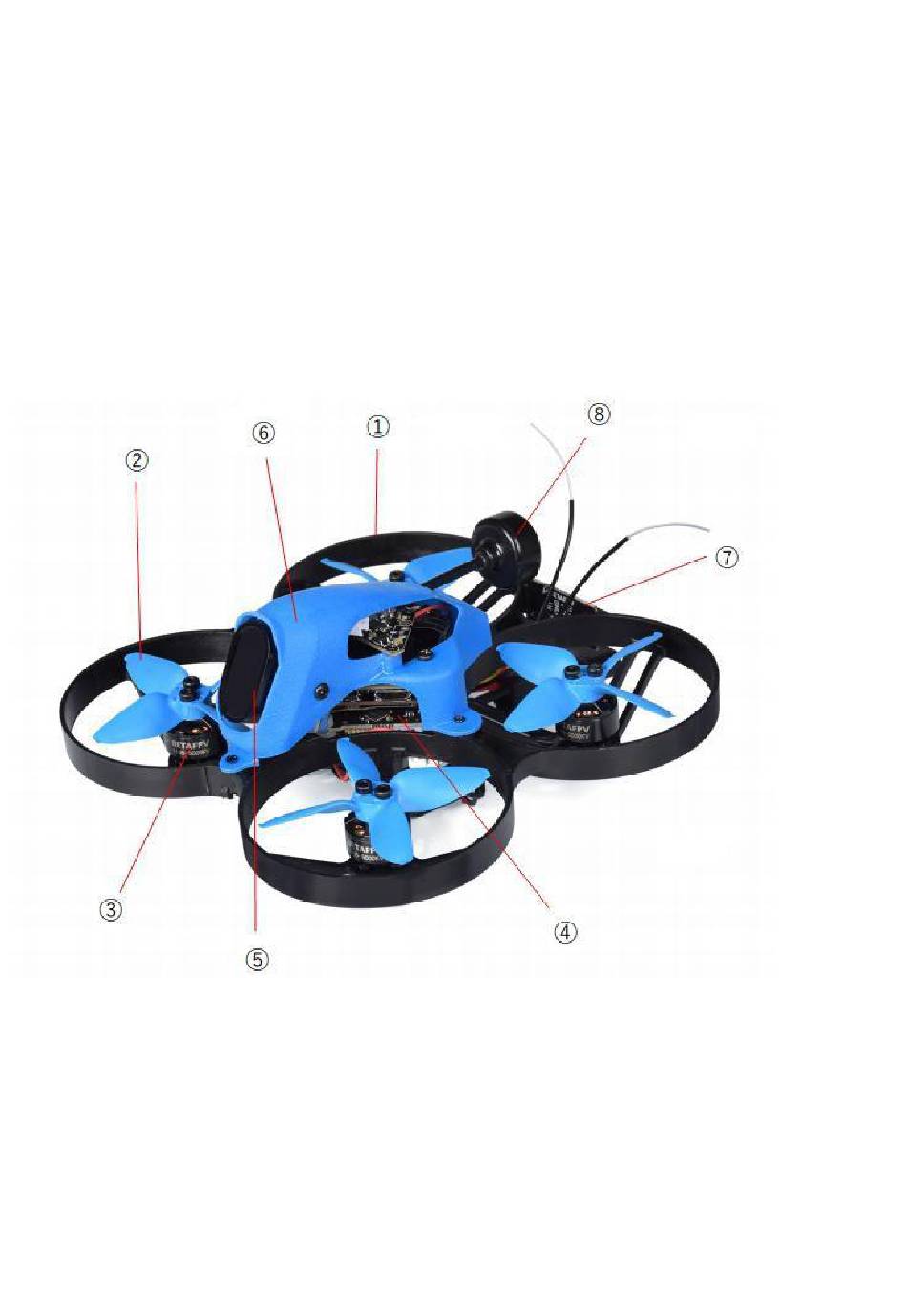

- Page 1 Beta85X Instruction 1. Instruction of Components and Accessories ①Frame ②FPV Blade ③Motor ④Flight Controller ⑤Camera ⑥Canopy ⑦LED Board ⑧antenna Thanks for purchasing the Beta FPV. Designed in China, assembled in China.
- Page 2 Disclaimer Once using this product, you will be deemed to have understood and approved all the contents of this disclaimer. This product is not suitable for people under 18 years old. Kids under the age of 18 must use this product under recognized guardianship. BETAFPV accepts no liability for damage or injuries incurred directly or indirectly from the use of the product.
- Page 3 1 Specification......................................3 2 Characteristics.....................................4 3 Composition......................................6 3.1 FC SPECIFICATIONS................................6 3.2 SPECIFICATIONS OF ESC................................ 6 3.3 Material: PP plastic..................................6 3.4 Camera Specification..................................7 3.5 1105 5000KV Motor..................................8 4 Flight guide......................................9 4.1 FLY.......................................9 4.2 Radio Stick Controls...................................10 4.3 Flying Modes....................................10...
-
Page 4: Specification
1 Specification Diagonal wheelbase (without paddles) 85mm Motor 1105 5000KV with connector Propeller Blue Flight Controller F405 V2 Flight Controller 16A BLHeli_32 ESC Receiver Props 2" 4-Blades Props Antenna 5.8G FPV antenna Recommend battery 4S 450mAh Battery (Not including) Flight time 4min - 6min with 450mAh 4S battery Camera Caddx Tarsier 4K@30fps... - Page 5 2 Characteristics Beta85X pushes the new era of brushless whoop drones to a higher level. With the new power system, you could fly real acro even with HD camera on 4S power. With the high performance STM32F051 processor FC boards and tuned Betaflight OMNIBUSF4SD ...
- Page 6 Factory firmware: G-H-30-16.7 Material: PP plastic The stiffener brace of carbon fiber can reinforce the Beta85X frame, avoid unstability caused by too strong power when Beta85x is flying. Last Version: No stiffener brace included, which would result in seriously vibration on 4S power.
-
Page 7: Camera Specification
The stiffener brace of carbon fiber can reinforce the Beta85X frame, avoid unstability caused by too strong power when Beta85x is flying. Last Version: No stiffener brace included, which would result in seriously vibration on 4S power. Camera Specification Caddx Tarsier 4K@30fps Find more details about this Caddx Tarsier 4K camera in another page. - Page 8 1105 5000KV Motor Height: 14mm Weight: about 5.2g (1 pc) Shaft: φ1.5mm Motor Mount Holes: M2.0 on Dia 9.0mm KV (rpm/V): 6000 / 5000 Plug and cables:Micro JST-1.25 3-pin connector with 28AWG cables (5000KV)
- Page 9 Lower 5000KV for new Beta85X 4S, which could support 4S power which won't cause the issue of overheat or burn (maybe the ESC). Also change motor cables from 30AWG to 28AWG. Last Version: 1105 6000KV motors with 30AWG cables. In 4S power status, the motor will be overheat and damaged.
-
Page 10: Radio Stick Controls
Radio Stick Controls The left stick controls throttle and yaw direction of BETAFPV.The right stick controls pitch and roll of the aircraft. Flying Modes There are three flight modes in the true sense: Angle Mode, Horizon Mode,and Acro Mode.Others are the assisted flight modes Angle Mode This mode can adjust the level automatically and limit the flight angle, but can not do roll action.When the... - Page 11 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
