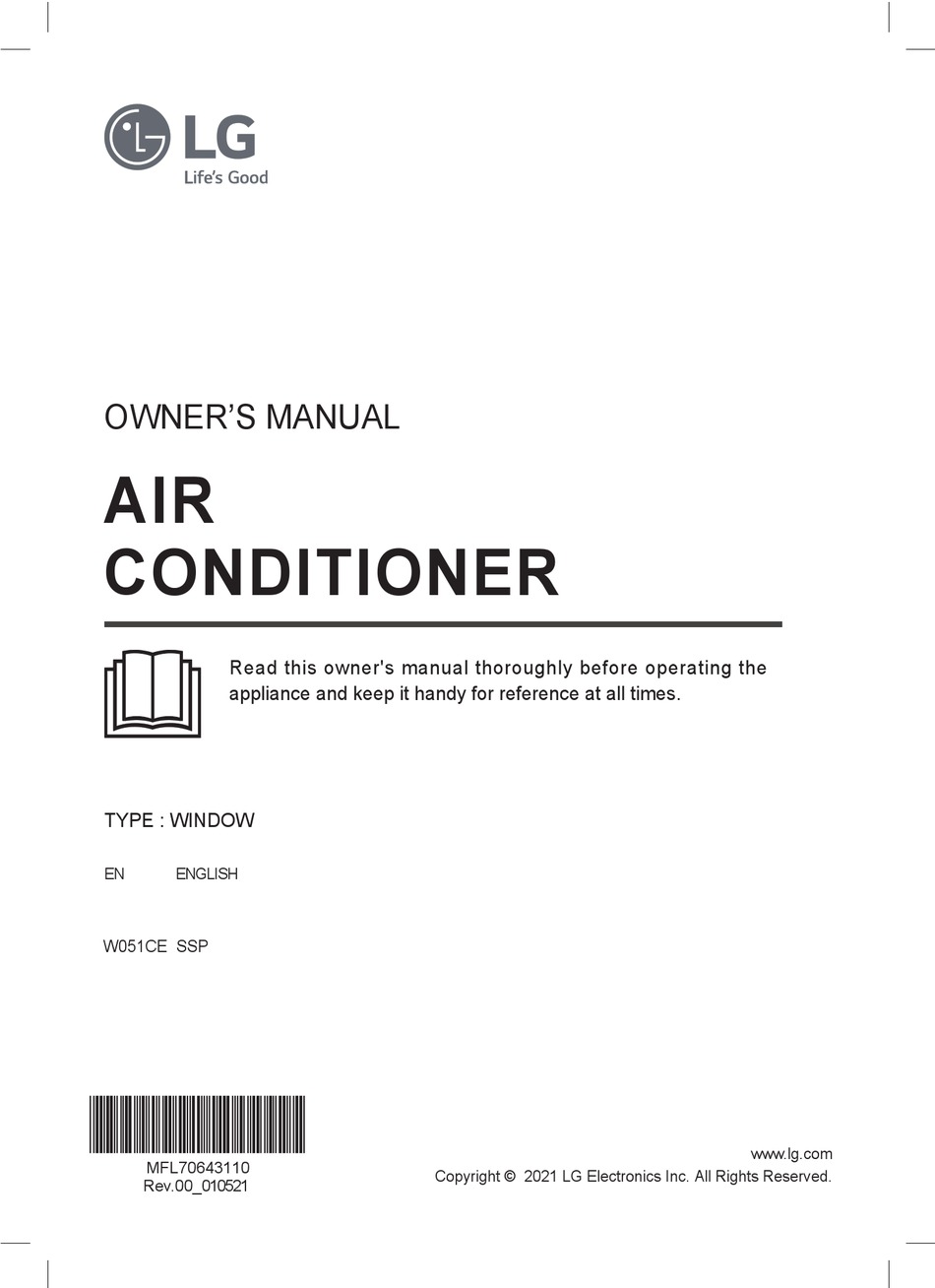

- Page 1 OWNER’S MANUAL CONDITIONER Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times. TYPE : WINDOW ENGLISH W051CE SSP *MFL70643110* www.lg.com MFL70643110 Copyright © 2021 LG Electronics Inc. All Rights Reserved. Rev.00_010521...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS SAFETY INSTRUCTIONS 14 MAINTENANCE IMPORTANT SAFETY INSTRUCTIONS Air Filter PRODUCT OVERVIEW 15 TROUBLESHOOTING Exterior Parts Before Calling for Service Interior Parts Normal Sounds You May Hear INSTALLATION Circuit Breaker Installation Installation Overview How to Install the Unit Space for Outside Air Flow Unit Installation Drain Pipe... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages. This is the safety alert symbol. - Page 4 ● Do not tamper with controls. ● If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug it immediately, and contact an LG Electronics Customer Information Center. straight out from the outlet.
- Page 5 Children should be supervised to ensure that they do not play with the appliance. ● The interior of the product must only be cleaned by a LG Electronics Customer Information Center or a dealer.
- Page 6 SAFETY INSTRUCTIONS CAUTION To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: INSTALLATION ● Take care when installing the product that exhaust or condensation does not damage nearby property.
-
Page 7: Product Overview
PRODUCT OVERVIEW PRODUCT OVERVIEW Exterior Parts Interior Parts Control Panel Evaporator Remote Control Air Guide Air Filter Compressor Front Grille Condenser Cabinet Base Pan Air Outlet Power Cord Horizontal Air Deflector (Vertical Louver) -
Page 8: Installation
INSTALLATION INSTALLATION Circuit Breaker Installation Read thoroughly and follow all directions provided. A circuit breaker must be installed between the power source and the unit if the plug is not used (see illustration below). Main Power source Circuit Breaker Use a circuit breaker or time delay fuse. -
Page 9: How To Install The Unit
INSTALLATION How to Install the Unit Space for Outside Air Flow Measure the space for installation to assure a good fit. The air conditioner must be installed firmly into place to prevent vibration and noise. Avoid exposure to direct sunlight. AIR IN Remove all obstacles from the rear of the unit. -
Page 10: Drain Pipe
INSTALLATION Drain Pipe In humid weather, excess water may cause the base pan to overflow. To drain the water, remove the drain cap and secure the drain pipe to the rear hole of the base pan. Press the drain pipe into the hole by pushing down and away from the fins to avoid injury. -
Page 11: Operation
OPERATION OPERATION Control Panel and Remote Control Remote Control Power Energy Saver (Ahorro Energía) - In this the compressor and fan turn off when the Press to turn the air conditioner ON or OFF. set temperature is achieved. Approximately Fan Speed every 3 minutes the fan turns on to allow the unit sensor to accurately determine if Press to set the fan speed to Low (Bajo) (F1),... -
Page 12: Wireless Remote Control
OPERATION Wireless Remote Control Temperature Control The thermostat monitors room temperature Inserting Batteries to maintain the desired temperature. The thermostat can be set between 16 °C–30 °C Push out the cover on the back of the (60 °F–86 °F). Press arrows to remote control with your thumb. -
Page 13: Air Direction
OPERATION Air Direction Adjusting the air direction using the horizontal air deflector control. Using the control tabs, the air flow can be directed to the left, right, straight ahead, or any combination of these directions. Slinger Fan This air conditioner is equipped with a slinger fan. -
Page 14: Maintenance
● For repair and maintenance, contact a LG Electronics Customer Information Center. Have your model number and serial number available. Wash the filter using lukewarm water below 40 °C (104 °F). -
Page 15: Troubleshooting
TROUBLESHOOTING 15 TROUBLESHOOTING Before Calling for Service The appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the appliance does not function properly or does not function at all, check the following before you call for service. - Page 16 TROUBLESHOOTING Problem Possible Causes & Corrective Action The air conditioner is unplugged. • Make sure the air conditioner plug is pushed completely into the outlet. The fuse is blown/circuit breaker is tripped. Air conditioner • Check the house fuse/circuit breaker box and replace the fuse or reset the does not start.
- Page 17 TROUBLESHOOTING 17 Problem Possible Causes & Corrective Action The air conditioner is not tilted to the outside. Water drips • For proper water disposal, make sure the air conditioner slants slightly indoors. from the cabinet front to the rear. Moisture removed from air and drains into base pan. Water collects in •...
