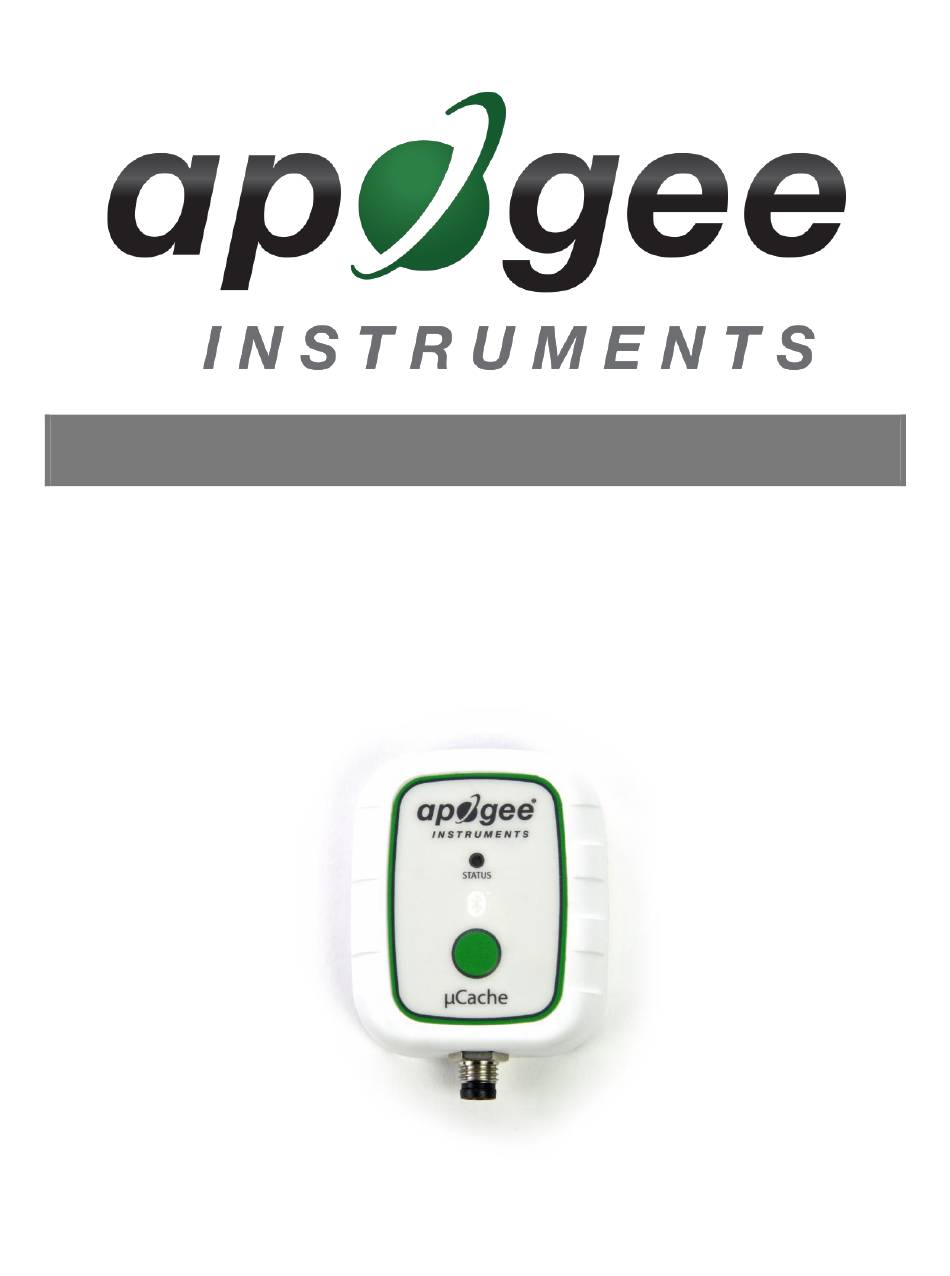

OWNER’S MANUAL µCACHE Rev: 28-Oct-2020 APOGEE INSTRUMENTS, INC. | 721 WEST 1800 NORTH, LOGAN, UTAH 84321, USA TEL: (435) 792-4700 | FAX: (435) 787-8268 | WEB: APOGEEINSTRUMENTS.COM Copyright © 2020 Apogee Instruments, Inc. -
Page 2: Table Of Contents
TABLE OF CONTENTS Owner’s Manual ....................................1 Certificate of Compliance ................................. 3 Introduction ..................................... 4 Sensor Models ..................................5 Specifications ................................... 5 Quick Start Guide ..................................6 Cable Connectors ..................................8 Deployment and Installation ..............................9 Maintenance and Recalibration ............................. 11 Troubleshooting and Customer Support .......................... -
Page 3: Certificate Of Compliance
RoHS 3 compliant using exemption 6c. Further note that Apogee Instruments does not specifically run any analysis on our raw materials or end products for the presence of these substances, but rely on the information provided to us by our material suppliers. -
Page 4: Introduction
INTRODUCTION The µCache AT-100 makes precision environmental measurements using Apogee’s analog sensors. The measurements are sent wirelessly to a mobile device via Bluetooth . The Apogee Connect mobile app interfaces ® with the µCache to collect, display, and export data. -
Page 5: Sensor Models
SENSOR MODELS This manual covers the Apogee µCache (model number AT-100). Sensor model number and serial number are located on the back of the µCache unit. If you need the manufacturing date of your µCache, please contact Apogee Instruments with the serial number of your µCache. -
Page 6: Quick Start Guide
QUICK START GUIDE Quick Start Guide 1. Download Apogee Connect from the App store or Google Play store 2. Open App and hit the “+” 3. Press green button on µCache unit and hold for 3 seconds 4. When µCache is recognized in the app, click on its name “uc###”... - Page 7 (SQ-640 series) and other sensors that detect subtle especially with light sensitive plants. trends. Included in the µCache package All AT-100’s come with a µCache unit, a battery, and a complimentary sensor base. Instructional Videos on using the Apogee Connect App...
-
Page 8: Cable Connectors
The µCache has an M8 connector that is used to connect to an analog sensor. Instructions Pins and Wiring Colors: All Apogee connectors have six pins, but not all pins are used for every sensor. There may also be unused wire colors inside the cable. -
Page 9: Deployment And Installation
Memory Modules (model AT-100) are designed to work with Apogee analog sensors ® and the Apogee Connect mobile app for spot-check measurements and through the built-in logging feature. To accurately measure incoming radiation, the sensor must be level. For this purpose, each sensor model comes with a different option for mounting the sensor to a horizontal plane. - Page 10 Please Note: Do not let the µCache dangle.
-
Page 11: Maintenance And Recalibration
µCache. Use the app store for your operating system to confirm that you are using the latest version of Apogee Connect. The firmware version can be checked in the Settings page in the app while connected to the µCache. -
Page 12: Troubleshooting And Customer Support
1 mega-ohm there is negligible effect on the calibration, even after adding up to 100 m of cable. All Apogee sensors use shielded, twisted-pair cable to minimize electromagnetic interference. For best measurements, the shield wire must be connected to an earth ground. This is particularly important when using the sensor with long lead lengths in electromagnetically noisy environments. -
Page 13: Return And Warranty Policy
RETURN AND WARRANTY POLICY RETURN POLICY Apogee Instruments will accept returns within 30 days of purchase as long as the product is in new condition (to be determined by Apogee). Returns are subject to a 10 % restocking fee. WARRANTY POLICY... - Page 14 84321, USA 5. Upon receipt, Apogee Instruments will determine the cause of failure. If the product is found to be defective in terms of operation to the published specifications due to a failure of product materials or craftsmanship, Apogee Instruments will repair or replace the items free of charge.
