COM
The
9903 Shooting Star Ct.
Nampa, Idaho 83687
(208) 779-2891
info@utvcom.com
Jumper wire - ALWAYS connect this into the intercom "Radio" jack (Note: jumper wire is only 1 ft long. If you
plan to separate the radio from the intercom more than 9-inches you need to purchase an extension cord.
see product
"Premium Shielded 3.5mm Stereo Extension
shielded-3-5mm-stereo-extension-cables/

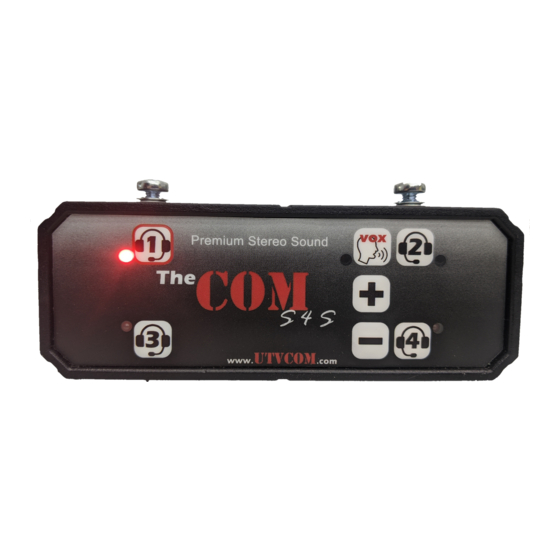

S4S Intercom
S4S Intercom power
Red
= Hot
Black = Ground
Connect to clean 12V
Battery
PTT – Note multiple
PTT's may be
connected by using
splitters:
2 PTT- splitter
Or
3 or 4 PTT - splitter
Optional
Noise
Filter
Blue
– clean hot
Red
– hot input
Black - ground

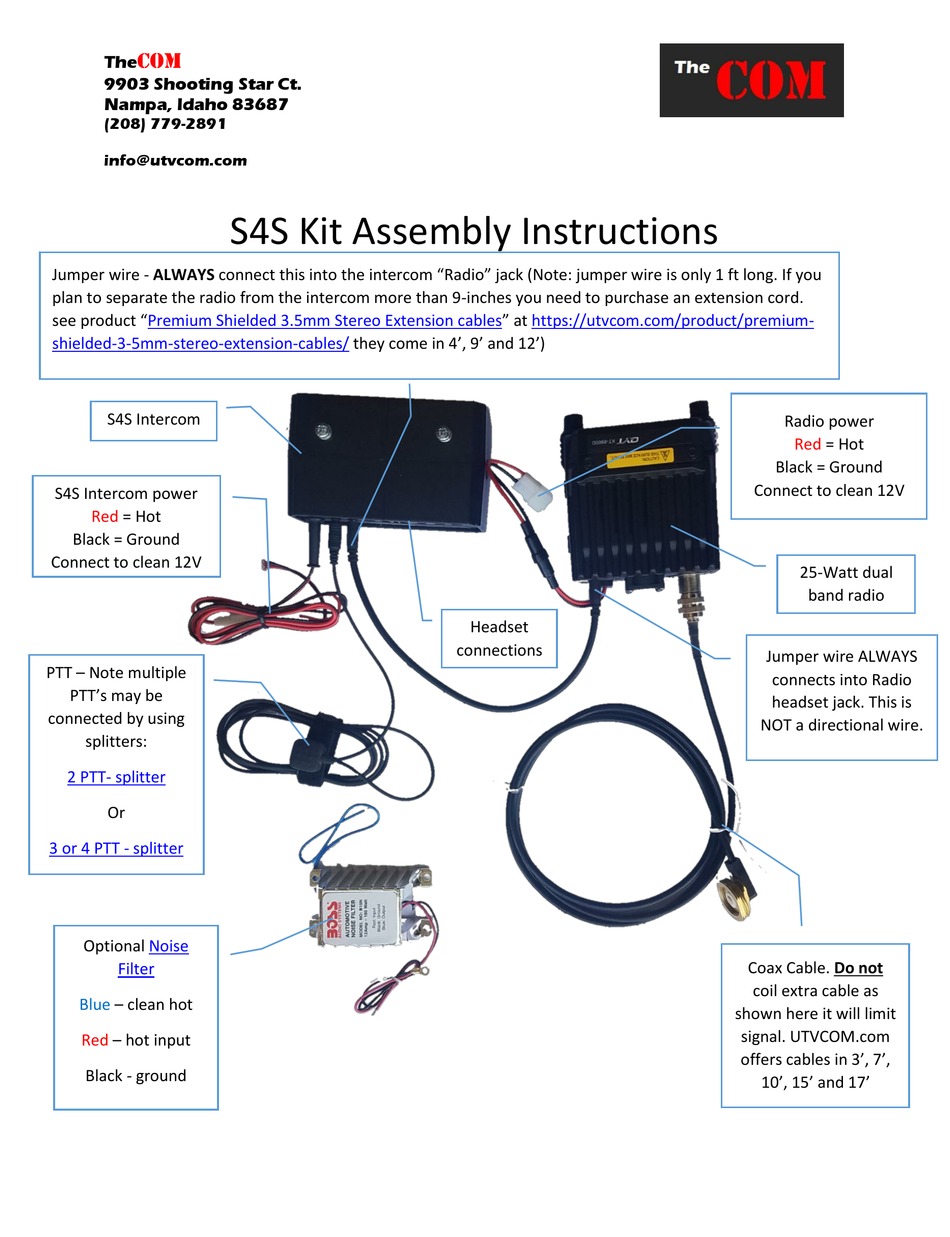

S4S Kit Assembly Instructions
they come in 4', 9' and 12')
cables" at
https://utvcom.com/product/premium-
Headset
connections
Radio power
Red
= Hot
Black = Ground
Connect to clean 12V
25-Watt dual
band radio
Jumper wire ALWAYS
connects into Radio
headset jack. This is
NOT a directional wire.
Coax Cable. Do not
coil extra cable as
shown here it will limit
signal. UTVCOM.com
offers cables in 3', 7',
10', 15' and 17'
Advertisement
Summary of Contents for The COM S4S
- Page 1 (208) 779-2891 info@utvcom.com S4S Kit Assembly Instructions Jumper wire - ALWAYS connect this into the intercom “Radio” jack (Note: jumper wire is only 1 ft long. If you plan to separate the radio from the intercom more than 9-inches you need to purchase an extension cord.
- Page 2 9903 Shooting Star Ct. Nampa, Idaho 83687 (208) 779-2891 info@utvcom.com HS-1 through HS-4 are stereo headset ports. 25- Watt dual PTT – input splitter here band radio for multiple PTT’s Phone / Audio In – used to connect phone or media device not typically Data port –...
