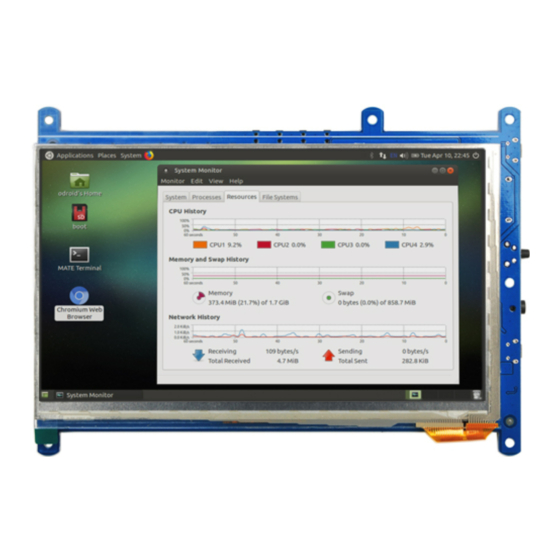

HARDKERNEL ODROID-VU-7-A Plus Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
2020/05/29 19:13
1/12
ODROID-VU-7-A Plus
ODROID-VU-7-A Plus
ODROID Wiki - http://wiki.odroid.com/

Advertisement

loading
Need help?

Need help?

Do you have a question about the ODROID-VU-7-A Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HARDKERNEL ODROID-VU-7-A Plus

Summary of Contents for HARDKERNEL ODROID-VU-7-A Plus

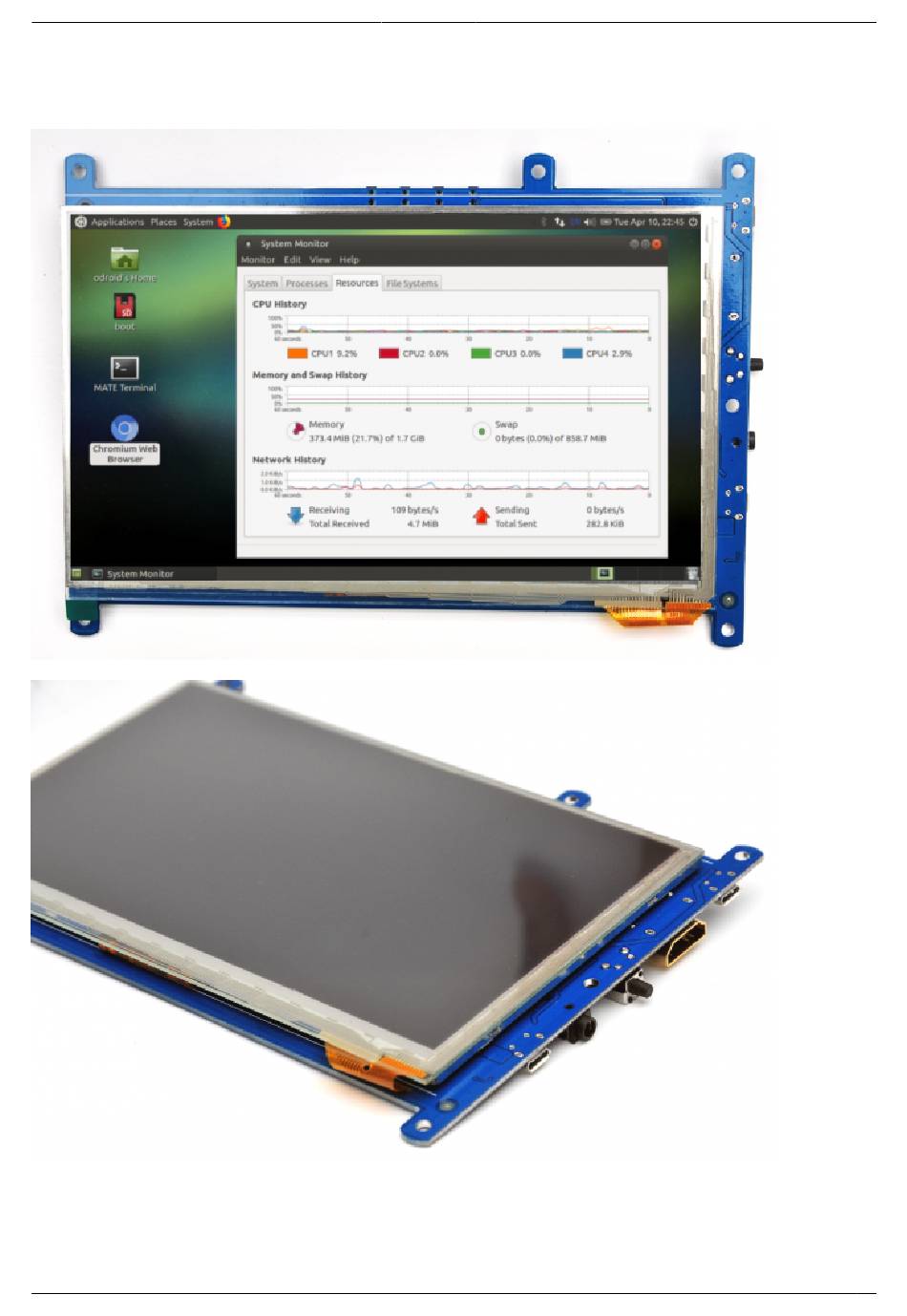

  • Page 1 2020/05/29 19:13 1/12 ODROID-VU-7-A Plus ODROID-VU-7-A Plus ODROID Wiki - http://wiki.odroid.com/...

  • Page 2: Specifications

    Last update: accessory:display:vu_series:vu7a_plus:vu7a_plus http://wiki.odroid.com/accessory/display/vu_series/vu7a_plus/vu7a_plus 2020/04/01 10:17 Specifications 7-inch TFT-LCD 1024 x 600 pixels hardware resolution, configurable by software (up to 1920×1080) 5 finger capacitive touch input (USB ID 16B4:0705) Power consumption : 800 mA / 5 Volt Power on/off tact switch 3.5mm audio jack and differential L/R speaker port to support HDMI audio output OSD menu supports with buttons for power management, brightness/contrast/volume adjustment, etc.
  • Page 3 2020/05/29 19:13 3/12 ODROID-VU-7-A Plus Assembly You can easily attach the C2 / C1+ board onto the backside of the LCD screen in order to create a fully integrated system. Also it's available to connect XU4 / C2 / C1+ using a micro-USB cable and a HDMI cable described in Option 2.

  • Page 4: Audio Features

    Last update: accessory:display:vu_series:vu7a_plus:vu7a_plus http://wiki.odroid.com/accessory/display/vu_series/vu7a_plus/vu7a_plus 2020/04/01 10:17 Option 2 Audio Features With VU7A+, you can enjoy sound with a stereo speaker or an audio earjack. Please note that the speaker output turns off when an earjack is plugged in. http://wiki.odroid.com/ Printed on 2020/05/29 19:13...
  • Page 5 2020/05/29 19:13 5/12 ODROID-VU-7-A Plus ODROID Wiki - http://wiki.odroid.com/...
  • Page 6 Last update: accessory:display:vu_series:vu7a_plus:vu7a_plus http://wiki.odroid.com/accessory/display/vu_series/vu7a_plus/vu7a_plus 2020/04/01 10:17 http://wiki.odroid.com/ Printed on 2020/05/29 19:13...
  • Page 7 2020/05/29 19:13 7/12 ODROID-VU-7-A Plus Software Setting - Ubuntu sudo vim /media/boot/boot.ini ODROID-XU4 Auto Detection With the version 4.14.32-126 or higher version, XU4 automatically detects the resolution of VU7A+ as 1024×600 with HDMI without any change of boot.ini. VU7A+ model provides HDMI functionality, so you don't need modify boot.ini to switch into DVI as you do with VU7+.
  • Page 8 Last update: accessory:display:vu_series:vu7a_plus:vu7a_plus http://wiki.odroid.com/accessory/display/vu_series/vu7a_plus/vu7a_plus 2020/04/01 10:17 Manual Setting If you use the lower version than 4.14.32-126, boot.ini modification is required as following. Please uncomment videoconfig line for 1024×600 and make sure vout option as hdmi. # --- Screen Configuration for HDMI --- # # ----------------------------------------------- # 1024x600 without monitor data using generic information (ODROID VU7+) setenv videoconfig "drm_kms_helper.edid_firmware=edid/1024x600.bin"...
  • Page 9 2020/05/29 19:13 9/12 ODROID-VU-7-A Plus # Auto Detection of Monitor settings based on your Screen information # See: http://odroid.com/dokuwiki/doku.php?id=en:c2_auto_detect_display setenv display_autodetect "true" If you use the lower version than 3.14.79-108 (Feb 27, 2017), please set boot.ini as following. # Resolutions # setenv m "1080p"...
  • Page 10 Last update: accessory:display:vu_series:vu7a_plus:vu7a_plus http://wiki.odroid.com/accessory/display/vu_series/vu7a_plus/vu7a_plus 2020/04/01 10:17 ODROID-N2 In case of ODROID-N2, display auto detection mode can adjust hdmi resolution and vout mode by default. So you don't need to edit boot.ini. # Display Auto Detection "false" "true" setenv display_autodetect "true" If it doesn't work with display auto detection mode, please try manual mode.

  • Page 11: Osd Setting Menu

    2020/05/29 19:13 11/12 ODROID-VU-7-A Plus "false" "true" setenv display_autodetect "false" ODROID-C1+ # Resolution Configuration setenv hdmimode "1024x600p60hz" # setenv hdmimode "720p" # HDMI/DVI Mode Configuration # This will enforce the singal type of display "hdmi" - For HDMI interface "dvi"...
  • Page 12 Last update: accessory:display:vu_series:vu7a_plus:vu7a_plus http://wiki.odroid.com/accessory/display/vu_series/vu7a_plus/vu7a_plus 2020/04/01 10:17 Language English only H Position Adjust the horizontal position V Position Adjust the vertical position OSD Timeout Adjust the menu display time, Off and 0~60 in 5 unit step, default 10 Transparent Adjust the menu transparent, Off and 0 ~ 7 (most transparent), default off Reset Reset to default Function...
