Summary of Contents for ELPRO DV477IP Series

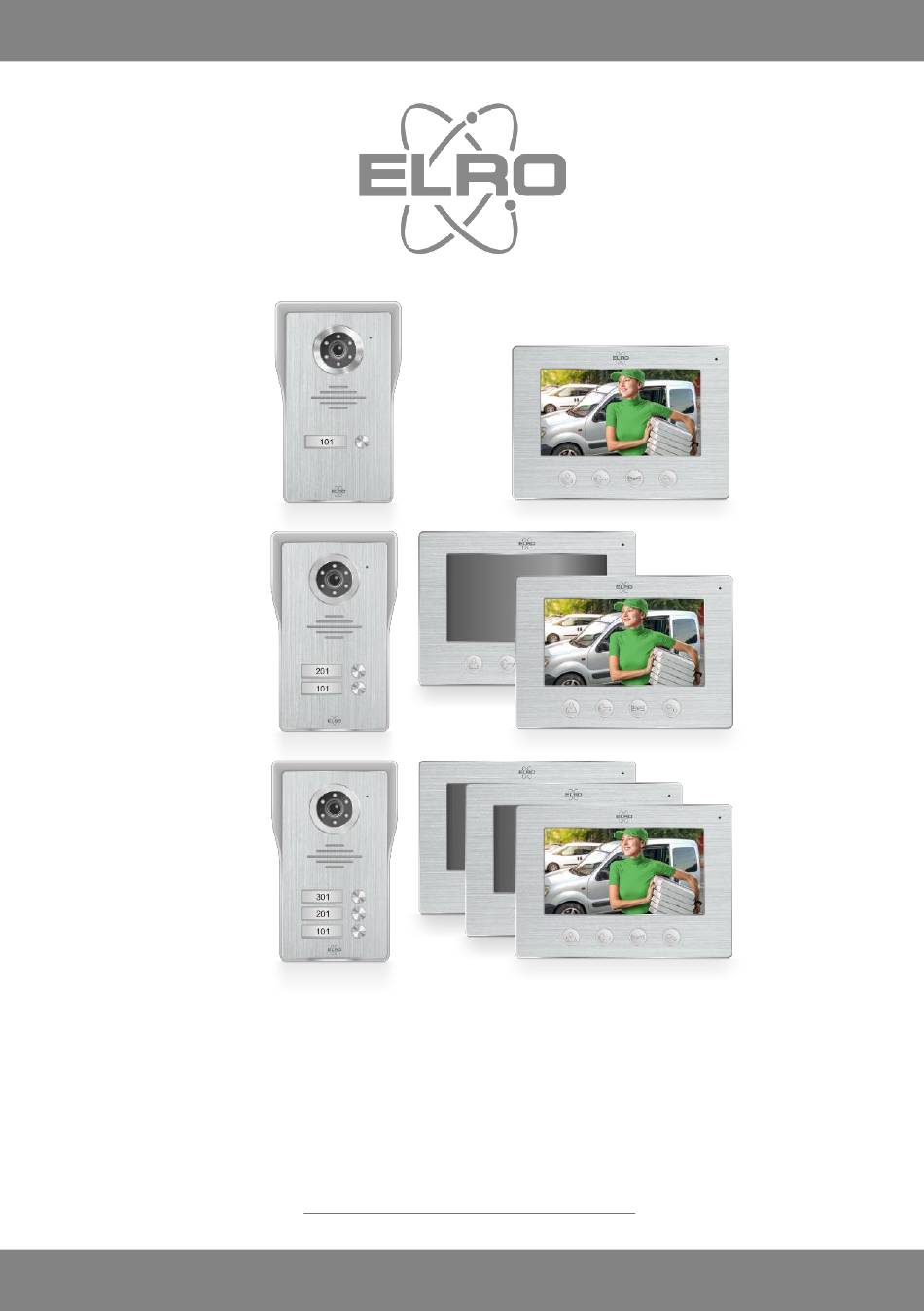

- Page 1 DV477IP DV477IP2 DV477IP3 MANUAL IP VIDEO DOOR INTERCOM WITH 7"(18cm) MONITOR DV477IP-Series Home is not a place, it’s a feeling DV477IP-Series Manual EN Version 1...
-
Page 2: Table Of Contents
Content Introduction ....................- 2 - Package contents ..................- 3 - Mounting outdoor unit ................- 4 - Mounting the monitor ................- 5 - 4.1 Control Regulators ..................- 6 - 4.2 Functions of the monitor ................- 6 - Wiring diagrams .................. -
Page 3: Introduction
1. Introduction Please read this manual before you start mounting and installing the IP VIDEO DOOR INTERCOM. The set has an outdoor unit with brushed aluminum finish and a protective heavy metal rain cover for mounting on the wall. For indoor use a nicely designed monitor in brushed aluminum is included. -
Page 4: Package Contents
2. Package contents 1. Outdoor unit with bell pushers and camera 2. Rain shelter 3. Monitor 4. Connection cable length 15 m 5. Connection cable 6. Adapter with 1.75 m cord 7. Mounting bracket 8. Connection cable for electric door opener 9. -
Page 5: Mounting Outdoor Unit
3. Mounting outdoor unit • Remove the outdoor unit (1) from the rain-sun shade and use it to mark drill holes for mounting on the wall (2). • The shade must be mounted flush with the entire rear side of the wall/wall. •... -
Page 6: Mounting The Monitor
• We recommend a mounting height (4) between 1,35 and 1,70 meters. • Try to avoid direct exposure to sunlight. • Plug the connection cables into the respective slots (5). • After mounting, the angle of view of the camera can be corrected if necessary. -
Page 7: Control Regulators
• The mounting bracket provides exactly the space to connect the 4 core connection cable (2) between the monitor and bracket. Press (3) to open the clamp contact: - 1 brown = audio - 2 green = earth - 3 black = video - 4 blue = current •... -
Page 8: Wiring Diagrams
5. Wiring diagrams DV477IP DV477IP2 - 7 -... -
Page 9: Elro Intercom App
DV477IP3 6. ELRO Intercom app • Convince yourself that the smartphone on which you install the app uses the same WiFi signal as the one on which you want to install the intercom. • The intercom system only works on 2.4 Ghz. •... -
Page 10: Pairing The App
• You will then be presented with a "Privacy Statement Agreement", click on it (2) to view the "Privacy Policy". Press "Go to use" (3) to continue. 7. Pairing the app • Open the app and press the plus (4) to add a new device. •... - Page 11 - 10 -...
-
Page 12: Explanation App Icons
8. Explanation app icons Press to view outside via the app at any time. Configuration and advanced settings. Device list, here you will find all devices in your app. Storage of photos and videos with time and date. List of unanswered calls. Ringing tone, alarm tone, vibration and no interference settings. -
Page 13: Equal Rights
Equal rights • Choose LAN Config • The search is now for Jane Doe 48A. When the device is found, tick it (8), then press add. • When Jane Doe 48A is added and "Online" appears, press (9). • You will now be asked for the password that is set at (10) change password. Restricted rights •... -
Page 14: Specificaties
12. Specificaties MONITOR Resolution 800(H)*3RGB*480(V) Size 18 cm (7") Observation time 40 seconds Talk time 120 seconds Power Consumption In rest ≤ 4.5W, Operating State ≤ 9.5W Adapter Input AC100-240V Output DC12V, 2A, 24W WiFi 2.4GHz. Cable length 15 m; 4 x 0,2 mm Dimensions 214 x 152 x 17 mm Number of ringtones... -
Page 15: Declaration Of Conformity Doc
14. Declaration of Conformity DoC I, ELRO Europe, hereby declare that the type of radio equipment DV477IP complies with Directive 2014/53/EU. The full text of the EU declaration of conformity can be consulted at the following internet address: www.elro.eu/compliance". Frequency: 2.4GHz Maximum transmission power: <...
