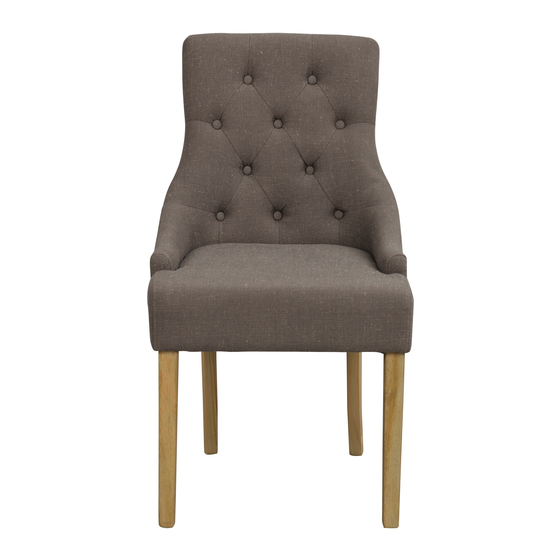

Item Name Stella Chair
ART NO.: 100134/ 100136
STEP 1
STEP 2
ASSEMBLY INSTRUCTION
NO.
A
B
C
D
E
PARTS
M8x75mm
M8x55mm
ø8mm
80%
Montera bakre benen. Spänn inte
skruvarna helt, för att ha justermån.
Mount the rear legs. Do not tighten
screws fully.
Q'TY
4
4
8
8
1
B
D
C
Advertisement
Table of Contents
Related Manuals for Rowico Stella 100136
Summary of Contents for Rowico Stella 100136
- Page 1 Item Name Stella Chair ASSEMBLY INSTRUCTION ART NO.: 100134/ 100136 PARTS Q’TY M8x75mm M8x55mm ø8mm STEP 1 Montera bakre benen. Spänn inte skruvarna helt, för att ha justermån. Mount the rear legs. Do not tighten screws fully. STEP 2...
- Page 2 Item Name Stella Chair ASSEMBLY INSTRUCTION ART NO.: 100134/ 100136 Notice detail Montera frambenen med synlig metalldel vänd utåt mot hörnet. Spänn Röd Röd inte skruvarna helt för att ha justermån. Mount the front legs, with visible metal part turned outwards towards corner. Do not tighten screws fully.
