Big Bike Parts 52-948BK Installation Instructions

©
Copyright 2019 by Big Bike Parts, Inc. No part of this
instruction sheet may be reproduced without the written
permission of Big Bike Parts, Inc.
4/10/2019

TOOLS NEEDED:

2MM ALLEN WRENCH
PLEASE READ THROUGH AND UNDERSTAND THESE INSTRUCTIONS BEFORE BEGINNING.
ESTIMATED INSTALLATION TIME: 10 TO 15 MIN.
INSTALLATION:

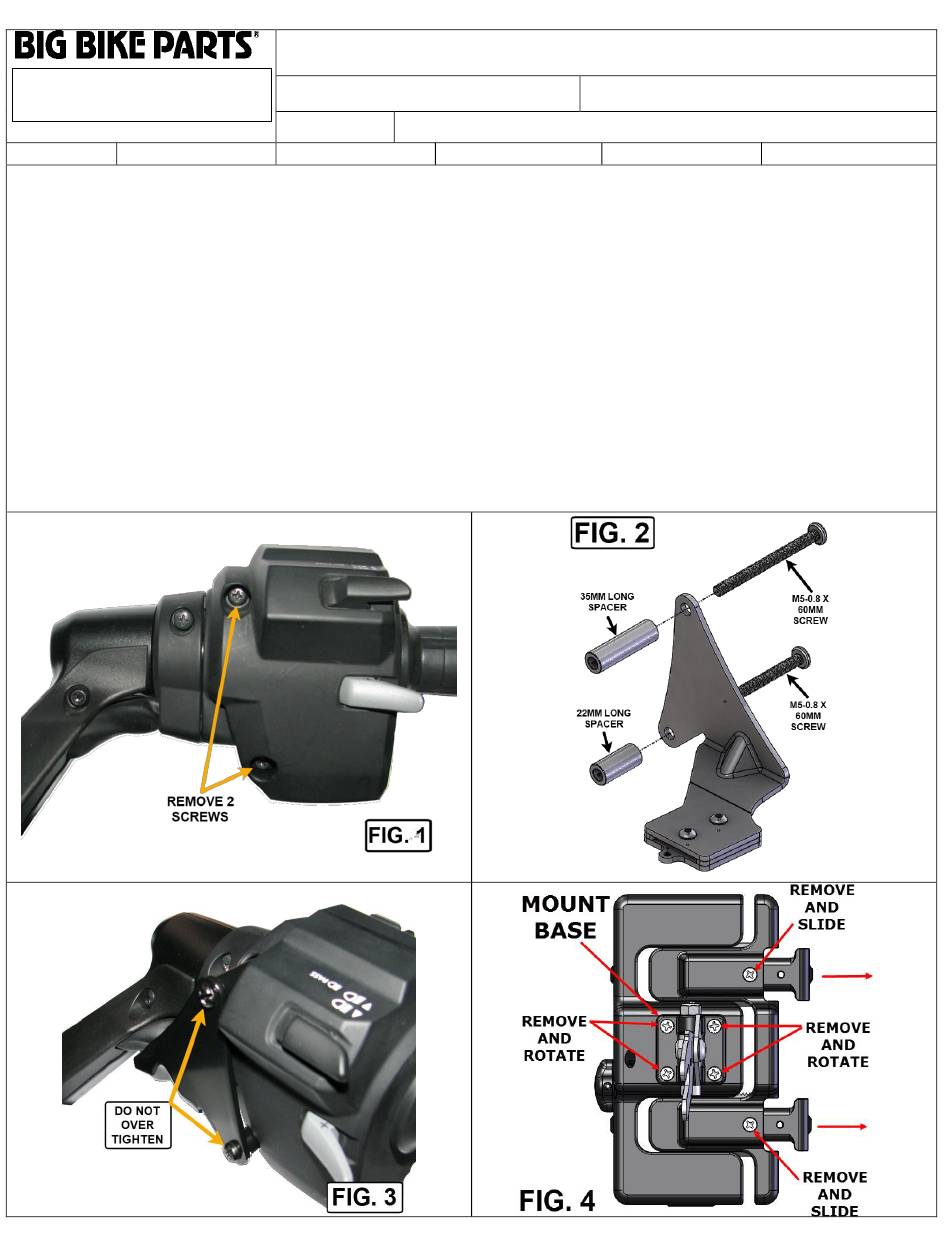

1. USING PHILLIPS SCREWDRIVER, REMOVE THE TWO SCREWS ON THE FRONT OF THE LEFT HANDLEBAR CONTROL AS SHOWN IN FIG. 1. THESE WILL
NOT BE REUSED.
2. APPLY THREAD LOCK NEAR THE END OF THE M5 SCREWS SUPPLIED WITH THE MOUNT.
3. ASSEMBLE THE M5 SCREWS AND SPACERS AS SHOWN IN FIG. 2.
4. USING A PHILLIPS SCREWDRIVER, INSTALL THE SCREWS INTO THE LEFT HANDLEBAR CONTROL AS SHOWN IN FIG. 3 AND TIGHTEN. NOTE: OVER
TIGHTENING CAN CAUSE DAMAGE TO THE INSERTS IN THE FRONT HALF OF THE SWITCH BLOCK.
5. GPS/PHONE HOLDER CAN BE ROTATED 90 DEGREES AND MADE WIDER. SEE FIG. 4. (REINSTALL SCREWS AFTER ADJUSTING HOLDER)
6. INSTALL THE SAFETY STRAP BY REMOVING THE TOP PHILLIPS SCREW ON THE BACK AND REINSTALLING IT THROUGH THE HOLE ON THE STRAP. SEE
FIG. 5.
7. SLIDE THE GPS/PHONE HOLDER INTO THE MOUNT AS SHOWN IN FIG. 6. INSTALL THE M3 SCREW FOR SECURITY.
8. ADJUST THE MOUNT TO THE DESIRED POSITION AND TIGHTEN THE SCREWS.
9. TURN THE LOCKING KNOB COUNTER CLOCKWISE UNTIL YOU SEE THE SET SCREW ON THE KNOB AND OPEN THE CLAMP. SEE FIG. 7.
10. SQUEEZE THE CLAMP TOGETHER AND ROTATE THE KNOB CLOCKWISE UNTIL THE ARROWS LINE UP. SEE FIG. 8.
11. TIGHTLY WRAP SAFETY STRAP AROUND THE DEVICE BEFORE USE.
12. LET THREAD LOCK CURE FOR 24 HOURS BEFORE USING PHONE HOLDER.
INSTALLATION INSTRUCTIONS

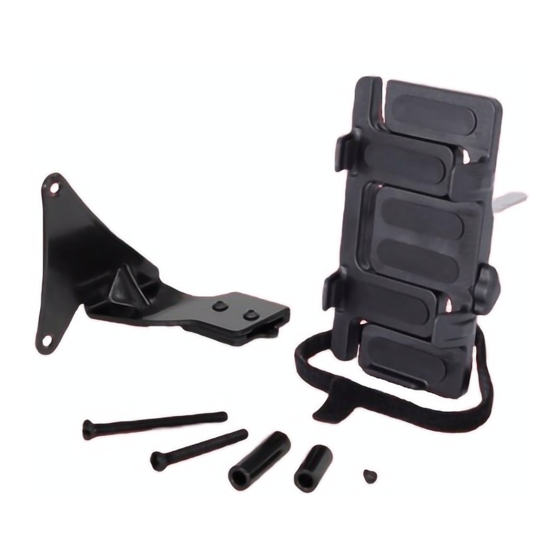

PART NO. 52-948BK
FITMENT: HONDA GOLDWING/GOLDWING TOUR DCT 2018-NEWER
PHILLIPS SCREWDRIVER REMOVABLE THREAD LOCK
LEFT SIDE PHONE HOLDER
