Summary of Contents for CDL NANO RO

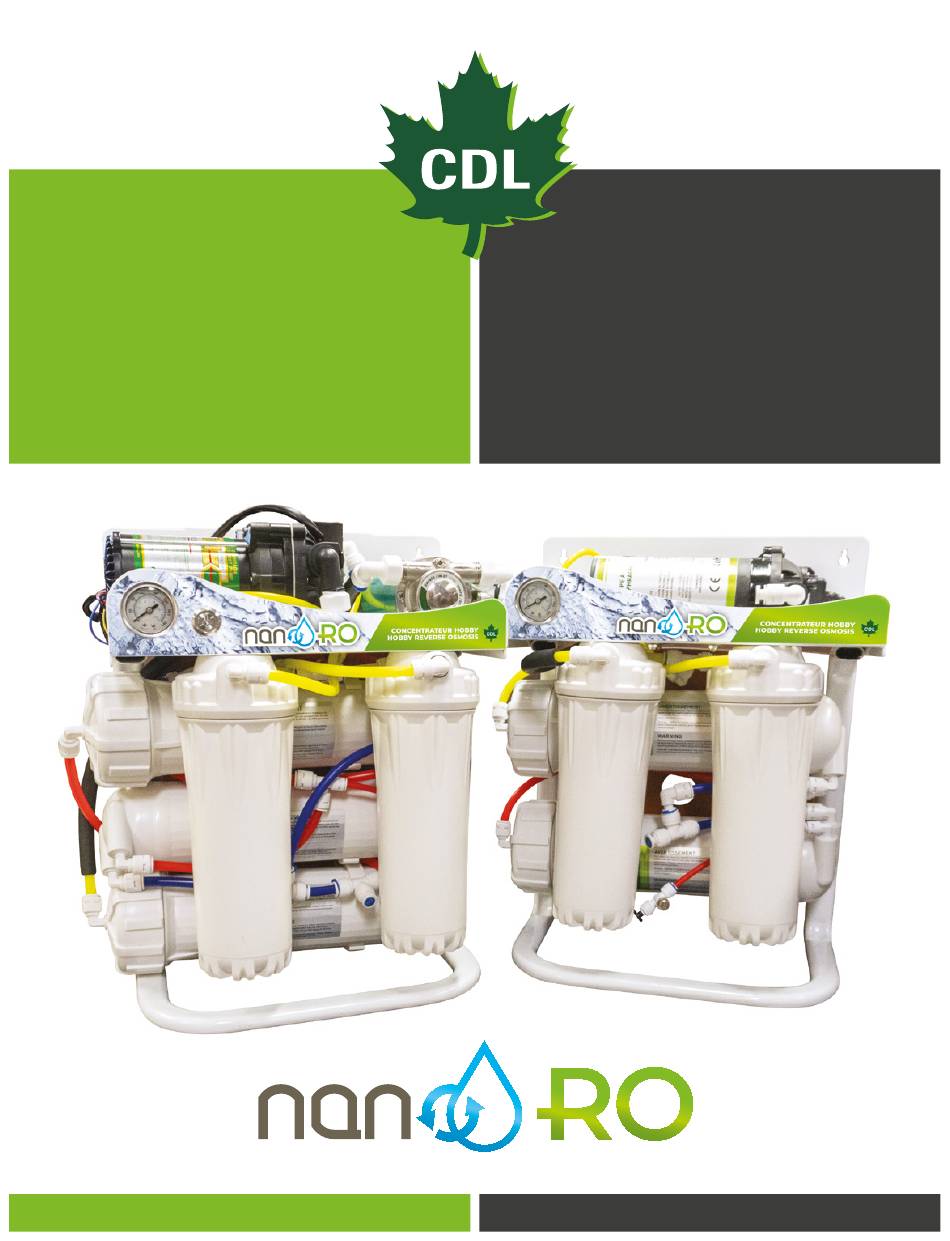

- Page 1 Version 1.0 06/11/2020 NANO RO OWNER’S REVERSE MANUAL OSMOSIS SYSTEM © All rights reserved - CDL Maple Sugaring Equipment...
- Page 2 CDL Sugaring Equipment...
-
Page 3: Table Of Contents
TABLE OF CONTENT INTRODUCTION CHARACTERISTICS PARTS PRODUCT DESIGN TECHNICAL SPECIFICATIONS FITTINGS FLOW DIAGRAM RINSE WASH DRAIN CONCENTRATION (1 PASS) CONCENTRATION (BATCH) HOW TO REPLACE FILTRATION CARTRIDGES HOW TO INSTALL MEMBRANES DAILY MEMBRANE CLEANING PROTECT FROM FREEZING IMPORTANT NOTES LONG-TERM STORAGE PROCEDURE WATER QUALITY GUIDELINES WARRANTY CDL Sugaring Equipment... -
Page 4: Introduction
INTRODUCTION Thank you for choosing our Nano RO 2- or 3-membrane system. Please read this manual carefully before installation and start-up. The CDL 2- or 3-membrane Nano RO is a simple and effective tool for maple and birch sap concentration. Its three-stage prefiltration removes impurities like suspended solids and larger organic matter to better protect membranes and improve overall system performance. Remarks and instructions 1. Read the instructions before installing and operating the RO system. -
Page 5: Characteristics
tube on the recirculation circuit and 1/4” red on the concentrate outlet). • Stage 5: A regulating valve on the 1/4” concentrate outlet (red tube) increases and reduces the pressure and controls the level of concentration. Maximum operating pressure: 100 psi (70 psi on 2-membrane system). Recirculation pump: The 3-membrane Nano RO is equipped with a unique recirculation pump for better performance. By creating more cross flow on the membrane surface, the permeate flow remains steady and the system achieves higher concentration. CDL Sugaring Equipment... -
Page 6: Parts
PARTS Filter Housing Cap O-ring Filter Housing PP Filter 600 gal 600 GPD RO Membrane 66821001 660600 Filter Housing Wrench Membrane Housing Wrench 1/4" - 3/8" Tube Cleaning products (not included) Organic membrane soap Citric acid1 kg (powder) ”Superflow green” 1 kg (powder) 3/8" Feed Line Strainer 66994 662403 CDL Sugaring Equipment... -
Page 7: Product Design
PRODUCT DESIGN DESCRIPTION DESCRIPTION 800 gal 36 V Pump 3213 Membrane Housing Pressure Gauge Recirculation Pump On-Off Button Flow Switch 5 Micron PP Filter Housing Feed Port CDL Sugaring Equipment... -
Page 8: Technical Specifications
• Tool for pre-filter housing • Tool for membrane housing • Tool for membrane housing • 12’ 3/8" suction tubing • 12’ 3/8" suction tubing with strainer (yellow) with strainer (yellow) • 12’ 3/8" permeate • 12’ 3/8" permeate tubing (blue) tubing (blue) • 12’ 1/4" concentrate • 12’ 1/4" concentrate tubing (red) tubing (red) • Spare fitting kit • Spare fitting kit • Spare O-ring kit • Spare O-ring kit Sap temperature 42 °F, 2 Brix, Sap temperature 42°F, 2 Brix, Test conditions: 50/50 water reduction, 70 psi 65/35 water reduction, 100 psi CDL Sugaring Equipment... -
Page 9: Fittings
ELBOW 3/8” X 3/8” TUBE-MIPT 664658 10 ELBOW 3/8” X 3/8” TUBE-STEM 664659 TEE 3/8” X 3/8” X 3/8” TUBE 664666 11 ELBOW 1/4” X 1/4” TUBE-STEM 664660 TEE 3/8” X 3/8” X 1/4” TUBE 664665 12 TEE 3/8” X 1/4” X 3/8” TUBE 664664 ADAPTATOR 3/8” X 1/2” 13 ADAPTATER 3/8” X 1/2” 664652 664651 TUBE-MIPT TUBE-FIPT ADAPTATOR 1/4” X 1/8” 14 SPRING CHECK VALVE 664653 664663 TUBE-FIPT 3/8” TUBE 15 MANOMETER VALVE 1/4” TUBE 664667 664662 0-140 PSI - 1/8” MIPT CAP 1/4” TUBE 664655 CDL Sugaring Equipment... -
Page 10: Flow Diagram
Concentrate 1/4" Tube 3/8" Tube 3/8" Tube 3/8" Tube 3/8" Tube CDL Sugaring Equipment... - Page 11 Concentrate 1/4" Tube 3/8" Tube 3/8" Tube 3/8" Tube 3/8" Tube 3/8" Tube CDL Sugaring Equipment...
-
Page 12: Rinse
CDL Sugaring Equipment... -
Page 13: Wash
CDL Sugaring Equipment... -
Page 14: Drain
CDL Sugaring Equipment... -
Page 15: Concentration (1 Pass)
CDL Sugaring Equipment... -
Page 16: Concentration (Batch)
CDL Sugaring Equipment... -
Page 17: How To Replace Filtration Cartridges
HOW TO REPLACE FILTRATION CARTRIDGES 1. Unscrew the cartridge housing. 2. Remove the old cartridge. 3. Insert the new cartridge into the housing. 4. Lubricate the transparent gasket lightly with silicone grease. Make sure the gasket is still in place. 5. Make sure that the cartridge is centred in the housing. Screw the housing into place. HOW TO INSTALL MEMBRANES 1. Unscrew the cover from the housing. 2. Remove the old membrane. 3. Lightly lubricate all O-rings and casing seals with silicone-based food-grade grease. Insert the new membrane fully into the housing. 4. Make sure the membrane seal is on the cover side. 5. Screw the cover onto the housing. CDL Sugaring Equipment... -
Page 18: Daily Membrane Cleaning
into the wash solution bucket. • Open the concentrate control valve. • Run the equipment in a closed loop into the wash solution bucket for 30 minutes. • Once the wash is finished, flush the solution to drain. • Repeat the wash if the wash solution is coloured or cloudy. • Rinse the equipment with no less than 10 to 15 gallons of clean permeate PROTECT FROM FREEZING • Protect the equipment from freezing during temporary storage. • If the equipment must remain in a cold place, remove the filters and drain the equipment properly. Reinstall filter housing and run the pump dry for a few minutes. This will partially remove water from the system and prevent frost damage to the pumps and other parts. • Make sure there is no water remaining in the equipment and lines. • The equipment may need to be thawed with warm water when it’s ready to be used again. • Make sure that all pumps are ice-free before using the equipment. Small pieces of ice may damage the pumps. Thaw the pumps with a hair dryer or by pouring warm water over them. IMPORTANT NOTES • It is always best to keep the equipment in an area that is above freezing temperature. • If the equipment is moved through freezing weather, make sure it is drained properly before exposing it to cold temperature. CDL Sugaring Equipment... -
Page 19: Long-Term Storage Procedure
R un the equipment in a closed loop for 1 hour or more, allow soaking overnight. If the water is cloudy, wash the system with CDL Super Flow Green, then rinse. 4. Storage solution Y ou may leave membranes in the unit for storage as long the unit is protected from frost. Citric acid is a good preservative that prevents bacteria from developing in the system. Add 1/4 cup of CDL citric acid to a 5-gallon bucket of permeate, then run the RO in a closed loop for ½ hour to allow proper mixing. To prevent leaks, disconnect the suction (yellow concentrate (red ), and permeate (blue ) tubes and insert the provided plugs in the ... -
Page 20: Water Quality Guidelines
CONTAMINANT REQUIREMENT Iron < 0.05ppm Manganese < 0.02ppm Silicate < 5ppm Aluminum < 0.05ppm Hardness < 85ppm Particles < 5μm Turbidity < 1NTU Important note: When possible, RO permeate is always preferred for washing and rinsing membranes. CDL Sugaring Equipment... -
Page 21: Warranty
WARRANTY Nano RO CDL Limited Warranty This CDL product is offered with a limited warranty against any manufacturing defects. Breakages related to wear, abuse, poor maintenance or abnormal use are not covered. This warranty will not cover products whose installations do not comply with the installation instructions in the CDL manual and whose use has been made under abnormal mechanical or environmental conditions. Filters and membranes are not covered by this warranty. Parts found to be defective are subject to inspection by CDL which will confirm or deny that said product is subject to a manufacturing defect. If so, the product will be replaced or repaired at CDL's sole discretion. Transport costs and all other freight charges associated with replacing or repairing products shipped to CDL's factory must be prepaid by Customer. CDL Maple Sugaring Equipment CDL USA 257 route 279 3 Lemnah Drive Saint-Lazare-de-Bellechasse, QC G0R 3J0 St. Albans VT 05478 Canada United States 418-883-5158 | 1-800-361-5158 802-527-0000 | 1-800-762-5587 cdlinc.ca cdlusa.com CDL Sugaring Equipment... - Page 22 NOTES CDL Sugaring Equipment...
