- Page 1 Single Camera Live Streaming Solution 500786 User Manual 94-000955-A / SE-000955-A Page 1...
-
Page 2: Table Of Contents
Table of Contents Product Overview ....................3 Installation......................4 Using the MuxStream App ..................6 3.1 Configuring the App .................... 6 3.1.1 Creating an account..................6 3.1.2 Auto discover and configure your kit............7 3.2 Control interface ....................8 3.2.1 Broadcast tab .................... -
Page 3: Product Overview

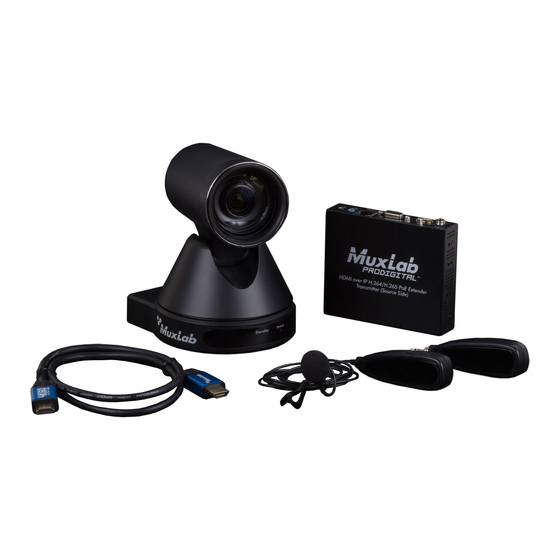

Wireless Lavalier Microphone, an intuitive control application (MuxStream App) to manage the system, and a 6.6ft (2m) Premium Certified HDMI 2.0 cable. The MuxLab MuxStream Control App is free to download from the MuxLab website (for Windows PC), and from the iOS and Android App Stores (for tablet and smartphone). -
Page 4: Installation
2 Installation 1. Please validate that you received all contents listed below. 2. Download the MuxStream App. 3. Make sure you have an internet connection. 4. Connect the Camera to the Streamer/Transmitter. 94-000955-A / SE-000955-A Page 4... - Page 5 5. Connect the Mic Wireless Receiver to the Streamer/Transmitter. 6. Connect the Camera to your Router. 7. Connect the Streamer/Transmitter to your Router. 8. Power On all devices. 94-000955-A / SE-000955-A Page 5...
-
Page 6: Using The Muxstream App
9. Open the MuxStream App. 3 Using the MuxStream App 3.1 Configuring the App 3.1.1 Creating an account If this is the first time you are running the MuxStream App, a new user must be created, see figure below. To create a new user, following these steps: 1. -
Page 7: Auto Discover And Configure Your Kit
3.1.2 Auto discover and configure your kit. After creating an account, the application will search for and discover the devices on the network (PTZ Camera and Streamer/Transmitter) and will configure them automatically. Once the application has configured the devices, click the "Next" button to begin (See figure below). -
Page 8: Control Interface
To start using the application, the user must enter their email address and password and then press the “Sign in” button. your@email.com After pressing the "Sign in" button, the system control interface will start automatically. 3.2 Control interface Once logged in, the User can see three main tabs: Broadcast, Create Stream and Settings. -
Page 9: Broadcast Tab
3.2.1 Broadcast tab When the "Broadcast" tab is selected, the application displays the camera preview in the center of the window and allows you to control the different PTZ options for the camera, mic volume, and pre-sets by selecting the icon on the right-side of the window. -
Page 10: Settings Tab
Multiple Presets may be created, each recording the current pan/tilt/zoom and mic volume settings at the time they are saved. Saved Presets may be recalled by simply pressing on a given Preset button. To create a Preset, press on "+ PRESET" and a new pop-up window will appear to allow the user to enter the necessary data. -
Page 11: Create Stream Tab
1. Language: The user can select the MuxStream language. Simply select the language from the list provided. 2. App Version: The user can see the current MuxStream App version. 3. Auto-Discover: By pressing the "AUTO-DISCOVER" button the App will automatically re-detect the Streamer/Transmitter and Camera that are connected in the network. - Page 12 In the "Settings" section the user can modify different parameters such as: Resolution, Bitrate, FPS, GOP and Encoding method. It should be noted that the App for each service shown in the list will give default values for these parameters, these defaults are recommended values for the Streaming service selected, but the user can change them at any time according to their needs.
- Page 13 When the creation of an RTMP Stream is complete, a pop-up window will appear to confirm whether you want to start streaming now or later. Once the creation of at least one RTMP Stream is complete, a "Start Stream" tab will appear. 2.
- Page 14 Note: For each RTSP Streaming service that is listed, the App displays a guide on how to enter the "RTSP URL" In the "Settings" section the user can modify different parameters such as: Resolution, Bitrate, FPS, GOP and Encoding method. It should be noted that the App for each service shown in the list will give default values for these parameters, these defaults are recommended values for the Streaming service selected, but the user can change them at...
-
Page 15: Start Streaming Tab
When the creation of an RTSP Stream is complete, a pop-up window will appear to confirm whether you want to start streaming now or later. Once the creation of at least one RTSP Stream is complete, a "Start Stream" tab will appear. 3.2.4 Start Streaming tab By clicking on the 'Start Streaming' button, the application shows the list of streams created and allows the user to edit, delete or start a transmission. - Page 16 Click the arrow to start streaming. After clicking the arrow, a popup window reminds you to check if the broadcast service is transmitting. Click the "GOT IT" button if the transmission works fine. Click here after verify that the broadcast service is also streaming.
-
Page 17: Troubleshooting
4 Troubleshooting The following table describes some of the symptoms and possible solutions regarding the MuxStream App. symptom Probable cause Possible solution • The Transmitter is No Streamer/Transmitter Check that the network found. cable is properly not connected to connected to the the network. - Page 18 MuxLab Inc. 2321 Rue Cohen Montreal, Quebec Canada H4R 2N7 Tel.: +1 (514) 905-0588 Fax: +1 (514) 905-0589 Toll Free (North America): 877 689-5228 URL: www.muxlab.com E-mail: info@muxlab.com 94-000955-A / SE-000955-A Page 18...
