FREEDOM FR001 & FR002
INSTRUCTION MANUAL
IMPORTANT SAFETY
Version:210212

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Freedom FR001 and is the answer not in the manual?

Questions and answers

Summary of Contents for CMS Freedom FR001

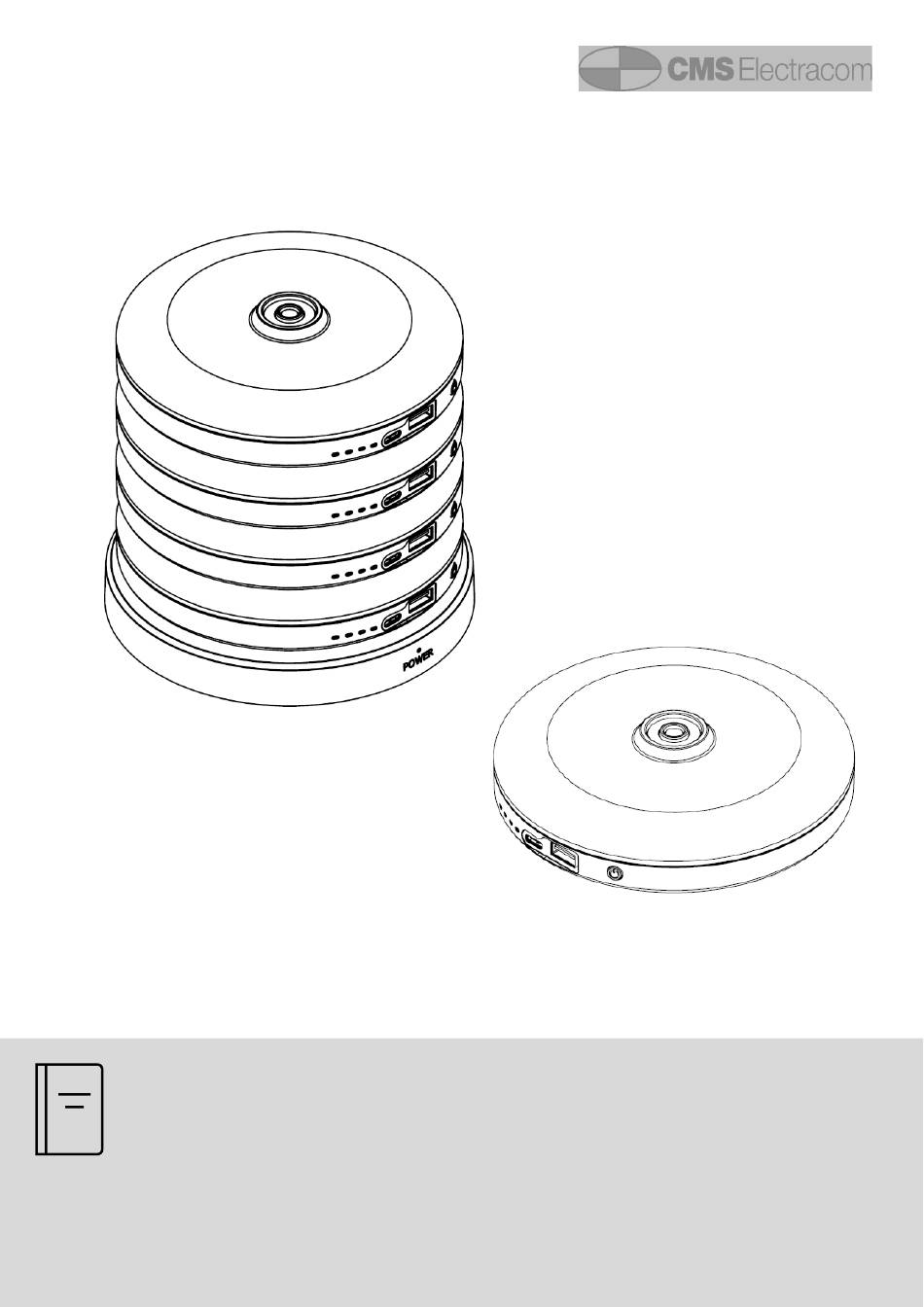

  • Page 1 FREEDOM FR001 & FR002 INSTRUCTION MANUAL IMPORTANT SAFETY Version:210212...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS CAUTION This symbol indicates information on how to avoid damaging the unit. WARNING IMPORTANT This symbol indicates information This symbol indicats tips and information concerning your personal safety. about seting up FR002 (Charging Base). CAUTION / WARNING Read all instructions before using the product.

  • Page 3: Table Of Contents

    Contents Specification FR002 Specification…………………………..….….3 Model: FR002 Power Input: 20V/7.5A Product Overview Power output: 19.5V/7.5A FR001…………………………………….…..3 Dimensions: 145mm diameter x 21.5mm tall FR002…………………………………….…..4 Weight: 0.34KG Packaging content: 1 x FR002, 1 x AC Power Cord, 1 x Power Supply (20V/7.5A) Setting up FR002 ……………………...…..4 Product Overview –...

  • Page 4: Fr002

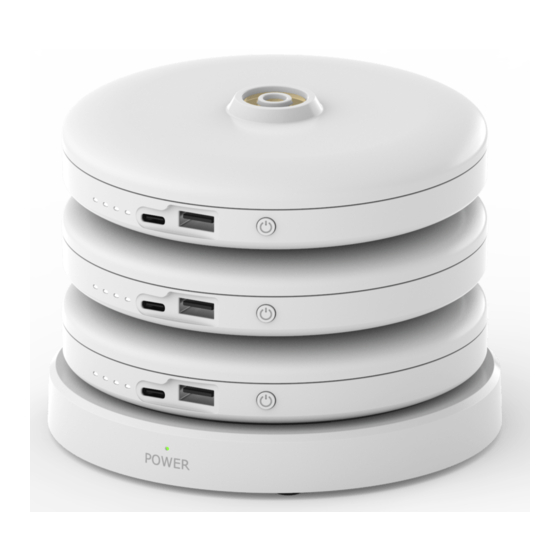

    Product Overview – FR002 Setting Up & Recharging FR001 IMPORTANT Setting up Power Out Contact Rings Power Supply Power Indicator D.C. Jack – Power In Setting Up FR002 To recharge the power bank, place it onto the dedicated charging base (FR002). The power bank will be recharged via the contact pins on the base of each unit.

  • Page 5: Using The Power Bank

    Using the Power Bank Moving & Storage Instructions can recharge any USB C or USB A FR001 compatible device(s). Simply plug in the device and press the power button on freedom to turn it on. Four white LED’s will illuminate. Important - Long Term Storage When storing FR001 for extended periods of time you MUST discharge and recharge the...

  • Page 6: Troubleshooting

    Troubleshooting Issue Cause Solution The over-current protection is activated Remove the over-loading device during discharging. All four LEDs flashing The Unit stopped charging as the simultaneous The over-temperature protection is device operating temperature has been activated during charging. exceeded. The firmware is shutdown. press the reset button.

This manual is also suitable for:

Freedom fr002
