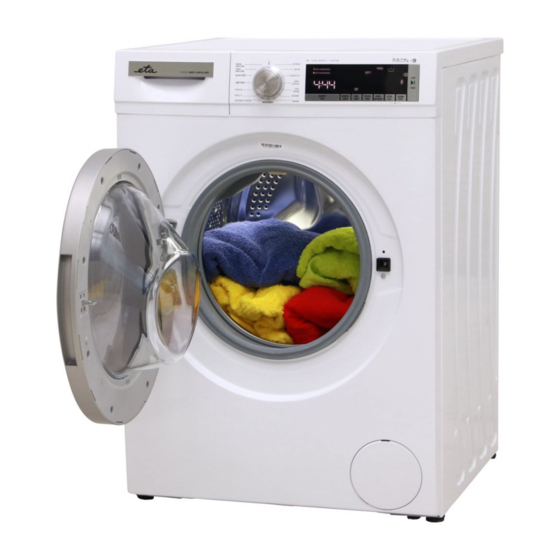

eta 055590000 User Manual

Hide thumbs

Advertisement

Quick Links

USER MANUAL
GB
3-42
Washer Dryer •
9/9/2020

Advertisement

loading

Summary of Contents for eta 055590000

  • Page 1 USER MANUAL 3-42 Washer Dryer • 9/9/2020...

  • Page 2: Table Of Contents

    1. SAFETY INSTRUCTIONS 2. TECHNICAL SPECIFICATIONS 3. INSTALLATION 4. CONTROL PANEL OVERVIEW 5. USING YOUR WASHING MACHINE 6. PROGRAMME TABLE 7. CLEANING AND MAINTENANCE 8. TROUBLESHOOTING 9. AUTOMATIC FAULT WARNINGS AND WHAT TO DO...
  • Page 3 Washer Dryer 055590000 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

  • Page 4: 1. Safety Instructions

    1. SAFETY INSTRUCTIONS Operating voltage / frequency (220 – 240) V~ / 50 Hz Total current (A) Water pressure (Mpa) Maximum 1 Mpa / Minimum 0.1 Mpa Total power (W) 2200 Maximum washing capacity (dry laundry) (kg) Maximum drying capacity (kg) •...
  • Page 5 NOTE: If you want to keep this manual in electronic form, you can find it for download at www.eta.cz. Read this user manual carefully. Your machine is for domestic use only. Using it for commercial purposes will cause your warranty to be cancelled.
  • Page 6 • Unplug your Washing Machine and switch off the water supply if the Washing Machine is left unused for a long time. We also recommend that you leave the door open to prevent build up of humidity inside the Washing Machine. •...
  • Page 7 • Washing laundry containing flour may damage your machine. • Please follow the manufacturers’ instructions regarding the use of fabric conditioner or any similar products that you intend to use in your Washing Machine. • Make sure that the door of your Washing Machine is not restricted and can be opened fully.
  • Page 8 Read these warnings. Follow the advice given to protect yourself and others from risks and fatal injuries. RISK OF BURNS Do not touch the drain hose or any discharged water while your Washing Machine is running. The high temperatures involved pose a burn risk. RISK OF DEATH FROM ELECTRICAL CURRENT •...
  • Page 9 Risk of flooding • Check the speed of water flow before placing the drain hose in a sink. • Take necessary measures to prevent the hose from slipping. • Water flow may dislodge the hose if it is not properly secured. Make sure the plug in your sink does not block the plug hole.
  • Page 10 * Laundry which has been cleaned with industrial chemicals. * Laundry that has a high amount of sponge, foam, rubber or rubber-like parts and accessories. * Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the drying process of the appliance.
  • Page 11 • Do not lift your Washing Machine using the door or detergent drawer. The machine must be carried by at least 2 people. Child safety • Do not leave children unattended near the machine. Children might lock themselves in the machine resulting in risk of death.
  • Page 12 • Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void. • This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of...
  • Page 13 • Please do not throw away this user manual; keep it for future reference and pass it onto the next owner. NOTE: Specifications for the machine may vary depending on the product purchased. 1.3 Packaging and Environment Removal of packaging materials Packaging materials protect your machine from any damage that might occur during transportation.
  • Page 14 1.5 Twinjet system Detergent water in your machine will be circulated with 2 water injection mechanisms and a mixing system via twinjet system. Circulated detergent water will be injected over your laundries, which allows a better washing performance. Twinjet system will help you wash higher amount of laundries in a shorter time with a better washing performance, guaranteeing less energy and water consumption.

  • Page 15: Technical Specifications

    2.2 Technical Specifications 2. TECHNICAL SPECIFICATIONS Maximum washing capacity (dry laundry) (kg) * Maximum drying capacity (kg) Spin speed (rpm) 1400 Number of programmes Operation voltage / 220 – 240 / 50 Frequency (V/Hz) Maximum: 1 Water pressure (MPa) Minimum: 0,1 Dimensions (HxWxD) 845 x 597 x 582 (mm)
  • Page 16 Loosen the transit bolts by turning them • You can level your machine using the anticlockwise with an appropriate spanner. adjustable feet. Remove the transit bolts with a straight • Loosen the plastic locking nut. pull. Fit the plastic blanking caps supplied in the accessories bag into the gaps left by the removal of the transit bolts.
  • Page 17 • Your Washing Machine requires Connect new water inlet hoses a 220-240V, 50 mains supply. to a ¾ ˝, threaded tap. • The mains cord of your washing machine • Connect the white capped end of the is equipped with an earthed plug. This water inlet hose to the white water plug should always be inserted to an inlet valve on the rear side of the...

  • Page 18: Control Panel Overview

    • Never attempt to extend the water drain hose. • Do not put the water drain hose from your machine into a container, bucket or bathtub. • Make sure that the water drain hose is not bent, buckled, crushed or extended.
  • Page 19 Fabric conditioner, starch, • To select the desired programme, turn the programme dial either clockwise or detergent compartment: anti-clockwise until the marker on the programme dial points to the chosen programme. • Make sure that the programme dial is set exactly to the programme you want.

  • Page 20: Using Your Washing Machine

    Close zips and fasten any hooks and USING YOUR WASHING MACHINE eyes. 5.1 Preparing Your Laundry Remove the metallic or plastic hooks of curtains or place them in a washing net or bag. Reverse textiles such as pants, knitwear, t-shirts and sweat shirts. Wash socks, handkerchiefs and other small items in a washing net.
  • Page 21 • Open the door of your machine. • If your clothes are only slightly soiled, • Spread your laundry evenly in the do not pre-wash. Put a small amount machine. of detergent (as specified by the manufacturer) into compartment II of NOTE: Take care not to exceed the detergent drawer.
  • Page 22 Turn on the water supply. • If the symbol of the auxiliary function • Open the machine door. is flashing in the electronic display, the • Evenly spread your laundry in the selected auxiliary function will not be machine. enabled. •...
  • Page 23 NOTE: After selecting the delay • Cupboard dry „ “: 305 min.: function, you can select other functions Recommended for laundry that will be without touching the “Start/Pause” key, folded and put into a wardrobe at the and then you can touch the “Start/ end of the programme.
  • Page 24 Duration Drying Programmes Amount of laundry Recommended to dry drying time 1,0 kg 30 minutes 2,0 kg 60 minutes 3,0 kg 90 minutes 3,5 kg 120 minutes If the amount of laundry to be dried is above 3.5kg, we recommend that you select Cupboard, Hanger or Iron Drying.
  • Page 25 SELECTABLE/ DRYING FACTORY PROGRAMME SELECTABLE OPTIONS PROFILE PRESET SELECTABLE EKO 40-60 COTTON Option 1 Option 2 Option 3 (ECO 40-60) BAVLNA COTTON Option 1 Option 2 Option 3 (COTTON) BAVLNA 20 °C COTTON Option 1 Option 2 (COTTON 20 °C) SPORT/ SYNTETIKA GENTLE...
  • Page 26 Selectable drying duration levels EKO 40-60 (ECO 40-60) BAVLNA (COTTON) BAVLNA 20 °C (COTTON 20 °C) SPORT/ SYNTETIKA (SPORT/ SYNTHETICS) VLNA/HEDVÁBÍ (WOOL/SILK) LŮŽKOVINY (DUVET) MÁCHÁNÍ (RINSE) ANTIALERGICKÝ (ALLERGY SAFE) ODSTŘEDĚNÍ/VYPUŠ- TĚNÍ (SPIN/DRAIN) RYCHLÝ 12' (RAPID 12') RYCHLÝ 60’ (RAPID 60') JEMNÉ...
  • Page 27 4. Selecting the washing water If you have skipped the spin speed you wanted to set, you can keep pressing the spin temperature speed key to find the desired speed again. 5.8 Auxiliary functions You can use the washing water temperature setting key to set the temperature of the washing water for your laundry.
  • Page 28 2. Extra rinse auxiliary 4. Anti-allergy auxiliary function function You can use this auxiliary function for extra You can use this auxiliary function to add rinsing on your laundry. To enable the extra another rinse cycle for your laundry. Your rinse function, keep pressing the options machine will use hot water in all rinsing key until the extra rinse symbol...
  • Page 29 5.9 Child Lock Quick Wash auxiliary function: If you select this auxiliary function, your machine will shorten the duration of the The Child Lock function allows you to lock washing program. (It is recommended to load the buttons so that the wash cycle you have the machine with half or less than half of the chosen cannot be changed unintentionally.
  • Page 30 • Touch symbol button for this. If displayed on the screen, you can open the loading door and add laundry. • is displayed on the screen, the step where you can add laundry has passed. • If you want to cancel a running program, turn the program knob to position.

  • Page 31: Programme Table

    6. PROGRAMME TABLE EKO 40-60 BAVLNA 20 °C Programme BAVLNA (COTTON) (ECO 40-60) (COTTON 20 °C) Selectable washing 40*-60 60*-90-60-40 20*-Cold temperatures (°C) * Maximum washing/drying 9,0 / 6,0 9,0 / 6,0 4,5 / 4,5 capacity (kg) Selectable spin (No spin), 400, 600, (No spin), 400, 600, (No spin), 400, 600, speed (rev / min)
  • Page 32 Do not dry towels, cotton and linens, and synthetic and sythetic mix clothes together. For drying select the most appropriate drying program for the clothes. ODSTŘEDĚNÍ/ ANTIALERGICKÝ Programme MÁCHÁNÍ (RINSE) VYPUŠTĚNÍ (ALLERGY SAFE) (SPIN/DRAIN) Selectable washing Cold* 60*-40-30-Cold Cold* temperatures (°C) * Maximum washing/drying 9,0 / 6,0...
  • Page 33 RYCHLÉ PRANÍ BAVLNA PRANÍ BAVLNA SUŠENÍ Programme A SUŠENÍ A SUŠENÍ (COTTON DRY) (QUICK WASH & DRY) (COTTON WASH & DRY) Selectable 40*-90-60-40-30 washing 30*-Cold -Cold temperatures (°C) * Maximum 0,5 kg (3 shirts) (33 washing/drying minutes) capacity (kg) Selectable spin 800* 1400* speed (rev / min)
  • Page 34 • For household washer-dryers; the wash and dry cycle is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle, and to dry it in such a way that it can be immediately stored in a cupboard, and that this programme is used to assess the compliance with the EU ecodesign legislation.
  • Page 35 Energy Programme Water max. Remaining Consumption Duration Consumption Temperature Moisture Content kWh/cycle Hours:Minutes Litres/Cycle °C % 1400 Rpm 2,18 3:21 0,96 3:21 1,064 0,497 0,192 3:49 2:54 2:54 0,72 1:50 0,80 1:00 0,22 1:43 4,63 2,46 9:00 5:00 35 / 42...
  • Page 36 6.1 Important Informations • Use detergents, softeners and other additives suitable for automatic washing machinesonly. Excessive foam has occurred and automatic foam absorption system has been activated due to too much detergent usage. • We recommend that periodic cleaning for washing machine every 2 months.
  • Page 37 7.2 Water Inlet Filters CLEANING AND MAINTENANCE Water inlet filters prevent dirt and foreign 7.1 Warning materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive sufficient water, although your water supply is on and the tap is open.
  • Page 38 7.3 Pump Filter Remove any foreign materials from the filter with a soft brush. After cleaning, re-fit the filter by inserting it and turning clockwise. When closing the pump cover, ensure that the mountings inside the cover meet the holes on the front panel side. Close the filter cover.
  • Page 39 Liquid detergent apparatus (*) For the cleaning and maintenance of the liquid level detergent apparatus, remove the apparatus from its location as shown in the picture below, and thoroughly clean the remaining detergent residues. Replace the apparatus. Make sure that no residual material remains inside the siphon.
  • Page 40 8. TROUBLESHOOTING Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should: • Unplug your machine from the mains power supply. •...
  • Page 41 FAULT POSSIBLE CAUSE TROUBLESHOOTING Press the Start/Pause button. To stop the foam, dilute one tablespoon of softener into 1/2 Excessive amount of litre of water and pour into the detergent used. Excessive foam detergent drawer. Press the is formed in the Start/Pause button after 5-10 detergent drawer.
  • Page 42 Turn off the tap and contact the nearest authorised service agent. (*) See the chapter regarding maintenance and cleaning of your machine. We reserve the right to change technical specifications. For any further information, please write to: info@eta.cz / 42...
  • Page 43 Notes:...
  • Page 44 Adress: ETA a.s. náměstí Práce 2523 760 01 Zlín...
