CustomCrimp HS-150,
HS-300 & HS-500 Hose Saws
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HS-150 and is the answer not in the manual?

Questions and answers

Related Manuals for CustomCrimp HS-150

Summary of Contents for CustomCrimp HS-150

  • Page 1 CustomCrimp HS-150, HS-300 & HS-500 Hose Saws...

  • Page 2: Installation

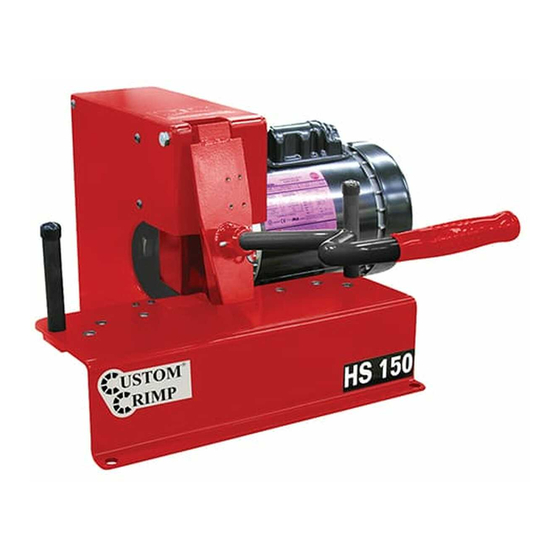

    CustomCrimp ® HS Models The HS150 (1 HP) saw is capable of cutting up to 1-1/4 inch 4 wire hose and up to 1 inch 6 wire hose. The HS300 (3 HP) saw is capable of cutting up to 1-1/4 inch 6 wire or 2 inch 2 wire hose.
  • Page 3 Counter (HS300 & HS500 Models only) A resetable counter makes it easy to keep track of the number of cuts made. Hose Bending Pins Hose Bending Pins prevent the blade from binding during a cut. Pins should be positioned in the holes in the saw table such that the hose opens slightly during the cut.
  • Page 4 Change Saw Blade Remove the 5 screws holding the Side cover in place and remove the side cover. Remove the 2 No 10-24 screws holding the black Saw Blade Access Panel in place and remove the insert in order to provide clearance to remove the blade. Hold the arbor in place with a wrench and remove the nut holding the saw blade.
  • Page 5 Insert Vacuum Adaptor Optional 1 ¼” Vacuum Port located on rear of hose saw. Do not recommend using at the same time as Mister. NOTE: Remove Plastic Plug (A). Insert supplied 1 ¼” Vacuum Adaptor (B) (for 2 ½” shop vac, or vacuum accessories). Run vacuum during cutting process.
  • Page 6 Installation and Set Up of the HS-300 / HS-500 Mister Kit Full Assembly P/N: 103172 The following procedures can be used to install the Mister Kit on the HS 300 and HS 500 models of Custom Crimp ® Hose Saws. Remove the HS-300 / HS-500 Mister Kit from its packaging and verify that all components are properly installed and all fi...
  • Page 7 5 5 5 Step 4. Pour 1 bottle of 4 oz of mister oil into the fi ll port (D). Then thread the Fill Plug back in. 2 bottles of 4 oz of mister oil are included, please note reservoir only holds 4 oz (Mister Oil part number P/N: 104156).
  • Page 8 92620A537 1/4-20 X 1/2 HHS 92230A330 1/4-20 X 1-1/2" HEX STANDOFF 103774 1/4-20 RUBBER VIBRATION FOOT 103127 HS-150/300/500 5/8" MOTOR SHAFT ARBOR 91251A544 1/4-20 X 1 1/4 SHCS 91375A533 1/4-20 X 1/4 SET SCREW 103502 10 INCH SERRATED BLADE 102391...

  • Page 12: Customcrimp "No-Nonsense" Warranty Statement

    326 North Co. Rd 400 East Valparaiso IN 46383 If any product or part manufactured by CustomCrimp is found to be defective by CustomCrimp, at its option, CustomCrimp will either repair or replace the defective part or product and return via ground transportation, freight prepaid. Custom Crimp will not cover any incoming or outgoing freight charges for machines sold outside The United States.
  • Page 13 Custom Crimp ® Custom Machining Services, Inc. 326 N. County Rd. 400 East Valparaiso, IN 46383 Ph: (219) 462-6128 Fax: (219) 464-2773 www.customcrimp.com See the complete line of CustomCrimp ® Crimpers and Accessories at: CustomCrimp www.customcrimp.com (219) 462-6128 ®...

This manual is also suitable for:

Hs-300Hs-500
