- Page 1 Brake Lite Manual www.drzamps.com...
- Page 2 This symbol advises the user to read all accompanying literature for safely operating the unit Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth.

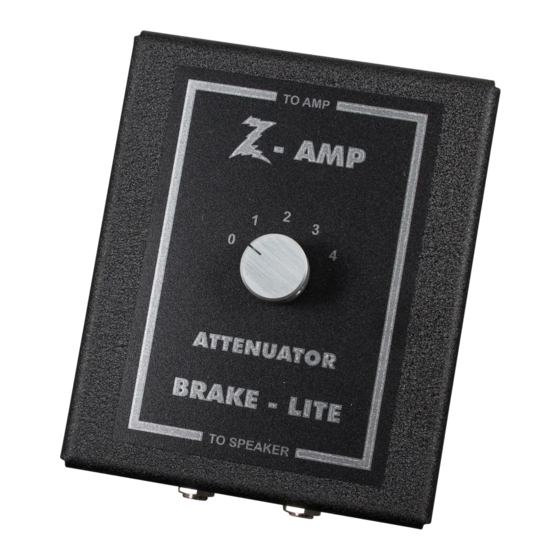

- Page 3 The Brake Lite works with any tube amp up to 45 watts and can be used with 4, 8, or 16, ohm loads. Very simple to install, the Brake Lite mounts with 2 screws and has a hardwired speaker cable to plug into the amp chassis.
- Page 4 Instructions: - Unplug amplifier from the AC outlet. - Remove adhesive backing, mount Brake Lite on the side wall of your combo. You may need to reroute your AC cord for proper clearance. - Use 2 screws (supplied) to secure Brake Lite.
- Page 5 You are able to fine tune the amount of attentuation between positions 1 and 2, and positions 2 and 3 by opening the your Brake Lite up.* Attenuation levels between 0 and 1 and 3 and 4 are fixed settings and can not be adjusted.
- Page 6 *Dr. Z Amplification is not responsible for any damage to your equipment by disassembling your Brake Lite. It is the doctor’s opinion that these adjustments are subtle and stock values were picked for a reason, so if you have any concern with your ability to follow these instructions then it’s best to...
- Page 7 *Dr. Z Amplification is not responsible for any damage to your equipment by disassembling your Brake Lite. It is the doctor’s opinion that these adjustments are subtle and stock values were picked for a reason, so if you have any concern with your ability to follow these instructions then it’s best to...
