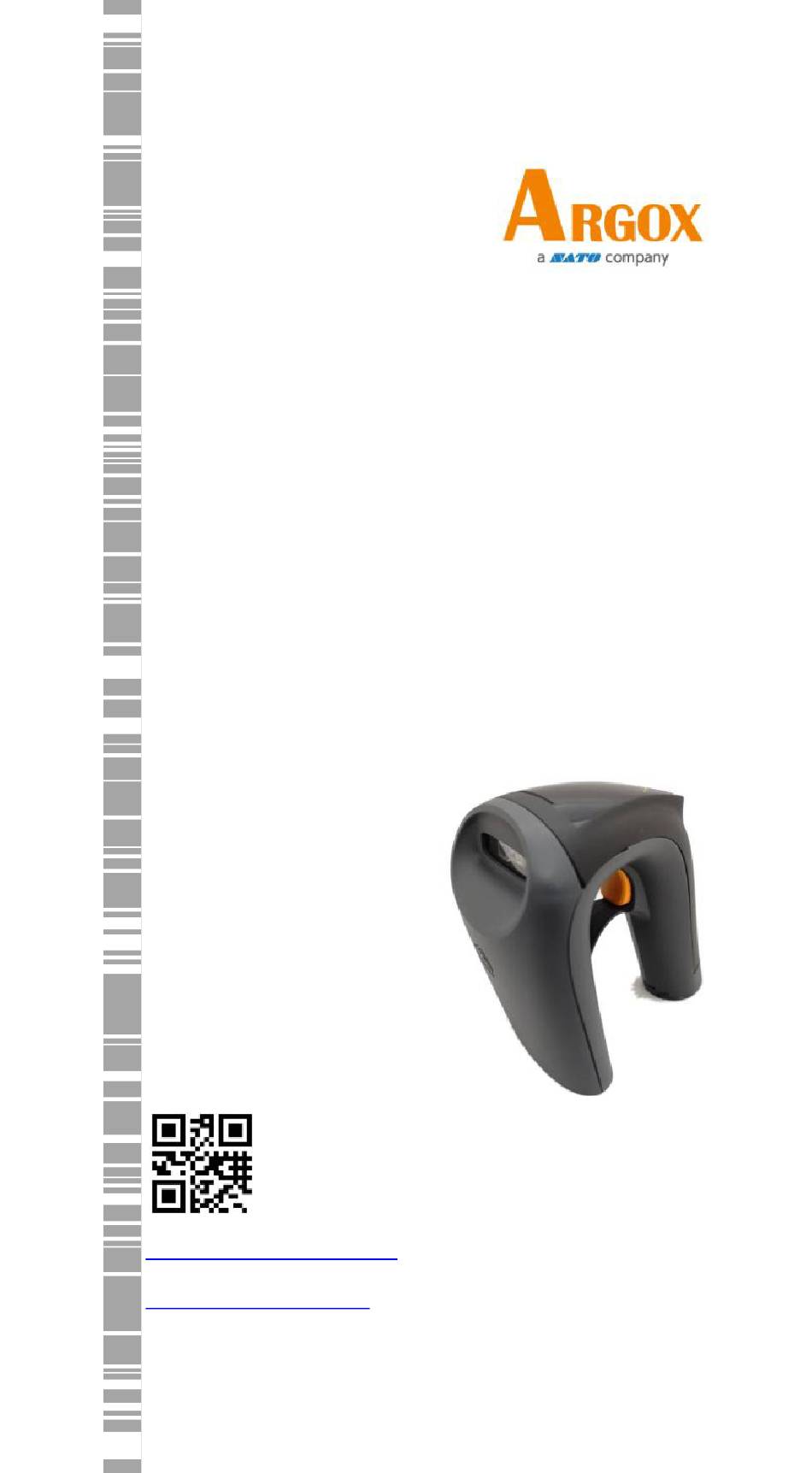

- Page 1 RA-7120 RFID Scanner User Guide http://www.argox.com Version: Draft service@argox.com Date: May 13, 2020...
- Page 2 RA-7120 User Manual Revision History Changes to the user manual are listed below: Version Date Description Page (Ｙ/Ｍ/Ｄ) Draft 2020/4/17...
-
Page 3: About This Manual
RA-7120 User Manual About this Manual This manual explains how to install, operate and maintain the RA-7120 UHF RFID scanner. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission in writing from the manufacturer. -
Page 4: Regulatory Compliance Statements
RA-7120 User Manual Regulatory Compliance Statements FCC Warning Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Canadian Compliance Statement
RA-7120 User Manual RF exposure warning The product complies with the FCC portable RF expo- sure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. -
Page 6: Rohs Statement
用。前述合法通信，指依電信管理法規定作業之無 線電通信 。 低功率射頻器材須忍受合法通信或工業、 科學及醫療用電波輻射性電機設備之干擾。 Laser Information The Argox RA-7120 is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 825-1. Class II and Class 2 products are not considered to be hazardous. -
Page 7: Battery Notices
1.5cm between the radiator and the user's body. Battery Notices The Argox RA-7120 is equipped with a Lithium-Ion Battery Pack. However, because the RA-7120 may not start without an external power source due to... -
Page 8: Battery Charge Notice
RA-7120 User Manual The length of time that a battery power lasts depends on the battery type and how the device is used. Conserve the battery life through the following: Avoid frequent full discharges because this places additional strain on the battery. Several partial discharges with frequent recharges are better than a deep one. -
Page 9: Battery Storage And Safety Notice
RA-7120 User Manual CAUTION! Do not charge batteries at a temperature lower than 0°C, which will increase the internal resistance to cause heat and make the batteries unstable and unsafe. Please use a battery temperature detecting device for a charger to ensure a safe charging temperature range. -
Page 10: Table Of Contents
RA-7120 User Manual Contents ABOUT THIS MANUAL ........... III REGULATORY COMPLIANCE STATEMENTS ....IV FCC W ......... ARNING TATEMENT ......ANADIAN OMPLIANCE TATEMENT ......UROPEAN ONFORMITY TATEMENT HS S ............. TATEMENT ..........ASER NFORMATION BATTERY NOTICES ..........VII .......... ATTERY HARGE OTICE VIII... -
Page 11: Introduction
RA-7120 User Manual Introduction The RA-7120 provides Radio Frequency Identification (UHF RFID), with optional bar code scanning functionality. The unit can be used stand alone or paired with a BT wireless technology enabled host device (such as Android devices). NOTES: Some screens or windows shown in this guide may differ from the actual screens shown on the device. -
Page 12: Ra-7120 Features
RA-7120 User Manual RA-7120 Features Top View Component Description Power Button: Hold and press this button for at least 2 seconds to power on or off the reader. Power Indicator: The indicator stays solid green when the reader is powered ON, while the Power Button / indicator stays solid orange when the Power Indicator /... -
Page 13: Front And Rear Views
RA-7120 User Manual When the reader has a good read, its Barcode Scan LED indicator blinks in green along Indicator with an optional vibration signal. UHF RFID UHF RFID reader emission power high Indicator (Green) / low (Red) LED indication Front and Rear Views Component Description... -
Page 14: Charging The Battery In The Reader
RA-7120 User Manual Charging the Battery in the Reader Before charging, ensure that you follow the guidelines for battery safety. Before using the RA-7120 for the first time, charge the battery until the LED indicator of the power button turns solid green.
