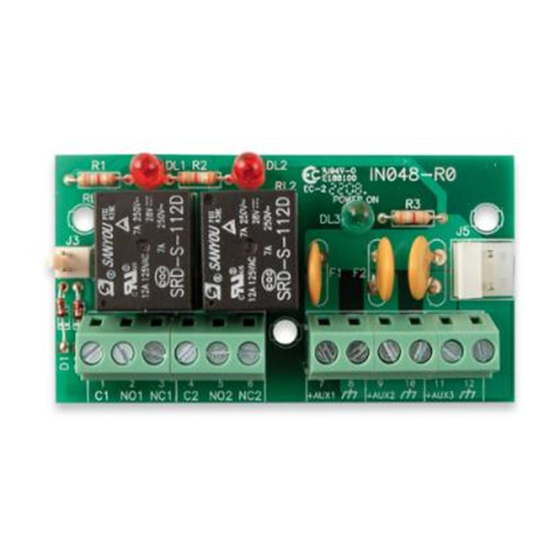

This power distribution board provides:
• 3 pairs of terminals protected by resettable fuses (GND/AUX1 – GND/AUX2 –
GND/AUX3), each able to provide 12V@1A
• 2 relays SPDT (single pole dual terminals), each with voltage-free contact identi-
fied by terminals C1-NO1-NC1 and C2-NO2-NC2.
The AUXREL32 board can be used with SmartLiving 1050L and 10100L control panels
(see the installation and programming manuals provided with the control panels), but it
can be used for other specific pourposes.
The activation of each relay is signaled by the on-board LEDs (see after, [D] for relay
1 and [E] for relay 2).
TECHNICAL SPECIFICATION
Operating temperature range
• AUXREL32 board (IN048)
• 12V power wire
• OC1/OC2 connection wire
• Plastic supports for box mounting (for installation in SmartLiving 1050L e 10100L
cases)
DCMIINIEAUXREL32-R100-20081210
AUXREL32
Power distribution board
Two relay board
Power supply
MAX current
Dimensions
Box contents
Installation Manual
Val.
12 V=
3 A
-5°C / +40°C
42 x 78 mm
1
Advertisement
Table of Contents
Summary of Contents for INIM AUXREL32
- Page 1 • 2 relays SPDT (single pole dual terminals), each with voltage-free contact identi- fied by terminals C1-NO1-NC1 and C2-NO2-NC2. The AUXREL32 board can be used with SmartLiving 1050L and 10100L control panels (see the installation and programming manuals provided with the control panels), but it can be used for other specific pourposes.
- Page 2 4. The free connector of the cable [I] must be connected to a 12V power-supply. Be careful with the polarity: BLACK=GND, RED=12V. INIM Electronics s.r.l. via Fosso Antico, Centobuchi INIM Electronics reserves the right to change 63033, Monteprandone, (AP) Italy the technical specifications of this product with- Tel. +39 0735 70 50 07 out prior notice.
