- Page 1 Digital audio can offer perfect reproduction. If... the implementation is of the highest accuracy. MU1: Your Music Source. For life. Please read this manual before operating the Please read this manual before operating the unit. unit.
-
Page 2: Table Of Contents
Table of Contents 1. Introduction 2. Important Safety Instructions 3. Installing 4. Signal Connections 5. Specifications 6. Grimm Audio Limited Warranty Manual MU1 © Grimm Audio... -
Page 3: Introduction
In this manual you will find all information related to the hardware of your MU1. Since the software of the MU1 is regularly updated, we decided to offer the MU1 software manual only as download. You can find the latest version of the MU1 software manual on the MU1 page of our web site grimmaudio.com. -
Page 4: Important Safety Instructions
Grimm Audio gaat er van uit dat u deze Engelstalige tekst Read these instructions. volledig begrijpt. Als u hier moeite mee heeft dient u contact op te nemen met Grimm Audio. Op verzoek sturen wij u een Keep these instructions. vertaling toe. - Page 5 18. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or 13. Install in accordance with the manufacturer’s moisture. instructions. Manual MU1 © Grimm Audio...
-
Page 6: Installing
MU1 with improper AC wiring or voltage. need to return the MU1 for servicing, you can do so The MU1 has a small power switch on the rear panel. A safely. short press will initiate start-up of the system. Another press will initiate the power-down cycle. -
Page 7: Signal Connections

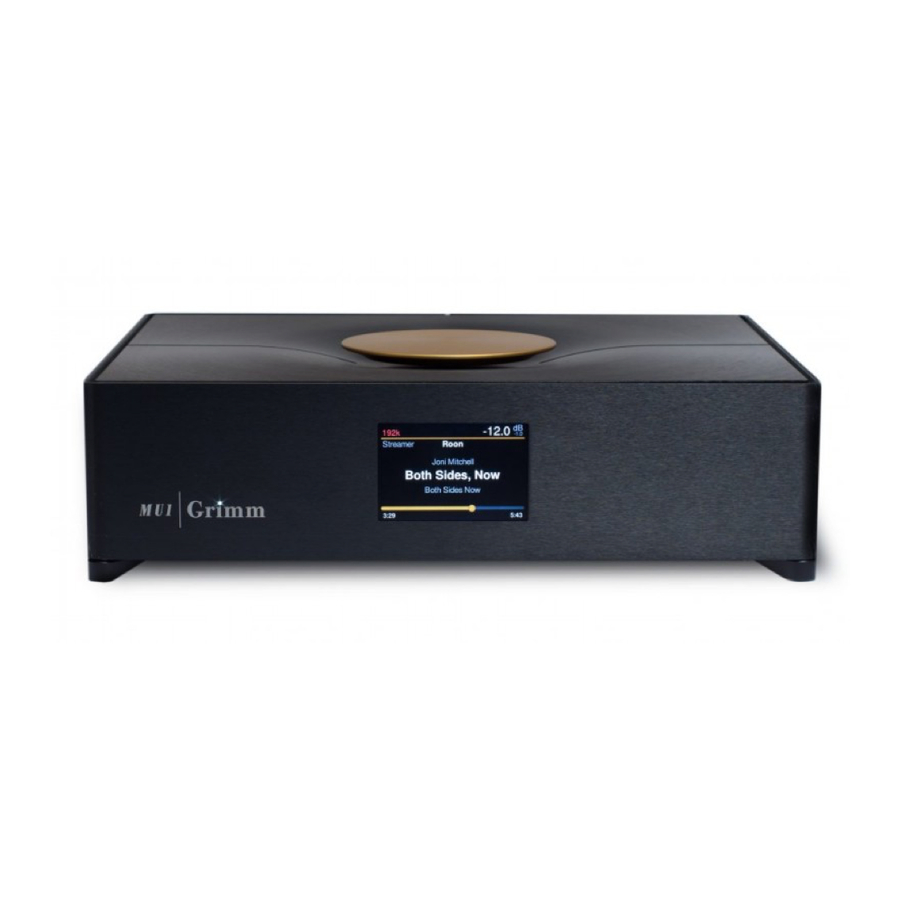

4. Signal Connections Front: On the front you find the MU1 activity LED in the ‘i’ of the Grimm logo. The display shows all user information. Manual MU1 © Grimm Audio... - Page 8 Rear: On the back of the MU1 you find, from left to right: three digital audio outputs (two generic AES3 and one Grimm LS1), three digital audio inputs, an FM cable input , an ethernet network input, 2 USB connections for external storage, a 3.5mm socket for an external IR remote sensor, a small mains power switch and the mains power connector.
- Page 9 Top: The top of the MU1 carries the main control knob. It is used for all user input of the MU1 via turning and pressing. For more information about the control of your MU1, please refer to the MU1 software manual pdf from our web site.
-
Page 10: Specifications
Mains voltage range: 90 – 240 V AC +/- 10% (50 and • The output will mute for 80 ms when changing clock 60 Hz). base rates. • Power factor: > 0.98. • Power consumption: Normal use 17 W, maximum 50 W. Manual MU1 © Grimm Audio... - Page 11 1000 Mb/s Ethernet. • 2x USB 3.0 port. • Internal SSD for OS. • Optional internal SSD for music data storage. Display specifications: • Full colour TFT LCD. • 3.5 inch diagonal. • 480 x 320 pixels Manual MU1 © Grimm Audio...
-
Page 12: Grimm Audio Limited Warranty
All This warranty is linked to the serial number of the authorized returns must be sent to Grimm Audio or an device and can be transferred to second hand owners if authorized Grimm Audio repair facility postage prepaid, they can show their purchase bill. - Page 13 In no event will Grimm Audio be liable for incidental, © 2020, Grimm Audio BV. All rights reserved consequential, indirect or other damages resulting from the breach of any express or implied warranty, Grimm Audio MU1 hardware manual v1.0, 28/10/20...
- Page 14 Grimm Audio BV The Netherlands +31 40 213 1562 info@grimmaudio.com www.grimmaudio.com...
