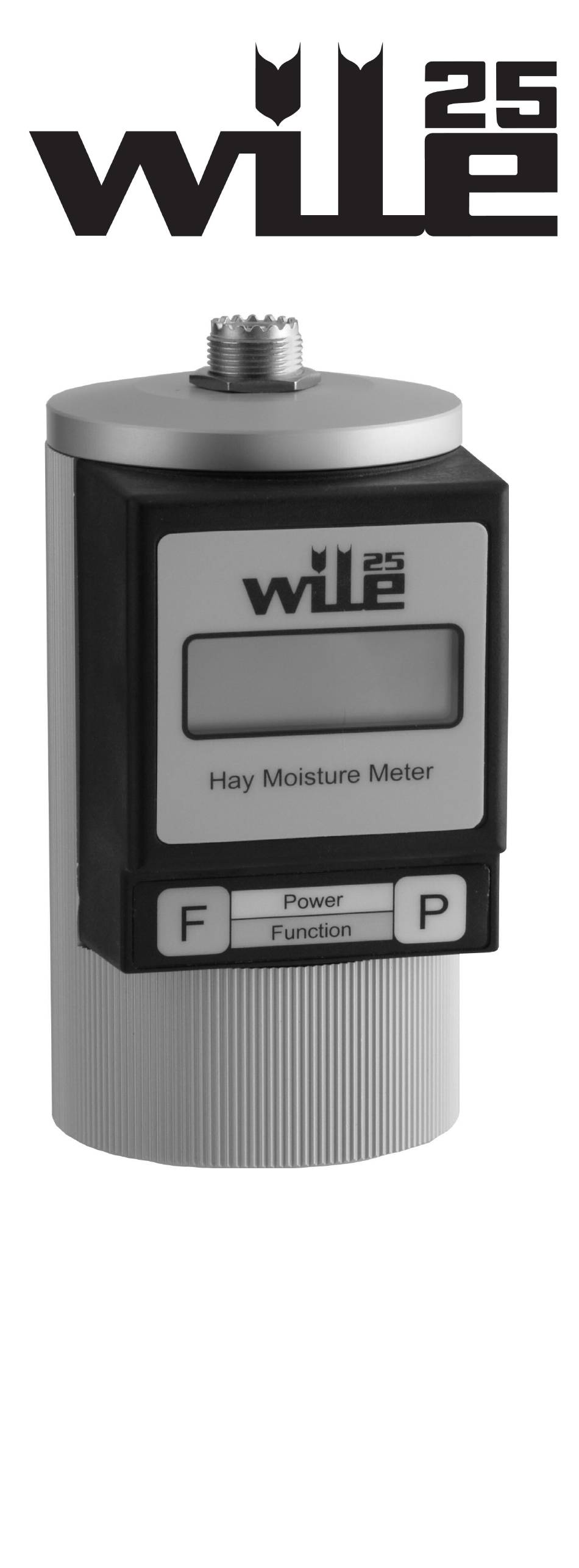

Summary of Contents for Farmcomp Wile 25
- Page 1 Operating instructions...
- Page 2 +/- 2,0 percent of moisture or better Wile 25 meter is calibrated to give uniform results with the official methods that are used for defining the moisture content in hay and silage.
- Page 3 Bale density 80-250 kg/m3 (with 10 kg gradueting) Features - Automatic compensation of the temperature difference of the meter and the environment - Average calculation of measurements -Adjust calibration to match the meter reading with a reference result. 3. MEASUREMENT 3.1 Preparation When the meter is not used for a long time:...
- Page 4 3.1.2 Choosing probe Read the instructions printed on the side of the moisture meter when choosing the right probe. Probe1 – wile 251 for baled hay Wile 251, length 45 cm, is ment for big and small, rektangular or round bales. ( see 3.2.2 baled hay) Probe 2- wile 252 Wile 252, length 90 cm, for baled...
- Page 5 Its imporant to press the dishprobe the whole measuring time (20sek.) 3.2.2 Baled hay Choose wile 251 probe for baled hay (number one 1 in meter). In smaller bales its enough to meaasure once but in bigger bales you need to have several measurements.
- Page 6 volume (m3), the result is the bale density in kg/m3 Rectangular bales Length x Height x Width = Volume Weight ÷ Volume = Density kg/m Large round bales Distance across the bale centre ÷ 1.273 x Width = Volume Weight ÷ Volume = Density kg/m 3.3 Measuring Connnect the right probe to the meter and then press P.
- Page 7 Density for the bale follws ex. 120kg/ m³. Change density when needed. Run apperas in display and meter starts measuring the moisture content. Moisturereadings shown in percentage ex, 28.8 After measuring meter turns of itself. The meter is now ready for the next measurement.
- Page 8 After this meter shows densitysettings and run. Meter is ready for measuring. 3.4.2 Density settings After calculated the density of the bale set the right density in the meter. Press p to turn meter on. Meter shows now probe in use an dthe the density used last time ex.
- Page 9 It means the following: A05 – The avg. is based on 5 measures 28,8 - The avg. moisture % of the results. If you don't want to include the results just wait and the meter will automatically switch off. Then just start again. Before using the average calculation, always check that the average memory is empty.
- Page 10 settings to change future measurements. The calibration can be adjusted up and down. 4.2.1 If you want to add the result Press F twice when the result is on the display. Three bars will appear on the top of the display and after that the moisture reading.
- Page 11 5. Control, care and maintenance All Wile 25 moisture meters are calibrated when manufactured. Before the season starts check the meters basic functions. After pressing P it should read...
- Page 12 display. Moisturereadings – With Wile 251 baleprobe you can check meters readings/calibrations. Connect the probe to the meter. Turn on the meter and coose scale -0-.Hold up the the probe in the air. Probe W251 needs to be between value 2000 +/- 5, that meens betwwen 1995-2005.
- Page 13 The liability of Farmcomp is limited to the price of the product in maximum. Store the meter in some dry place. Don't drop the meter.
- Page 14 Tuusula, Finland Lasse Paakkola July 22, 2010 Managing Director Original language: Finnish Signed Declaration of Conformity documents are filed at Farmcomp Oy Farmcomp Oy, Jusslansuora 8, FIN-04360 Tuusula, Finland tel +358 9 77 44 970, e-mail: info@farmcomp.fi Company ID FI 07308235 Tuusula,...
- Page 15 FARMCOMP OY Jusslansuora 8 TUUSULA, FINLAND Tel. +358 9 7744 970 Fax +358 9 7744 9744 FI-04360 info@farmcomp.fi http://www.wile.fi Copyright Farmcomp Oy 2010, all rights reserved...
