Emergency system set and emergency system set with UPS
Emergency system set
GB
Ref.-no.: NRS .. 0834 ..
Emergency system set with UPS
Ref.-no.: NRS .. 0834-2 ..
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or load.
When installing the emergency system the general safety regulations for telecommunication systems must
be observed according to DIN VDE 0800.
These instructions are an integral part of the product, and must remain with the end customer.
2 Battery safety instructions
WARNING! Improper handling of batteries can result in explosion, fire or chemical burn due to leakage.
Do not heat or throw batteries into fire.
Do not reverse polarity, short-circuit or recharge batteries.
Do not deform or disassemble batteries.
Replace batteries only with an identical or equivalent type.
Remove empty batteries immediately and dispose of in an environmentally friendly manner.
3 System overview

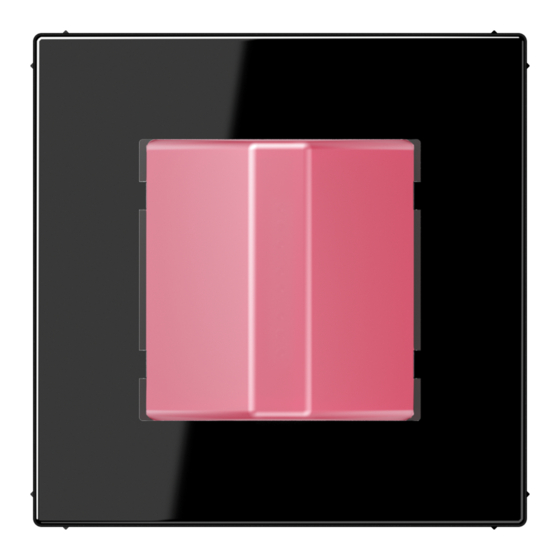

The emergency system set consists of the single devices pull cord button, emergency signal, reset button, power
supply and UPS module.The emergency system set can be extended with the service unit and with call buttons.
1
2
3
Fig. 1: Emergency signal
1. Insert emergency signal
2. Frame
3. Cover emergency signal
0024015123
1 / 11
01.10.2020
