Airbrush & mini compressor kit

Advertisement

AIRBRUSH & MINI
COMPRESSOR KIT
3L 105W
INSTRUCTION MANUAL
SPECIFICATIONS
Input:
220–240V ~ 50Hz
Power:
105W
Tank Capacity:
3L
No Load Speed:
1,400/min
Max. Pressure:
4bar (58psi)
Auto Cut-In Pressure: 3bar (43.5psi)
Flow Rate:
15L/min
Weight:
5.32kg
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO
Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
WARRANTY
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: valve adapters
and accessories.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
STANDARD EQUIPMENT

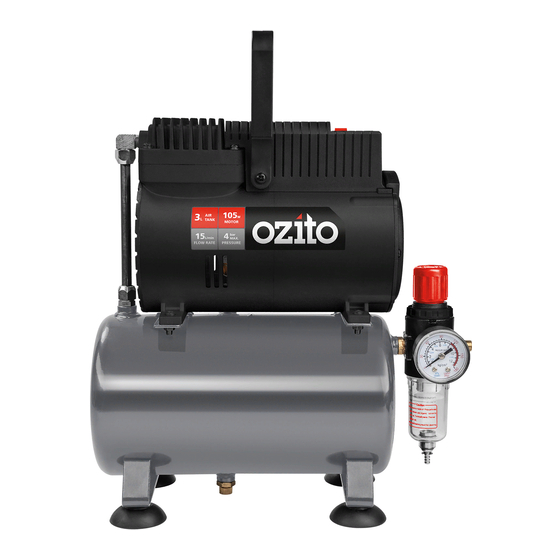

3L Mini Air Compressor
Airbrush
(5)00
6
4
(7)00
PRESSURE GAUGE
(3)00
8
2
(9)00
(1)00
10
0
kg/cm²
kPA
Lb/in²
(BAR)
(PSI)
Paint Cup & 2 x Paint Pots
1.8m Air Hose, Airbrush Holder &
Spanner
4
(5)00
6
(3)00
PRESSURE GAUGE
(7)00
8
2
(9)00
(1)00
10
0
kg/cm²
(BAR)
kPA
(PSI)
Lb/in²
MACK-300
0320
