- Page 1 RJ45 Sockets Push Fit Terminals User Manual LSC Control Systems +61 3 9702 8000 info@lsccontrol.com Version 1 www.lsccontrol.com October 2020...
- Page 2 Information contained in this manual is subject to change without notice. In any event, LSC Control Systems Pty. Ltd. cannot be held liable for any direct, indirect, special, incidental, or consequential damages or loss whatsoever (including, without limitation, damages...
- Page 3 MDR-DIN DMX Splitter User Manual Contents Introduction ....................4 Overview ........................4 Models .......................... 4 Features ........................4 Installation ....................5 Installation ........................5 DMX Cables ......................... 5 Push-Fit Terminals ....................... 6 DMX Pin Outs ......................6 Operation ........................6 RDM Enable .........................

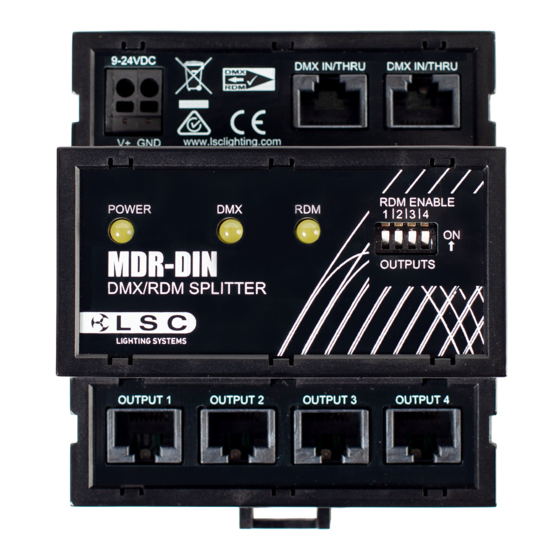

- Page 4 Introduction 1.1 Overview The MDR-DIN splitter is based on the successful range of MDR splitters. It is housed in a 5- module wide DIN plastic enclosure designed to mount onto a standard TS-35 DIN rail as used extensively in the electrical industry to mount circuit breakers and industrial control equipment.
- Page 5 22AWG gauge for continuous lengths over 300 metres Cat 5 UTP (Unshielded Twisted Pair) and STP (Shielded Twisted Pair) cable is acceptable. If you want to make your own cables, LSC recommends using Beldon 9842 (or equivalent). Never use audio cable.
- Page 6 MDR-DIN DMX Splitter User Manual 2.3 Push-Fit Terminals The following cables are suitable for use with the push-fit terminals: • 2.5mm² stranded wire • 4.0mm² solid wire Stripping length is 8mm. Insert a small screwdriver into the slot adjacent to the cable hole. This releases the spring inside the connector.
- Page 7 It does not allow the device to communicate with the controller. MDRD/T Compliance Statements The MDR-DIN from LSC Control Systems Ltd is CE (European) and RCM (Australian) approved. It has been designed and tested to the European Committee for Electrotechnical Standardization (CENELEC) standard– EN55022 (Information Technology Equipment).
